Cisco CCNP Enterprise 350-401 Questions & Answers

• Question 1031:

  Refer to the exhibit.



  Cisco DNA Center has obtained the username of the client and the multiple devices that the client is using on the network. How is Cisco DNA Center getting these context details?

  A. The administrator had to assign the username to the IP address manually in the user database tool on Cisco DNA Center.

  B. Those details are provided to Cisco DNA Center by the Identity Services Engine

  C. Cisco DNA Center pulled those details directly from the edge node where the user connected.

  D. User entered those details in the Assurance app available on iOS and Android devices

  Correct Answer: B

• Question 1032:

  Refer to the exhibit.

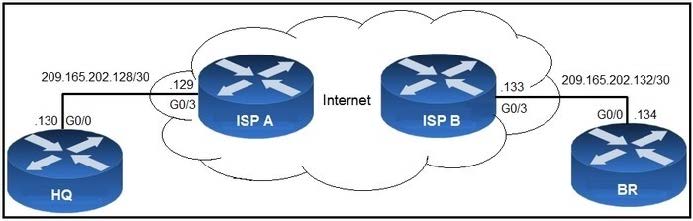

  What is the effect of these commands on the BR and HQ tunnel interfaces?



  A. The tunnel line protocol goes down when the keepalive counter reaches 6

  B. The keepalives are sent every 5 seconds and 3 retries

  C. The keepalives are sent every 3 seconds and 5 retries.

  D. The tunnel line protocol goes down when the keepalive counter reaches 5

  Correct Answer: B

• Question 1033:

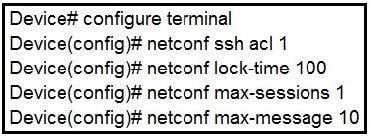

  Refer to the exhibit. A network engineer must configure NETCONF. After creating the configuration, the engineer gets output from the command show line, but not from show runningconfig. Which command completes the configuration?



  A. Device(config)# netconf max-sessions 100

  B. Device(config)# no netconf ssh acl 1

  C. Device(config)# netconf lock-time 500

  D. Device(config)# netconf max-message 1000

  Correct Answer: D

  A : The valid range is 4 to 16 (X

  B : Disable netconf over sshv2 (X

  C : The valid range is 1 to 300 (X

  D : The valid range is 1 to 2147483. The default value is infinite

  Command: netconf max-message <1-2147483> Kbytes. The engineer gets output from the command show line, but not from show running-config, because max-message is too small, it is not enough for data of running-config.

• Question 1034:

  Refer to the exhibit.

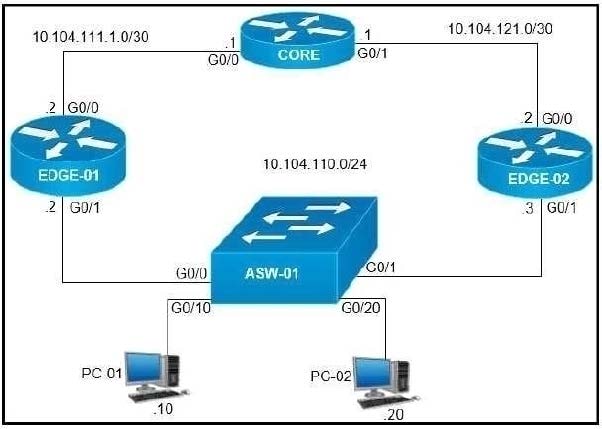

  On which interfaces should VRRP commands be applied to provide first hop redundancy to PC-01 and PC-02?

  A. G0/0 and G0/1 on Core

  B. G0/0 on Edge-01 and G0/0 on Edge-02

  C. G0/1 on Edge-01 and G0/1 on Edge-02

  D. G0/0 and G0/1 on ASW-01

  Correct Answer: C

  Correct as the FRRP protocol should be configured on interfaces that have the end nodes network.

• Question 1035:

  Refer to the exhibit.

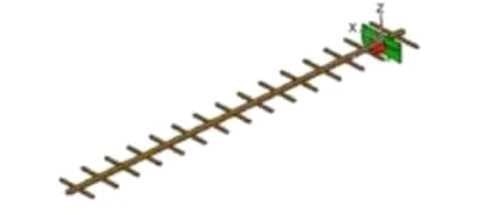

  Which type of antenna does the radiation pattern represent?

  A. Yagi

  B. multidirectional

  C. directional patch

  D. omnidirectional

  Correct Answer: A

  A Yagi antenna is formed by driving a simple antenna, typically a dipole or dipolelike antenna, and shaping the beam using a well-chosen series of non-driven elements whose length and spacing are tightly controlled.



  Reference: https://www.cisco.com/c/en/us/products/collateral/wireless/aironetantennas-accessories/prod_white_paper0900aecd806a1a3e.htm

• Question 1036:

  By default, which virtual MAC address does HSRP group 16 use?

  A. c0:41:99:98:06:16

  B. 00:00:0c:07:ac:16

  C. 00:00:0c:07:ac:22

  D. c0:07:0c:ac:00:22

  Correct Answer: B

• Question 1037:

  Refer to the exhibit.



  Which command set must be added to the configuration to analyze 50 packets out of every 100?

  A. sampler SAMPLER-1 mode random 1-out-of 2 flow FLOW-MONITOR-1 Interface GigabitEthernet 0/0/0 ip flow monitor SAMPLER-1 input

  B. sampler SAMPLER-1 no mode random 1-out-of 2 mode percent 50 interface GigabitEthernet 0/0/0 ip flow monitor FLOW-MONITOR-1 sampler SAMPLER-1 input

  C. interface GigabitEthernet 0/0/0 ip flow monitor FLOW-MONITOR-1 sampler SAMPLER-1 input

  D. flow monitor FLOW-MONITOR-1 record v4_r1 sampler SAMPLER-1 interface GigabitEthernet 0/0/0 ip flow monitor FLOW-MONITOR-1 sampler SAMPLER-1 input

  Correct Answer: C

  Everything is complete and configured correctly, we just have to apply it on an interface.

• Question 1038:

  What is the responsibility of a secondary WLC?

  A. It shares the traffic load of the LAPs with the primary controller.

  B. It avoids congestion on the primary controller by sharing the registration load on the LAPs.

  C. It registers the LAPs if the primary controller fails.

  D. It enables Layer 2 and Layer 3 roaming between Itself and the primary controller.

  Correct Answer: C

  When the primary controller (WLC-1) goes down, the APs automatically get registered with the secondary controller (WLC-2). The APs register back to the primary controller when the primary controller comes back on line. Reference: https://www.cisco.com/c/en/us/support/docs/wireless-mobility/wireless-lan-wlan/69639-wlc-failover.html

• Question 1039:

  Which DHCP option provides the CAPWAP APs with the address of the wireless controller(s)?

  A. 43

  B. 66

  C. 69

  D. 150

  Correct Answer: A

  DHCP option 43 is an option used for providing Wireless LAN Controller IP addresses to the AP. The DHCP option 43 is used to notify the AP to convert into CAPWAP AP.

• Question 1040:

  Which statement about a fabric access point is true?

  A. It is in local mode an must be connected directly to the fabric border node.

  B. It is in FlexConnect mode and must be connected directly to the fabric border node.

  C. It is in local mode an must connected directly to the fabric edge switch.

  D. It is in FlexConnect mode and must be connected directly to the fabric edge switch.

  Correct Answer: C

  Fabric mode APs continue to support the same wireless media services that traditional APs support; apply AVC, quality of service (QoS), and other wireless policies; and establish the CAPWAP control plane to the fabric WLC. Fabric APs join as local-mode APs and must be directly connected to the fabric edge node switch to enable fabric registration events, including RLOC assignment via the fabric WLC. The fabric edge nodes use CDP to recognize APs as special wired hosts, applying special port configurations and assigning the APs to a unique overlay network within a common EID space across a fabric. The assignment allows management simplification by using a single subnet to cover the AP infrastructure at a fabric site.

  Reference: https://www.cisco.com/c/en/us/td/docs/solutions/CVD/Campus/sda-sdg-2019oct.html
