Cisco CCNP Enterprise 350-401 Questions & Answers

• Question 1021:

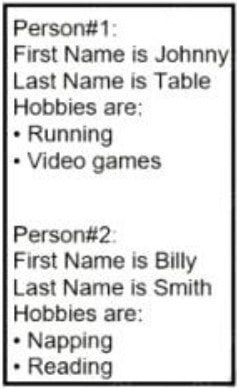

  Refer to the exhibit. Which JSON syntax is derived from this data?



  A. {[{'First Name': 'Johnny', 'Last Name': 'Table', 'Hobbies': ['Running', 'Video games']}, {'First Name': 'Billy', 'Last Name': 'Smith', 'Hobbies': ['Napping', 'Reading']}]}

  B. {'Person': [{'First Name': 'Johnny', 'Last Name': 'Table', 'Hobbies': 'Running', 'Video games'}, {'First Name': 'Billy', 'Last Name': 'Smith', 'Hobbies': 'Napping', 'Reading'}]}

  C. {[{'First Name': 'Johnny', 'Last Name': 'Table', 'Hobbies': 'Running', 'Hobbies': 'Video games'}, {'First Name': 'Billy', 'Last Name': 'Smith', 'Hobbies': 'Napping', 'Reading'}]}

  D. {'Person': [{'First Name': 'Johnny', 'Last Name': 'Table', 'Hobbies': ['Running', 'Video games']}, {'First Name': 'Billy', 'Last Name': 'Smith', 'Hobbies': ['Napping', 'Reading']}]}

  Correct Answer: D

  {

  `Person':

  [

  {

  `First Name': `Johnny',

  `Last Name': `Table',

  `Hobbies': [`Running', `Video games']

  },

  {

  `First Name': `Billy',

  `Last Name': `Smith',

  `Hobbies': [`Napping', `Reading']

  }

  ]

  }

• Question 1022:

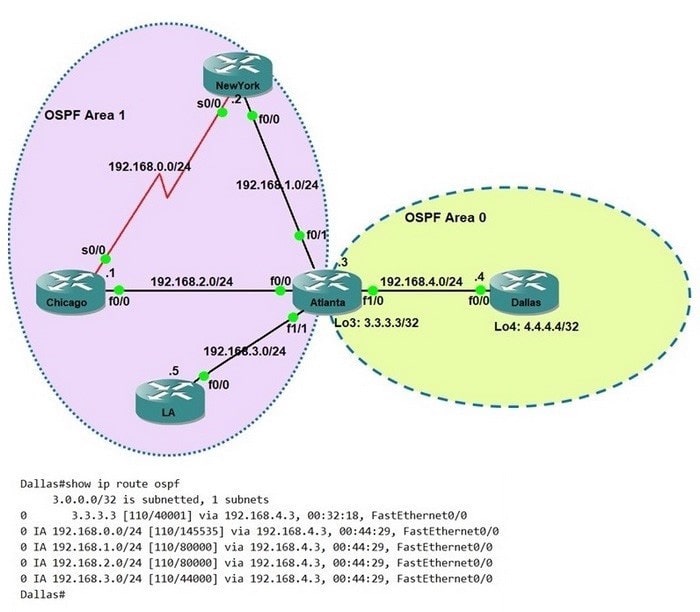

  Refer to the exhibit.



  Which command when applied to the Atlanta router reduces type 3 LSA flooding into the backbone area and summarizes the inter-area routes on the Dallas router?

  A. Atlanta(config-route)#area 0 range 192.168.0.0 255.255.248.0

  B. Atlanta(config-route)#area 0 range 192.168.0.0 255.255.252.0

  C. Atlanta(config-route)#area 1 range 192.168.0.0 255.255.252.0

  D. Atlanta(config-route)#area 1 range 192.168.0.0 255.255.248.0

  Correct Answer: C

• Question 1023:

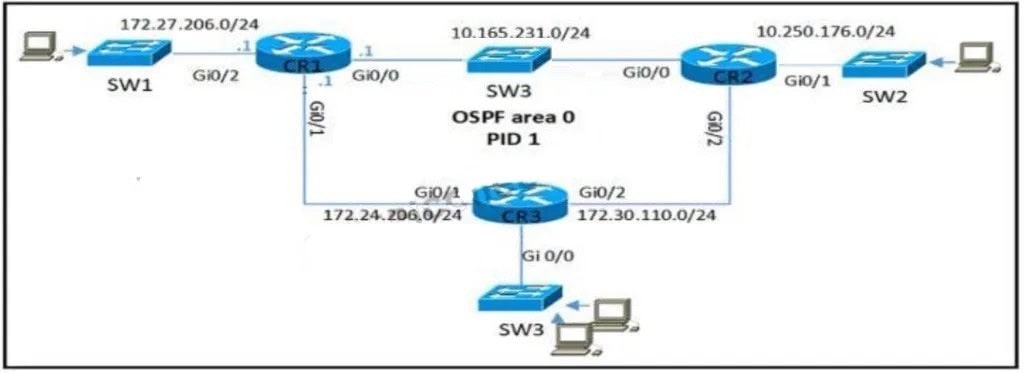

  Refer to the exhibit. CR2 and CR3 ate configured with OSPF. Which configuration, when applied to CR1. allows CR1 to exchange OSPF Information with CR2 and CR3 but not with other network devices or on new Interfaces that are added to CR1?



  A. router ospf 1 network 0.0.0.0 255.255.255.255 area 0 passive-interface GigabitEthernet0/2

  B. router ospf 1 network 10.165.231.0 0.0.0.255 area 0 network 172.27.206.0 0.0.0.255 area 0 network 172.24.206.0 0.0.0.255 area 0

  C. interface Gi0/2 ip ospf 1 area 0 router ospf 1 passive-interface GigabitEthernet0/2

  D. router ospf 1 network 10.0.0.0 0.255.255.255 area 0 network 172.16.0.0 0.15.255.255 area 0 passive-interface GigabitEthernet0/2

  Correct Answer: D

• Question 1024:

  What is a characteristic of Wi-Fi channels?

  A. The 2.4-GHz band has 24 non-overlapping channels.

  B. Devices that connect to the same Wi-Fi channel reside in the same collision domain.

  C. Wi-Fi channels are spaced 30 MHz apart.

  D. The 5-GHz band offers 11 different channels for Wi-Fi clients.

  Correct Answer: B

• Question 1025:

  Which two parameters are examples of a QoS traffic descriptor? (Choose two)

  A. MPLS EXP bits

  B. bandwidth

  C. DSCP

  D. ToS

  E. packet size

  Correct Answer: AC

  From the OCG page 368: "The following traffic descriptors are typically used for classification: Internal: QoS groups (locally significant to a router) Layer 1: Physical interface, subinterface, or port Layer 2: MAC address and 802.1Q/p Class of Service (CoS) bits Layer 2.5: MPLS Experimental (EXP) bits Layer 3: Differentiated Services Code Points (DSCP), IP Precedence (IPP), and source/destination IP address Layer 4: TCP or UDP ports Layer 7: Next Generation Network-Based Application Recognition (NBAR2)".

• Question 1026:

  Which antenna type should be used for a site-to-site wireless connection?

  A. Omnidirectional

  B. dipole

  C. patch

  D. Yagi

  Correct Answer: D

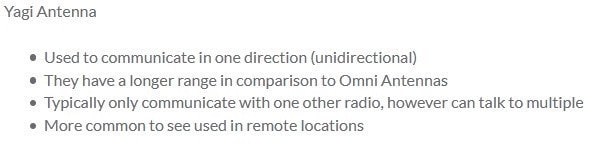

  A Yagi antenna contains a dipole but also has reflectors and directors.

• Question 1027:

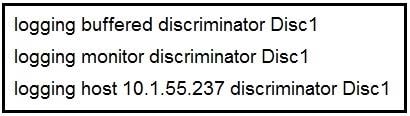

  Refer to the exhibit.



  A network engineer is enabling logging to a local buffer, to the terminal and to a syslog server for all debugging level logs filtered by facility code 7.

  Which command is needed to complete this configuration snippet?

  A. logging buffered debugging

  B. logging discriminator Disc1 severity includes 7

  C. logging buffered discriminator Dlsd debugging

  D. logging discriminator Disc1 severity includes 7 facility includes fac7

  Correct Answer: D

  The "logging discriminator Disc1 severity includes 7 facility includes fac7" command enables the logging discriminator named Disc1 to filter messages with a severity level of 7 (debugging level) and facility code 7.

• Question 1028:

  Which two items are found in YANG data models? (Choose two.)

  A. HTTP return codes

  B. rpc statements

  C. JSON schema

  D. container statements

  E. XML schema

  Correct Answer: BD

• Question 1029:

  What NTP Stratum level is a server that is connected directly to an authoritative time source?

  A. Stratum 0

  B. Stratum 1

  C. Stratum 14

  D. Stratum 15

  Correct Answer: B

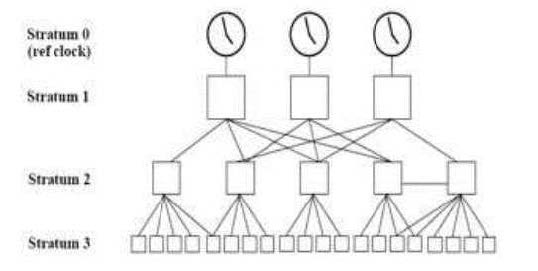

  The stratum levels define the distance from the reference clock. A reference clock is a stratum 0 device that is assumed to be accurate and has little or no delay associated with it. Stratum 0 servers cannot be used on the network but they are directly connected to computers which then operate as stratum-1 servers. A stratum 1 time server acts as a primary network time standard.



  A stratum 2 server is connected to the stratum 1 server; then a stratum 3 server is connected to the stratum 2 server and so on. A stratum 2 server gets its time via NTP packet requests from a stratum 1 server. A stratum 3 server gets its time via NTP packet requests from a stratum-2 server... A stratum server may also peer with other stratum servers at the same level to provide more stable and robust time for all devices in the peer group (for example a stratum 2 server can peer with other stratum 2 servers). NTP uses the concept of a stratum to describe how many NTP hops away a machine is from an authoritative time source. A stratum 1 time server typically has an authoritative time source (such as a radio or atomic clock, or a Global Positioning System (GPS) time source) directly attached, a stratum 2 time server receives its time via NTP from a stratum 1 time server, and so on.

  Reference: https://www.cisco.com/c/en/us/td/docs/routers/asr920/configuration/guide/bsm/16-6-1/b-bsm-xe-16-6-1-asr920/bsm-time-calendar-set.html

• Question 1030:

  What Is the process for moving a virtual machine from one host machine to another with no downtime?

  A. high availability

  B. disaster recovery

  C. live migration

  D. multisite replication

  Correct Answer: C
