Cisco 350-080 Online Practice Questions and Exam Preparation

Cisco 350-080 Online Questions & Answers

• Question 381:

  What would be the cause for the following fault in UCS Manager? "ether VIF x / xxx down, reason: ENM source pinning failed"

  A. The associated VLANs of a vNIC are not found on an uplink.
  B. Overlapping VLAN IDs exist on upstream disjoint networks.
  C. The vNIC was not configured for fabric failover.
  D. The vNIC is pinned to the wrong fabric.
  E. Overlapping VSAN IDs exist on upstream SAN switches.
  F. The vHBA was not configured for failover.
  A. The associated VLANs of a vNIC are not found on an uplink.

• Question 382:

  Assuming the local peer is 10.0.0.1 and the remote peer (configuration not shown) is 10.0.0.2, which of these is used to configure PIM Anycast-RP on a Nexus 7000 switch?

  A. feature pim! interface loopback1 ip address 10.0.0.1/32 ip router ospf 10 area 0.0.0.0 ip pim sparse-mode ! interface loopback2 ip address 2.2.2.2/32 ip router ospf 10 area 0.0.0.0 ip pim sparse-mode ! ip pim anycast-rp 2.2.2.2 10.0.0.1 ip pim anycast-rp 2.2.2.2 10.0.0.2 ip pim rp-address 2.2.2.2 group-list 224.0.0.0/4
  B. feature pim ! interface loopback1 ip address 10.0.0.1/32 ip router ospf 10 area 0.0.0.0 ip pim sparse-mode ! interface loopback2 ip address 2.2.2.2/32 ip router ospf 10 area 0.0.0.0 ip pim sparse-mode ! ip pim anycast-rp 10.0.0.1 2.2.2.2 ip pim anycast-rp 10.0.0.2 2.2.2.2 ip pim rp-address 2.2.2.2 group-list 224.0.0.0/4
  C. interface loopback1 ip address 10.0.0.1/32 ip router ospf 10 area 0.0.0.0 ip pim sparse-mode ! interface loopback2 ip address 2.2.2.2/32 ip router ospf 10 area 0.0.0.0 ip pim sparse-mode ! ip pim anycast-rp 2.2.2.2 10.0.0.1 ip pim anycast-rp 2.2.2.2 10.0.0.2 ip pim rp-address 2.2.2.2 group-list 224.0.0.0/4
  D. feature pim feature msdp ! interface loopback1 ip address 10.0.0.1/32 ip router ospf 10 area 0.0.0.0 ip pim sparse-mode ! interface loopback2 ip address 2.2.2.2/32 ip router ospf 10 area 0.0.0.0 ip pim sparse-mode ! ip msdp originator-id loopback1 ip msdp peer 10.0.0.2 connect-source loopback1 ip msdp description 10.0.0.2 To 7010-2 ip msdp password 10.0.0.2 mypassword ! ip pim rp-address 2.2.2.2 group-list 224.0.0.0/4
  A. feature pim! interface loopback1 ip address 10.0.0.1/32 ip router ospf 10 area 0.0.0.0 ip pim sparse-mode ! interface loopback2 ip address 2.2.2.2/32 ip router ospf 10 area 0.0.0.0 ip pim sparse-mode ! ip pim anycast-rp 2.2.2.2 10.0.0.1 ip pim anycast-rp 2.2.2.2 10.0.0.2 ip pim rp-address 2.2.2.2 group-list 224.0.0.0/4

• Question 383:

  Which statement is true regarding Backup tasks in Cisco UCS?

  A. They are created automatically and stored on the FI
  B. They are created manually and exported to a remote server
  C. They are automatically scheduled to run every 24 hours
  D. They are manually scheduled and stored on the FI
  B. They are created manually and exported to a remote server

• Question 384:

  Which mode must the Cisco MDS VSAN be configured for so that it interoperates correctly with a Brocade Fibre Channel switch that is configured for interop mode?

  A. interop mode 2
  B. interop mode 1
  C. native mode
  D. interop mode 4
  E. interop mode 3
  B. interop mode 1

• Question 385:

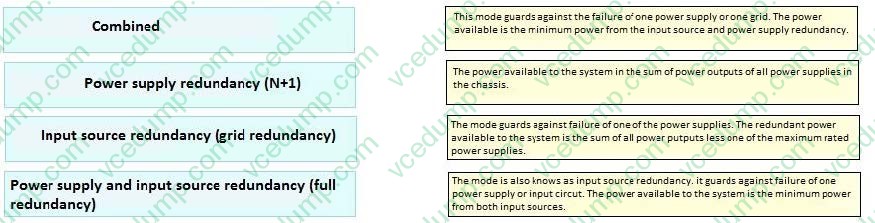

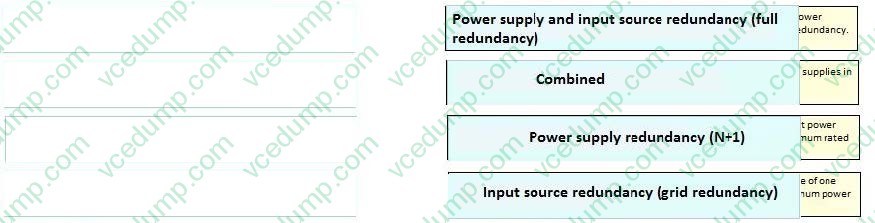

  Drag and drop the mode of operation on left onto the correct definition on right.

  Select and Place:





• Question 386:

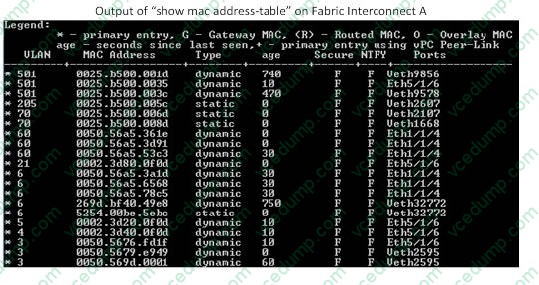

  Refer to the exhibit.



  Fabric Interconnect A, operating in end-host mode, receives an ingress frame with source MAC address 0025.b500.0035 on uplink Eth1/19.

  Which statements are true? (Choose two.)

  A. The frame will be accepted. Fabric Interconnect A will update its MAC address table to show that 0025.b500.0035 is dynamically learned on Eth1/19 and no longer dynamically learned on Eth5/1/6.
  B. Fabric Interconnect A will transmit a Gratuitous ARP for 0025.b500.0035 since it has moved ports, and the upstream network needs to be notified of the new location.
  C. Fabric Interconnect A will drop the frame.
  D. The MAC address table will not be updated as a result of receiving this frame on an uplink.
  E. Reverse Path Forwarding will determine whether or not this frame is dropped by Fabric Interconnect A.
  F. Deja vu will determine whether or not this frame is dropped by Fabric Interconnect A.
  C. Fabric Interconnect A will drop the frame.
  D. The MAC address table will not be updated as a result of receiving this frame on an uplink.

• Question 387:

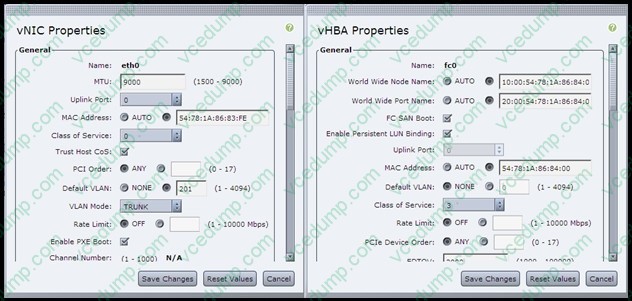

  Refer to the exhibit.



  You are configuring a UCS C-Series server for SAN boot over FCoE. The server fails to boot after the HBA option ROM loads. Which option describes the most likely solution for this problem?

  A. Decrease the vNIC MTU.
  B. Set the vNIC Class of Service to a nonzero value.
  C. Set the default VLAN to FCOE VLAN.
  D. Set the vHBA Class of Service to 2.
  E. Uncheck the PXE Boot option.
  F. Disable Persistent LUN Binding.
  C. Set the default VLAN to FCOE VLAN.

• Question 388:

  Which two methods can be used in communications between the Cisco Nexus 1000V VEM and the VSM? (Choose two.)

  A. routed TCP traffic using HTTPS
  B. routed UDP traffic using port 4785
  C. routed UDP traffic using port 7845 D. Layer 2 direct traffic using MAC addresses
  E. Layer 2 broadcast traffic
  F. routed TCP traffic using port 4785
  G. routed TCP traffic using port 7845
  B. routed UDP traffic using port 4785

• Question 389:

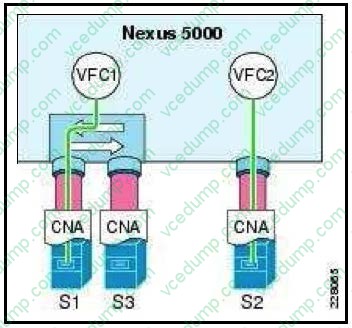

  Refer to the exhibit.



  The servers in this network are connected to an A-B SAN design. What is required for hosts to support a high-availability Fibre Channel connection to a storage controller?

  A. Multipath drivers should be installed on all the servers.
  B. Multipath drivers should be installed on the CNA of S1 and S3.
  C. High availability for Fibre Channel is controlled by the storage controller, and there is no need to add or make changes on the server side.
  D. S1 and S3 require that multipath drivers are installed, but S2 does not.
  E. Multipath drivers should be installed on all CNAs of all servers.
  A. Multipath drivers should be installed on all the servers.

• Question 390:

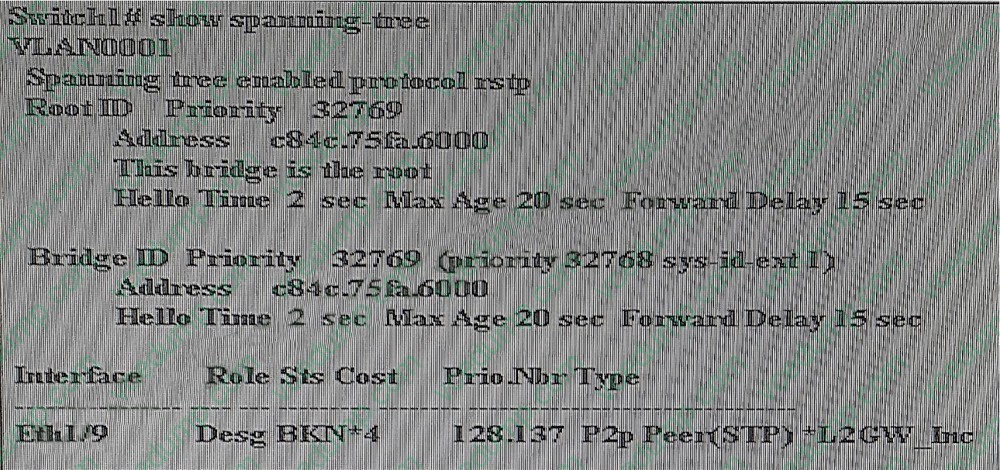

  Refer to the exhibit.



  The switch is running FabricPath, however the CE port e1/9 is not on spanning tree forwarding. Which option describes the possible cause?

  A. Switch 1 is not configured with FabricPath.
  B. Bridge assurance is configured on switch1 E1/9 but not configured on the facing interface.
  C. Switch 1 is receiving better BPDU on E1/9.
  D. Loopguard feature is blocking the port.
  C. Switch 1 is receiving better BPDU on E1/9.
