F5 303 Online Practice Questions and Exam Preparation

F5 303 Online Questions & Answers

• Question 431:

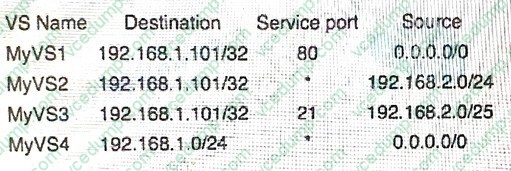

  A virtual server configuration for traffic destined to a server is as shown:



  FTP traffic is destined to the 192.168.1.101 server from the source of192.168.2.129. Based on precedence, which virtual server accepts this traffic?

  A. MyVS4
  B. MyV53
  C. MyVS1
  D. MyVS2
  D. MyVS2

• Question 432:

  A BIG-IP Administrator needs to find which modules have been licensed for use on the BIG-IP system. In which section of the Configuration Utility can the BIG-IP Administrator find this information?

  A. System > Services
  B. System > Resource Provisioning
  C. System > Platform
  D. System > Support
  B. System > Resource Provisioning

• Question 433:

  The end users of a web application need to verify that their browsers received the complete message-body from the web server. Which HTTP header will accomplish this?

  A. Range
  B. Expect
  C. Accept-Ranges
  D. Content-Length
  D. Content-Length

• Question 434:

  An LTM Specialist connects to an LTM device via the serial console cable and receives unreadable output. The LTM Specialist is using the appropriate cable and connecting it to the correct serial port. Which command should the LTM Specialist run through ssh to verify that the baud rate settings for the serial port are correct on the LTM device?

  A. tmsh list /sys console
  B. tmsh edit /sys console
  C. tmsh show /sys console
  D. tmsh show /ltm console
  C. tmsh show /sys console

• Question 435:

  A BIG-IP Administrator finds the following log entry after a report of user issues connecting to a virtual server:

  01010201: 2: Inet port exhaustion on 10.70.110.112 to 192.28.123.250:80 (proto 6)

  How should the BIG-IP Administrator modify the SNAT pool that is associated with the virtual server?

  A. Remove the SNAT pool and apply SNAT Automap.
  B. Remove an IP address from the SNAT pool.
  C. Add an address to the SNAT pool.
  D. Increase the timeout of the SNAT addresses.
  C. Add an address to the SNAT pool.

• Question 436:

  A web application is configured as follows:



  What should be modified to set a maximum request limit?

  A. Virtual server settings
  B. HTTP profile
  C. Pool settings
  D. ICP Profile
  B. HTTP profile

• Question 437:

  A 8IG-IP Administrator configures a Virtual Server to load balance traffic between 50 webservers for an ecommerce website Traffic is being load balanced using the Least Connections (node) method.

  The webserver administrators report that customers are losing the contents from their shopping carts and are unable to complete their orders.

  What should the BIG-IP Administrator do to resolve the issue?

  A. Change Default Persistence Profile setting to cookie
  B. Change Load Balancing method to Ratio (member)
  C. Change Default Persistence Profile setting to sipjnfo
  D. Change Load Balancing method to Ratio (node)
  A. Change Default Persistence Profile setting to cookie

• Question 438:

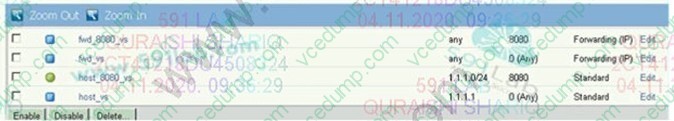

  Refer to the exhibit



  A connection is being established to IP 1.1.1.1 on port 8080. Which virtual server will handle the connection?

  A. fwd_8080_vs
  B. host_vs
  C. host_ 8080_VS
  D. fwdvs
  B. host_vs

• Question 439:

  A web developer has created a custom HTTP call to a backend application. The HTTP headers being sent by the HTTP call are: GET / HTTP/1.1

  User-Agent: MyCustomApp (v1.0) Accept: text/html Cache-Control: no-cache Connection: keep-alive CookiE. somecookie=1 The backend server is responding with the following: HTTP/1.1 400 Bad Request DatE. Wed, 20 Jul 2012 17:22:41 GMT Connection: close Why is the HTTP web server responding with a HTTP 400 Bad Request?

  A. The client request does NOT include a Host header.
  B. The User-Agent header contains an invalid character.
  C. The web server is NOT expecting a keep-alive connection.
  D. The web server is configured to accept HTTP 1.0 requests only.
  A. The client request does NOT include a Host header.

• Question 440:

  An LTM Specialist needs to modify the logging level for tcpdump execution events. Checking the BigDB Key, the following is currently configured:

  sys db log.tcpdump.level {

  value "Notice"

  }

  Which command should the LTM Specialist execute on the LTM device to change the logging level to informational?

  A. tmsh set /sys db log.tcpdump.level value informational
  B. tmsh set /sys db log.tcpdump.level status informational
  C. tmsh modify /sys db log.tcpdump.level value informational
  D. tmsh modify /sys db log.tcpdump.level status informational
  C. tmsh modify /sys db log.tcpdump.level value informational
