F5 303 Online Practice Questions and Exam Preparation

F5 303 Online Questions & Answers

• Question 451:

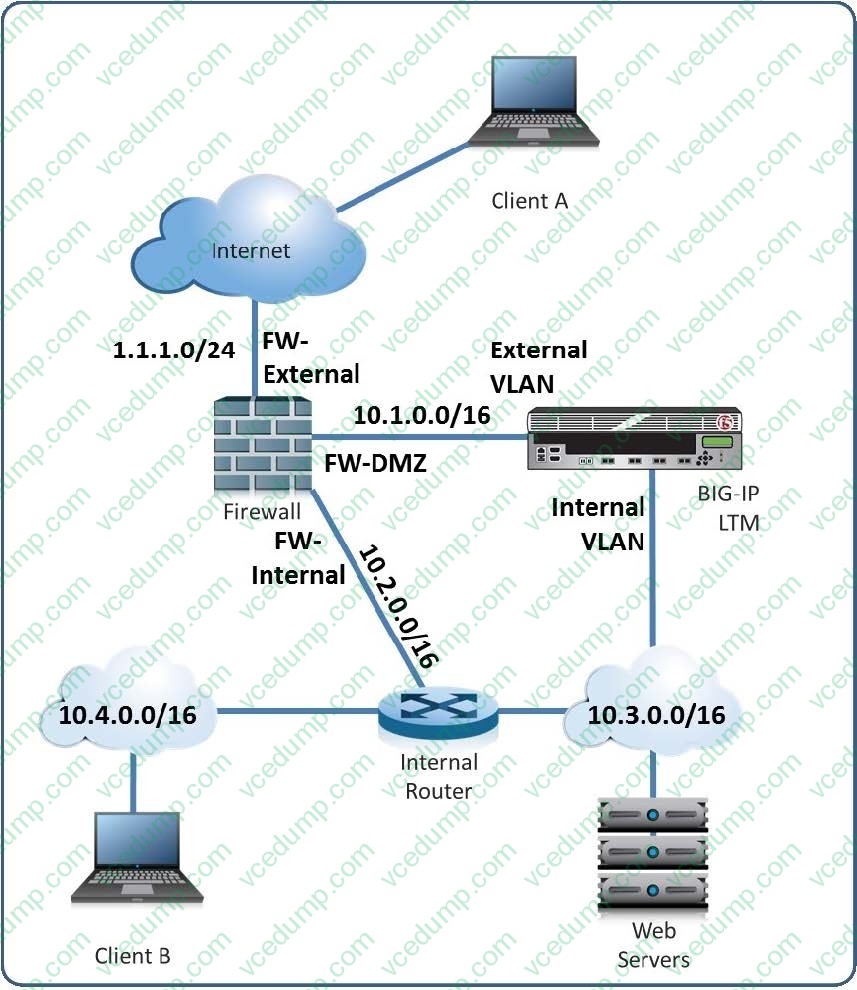

  Refer to the exhibit.



  A layer 2 nPath routing configuration has been deployed. A packet capture contains a client connection packet with the following properties:

  Source IP:

  Destination IP:

  At which two locations could the packet capture have been taken? (Choose two.)

  A. the network interface of web server
  B. the DMZ interface of the Internet firewall
  C. the internal interface of the Internet firewall
  D. the external VLAN interface of the LTM device
  A. the network interface of web server
  C. the internal interface of the Internet firewall

• Question 452:

  An ITM Specialist has the configuration shown: The LTM Specialist needs to create a new virtual server in part

  B. Which virtual address(es) should be used for the new virtual server?



  A. 10.100.0.1 and.10.120.0.1
  B. 10.90.0.1 and 10.12.0.1
  C. 10.120.0.1 only
  D. 10.90.0.1 and 10.100.0.1
  A. 10.100.0.1 and.10.120.0.1

• Question 453:

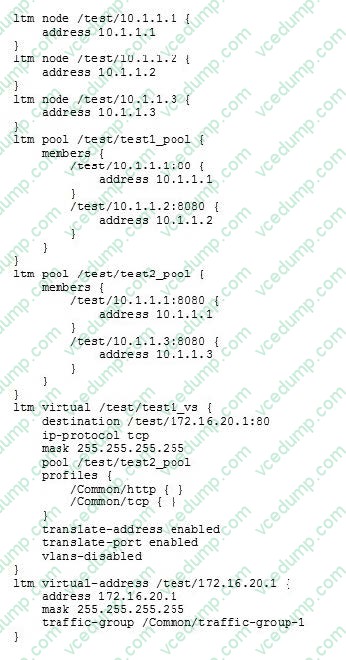

  Refer to the exhibit.



  An LTM Specialist is reviewing the 'test' partition.

  Which objects, in order, can be removed from the partition?

  A. delete pool test1_pool, delete node 10.1.1.2
  B. delete node 10.1.1.2, delete pool test2_pool
  C. delete pool test1_pool, delete node 10.1.1.2, delete node 10.1.1.1
  D. delete virtual test1_vs, delete pool test2_pool, delete node 10.1.1.1
  E. delete pool test1_pool, delete pool test2_pool, delete node 10.1.1.3
  A. delete pool test1_pool, delete node 10.1.1.2

• Question 454:

  Refer to the exhibit.



  After upgrading LTM from v10 to v11, users are unable to connect to an application. The virtual server is using a client SSL profile for re-terminating SSL for payload inspection, but a server SSL profile is being used to re-encrypt the request.

  A client side ssldump did NOT show any differences between the traffic going directly to the server and the traffic being processed by the LTM device. However, packet capture was done on the server, and differences were noted.

  Which modification will allow the LTM device to process the traffic correctly?

  A. Enable Strict Resume.
  B. Change Secure Renegotiation to "Request."
  C. Enable ProxySSL option in the server SSL profile.
  D. Change to different ciphers on the server SSL profile.
  B. Change Secure Renegotiation to "Request."

• Question 455:

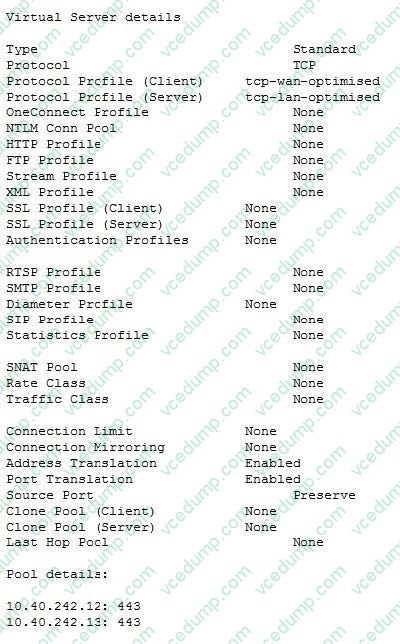

  Refer to the exhibit.



  An LTM device is used to load balance web content over a secure channel.

  The developers of the web content have done a trace using an HTTP profiler application. They believe that allowing the LTM device to compress traffic to the client will improve performance. The client can utilize GZIP or deflate compression

  algorithms.

  An LTM Specialist must implement the compression. The LTM Specialist has completed the following actions:

  1.Create the relevant profile.

  2.Apply the relevant profile to the virtual server (VS).

  After applying the relevant profile, the LTM device is failing to compress the traffic. Instead, the traffic is being served with an error.

  What is the problem?

  A. The incorrect compression algorithm is applied to the compression profile.
  B. The LTM device CANNOT SSL offload the traffic in order to read and compress it.
  C. The Protocol Profile (Client) option of "Allow Compression" needs to be enabled.
  D. The Protocol Profile (Server) option of "Allow Compression" needs to be enabled.
  B. The LTM device CANNOT SSL offload the traffic in order to read and compress it.

• Question 456:

  An LTM Specialist has set up a custom SNMP alert.

  Which command line tool should the LTM Specialist use to test the alert?

  A. logger
  B. logtest
  C. testlog
  D. snmptest
  A. logger

• Question 457:

  An LTM Specialist toconfigure a backend server to be disabled it takes longer than 30 seconds to respond to a request. Which values should the LTM Specialist enter for interval and timeout?

  A. Interval 10, timeout 30
  B. Interval 10, timeout 31
  C. Interval 30, timeout 30
  D. Interval 30, timeout 91
  B. Interval 10, timeout 31

• Question 458:

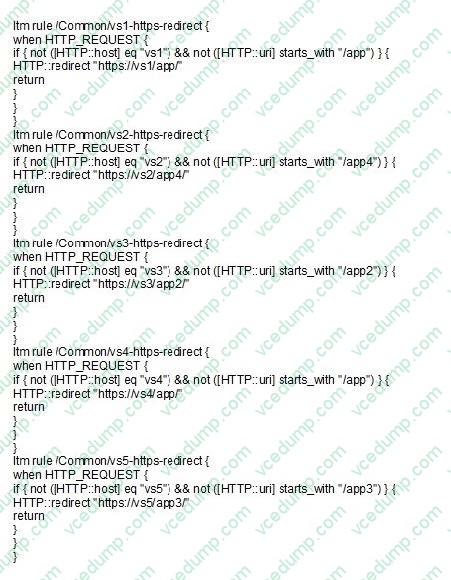

  Refer to the exhibit.



  Which two items can be consolidated to simplify the LTM configuration? (Choose two.)

  A. /Common/vs1-https-redirect
  B. /Common/vs2-https-redirect
  C. /Common/vs3-https-redirect
  D. /Common/vs4-https-redirect
  E. /Common/vs5-https-redirect
  A. /Common/vs1-https-redirect
  D. /Common/vs4-https-redirect

• Question 459:

  A set of servers is used for an FTP application as well as an HTTP website via separate BIG-IP Pools. The server support team reports that some servers are receiving a lot more traffic than others. Which Load Balancing Method should the BIG-IP Administrator apply to even out the connection count?

  A. Ratio (Member)
  B. Least Connections (Member)
  C. Least Connections (Node)
  D. Ratio (Node)
  C. Least Connections (Node)

• Question 460:

  A web developer needs a virtual server configured for an application.

  The application details are asfollows:

  Application is accessed on port 443. The application traffic is encrypted by the server.

  HTTP is not being used. No data manipulation is necessary.

  Throughput is critical.

  NO connections are terminated on the LTM.

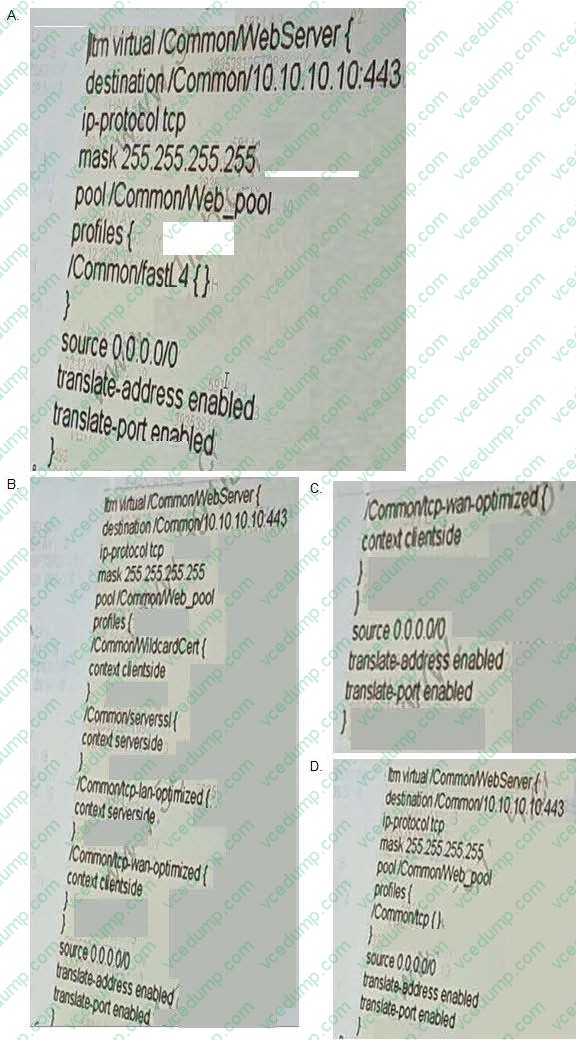

  Which configuration provides thebest performance?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  B. Option B
