F5 303 Online Practice Questions and Exam Preparation

F5 303 Online Questions & Answers

• Question 421:

  An LTM Specialist configures the following iRule on an LTM device:

  when HTTP_REQUEST {

  if {[string tolower [HTTP::uri]] contains "/URI1/" } {

  pool Pool1

  }

  elseif {[string tolower [HTTP::uri]] contains "/URI2/" } {

  pool Pool2

  }

  elseif {[string tolower [HTTP::uri]] contains "/URI3/" } {

  pool Pool3

  }

  else { pool Pool4}

  }

  Given the following request: http://www.example.comURI1/index.html?fu=barandpass=1234

  Which pool will be selected by the iRule?

  A. Pool1
  B. Pool2
  C. Pool3
  D. Pool4
  D. Pool4

• Question 422:

  A LTM device needs to load balance active and passive FTP traffic while using only a single virtual server. Which virtual server type should an LTM Specialist configure on the LTM device?

  A. Forwarding (Layer 2)
  B. Standard
  C. Stateless
  D. DHCP relay
  E. Forwarding (IP)
  E. Forwarding (IP)

• Question 423:

  A BIG-IP Administrator needs to apply a health monitor for a pool of database servers named DB_Pool that uses TCP port 1521. Where should the BIG-IP Administrator apply this monitor?

  A. Local Traffic > Profiles Protocol>; TCP
  B. Local Traffic > Nodes > Default Monitor
  C. Local Traffic > Pools > De Pool > Members
  D. Local Traffic > Pools > DB Pool > Properties
  D. Local Traffic > Pools > DB Pool > Properties

• Question 424:

  Interface 1.2 on a BIG-IP VE has a status of UNINITIALIZED. What is the reason for this status?

  A. Interface 1.2 has been added to a trunk.
  B. Interface 1.2 has NOT been assigned to a VLAN.
  C. Interface 1.2 has been disabled.
  D. No default route has been created.
  B. Interface 1.2 has NOT been assigned to a VLAN.

• Question 425:

  The LTM device is configured to provide load balancing to a set of web servers that implement access control lists (ACL) based on the source IP address of the client. The ACL is at the network level and the web server is configured to send a

  TCP reset back to the client if it is NOT permitted to connect.

  The virtual server is configured with the default OneConnect profile.

  The ACL is defined on the web server as:

  Permit: 192.168.136.0/24

  Deny: 192.168.116.0/24

  The packet capture is taken of two individual client flows to a virtual server with IP address 192.168.136.100.

  Client A - Src IP 192.168.136.1 - Virtual Server 192.168.136.100:

  Clientside:

  09:35:11.073623 IP 192.168.136.1.55684 > 192.168.136.100.80: S 869998901:869998901(0) win 8192

  09:35:11.073931 IP 192.168.136.100.80 > 192.168.136.1.55684: S 2273668949:2273668949(0) ack 869998902 win 4380

  09:35:11.074928 IP 192.168.136.1.55684 > 192.168.136.100.80: . ack 1 win 16425

  09:35:11.080936 IP 192.168.136.1.55684 > 192.168.136.100.80: P 1:299(298) ack 1 win 16425

  09:35:11.081029 IP 192.168.136.100.80 > 192.168.136.1.55684: . ack 299 win 4678

  Serverside:

  09:35:11.081022 IP 192.168.136.1.55684 > 192.168.116.128.80: S 685865802:685865802(0) win 4380

  09:35:11.081928 IP 192.168.116.128.80 > 192.168.136.1.55684: S 4193259095:4193259095(0) ack 685865803 win 5840

  09:35:11.081943 IP 192.168.136.1.55684 > 192.168.116.128.80: . ack 1 win 4380

  09:35:11.081955 IP 192.168.136.1.55684 > 192.168.116.128.80: P 1:299(298) ack 1 win

  09:35:11.083765 IP 192.168.116.128.80 > 192.168.136.1.55684: . ack 299 win 108

  Client B - Src IP 192.168.116.1 - Virtual Server 192.168.136.100:

  Clientside:

  09:36:11.244040 IP 192.168.116.1.55769 > 192.168.136.100.80: S 3320618938:3320618938(0) win 8192

  09:36:11.244152 IP 192.168.136.100.80 > 192.168.116.1.55769: S 3878120666:3878120666(0) ack 3320618939 win 4380

  09:36:11.244839 IP 192.168.116.1.55769 > 192.168.136.100.80: . ack 1 win 16425

  09:36:11.245830 IP 192.168.116.1.55769 > 192.168.136.100.80: P 1:299(298) ack 1 win 16425

  09:36:11.245922 IP 192.168.136.100.80 > 192.168.116.1.55769: . ack 299 win 4678 Serverside:

  09:36:11.245940 IP 192.168.136.1.55684 > 192.168.116.128.80: P 599:897(298) ack 4525 win 8904

  09:36:11.247847 IP 192.168.116.128.80 > 192.168.136.1.55684: P 4525:5001(476) ack 897 win 142

  Why was the second client flow permitted by the web server?

  A. A global SNAT is defined.
  B. SNAT automap was enabled on the virtual server.
  C. The idle TCP session from the first client was re-used.
  D. A source address persistence profile is assigned to the virtual server.
  C. The idle TCP session from the first client was re-used.

• Question 426:

  Which iRule statement demotes a virtual server from CMP?

  A. set ::foo 123
  B. set static::foo 123
  C. persist source_addr 1800
  D. [ class match $HTTP_CONTENT contains my_data_class ]
  A. set ::foo 123

• Question 427:

  A stand-alone LTM device is to be paired with a second LTM device to create an active/standby pair. The current stand-alone LTM device is in production and has several VLANs with floating IP addresses configured. The appropriate device service clustering (DSC) configurations are in place on both LTM devices.

  Which two non-specific DSC settings should the LTM Specialist configure on the second LTM device to ensure no errors are reported when attempting to synchronize for the first time? (Choose two.)

  A. pools
  B. VLANs
  C. default route
  D. self IP addresses
  B. VLANs
  D. self IP addresses

• Question 428:

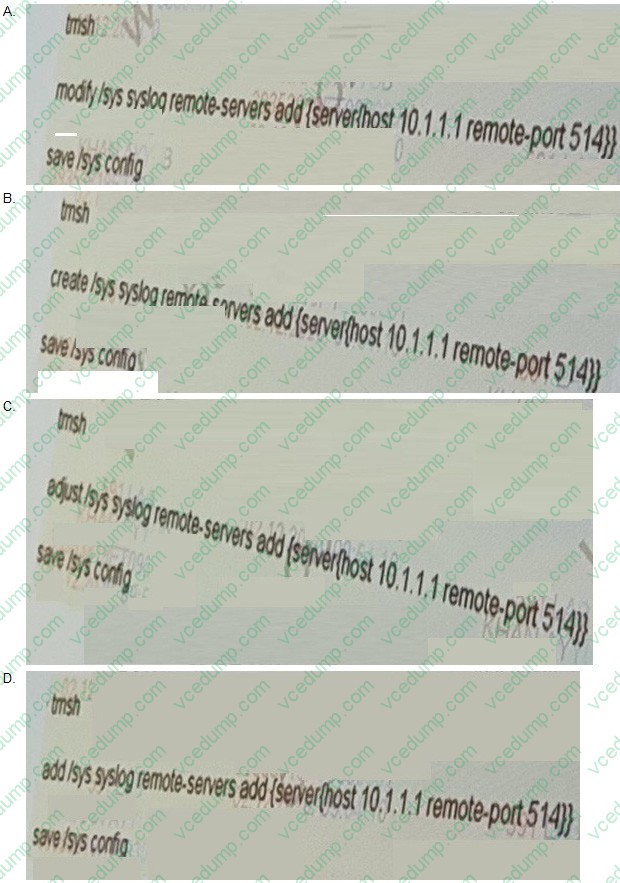

  The network team has recently added a new syslog server with IP address 10.1.1.1. Which command adds the new syslog entry on the F5 LTM device?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  C. Option C

• Question 429:

  A Client makes the request displayed below to the application server.

  Which virtual server type should an LTM Specialist use to load balance based on the URI?

  A. Forwarding (Layer 2)
  B. Stateless
  C. Standard
  D. Performance (Layer 4)
  C. Standard

• Question 430:

  Refer to the Exhibit.



  An LTM Specialist notices that two members in a pool are overloaded. To relive the existing members a fourth member (10.128.20.14) is brought up. How many member will receive and process new connections?

  A. 4
  B. 3
  C. 2
  D. 1
  C. 2
