• Question 181:

  An engineer is operating data center environment that hosts data-intensive financial applications. The applications are mostly processing HTTP/HTTPS data with large data segments, which results in a CPU contention due to the significant network processing.

  Which set of Ethernet adapter policies must be selected to resolve the issue?

  A. Receive Checksum Offload field set to Disabled TCP Segmentation Offload field set to Disabled Transmit Queues field: 32 Ring Size field: 256
  B. Receive Checksum Offload field set to Enabled TCP Segmentation Offload field set to Disabled Transmit Queues field: 64 Ring Size field: 128
  C. Receive Checksum Offload field set to Enabled TCP Segmentation Offload field set to Enabled Transmit Queues field: 128 Ring Size field: 64
  D. Receive Checksum Offload field set to Disabled TCP Segmentation Offload field set to Enabled Transmit Queues field: 256 Ring Size field: 128
  B. Receive Checksum Offload field set to Enabled TCP Segmentation Offload field set to Disabled Transmit Queues field: 64 Ring Size field: 128

• Question 182:

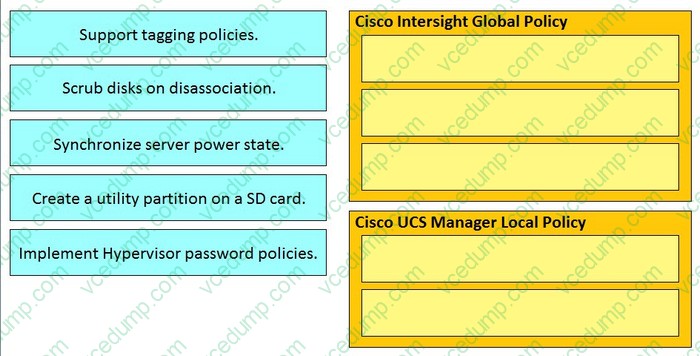

  DRAG DROP

  Drag the requirements from the left onto the correct policy types on the right.

  Select and Place:





  ---

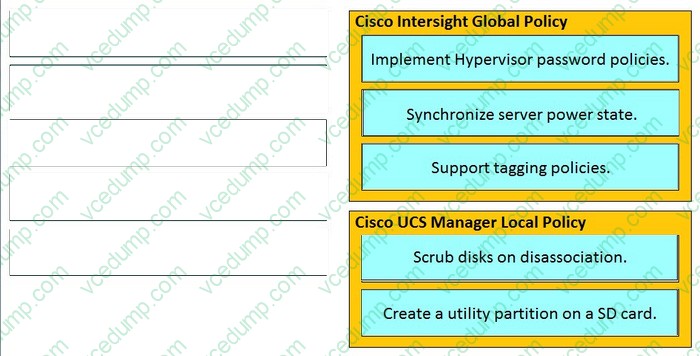

  Explanation/Reference:

• Question 183:

  An engineer must connect a Cisco UCS B-Series based system to an existing large storage area network fabric. The deployment must support hardware-based load balancing, prevent Fibre Channel domain ID exhaustion, and enable all blade servers to be in the same VSAN.

  Which set of actions meets the requirements?

  A. Enable Fibre Channel end-host mode on the fabric interconnect and NPIV mode on the SAN switch. Create an F Port channel that faces the fabric interconnect.
  B. Connect the fabric interconnect to the E Ports on the SAN switch. Create a SAN port channel.
  C. Configure Ethernet end-host automatic load balancing on the fabric interconnect. Set NL port mode on the SAN switch.
  D. Place all interfaces that face the fabric interconnects in the same VSAN. Disable zoning for the VSAN.
  A. Enable Fibre Channel end-host mode on the fabric interconnect and NPIV mode on the SAN switch. Create an F Port channel that faces the fabric interconnect.

• Question 184:

  An enterprise is experiencing transmission errors and excessive deploys over their WAN when backing up user workstations.

  A systems architect decided to resolve the problems by centralizing data storage and processing to within the confines of the data center.

  Which technology is most suitable to mitigate the issues?

  A. VDI
  B. QoS
  C. VDC
  D. RAS
  B. QoS

• Question 185:

  An architect is gathering technical requirements tor a large-scale data center with up to 3000 Ethernet ports and 70 ToR switches.

  The stakeholders agreed that it a ToR switch becomes compromised via its management plane, access to the production data plane must not be possible tram that switch.

  Which type of management network must the architect recommend in the design?

  A. out-of-band dialup
  B. in-band Ethernet
  C. out-of-band Ethernet
  D. in-band dialup
  C. out-of-band Ethernet

• Question 186:

  An engineer must implement an iSCSI storage connectivity in the existing Cisco UCS environment. The environment is based on Cisco UCS-Series rack server, Cisco Nexus 1000V Series Switches, and VMware ESXi hosts. The implementation must meet these requirements:

  1.

  Provide multipathing and high availability in the event of a critical path failure.

  2.

  Be cost-effective and not require the purchase of new equipment.

  Which two components must be selected to meet these requirements? (Choose two.)

  A. software iSCSI adapter
  B. storage binding
  C. uplink pinning
  D. system VLAN
  E. hardware iSCSI NIC
  A. software iSCSI adapter
  B. storage binding

• Question 187:

  An engineer must design a DNS service available to multiple network zones as a shared service. The network zones are deployed as VRFs within the data center network and no firewall is available for communication between VRFs.

  Which protocol is needed to implement the shared services?

  A. BGP
  B. OSPF
  C. ISIS
  D. VXLAN
  D. VXLAN

• Question 188:

  A network engineer must perform a VMM integration for the VMWare vCenter platform with the Cisco ACI Fabric. The vCenter is already installed in one of the rack servers connected to ACI leaf switches in a vPC mode. Which type of management network must be used to integrate vCenter with ACI?

  A. ARC infra
  B. VLAN infra
  C. out-of-band management
  D. In-band management
  C. out-of-band management

• Question 189:

  Which element is the main functional component of the architecture that separates the internal fabric and the external network that connects sites when VXLAN EVPN is deployed multisite?

  A. border leaf
  B. service leaf
  C. border gateway
  D. service gateway
  C. border gateway

  ---

  The main functional component of the EVPN Multi-Site architecture is the border gateway, or BGW. BGWs separate the fabric-side (site-internal fabric) from the network that interconnects the sites (site-external DCI) and mask the site-internal VTEPs. link:https://www.cisco.com/c/en/us/products/collateral/switches/nexus-9000-series-switches/white-paper-c11-739942.html

• Question 190:

  A customer asks an engineer to develop a framework to configure Cisco services that will be used to replace process of manual device configuration. The engineer plans to use a programmatic interface and must keep these considerations in mind:

  1.

  The customer's environment requires the script to authenticate before executing further actions.

  2.

  The customer's security requirements mandate the use of HTTPS transport.

  3.

  The support stall has limited shell scripting knowledge, so the scripts should be easy to read and write and be serf-documenting. Which two solutions should be used to meet these requirements? (Choose two.)

  A. Python scripts
  B. REST calls
  C. Bash scripts
  D. domain-based policies
  E. YAML
  A. Python scripts
  B. REST calls
