Cisco 300-610 Online Practice Questions and Exam Preparation

Cisco 300-610 Online Questions & Answers

• Question 1:

  Refer to the exhibit.



  Fiber links are provisioned directly between the spine and leaf switches in the given LAN topology A/30 prefix has been configured over each fiber link to provide underlay connectivity for a VXLAN network.

  The network-engineering team must update the network configuration to provide the shortest possible convergence time if a fiber link is cut.

  Which action must the team take to meet the requirement?

  A. Configure the /30 links as OSPF point-to-point networks
  B. Enable BFD on the/30 links
  C. Enable UDLD on the GO links
  D. Configure ECMP on the /30 links
  B. Enable BFD on the/30 links

• Question 2:

  A customer is evaluating a new disaster-recovery solution for their SAN, which is used for noncritical CRM purposes.

  The SAN is frequently backed up locally at the customer's existing single location, and several hours of data loss can be sustained.

  The customer wants to retain complete control of the failover process to a separate physical location.

  Which type of DR is most suitable for the customer?

  A. cold standby
  B. warm standby
  C. active/passive
  D. active/active
  B. warm standby

• Question 3:

  A Cisco engineer is discussing a data center design scenario that consists of 24 Cisco UCS B200M6 Wade servers. 2 Cisco UCS 6454 Fabric Interconnects, and 3 Cisco UCS 5108 server chassis In the proposed configuration, the server links, which are vNICs on the blades, are associated with a single uplink port Server-to-server Layer 2 traffic is locally switched, server-to-network traffic goes out on its pinned uplink port, and each server MAC address must be learned before traffic can be forwarded to it

  Which feature stipulates that traffic is forwarded to a server only if it is received on a pinned uplink port for this server?

  A. MAC address table visualization
  B. host F Port channeling
  C. native VLAN tagging on both sides
  D. RPF check
  A. MAC address table visualization

• Question 4:

  A network architect is designing a storage network to connect to an existing IP network over 100G Ethernet ports for multiple hosts The architect decided to require iSCSI multipathmg to provide multiple routes between servers within the SAN and storage devices that reside within the IP network. Which requirement must be applied to the IP network switch that connects to the SAN environment where the hosts reside9

  A. ECMP routes on the IP network to facilitate toad sharing
  B. VLAN load balancing to the storage devices
  C. multiple physical connections to the iSCSI SAN device
  D. trunk configuration toward the iSCSI SAN device for multiple VLANs
  A. ECMP routes on the IP network to facilitate toad sharing

• Question 5:

  A Cisco engineer is analyzing a customer environment where dozens of VMs are running on a physical server and UCS chassis are cascaded

  The setup uses two ISLs in a port channel to the SAN switch (per fabric)

  The oversubscription from VM to physical SAN port is often 20 (VMs/host) x 72 (9 UCS chassis cascaded = 72 hosts): 2 (ISLs from fabric interconnect to SAN switch port on the NPV core (NPIV enabled switch)

  This results to 20 x 72 2 per single ISL = 720 VMs per ISL 20 (VMs per host) x 8 (hosts per chassis) x 9 (chassis per port channel to SAN switch) / 2 (ISLs per port channel) = 20 x 8 x 9 / 2 = 720 VMs per SAN F-port

  What is the best way to resolve possible IOPS bottleneck?

  A. Deploy a content delivery network
  B. Enable Windows 1Gb server full duplex
  C. Configure 802 1Qbb priority flow control
  D. Remove data encryption on the SSD
  C. Configure 802 1Qbb priority flow control

• Question 6:

  Refer to the exhibit.



  An engineer must deploy NEW-VRF-001 in the data center. All hosts require full reachability with all other hosts, no matter on which pod the host deployment occurs.

  Which set of commands must the engineer include in the deployment?

  A. host-reachability protocol bgp advertise I2vpn evpn
  B. route-target both auto evpn route-target both auto
  C. address-family I2vpn evpn route-target both auto
  D. advertise I2vpn evpn route-taraet both auto
  B. route-target both auto evpn route-target both auto

• Question 7:

  A Cisco engineer is using a PowerShell script to create a service profile template on Cisco UCS Manager.

  After defining the server pools and other templates, the engineer must ensure that the hosts are visible lo the northbound SAN network and storage initiators.

  Which configuration must be applied to enable this capability?

  A. Get-UcsApplianceCloud | Get-UcsVlan -name AppIianceVlan | Add- UcsVlanMemberPort -Switchld A -Slotld 1 -Portld 15
  B. Get-UcsApplianceCloud | Get-UcsVlan -Name AppIianceVlan | Add- UcsVlanMemberPortChannel -Switchld A -Portld $ap_pc.Portld
  C. Get-UcsMacPool -lies default | Add-UcsMacMemberBlock 00:25: B5:00: A0:0 00:25: B5:00:A0:08
  D. Swwpn.pool | Add-UcsWwnMemberBlock -From 20:00:00:24: B5:00:00:00 -To 20:00:00:24: B5:00:00:09
  D. Swwpn.pool | Add-UcsWwnMemberBlock -From 20:00:00:24: B5:00:00:00 -To 20:00:00:24: B5:00:00:09

• Question 8:

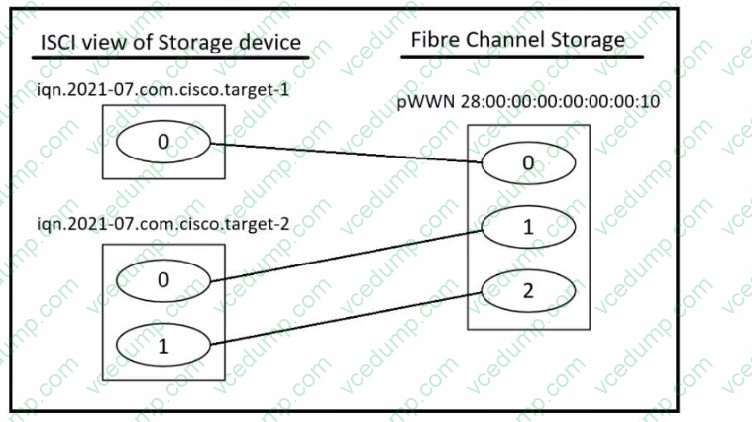

  Refer to the exhibit.



  An engineer working for a service provider with an employee ID:

  4800:35-849 must perform the mapping of Fibre Channel LUN targets lo the indicated iSCSI virtual target.

  Which configuration shows the requited mapping?

  A. iscsi virtual-target name iqn.2021-07.com.cisco.target-1 pWWN 28:00:00:00:00:00:00:10 fc-lun 1 iscsi-lun 0 iscsi virtual-target name iqn.2021-07.com.cisco.target-2 pWWN 28:00:00:00:00:00:00:10 fc-lun 2 iscsi-lun 0 pWWN 28:00:00:00:00:00:00:10 fc-lun 0 iscsi-lun 1
  B. iscsi virtual-target name iqn.2021-07.com.cisco.target-1 pWWN 28:00:00:00:00:00:00:10 fc-lun 1 iscsi-lun 1 iscsi virtual-target name iqn.2021-07.com.cisco.target-2 pWWN 28:00:00:00:00:00:00:10 fc-lun 2 iscsi-lun 2 pWWN 28:00:00:00:00:00:00:10 fc-lun 2 iscsi-lun 1
  C. iscsi virtual-target name iqn.2021-07.com.cisco.target-0 pWWN 28:00:00:00:00:00:00:10 fc-lun 0 iscsi-lun 0 iscsi virtual-target name iqn.2021-07.com.cisco.target-1 pWWN 28:00:00:00:00:00:00:10 fc-lun 1 iscsi-lun 1 pWWN 28:00:00:00:00:00:00:10 fc-lun 2 iscsi-lun 2
  D. iscsi virtual-target name iqn.2021-07.com.cisco.target-1 pWWN 28:00:00:00:00:00:00:10 fc-lun 0 iscsi-lun 1 iscsi virtual-target name iqn.2021-07.com.cisco.target-2 pWWN 28:00:00:00:00:00:00:10 fc-lun 1 iscsi-lun 0 pWWN 28:00:00:00:00:00:00:10 fc-lun 2 iscsi-lun 1
  C. iscsi virtual-target name iqn.2021-07.com.cisco.target-0 pWWN 28:00:00:00:00:00:00:10 fc-lun 0 iscsi-lun 0 iscsi virtual-target name iqn.2021-07.com.cisco.target-1 pWWN 28:00:00:00:00:00:00:10 fc-lun 1 iscsi-lun 1 pWWN 28:00:00:00:00:00:00:10 fc-lun 2 iscsi-lun 2

• Question 9:

  Refer to the exhibit.

  [Exhibit missing]

  A Cisco engineer is configuring a Cisco UCS integrated infrastructure for SAP HANA that consists of 8 x Cisco UCS B/C480-M5 servers for SAP HAN A and 4 x Cisco UCS C240-M5 C-Series rack mount servers for storage.

  The rack servers are equipped with Cisco VIC 1225T.

  The engineer plans to install RHEL8. but the boot process is interrupted at installation because the iSCSl LUNs are not recognized by the VIC adapter. After proper Investigation, the engineer concludes that the initiator and target

  configuration that is programmed on the primary ISCSl VNIC to the operating system Is missing.

  What is the reason for the issue?

  A. The network interfaces are not configured.
  B. The Linux ISO image is not Cisco approved.
  C. The boot parameter lp=ibft is not set.
  D. The storage system is not reachable
  D. The storage system is not reachable

• Question 10:

  Refer to the exhibit



  A Cisco engineer is configuring Cisco Nexus 7000 Series Switches.

  To simplify initial configuration verification and vPC+/HSRP troubleshooting, the engineer configures the primary vPC+ peer device with the FHRP active router highest priority.

  The primary FHRP device responds to ARP requests, even though the secondary vPC+ device also forwards the data traffic.

  Which configuration enables the Layer 3 connectivity from each vPC* peer device?

  A. Configure a VLAN network interlace for the same VLAN from both devices.
  B. Ensure that the enhanced Layer 2 license has been installed.
  C. Manually configure virtual MAC addresses tor any FHRP protocol.
  D. Set a restore timer that delays the vPC+ restart.
  A. Configure a VLAN network interlace for the same VLAN from both devices.
