Cisco 300-610 Online Practice Questions and Exam Preparation

Cisco 300-610 Online Questions & Answers

• Question 161:

  What influences the number of ISLs that are required between Cisco MDS Series switches?

  A. FCoE protocol
  B. type of storage
  C. end-to-end oversubscription ratio
  D. N Port virtualization
  C. end-to-end oversubscription ratio

  ---

  The number of ISLs required between Cisco MDS switches will depend on the desired end-to-end oversubscription ratio. The storage port oversubscription ratio from a single storage port to multiple servers can be used to help determine the number of ISLs needed for each edge-to-core connection. https://www.cisco.com/c/en/us/products/collateral/storage-networking/mds-9700-series-multilayer-directors/white-paper-c11-729697.html

• Question 162:

  An engineer must design a VXLAN EVPN network. The solution should optimize broadcast, unknown unicast, and multicast (BUM) and short BUM replication, and use PIM anycast RP.

  Which solution should be included in the design?

  A. PIM sparse mode
  B. ingress replication
  C. head-end replication
  D. PIM dense mode
  A. PIM sparse mode

  ---

  https://www.cisco.com/c/en/us/td/docs/ios/solutions_docs/ip_multicast/White_papers/anycast.html

• Question 163:

  An engineer is designing a Cisco 7000 Series disaster recovery site using the data center interconnect solution to provide gateway redundancy and needs to ensure that devices use gateways in their own data centers. Which design approach should be used to accomplish this goal?

  A. FHRP localized to its own data center.
  B. STP localized to Its own data center
  C. CFS localized to Its own data center
  D. vPC localized to Its own data center
  A. FHRP localized to its own data center.

• Question 164:

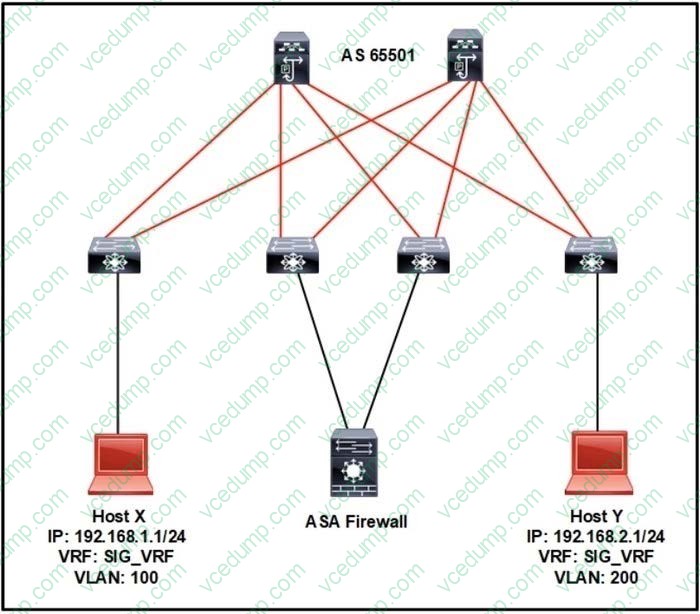

  Refer to the exhibit.



  An engineer builds a data center network design using EVPN technology.

  Within the design, the fabric acts as a gateway.

  Traffic from host X to host Y must pass through the Cisco ASA firewall for deep packet inspection and increased security.

  Which firewall deployment must the engineer choose to accomplish this goal?

  A. VRF sandwich
  B. routed mode
  C. service graph
  D. VLAN stitching
  B. routed mode

• Question 165:

  A Cisco engineer is configuring a customer design scenario that consists of Cisco Nexus 7000 series switches. The remote management access of all the Layer 2 switches is configured on a specific VLAN 12, with subnet 10.0.12.0/24. The route goes through a firewall that has rules to restrict traffic to/from VLAN 12. The engineer is adding a Nexus 3064 with the primary use as a core router for the VLANs. How must the engineer specify the management VRF to use VLAN 12 for management so it is on the same subnet as the rest of the LAN switches?

  A. The L3 SVI on the switch must not accept management traffic.
  B. Configure VLAN 12 on the switch, and add it to the mgmt VRF.
  C. Plug the physical management interface into an access port on VLAN 12.
  D. Create SVI, add management to a new VRF, and keep it in global
  B. Configure VLAN 12 on the switch, and add it to the mgmt VRF.

• Question 166:

  Which two vSphere features must be included in the design of a Cisco HyperFlex systems stretched cluster? (Choose two.)

  A. HA
  B. VSS
  C. FT
  D. VDP
  E. DRS
  A. HA
  E. DRS

  ---

  Explanation Explanation/Reference:https://www.cisco.com/c/en/us/td/docs/hyperconverged_systems/HyperFlex_HX_DataPlatformSoftware/HyperFlex_Stretched_Cluster/3_5/b_HyperFlex_Systems_Stretched_Cluster_Guide_3_5.pdf

• Question 167:

  What is a design consideration when implementing FSPF?

  A. Routes are based on the domain ID.
  B. Routes are based on the distance vector protocol.
  C. FSPF runs only on F Ports.
  D. FSPF runs on a per-chassis basis.
  A. Routes are based on the domain ID.

  ---

  Explanation Explanation/Reference:Domain ID: The domain ID is assigned to each FC switch in a fabric and is unique to that switch. Because the upper FCIDs are reserved for various FC fabric services, such as 0xFFFFFF for broadcast and 0xFFFFFC for name server, the domain ID field restricts the maximum number of FC switches that can be connected in a fabric or VSAN to 239. Routing decisions are made based on domain ID bits of FCID https://www.cisco.com/c/en/us/td/docs/switches/datacenter/mds9000/sw/5_0/configuration/guides/fabric/nxos/cli_fabric/fspf.html

• Question 168:

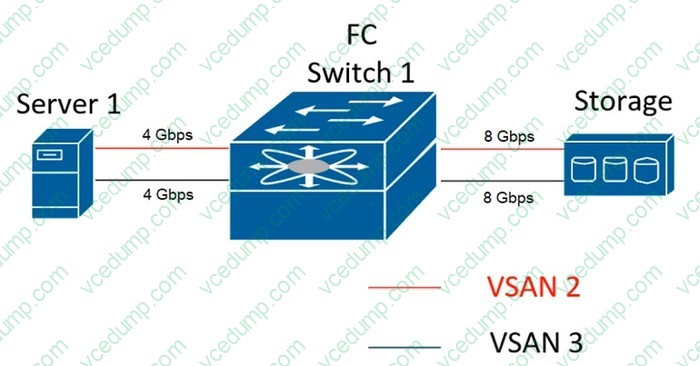

  Refer to the exhibit.



  Server 1 fails to connect to the storage array over the Storage Area Network (SAN) of the Cisco MDS 9000 Series Switch. The requirements are to redesign the storage network and keep these considerations in mind:

  1.

  The traffic from each of the server must be redundant and isolated.

  2.

  The design must tolerate hardware and software failures and upgrades of SAN fabric devices. Which action must be taken to meet these requirements?

  A. Enable NPV and F-Port-channel on ports that face Server 1 on the Fibre Channel switch to create redundant paths.
  B. Create a SAN port channel that faces the storage device to sustain a link failure.
  C. Add an additional supervisor to the Fibre Channel switch to support nondisruptive upgrades.
  D. Place an additional Fibre Channel switch to create two physically independent storage fabrics.
  A. Enable NPV and F-Port-channel on ports that face Server 1 on the Fibre Channel switch to create redundant paths.

• Question 169:

  An engineer must design a secondary site to prevent a catastrophic primary site failure. The applications must communicate across sites via the data link layer of the OSI model. The Layer 3 transport that is available for this solution consists of 10-Gb connections over Layer 3.

  Which two solutions meet these requirements? (Choose two.)

  A. OTV
  B. vPC
  C. OSPF
  D. ISIS
  E. VXLAN EVPN
  A. OTV
  E. VXLAN EVPN

• Question 170:

  Which orchestration tool must be used to manage VXLAN fabrics and includes a built-in dashboard and d real-time network health summary for managed devices?

  A. Puppet
  B. Cisco Intersight
  C. Cisco Nexus Dashboard Fabric Controller
  D. Ansible
  C. Cisco Nexus Dashboard Fabric Controller
