Cisco 300-370 Online Practice Questions and Exam Preparation

Cisco 300-370 Online Questions & Answers

• Question 71:

  A wireless engineer is unable to join lightweight access points to the Cisco Wireless Controller. The access points receive ip addresses from a DHCP pool configured on the core switch. Which action must be taken to resolve the issue?

  A. Upgrade the Wireless Controller to a newer IOS release.
  B. Configure option 43 on the DHCP pool.
  C. Configure option 82 on the Wireless controller.
  D. Change the management ip address on the Wireless Controller.
  C. Configure option 82 on the Wireless controller.

• Question 72:

  An engineer has configured 802.1x for the network and all but one of the APs are passing authentication. Which configuration is causing the failure?

  A. The AP has override global credentials checked.
  B. The switch AAA credentials do not match what is configured on ISE.
  C. The controller 802.1x supplicant credentials do not match what is configured on ISE.
  D. EAP-FAST is configured on ISE for this AP.
  A. The AP has override global credentials checked.

• Question 73:

  Which visual cue accurately describes a characteristic of the zone of impact displayed in Cisco Prime Infrastructure?

  A. The closer the circle is to blue, the more localized the impact is.
  B. The smaller the circle, the more localized the impact is.
  C. The larger the circle, the more severe the impact is.
  D. The more translucent the circle is, the more localized the impact is.
  B. The smaller the circle, the more localized the impact is.

• Question 74:

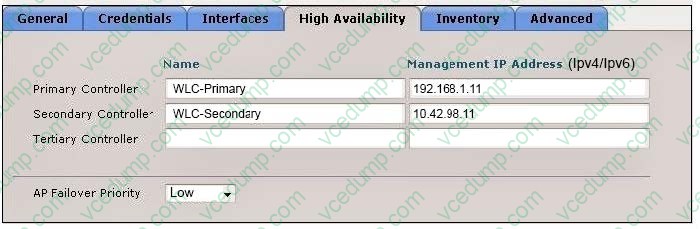

  Refer to the exhibit.



  An engineer has determined that during a recent controller failure, some access points did not fail over to their secondary controller, which has sufficient licenses for all APs. The controllers are not in a mobility group, but have A records for their hostnames in DNS.

  Using these high availability settings, which option is the most likely cause of this issue?

  A. The AP failover priority was not set high enough.
  B. The controllers must be in the same mobility group.
  C. DNS hostnames are required to be FQDN.
  D. The secondary controller IP address is incorrect.
  A. The AP failover priority was not set high enough.

• Question 75:

  An engineer is troubleshooting reports from a Cisco 7925 user that is experiencing consistent gaps in audio when roaming from one area of the facility to another. Packet analysis shows that the phone is flapping between two access points due to poor SNR.

  Which action fixes this issue?

  A. Add access points to the areas that have a noise floor below -90 dBm.
  B. Adjust the roaming threshold of the WLC to -67 dBm for improved access point performance.
  C. Use coverage hole detection to allow the access points to compensate for the poor roaming.
  D. Redesign the area for sufficient overlap with access points running at reduced power levels.
  C. Use coverage hole detection to allow the access points to compensate for the poor roaming.

• Question 76:

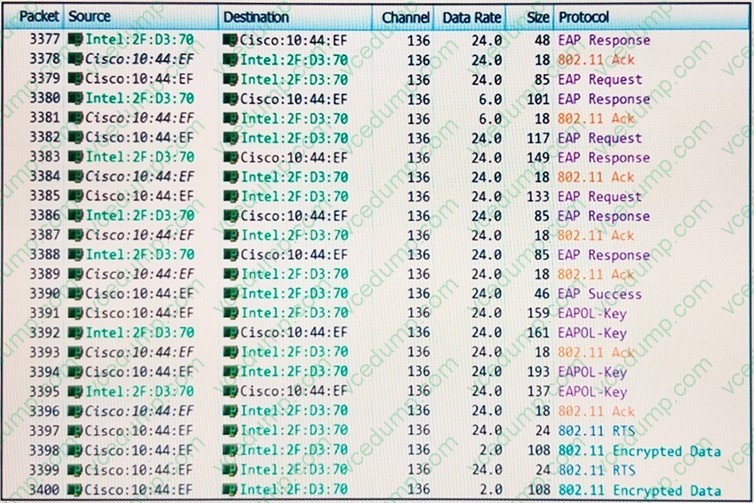

  Refer to the exhibit. Which two statements about the WLAN are true? (Choose two.)



  A. 802.11b data rates are disabled in this WLAN.
  B. The Cisco device is a 3600 series AP.
  C. The client is 802.11n capable.
  D. The client has authenticated.
  E. The client has a 5 GHz connection.
  C. The client is 802.11n capable.
  E. The client has a 5 GHz connection.

• Question 77:

  Which three details are contained within the LWAPP discovery response sent by each WLC to enable the LAP to choose a WLC? (Choose three.)

  A. the controller sysName
  B. an AP-manager IP address
  C. the WLC IOS version
  D. the mobility domain name
  E. the master controller flag
  F. the DNS server address
  A. the controller sysName
  B. an AP-manager IP address
  E. the master controller flag

• Question 78:

  Which ports require unrestricted port access for CleanAir RF spectrum analysis between the AP and Cisco Spectrum Expert?

  A. UDP 5246 and 5247
  B. UDP 37540 and 37550
  C. TCP 16113 and 16114
  D. TCP 37540 and 37550
  E. TCP 5246 and 5247
  F. UDP 16113 and 16114
  D. TCP 37540 and 37550

• Question 79:

  Which two types of rogue APs can be detected only by CleanAir capable APs? (Choose two.)

  A. Wi-Fi direct
  B. Wi-Fi inverted
  C. ad hoc rogue AP
  D. Mi-Fi
  E. Wi-Fi invalid channel
  C. ad hoc rogue AP
  D. Mi-Fi

• Question 80:

  You are analyzing a CAPWAP join request from an AP. Which information can you capture?

  A. AP hardware and software version
  B. if the AP is using 2.4 or 5 Ghz band
  C. AP broadcast channel
  D. name of the WLC
  D. name of the WLC
