• Question 91:

  A WLAN engineer has just completed a wireless network installation using Cisco 2700 series access points. After checking the WLC, it seems that the APs are running in medium power. What effect will this have in the APs?

  A. Due to insufficient power, the access points are not broadcasting any wireless networks.
  B. Due to insufficient power, only the 2.4 GHz radio is up.
  C. Due to insufficient power, the access points have dynamically shifted from 3x4 to 3x3.
  D. Due to insufficient power, the access points have dynamically shifted from 4x4 to 3x3.
  C. Due to insufficient power, the access points have dynamically shifted from 3x4 to 3x3.

• Question 92:

  Scenario The big Engineering IT team has been in the lab to test some new features that the existing network does not support. The AP Groups, AP Failover, and Local Web Auth features are having problems. In this test environment, the controllers support the only Composite Structural Engineering and Aerodynamic Engineering groups. All SSIDs must omit the department name.

  Refer to the exhibit. The diagram is the floor plan for the Big Engineering office and the distribution of the departments. These tables show how the controllers have been configured.

  Note, not all menu items, text boxes, or radio buttons are active.

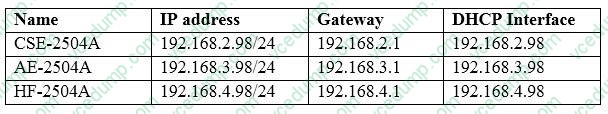

  BE-GA Controller Management Interfaces

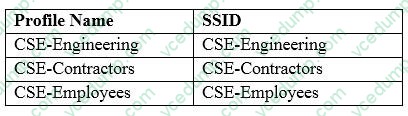

  Composite and Structural Engineering (CSE) WLANs

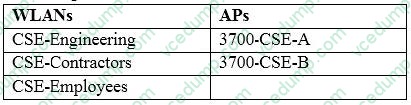

  AP Groups-CSE-WLANs



  AE-User Names and Passwords



  You review the configuration of the test network controller. Which four changes must be made to resolve the problems? (Choose four.)

  A. Change the High Availability Primary Controller Management Interfaces IP address for access point 3700-CSE-A.
  B. Remove the current WLANs and replace them with WLANs that have the same SSID names as on the AE-2504A controller.
  C. Add the Local Net User names and passwords.
  D. Change the Layer2 security to none and Layer3 Security to Web Policy for the CSE-Contractors WLAN.
  E. Remove the current WLAN from the CSE-WLAN AP Group and add all three of the WLANs configured in the CSE-2504A.
  F. Add the CSE APs to the CSE-WLANs AP-Group.
  G. Change the High Availability Secondary Controller management Interface IP address for access point 3700-CSE-B.
  H. Change the High Availability Primary Controller Name for access point 3700-CSE-B.
  B. Remove the current WLANs and replace them with WLANs that have the same SSID names as on the AE-2504A controller.
  C. Add the Local Net User names and passwords.
  D. Change the Layer2 security to none and Layer3 Security to Web Policy for the CSE-Contractors WLAN.
  F. Add the CSE APs to the CSE-WLANs AP-Group.

• Question 93:

  In a new deployment, your team has connected many access points in a single switch and you noticed that some access points are not getting power. Which command on a Cisco switch can give you the remaining power (Watts) to confirm if it is a PoE issue?

  A. show power inline
  B. show power
  C. show post
  D. show poe
  A. show power inline

• Question 94:

  Which change must be implemented to correctly configure dynamic interface on a WLC?

  A. Use tagged VLANs for dynamic interfaces.
  B. Assign the dynamic interface an IP from the same VLAN as the virtual interface.
  C. Put all dynamic interfaces configured on one port on the same VLAN or IP subnet.
  D. Configure each dynamic interface with a secondary subnet.
  A. Use tagged VLANs for dynamic interfaces.

• Question 95:

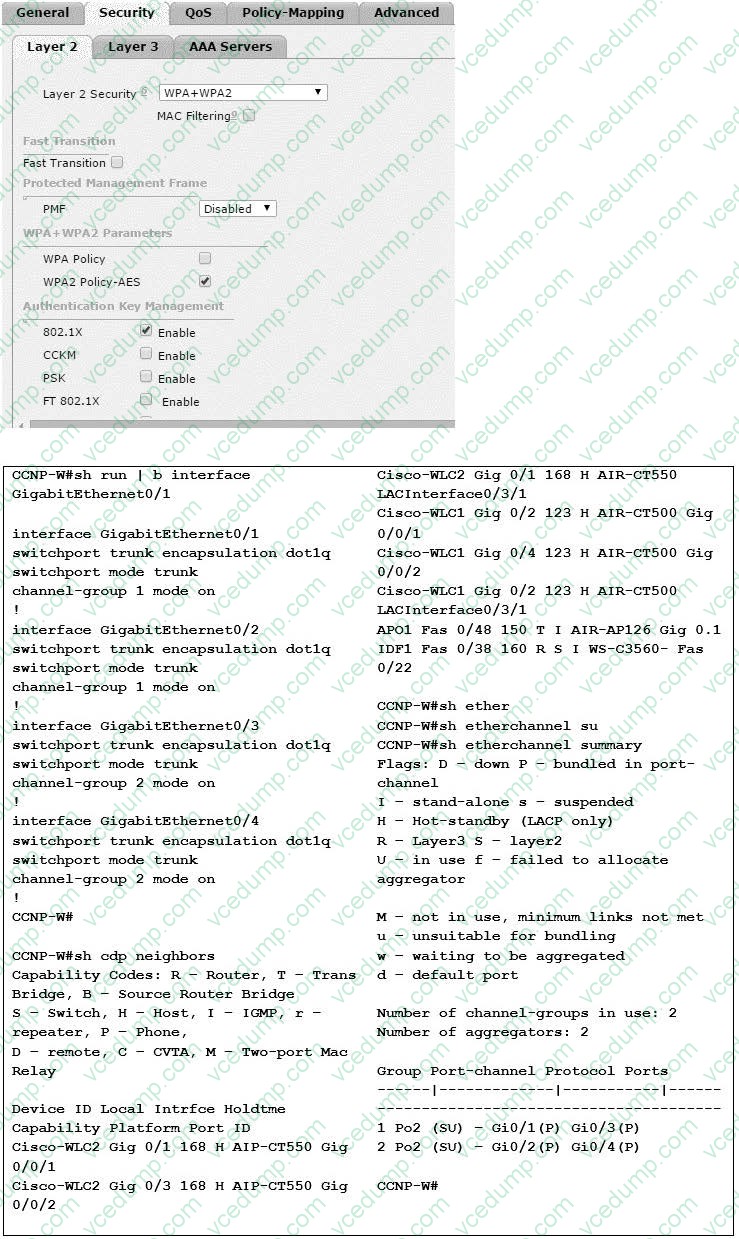

  Refer to the exhibit.



  An access point joins the secondary wireless controller but not the primary wireless controller. Another access point has joined the controller and is working fine. The network engineer can ping the wireless controller and the access point from the core switch.

  Which option is the cause of the issue?

  A. The trunk ports are missing a spanning tree configuration.
  B. The EtherChannel configuration is incorrect.
  C. The port channels configured with the wrong negotiation protocol.
  D. The trunk port configuration is incorrect.
  B. The EtherChannel configuration is incorrect.

• Question 96:

  An engineer is attempting to resolve wireless channel overlap issues in the 2.4 GHz network. Which network change reduces channel overlap?

  A. Shut down 802.11b/g/n radios.
  B. Enable 40 MHz channel bonding on 802.11b/g/n.
  C. Enable 802.11b data rates.
  D. Enable all 802.11b/g/n channels.
  D. Enable all 802.11b/g/n channels.

• Question 97:

  Some users are experiencing inconsistent performance on their mobile devices as they move throughout the building when browsing the Internet. Which feature provides a more consistent user experience?

  A. low RSSI check
  B. 802.11r
  C. RX-SOP
  D. optimized roaming
  A. low RSSI check

• Question 98:

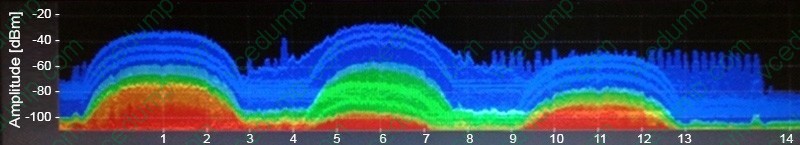

  Refer to the exhibit.



  An engineer is troubleshooting non-802.11 interference and observes this output. Which type of interference signatures can be identified?

  A. one frequency hopping Bluetooth
  B. two healthy CCK and one malformed OFDM
  C. three broadband jammers
  D. two strong microwave ovens and one moderate
  B. two healthy CCK and one malformed OFDM

• Question 99:

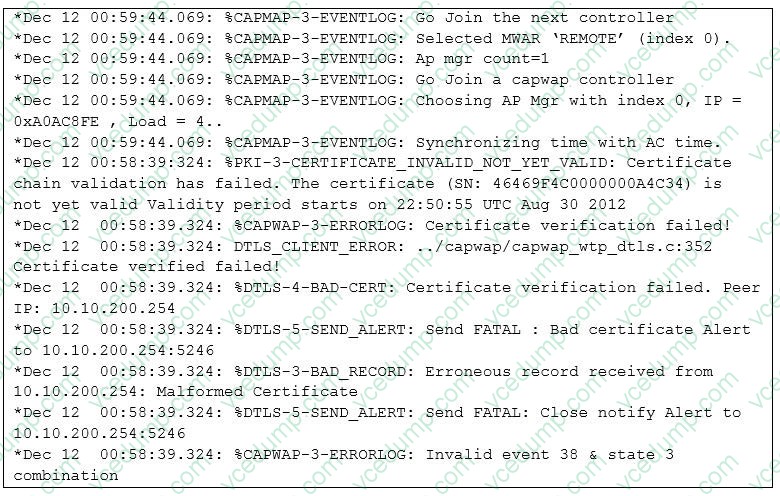

  Refer to the exhibit. Which configuration must be addresses to correct this issue?



  A. self-signed certificate
  B. DHCP Option 43
  C. Network Time Protocol
  D. AP authorization list
  A. self-signed certificate

• Question 100:

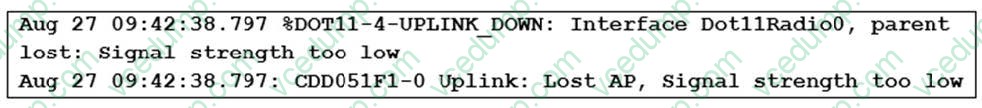

  Refer to the exhibit. You are debugging a WGB client. Which description of the client is true?



  You are debugging a WGB client. Which description of the client is true?

  A. disconnected from the wired device
  B. triggered to reauthenticate
  C. disconnected from the authentication server
  D. triggered to roam
  D. triggered to roam
