Cisco 300-365 Online Practice Questions and Exam Preparation

Cisco 300-365 Online Questions & Answers

• Question 71:

  You have VoWiFi running on FlexConnect AP with centrally-switched SSID. Which configuration must be performed to preserve marking for central-switching SSID?

  A. Trust DSCP
  B. This will not work. The WLAN should be locally switched and we need to trust CoS.
  C. Trust CoS
  D. No need to trust anything. It should work fine because the WLAN is centrally switched.
  A. Trust DSCP

• Question 72:

  An enterprise has experienced several incidents of clients running out of IP addresses while in a stadium. Which kind of group can be implemented to help more clients access the network?

  A. FlexConnect
  B. AP
  C. interface
  D. WLAN
  A. FlexConnect

• Question 73:

  An engineer is attempting to send multicast data to all multicast routers in the network with ID XXXXXXXXX. Which IP address should be used?

  A. 224.0.0.1
  B. 224.0.0.2
  C. 224.0.0.4
  D. 224.0.0.3
  B. 224.0.0.2

• Question 74:

  Which network is connected by default when connecting to the unused Ethernet port of a MAP?

  A. the native VLAN that the MAP is connected to
  B. the VLAN that is associated with WLAN number 1 in the WLC
  C. the native VLAN that the WLC is connected to
  D. the VLAN that is associated with the SSID that the MAPs are communicating on
  A. the native VLAN that the MAP is connected to

• Question 75:

  Which two components comprise the NetFlow architecture? (Choose two.)

  A. collector
  B. gateway
  C. event correlator
  D. exporter
  E. application transcoder
  A. collector
  D. exporter

• Question 76:

  SIMULATION

  Scenario:

  You have been tasked with setting up a mobility group (Mobility_Test) in a test lab. There are two WLCs that you will need to configure (Test1 and Test2). Use the Administrative Workstation to acces the Test1 and Test2 WLCs. Once

  configured you will need to verify that the mobility group peers are communicating properly.

  Mobility Group Name: Mobility_Test

  Mobility Group Members: Test1

  IP Address: 192.168.1.99

  MAC Address: b0:fa:eb:8c:2b:a0

  Mobility Group Members: Test2

  Ip Address 192.168.1.100

  MAC Address: d0:c2:82:e3:aa:20

  You have configured mobility group properly when the status of the mobility group peers is UP.

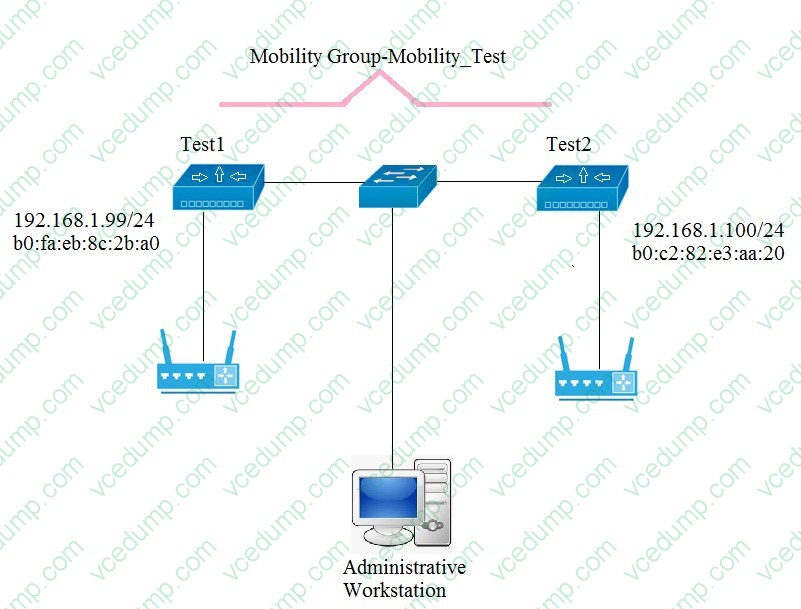

  TOPOLOGY

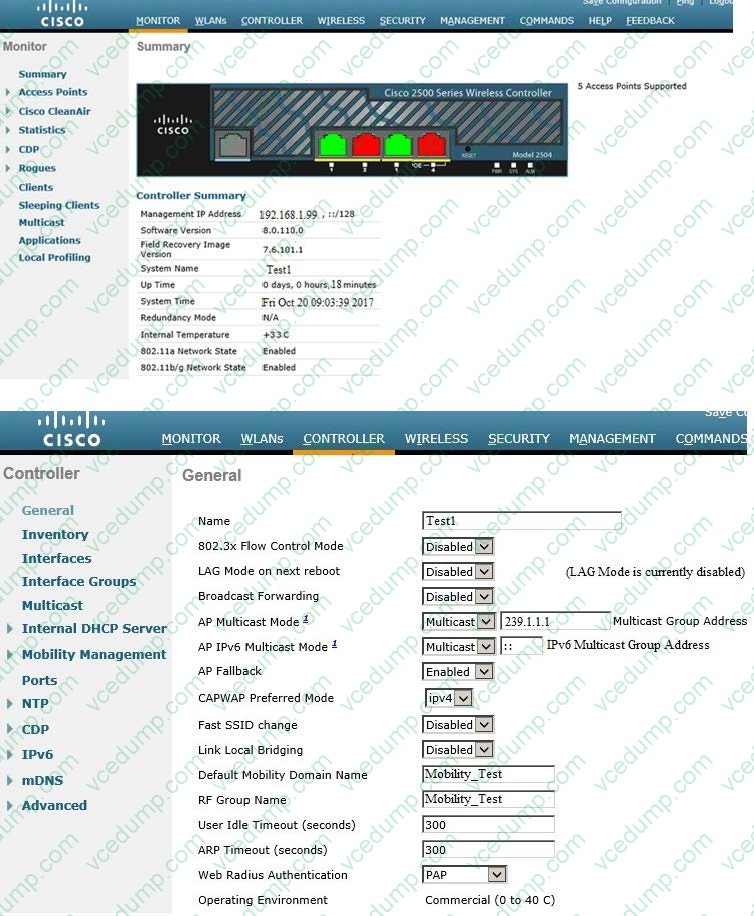

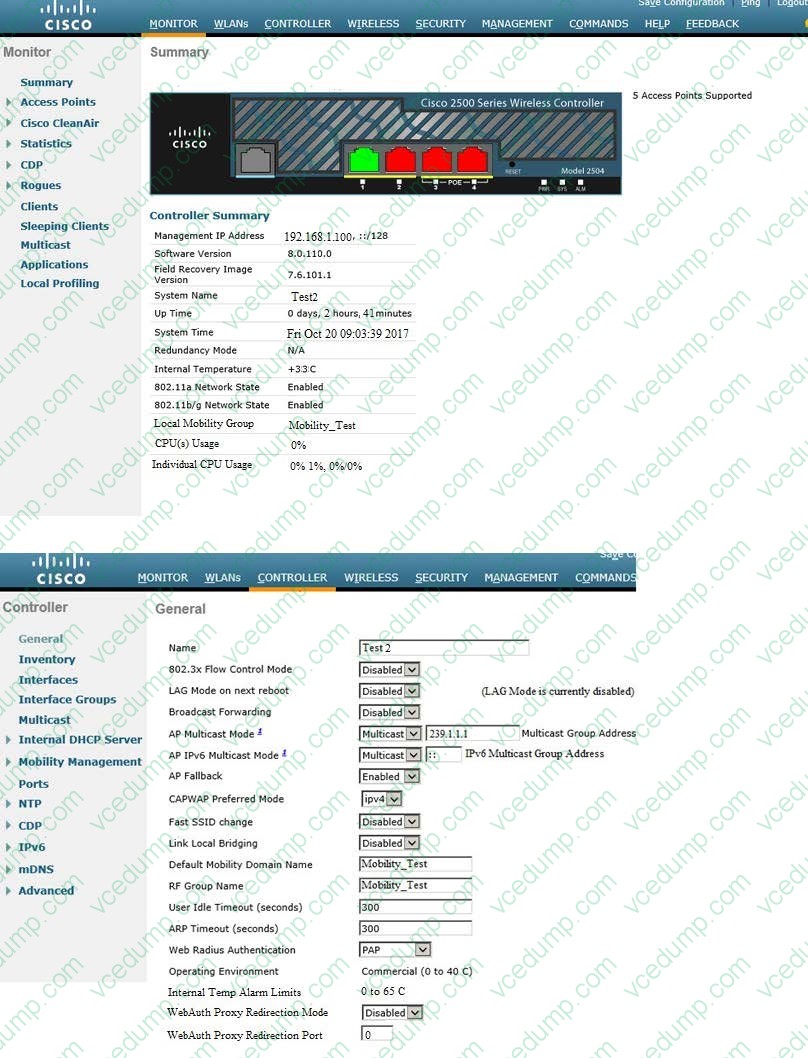

  VIRTUAL TERMINAL





  Correct Answer. Check the answer below
  Check the answer below

  ---

  Mobility Controllers belong to only one group, and can know several mobility groups On Test 1 WLC

  1.

  Choose Controller> Mobility Management > Mobility Peer

  2.

  Click New

  3.

  Enter the following details of Test 2: a) Mobility Member IP b) Mobility Member Public IP c) Mobility Member Group Name d) Multicast IP Address

  4.

  Apply and Save Similarly log in to Test 2 and enter details of Test1

• Question 77:

  Which show command will show whether a WLAN is locally or centrally switched on a Cisco Wireless Lan Controller?

  A. show ap config general Cisco_AP
  B. show wlan wlan_id
  C. show flexconnect summary
  D. show flexconnect group detail
  B. show wlan wlan_id

  ---

  http://www.cisco.com/c/en/us/td/docs/wireless/controller/7-2/configuration/guide/cg/cg_flexconnect.html

• Question 78:

  Five identical APs at a branch office must be upgraded. You consider using the FlexConnect AP Upgrade feature. Which two statements about this feature are true? (Choose two.)

  A. All APs download the upgrade image over the WAN link at the same time.
  B. A slave AP eventually downloads the image from the WLC, if the master AP is unavailable.
  C. Full images are downloaded to each AP over the WAN link, but only when no client activity is seen on the AP.
  D. Only one AP downloads the upgrade image over the WAN link.
  E. All APs downloaded the upgrade image from the WLC using the pre-image download feature.
  D. Only one AP downloads the upgrade image over the WAN link.
  E. All APs downloaded the upgrade image from the WLC using the pre-image download feature.

  ---

  Reference: https://www.cisco.com/c/en/us/td/docs/wireless/controller/7-4/configuration/guides/consolidated/b_cg74_CONSOLIDATED/b_cg74_CONSOLIDATED_chapter_010010001.html

• Question 79:

  Controllers WLC_1 and WLC_2 are in the same mobility group. A wireless client that does not have the same VLAN interface roams from WLC_1 to WLC_2. What happens to the client roaming?

  A. The client context is deleted in controller WLC_1, and a new client context is created in WLC_2 to become the anchor controller.
  B. The client context is moved from controller WLC_1 to controller WLC_2. The result is that the WLC_1 client context is deleted and WLC_2 becomes the anchor controller.
  C. The client context is copied from controller WLC_1 to controller WLC_2. The result is that WLC_1 becomes the foreign controller and WLC_2 becomes the anchor controller.
  D. The client context is copied from controller WLC_1 to controller WLC_2. The result is that WLC_1 becomes the anchor controller and WLC_2 becomes the foreign controller.
  D. The client context is copied from controller WLC_1 to controller WLC_2. The result is that WLC_1 becomes the anchor controller and WLC_2 becomes the foreign controller.

  ---

  http://www.cisco.com/c/en/us/td/docs/wireless/controller/7-0/configuration/guide/c70/c70mobil.html

• Question 80:

  A customer has limited staff to manage a wireless network. The customer wants a solution that requires minimum hardware. Which type of architecture do you propose?

  A. centralized
  B. distributed
  C. cloud-based
  D. unified
  C. cloud-based
