Cisco 300-360 Online Practice Questions and Exam Preparation

Cisco 300-360 Online Questions & Answers

• Question 41:

  What protocol can be enabled to listen in on IPv4 multicast streams and maintain a map of what each client requests on a wireless LAN controller?

  A. IGMP
  B. MLD
  C. PAP
  D. ICMP
  E. SIP
  F. NTP
  A. IGMP

• Question 42:

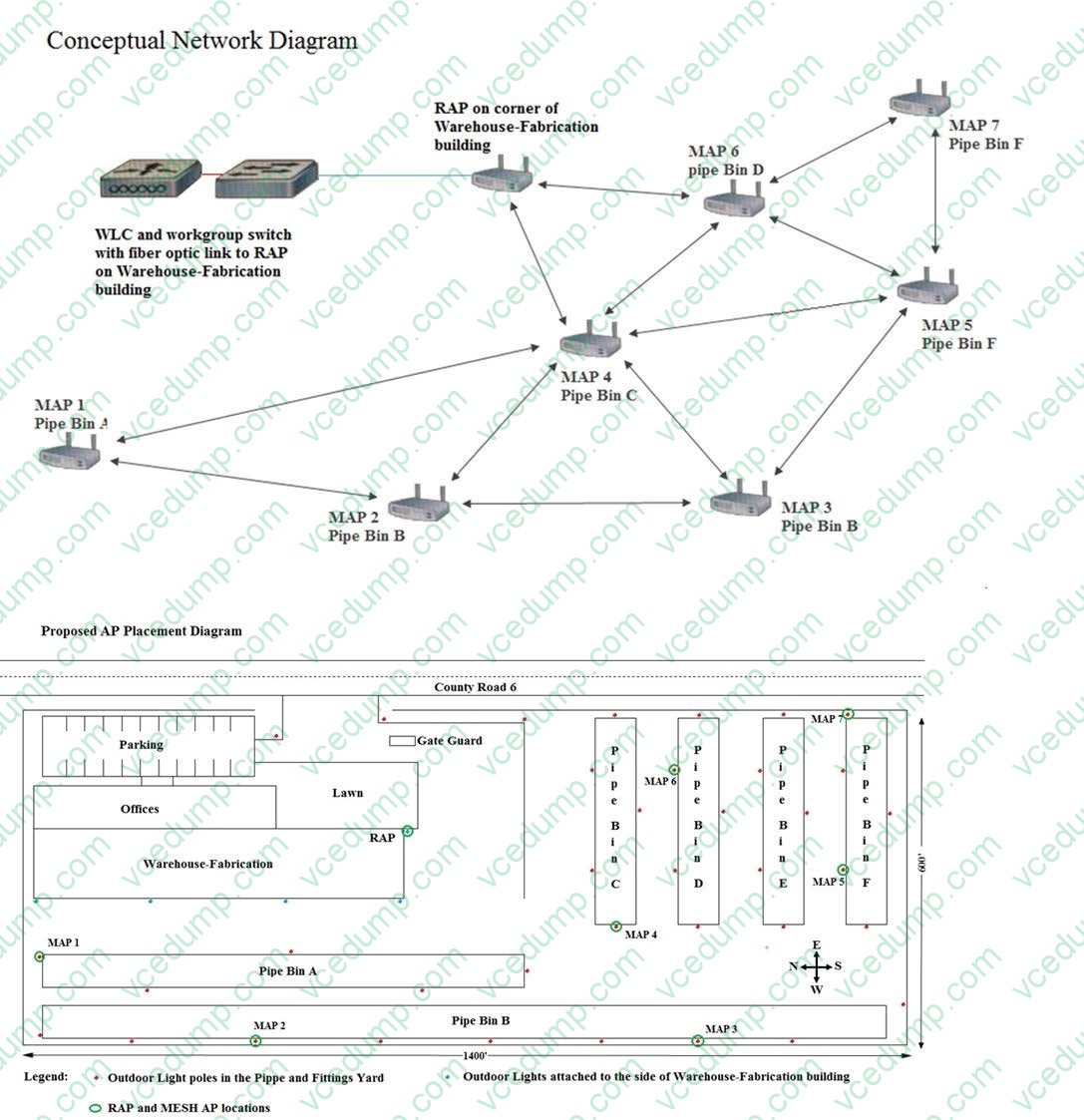

  You have been contacted by an existing Cisco wireless networking customer. The Big Oil Service Company wants to expand their Wi-Fi network outside their facility to their Pipe and Fittings Yard. The customer is in the oil field services business and provides consumable products to the oil drilling industry. The customer has been using hand-held scanners on their fleet of order-processing vehicles to ensure that the correct parts are collected for each order. The issue that the customer is experiencing is that the processing of customer orders is taking an excessive amount of time. Each time a new order is received, a paper pull-ticket is physically handed to the operator of an order-processing vehicle. If the specific vehicle cannot pull all the components of a customer order, they must physically hand-off the paper pull-ticket to another order-processing vehicle for completion. After the operator scans the parts to complete the order, they must drive back to the warehouse office to download the order information from the hand-held scanners into the order processing terminals. The current hand-held scanner can process only one order at a time. The company is upgrading to new scanners that operate in the 2.4 GHz spectrum and can process multiple orders simultaneously without any paper forms. The company wants you to validate a design that their internal IT staff has created for the Pipe and Fittings Yard. (See the enclosed Conceptual Network Diagram and a Proposed AP Placement Diagram of the Big Oil Services Company facility.) The Pipe and Fitting Yard has lights for operation at night. The lights are attached to the side of the Warehouse and Fabrication building and are on 40 foot concrete poles out in the yard and all the lights have 110V power. The RAP location is on the side of the Warehouse and Fabrication building below the roof line and just below the exterior light on the side of the building. The RAP will draw power from this light and will have a fiber optic connection back to a switch in the MDF in the office building. All the MAPs will be attached to the light poles in various locations around the Pipe and Fittings Yard. (See enclosed Proposed AP Placement Diagram.)



  MAP 5 has four possible paths to the RAP. The first path is through MAP 7 that has a SNR of 120 dB and an EASE of 212418 and a connection to MAP 6 with an SNR of 120 dB and an EASE of 212418 and a connection to the RAP that has

  a SNR of 120 dB and an EASE of 212418.

  The second path is through MAP 4 that has a SNR of 78 dB and an EASE of 477846 and a connection from MAP 4 to the RAP that has a SNR of 78 dB and an EASE of 477846. The third path is through MAP 3 that has a SNR of 78 dB and

  an EASE of 386212 and a connection to MAP 4 that has a SNR of 78 and an EASE of 477846 and a connection to the RAP with a SNR of 78 dB and an EASE of 386212. The fourth path is through MAP 6 that has a SNR of 120 dB and an

  EASE of 212418.

  Which option is the parent MAP and what is the corrected EASE? (Choose two.)

  A. MAP 4
  B. 424836
  C. MAP 6
  D. 477846
  E. 386212
  F. MAP 3
  A. MAP 4
  D. 477846

• Question 43:

  A wireless engineer is designing a wireless network for a campus. Which two parameters can have a negative effect on the Wi-Fi coverage of an access point? (Choose two.)

  A. authentication used
  B. surrounding area
  C. wireless channels
  D. wireless encryption
  E. type of the antenna used
  B. surrounding area
  C. wireless channels

• Question 44:

  Which two items do you assess before you add to an existing wireless network? (Choose two.)

  A. AP placements
  B. firewall configuration
  C. QoS configuration
  D. Cisco Prime Infrastructure alarms
  E. WLC IOS version
  A. AP placements
  E. WLC IOS version

• Question 45:

  A network has two Cisco WLCs and two Layer 3 gigabit Ethernet switches. The customer requires two gigabit connections from each Cisco WLC to each of the switches that have copper RJ-45 gigabit ports. What two additional hardware are needed to connect the Cisco WLCs to the network? (Choose two.)

  A. Four straight-through Ethernet cables
  B. Layer 3 switching module in each of the Cisco WLCs
  C. Four copper SFPs must be added to the kit list
  D. Two console cables
  E. Four rollover Ethernet cables
  A. Four straight-through Ethernet cables
  C. Four copper SFPs must be added to the kit list

• Question 46:

  A wireless engineer is calibrating a floor using Cisco Prime Infrastructure. Which setting in the WLC must be disabled before the floor calibration is started?

  A. CleanAir
  B. Dynamic Channel Assignment
  C. Coverage Hole Detection
  D. Tx Power Control
  B. Dynamic Channel Assignment

• Question 47:

  A wireless engineer completes a site survey for a company. Which three items are included in the site survey report? (Choose three.)

  A. the survey path walked by the engineer
  B. the heat maps captured by the survey
  C. websites that users will visit on a daily basis
  D. RRM recommendations for the WLC
  E. the Cisco IOS version of Cisco Prime Infrastructure
  F. pictures if the access point locations
  B. the heat maps captured by the survey
  C. websites that users will visit on a daily basis
  D. RRM recommendations for the WLC

• Question 48:

  An engineer is assigned to assist a customer by estimating the number of access points needed to provide voice-grade wireless coverage in a carpeted office space. How many access points should be estimated to cover this space of roughly 38,000 square feet?

  A. 17
  B. 10
  C. 6
  D. 13
  D. 13

  ---

  The rule of thumb coverage plan is 1 AP per 5,000 square feet for data and 1 per 3,000 square feet for voice and location services. Reference: http://www.cisco.com/c/en/us/td/docs/wireless/technology/apdeploy/8-0/Cisco_Aironet_3700AP.html

• Question 49:

  DRAG DROP

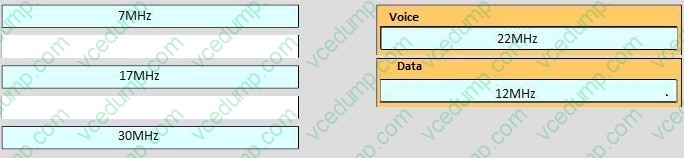

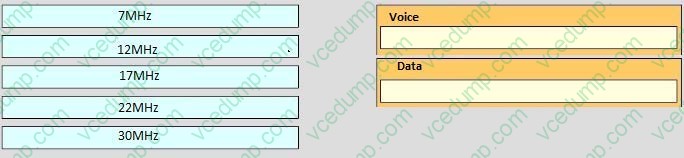

  Drag from the left the acceptable minimum cell overlap for data and voice cells for site survey and deployment

  Select and Place:





• Question 50:

  You deploy a wireless network for a common area located outside of a student dorm by using patch antennas. Students report weak signals in specific locations of the coverage area.

  Which option is a possible cause of the issue?

  A. neighboring buildings
  B. vehicles
  C. trees
  D. Bluetooth interference
  D. Bluetooth interference
