Cisco 300-175 Online Practice Questions and Exam Preparation

300-175 Exam Details

  • Exam Code
    :300-175
  • Exam Name
    :Implementing Cisco Data Center Unified Computing
  • Certification
    :Cisco Certifications
  • Vendor
    :Cisco
  • Total Questions
    :442 Q&As
  • Last Updated
    :Dec 12, 2021

Cisco 300-175 Online Questions & Answers

  • Question 31:

    You need to configure service profiles for a Cisco UCS system. What is an advantage of using the Export wizard to create the service profiles instead of using the Simple wizard?

    A. Only the Expert wizard supports Fabric Interconnect expansion module ports to be used in 10-Gigabit uplink mode or Fibre Channel mode.
    B. Both wizards support the same features, but the Expert wizard provides no configuration options for the features.
    C. The Expert wizard supports stateless computing and mobile service profiles.
    D. The Expert wizard supports all blade generations, whereas the Simple wizard supports only M1 blades, M2 blades, and Cisco VIC cards.

  • Question 32:

    Which policy determines what happens to local disks when they are disassociated from a service profile?

    A. maintenance policy
    B. local disk policy
    C. scrub policy D. BIOS policy

  • Question 33:

    Open the windows by clicking on the minimized title at the bottom of the viewing area. Windows can be minimized by clicking on the [-], repositioned by dragging the title bar, and resized by using the handle at the lower right corner to

    customize the viewing area.

    If you are required to access the devices to complete this scenario, the mouse cursor will use a hand symbol when moved over device icons. Click the icon to open a device terminal to interact with the hardware.

    Open the Questions window and begin with clicking a question number. When you have completed answering all questions, click Done to continue.

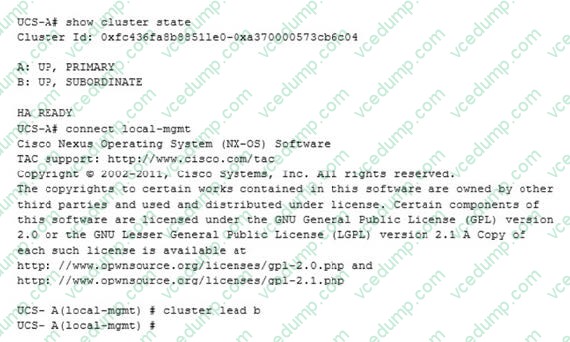

    Scenario

    Use your UCS knowledge on Fabric Interconnect Failover to answer the questions associated with the UCS cluster.

    The cluster lead b command represents:

    A. The cluster will go into a subordinate state.
    B. The cluster will switch fabric interconnect b from subordinate to lead or primary.
    C. The cluster will only use fabric interconnect to.
    D. The cluster will load balance traffic over Fabric Interconnects a and B.

  • Question 34:

    Which two tasks can you perform from Cisco UCS Manager? (Choose two.)

    A. Configure SAN PIN groups.
    B. Restart an Oracle database.
    C. Configure or manage external storage on the SAN.
    D. Configure QoS classes and definitions.
    E. Deploy an operating system.

  • Question 35:

    Which statement is true regarding backup operations in Cisco UCS Manager?

    A. A user can perform incremental backups of a system configuration.
    B. Passwords and other sensitive information are encrypted in full state backups.
    C. Scheduled backups are not available.
    D. Each backup destination can have multiple backup operations.

  • Question 36:

    You plan to configure a Fibre Channel port channel on a Cisco UCS system.

    What is the maximum number of port channels and ports per port channel on a Cisco UCS 6200 Series device?

    A. four Fibre Channel port channels and 24 Fibre Channel ports per port channel
    B. eight Fibre Channel port channels and 24 Fibre Channel ports per port channel
    C. eight Fibre Channel port channels and 16 Fibre Channel ports per port channel
    D. four Fibre Channel port channels and 16 Fibre Channel ports per port channel

  • Question 37:

    Which two are true with respect to the unified ports on the Cisco Unified Computing System 62XX Fabric Interconnect? (Choose two.)

    A. The port mode is automatically discovered after plugging in a LAN or Fibre Channel-attached cable.
    B. By default, unified ports that are changed to Ethernet port mode are set to uplink Ethernet port type.
    C. Ethernet ports must be grouped together in a block and must start with the first port and end with an odd numbered port.
    D. Alternating Ethernet and Fibre Channel ports is supported on the expansion module.
    E. After making port mode changes on an expansion module, the module will reboot.
    F. In a standalone configuration, making port mode changes to the fixed module will not cause the fabric interconnect to reboot.

  • Question 38:

    Which addressing does Cisco UCS Manager use when communicating with Cisco UCS Central?

    A. IP addresses of the UCS Fabric Interconnects
    B. UCS CIMC
    C. VMware ESXi server
    D. IP address of the UCS KVM

  • Question 39:

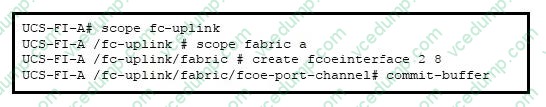

    Refer to the exhibit. You are configuring an uplink port on FI-A. Which option describes the result of the configuration?

    A. Creates an interface for FcoE uplink port 8 on slot 2 of fabric A and commits the transaction
    B. Creates a port channel for FcoE uplink 1 through 8 of fabric A and commits the transaction
    C. Creates an interface for FcoE uplink port 2 on slot 8 of fabric A and Commits the transaction
    D. Creates an interface of Fibre Channel storage port 8 on slot 2 of fabric A and commits the transactions.

  • Question 40:

    Which tool must you use to convert actions performed in Cisco UCS Manager to a PowerShell script?

    A. ConvertTo-PowerTool
    B. GetManagedObject
    C. ConvertTo-PowerShell
    D. ConvertTo-UcsCmdlet
