Cisco 300-175 Online Practice Questions and Exam Preparation

Cisco 300-175 Online Questions & Answers

• Question 361:

  Which UCS components firmwares are contained in the UCS Infrastructure software bundle?

  A. UCS BIOS
  B. UCS Fabric Interconnects
  C. UCS Adapters
  D. UCS Manager
  E. IO Module
  F. Cisco IMC
  B. UCS Fabric Interconnects
  D. UCS Manager
  E. IO Module

• Question 362:

  Scenario

  In this scenario, you will refer to screenshots about Cisco UCS B-Series servers and UCS Manager.

  Instructions

  To access the multiple-choice questions, click on the numbered boxes on the left of the top panel. There are four multiple-choice questions with this task. Be sure to answer all four questions before selecting the Next button.





  Refer to the Exhibit 2 screenshot of the NX-OS shell CLI in UCS Manager. What LAN policy correlates with the line "pinning server pinning-failure link-down"?

  A. Dynamic vNIC Connection
  B. Link Protocol
  C. Flow Control
  D. Network Control
  D. Network Control

  ---

  http://www.cisco.com/c/en/us/support/docs/servers-unified-computing/ucs-5100-series-blade- server-chassis/116075-ucs-app-connectivity-tshoot-00.html http://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/gui/config/guide/2-2/b_UCSM_GUI_Configuration_Guide_2_2/b_UCSM_GUI_Configuration_Guide_2_2_chapter_0 10101.html#concept_80DD753607A0427A9874F278E172F2FA

• Question 363:

  Which backup option must be used for a system restore?

  A. full state
  B. all configuration
  C. system configuration
  D. logical configuration
  E. incremental
  A. full state

• Question 364:

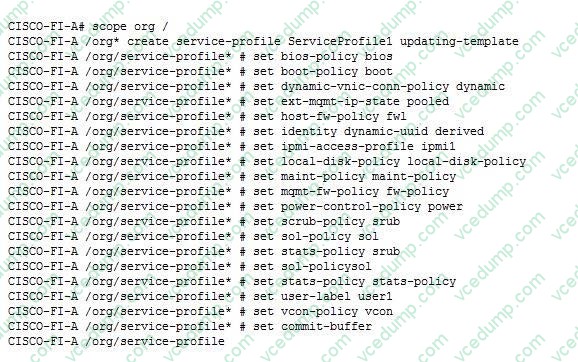

  Refer to the exhibit. Which result of configuring ServiceProfile1 is true?



  A. It associates the fw1 firmware policy to ServiceProfile1
  B. It restricts editing of ServiceProfile1 to the members of the user1 group
  C. It sets the firewall policy on the host to fw1
  D. It upgrades the firmware immediately
  A. It associates the fw1 firmware policy to ServiceProfile1

• Question 365:

  Which statement about Cisco Integrated Management Controller secure mode is true?

  A. After you enable it, you cannot disable it.
  B. After you enable it, you cannot downgrade the Cisco Integrated Management Controller firmware.
  C. It verifies the OS before allowing it to boot.
  D. The server must reboot to apply.
  A. After you enable it, you cannot disable it.

• Question 366:

  After an admin configures a service profile template and associates it to the blade, the admin notices that changes to the template are not automatically pushed to profiles that are inheriting that template. The service profile template and vNIC templates are set to "initial". Which two actions resolve this issue? (Choose two.)

  A. Delete the service profile template and re-create it as an updating template.
  B. Change the type of the service profile template from "initial" to "updating".
  C. Delete the vNIC template and re-create it as an updating template.
  D. Change the type of the vNIC template from "initial" to "updating".
  E. Delete and recreate all templates.
  A. Delete the service profile template and re-create it as an updating template.
  D. Change the type of the vNIC template from "initial" to "updating".

• Question 367:

  HOTSPOT



  Hot Area:





• Question 368:

  Which option is a prerequisite when implementing iSCSI boot?

  A. The OS must be iBFT compatible.
  B. The boot parameters must be configured in the Global boot policy.
  C. There are no licensing requirements for the storage array.
  D. Each iSCSI initiator must be on the same IP subnet.
  D. Each iSCSI initiator must be on the same IP subnet.

• Question 369:

  Which of the following is not a feature of the Cisco Unified Computing System VIC-1280 adaptor?

  A. capable of up to 256 virtual interfaces
  B. supports FCoE
  C. supports Cisco VM-FEX
  D. compatible with the C- or B-Series Cisco Unified Computing System servers
  D. compatible with the C- or B-Series Cisco Unified Computing System servers

• Question 370:

  You have a Cisco UCS B200 M2 server configured with 12 4-GB DDR3 1333-MHz dual-voltage memory DIMMs. You learned that the server memory speed is running at 1066 MHz instead. How can you configure the server to run at maximum memory speed?

  A. You cannot configure memory speed of 1333 MHz. The maximum memory speed of a Cisco UCS B200 M2 server with 12 4-GB DIMM is 1066 MHz.
  B. Memory speed of the ESX host is configurable on VMware vCenter.
  C. Create a BIOS policy. In the RAS Memory BIOS settings, select Performance Mode for LV DDR Mode.
  D. On the CIMC of the Cisco UCS B200 M2, select 1333 MHz in the Memory Speed option.
  C. Create a BIOS policy. In the RAS Memory BIOS settings, select Performance Mode for LV DDR Mode.
