Cisco 300-175 Online Practice Questions and Exam Preparation

Cisco 300-175 Online Questions & Answers

• Question 331:

  Which two Cisco UCS C-Series server components are hot-swappable? (Choose two.)

  A. mezzanine card
  B. PCle slot
  C. internal cooling fan
  D. power supply
  E. memory riser
  C. internal cooling fan
  D. power supply

• Question 332:

  The system-reserved VLANs within Cisco UCS are 3968 to 4048 by default. Where can a user change the starting value of this range?

  A. VLAN manager
  B. global policies
  C. LAN cloud
  D. cannot be changed
  D. cannot be changed

• Question 333:

  In a standalone Cisco UCS C-Series server, which recommendations can be used to upgrade the BIOS?

  A. Cisco IMC
  B. Cisco UCS Manager
  C. iFlash32 Utility
  D. Flash ROM Utility
  E. EFI Interface
  F. Cisco Host Upgrade Utility
  G. USB Flash Utility
  F. Cisco Host Upgrade Utility

• Question 334:

  Which two are true with respect to the switching modes on the Cisco Unified Computing System 62XX Fabric Interconnect? (Choose two.)

  A. End-host mode presents a link to a northbound uplink switch as a host trunk with loop detection that is provided by STP.
  B. For northbound traffic, server MAC addresses are statically pinned to an uplink; the return path is controlled by the unified fabric switches.
  C. A fabric interconnect port in Ethernet switching mode appears to the uplink switch as a host with many MAC addresses.
  D. Server-to-server traffic on a common VLAN are locally switched by the fabric interconnect and not the northbound switches.
  E. A MAC forwarding table is not used to forward traffic to the uplink switch.
  F. A MAC address forwarding table is maintained for server-to-server communications across VLANs.
  D. Server-to-server traffic on a common VLAN are locally switched by the fabric interconnect and not the northbound switches.
  E. A MAC forwarding table is not used to forward traffic to the uplink switch.

• Question 335:

  Which three options are needed when configuring local zoning on the Cisco UCS Fabric Interconnects? (Choose three.)

  A. The fabric interconnects are operating in FC switching mode.
  B. The fabric interconnects are operating in FC end-host mode.
  C. SAN connectivity policy
  D. storage connection policy
  E. FC target endpoints
  F. iSCSI target endpoints
  A. The fabric interconnects are operating in FC switching mode.
  D. storage connection policy
  E. FC target endpoints

• Question 336:

  Which two Cisco UCS firmware are contained in the Cisco UCS Infrastructure software bundle? (Choose two.)

  A. Cisco I/O module firmware
  B. Cisco IMC
  C. Cisco UCS BIOS
  D. Cisco UCS fabric interconnects firmware
  E. Cisco UCS adapters
  A. Cisco I/O module firmware
  D. Cisco UCS fabric interconnects firmware

  ---

  https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-manager/GUI-User-Guides/Firmware-Mgmt/3-1/b_UCSM_GUI_Firmware_Management_Guide_3_1/b_UCSM_GUI_Firmware_Management_Guide_3_1_chapter_01.html "A"

  BUNDLE

  Infrastructure software bundle--This bundle is also called the A bundle. It contains the firmware images that the fabric interconnects, IO Modules, and Cisco UCS Manager require to function.

  "B" BUNDLE

  B-Series server software bundle--Also called the B bundle, this bundle contains the firmware images that the B-Series blade servers require to function, such as adapter, BIOS, CIMC, and board controller firmware. Release Bundle Contents

  for Cisco UCS Manager, Release 3.1 provides details about the contents of the B-Series server software bundle.

• Question 337:

  Which component is unsupported by the UEFI boot device in the Cisco UCS C-series standalone?

  A. FlexFlash card
  B. RAID array
  C. FCoE
  D. iSCSI
  E. USB
  F. PXE
  G. PCI SSD
  G. PCI SSD

• Question 338:

  Which two growing business demands must an enterprise meet to address shifting business pressure and operational limitations? (Choose two.)

  A. greater collaboration
  B. business cycle efficiency improvements
  C. regulatory compliance
  D. architectural and mechanical specifications
  A. greater collaboration
  C. regulatory compliance

• Question 339:

  You need to design and implement a Cisco UCS 5108 Blade Server Chassis system for a customer. Which statement about how half-width blades and full-width blades can be used is true?

  A. Only two full-width blades can be installed in the top two slots, and four half-width blades can be installed in the bottom two slots.
  B. Only one full-width blade can be installed in the top slot, and six half-width blades can he Installed in the bottom slots.
  C. Half-width blades and full-width blades can be combined in any order.
  D. Half-width blade types and full-width blade types cannot be combined.
  C. Half-width blades and full-width blades can be combined in any order.

  ---

  Mixed blade configurations

  Allows up to 8 half-width or 4 full-width blade servers, or any combination thereof, for outstanding flexibility.

  When configured with the 6324 Fabric Interconnect, only 8 half-width B200 M3 blades are supported.

  https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/hw/chassis-install-guide/ucs5108_install/ucs5108_install_chapter_01.html

• Question 340:

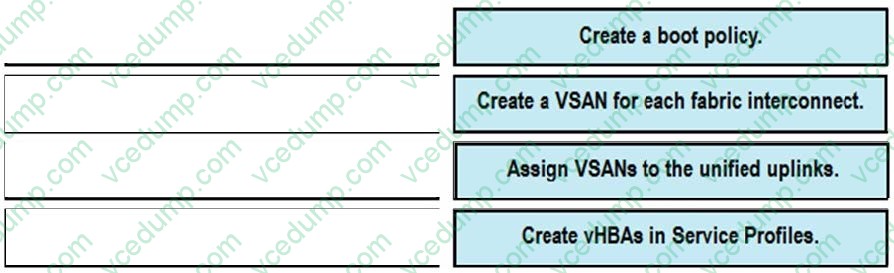

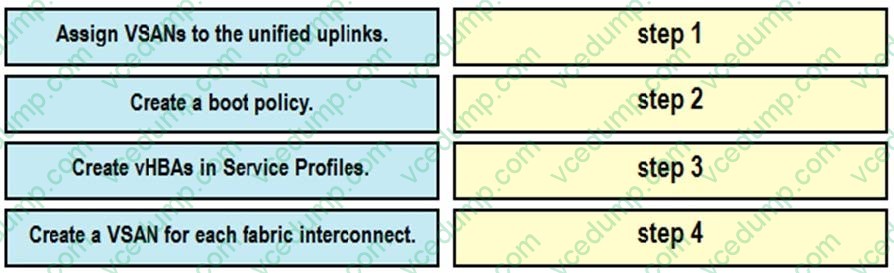

  DRAG DROP

  You must configure a Cisco Unified Computing System server to boot from FCoE. Drag and drop the configuration steps from the left into the correct order on the right.

  Select and Place:
