Cisco 300-175 Online Practice Questions and Exam Preparation

Cisco 300-175 Online Questions & Answers

• Question 301:

  Which tool provides automated support capability that provides continuous monitoring, proactive diagnostics, alerts, and remediation recommendations?

  A. Cisco Smart Call Home
  B. snmp
  C. Cisco Director
  D. Cisco Threat Gateway
  A. Cisco Smart Call Home

• Question 302:

  Which maintenance action releases the assigned chassis ID for future use?

  A. acknowledge chassis
  B. reset CMOS
  C. decommission chassis
  D. remove chassis
  C. decommission chassis

  ---

  http://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/gui/config/guide/2-2/b_UCSM_GUI_Configuration_Guide_2_2/managing_the_chassis.html#task_EB93895D63664D 86ACDE9D13C222A452

• Question 303:

  Where would you disable or enable Cisco Discovery Protocol?

  A. LAN connectivity policy
  B. service profile
  C. network control policy
  D. LAN uplinks manager
  C. network control policy

• Question 304:

  Which three components perform the port extension functions for a Cisco UCS domain? (Choose three.)

  A. the multiprotocol port on the Cisco storage
  B. the Device Manager in Cisco Prime Data Center Network Manager
  C. the Cisco UCS 2208XP IOMs
  D. the Cisco UCS Manager
  E. the Cisco Nexus 2232PP FEX
  F. the Cisco UCS VIC adapter that has VM-FEX and Adapter FEX technology
  A. the multiprotocol port on the Cisco storage
  C. the Cisco UCS 2208XP IOMs
  D. the Cisco UCS Manager

• Question 305:

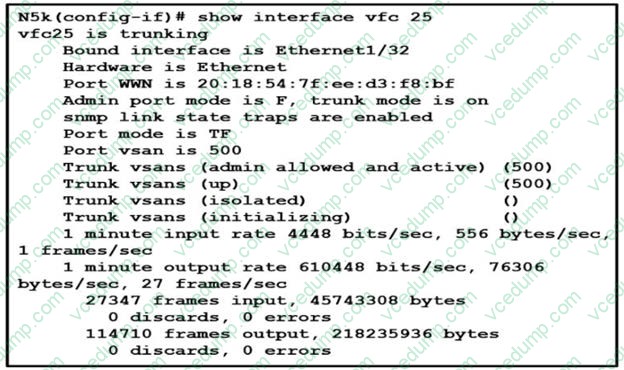

  Refer to the exhibit. Which description of the interface is true?



  A. Unified interface carrying interface Vlan 500
  B. Unified Interface bound to the Ethernet 1/25 interface
  C. Trunking FCoE port carrying Vsan 500
  D. FC interface carrying Vsan 500
  C. Trunking FCoE port carrying Vsan 500

  ---

  Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus5000/sw/fcoe/513_n1_1/b_Cisco_n5k_fcoe_config_gd_re_513_n1_1/b_Cisco_n5k_fcoe_config_gd_re_513_n1_1_chapter_0100.html

• Question 306:

  Scenario

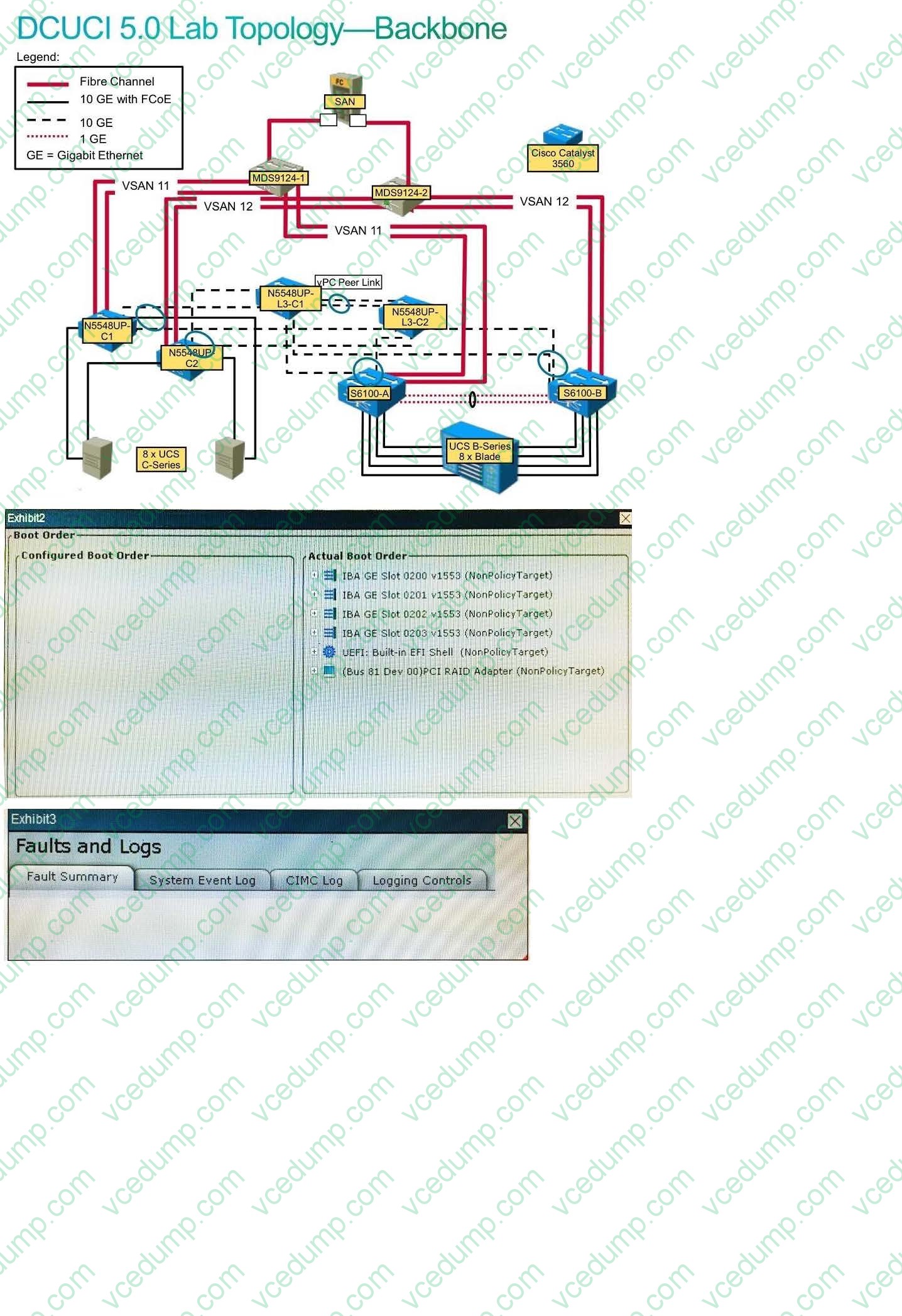

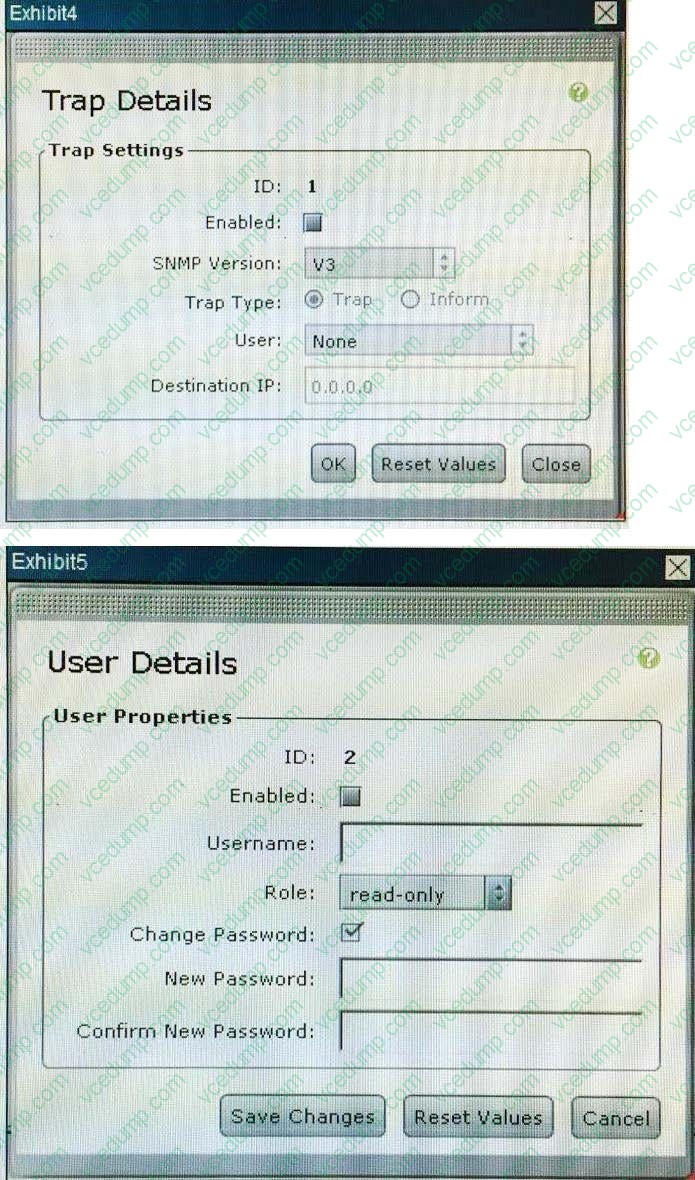

  In this scenario, you will refer to screenshots about Cisco UCS B-Series servers and UCS Manager.

  Instructions

  To access the multiple-choice questions, click on the numbered boxes on the left of the top panel. There are four multiple-choice questions with this task. Be sure to answer all four questions before selecting the Next button.





  Refer to the screenshot in Exhibit 3. Which tab would you choose to determine that a user failed to login to Cisco IMC?

  A. Fault Summary
  B. System Event Log
  C. CIMC Log
  D. Logging Controls
  C. CIMC Log

  ---

  http://www.cisco.com/en/US/docs/unified_computing/ucs/c/sw/gui/config/guide/1.5/b_Cisco_UCS _ C-series_GUI_Configuration_Guide.151_chapter_01110.html#d85279e21a1635

• Question 307:

  Which three design criteria should be evaluated in a successful Cisco virtualized data center solution? (Choose three.)

  A. increased resource utilization
  B. application reliability
  C. portability and mobility
  D. architecture
  A. increased resource utilization
  B. application reliability
  C. portability and mobility

• Question 308:

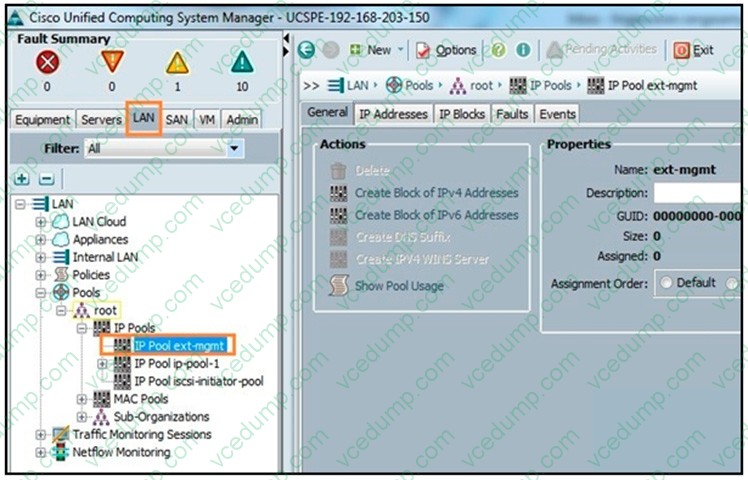

  Refer to the exhibit.



  Which action do you take to ensure that the IP addresses in IP pool ext-mgmt are selected in a random order?

  A. Select the Default option in the Assignment Order property
  B. Delete all the IP pools except for IP pool ext-mgmt
  C. Add another block to IP pool ext-mgmt
  D. Select a pool size that is larger than 0
  A. Select the Default option in the Assignment Order property

  ---

  Reference: https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-manager/GUI-User-Guides/Server-Mgmt/3-1/b_Cisco_UCS_Manager_Server_Mgmt_Guide_3_1/ b_Cisco_UCS_Manager_Server_Mgmt_Guide_3_1_chapter_01110.pdf

• Question 309:

  Which policy is used to update adapter firmware?

  A. adapter policy
  B. host firmware policy
  C. management firmware policy
  D. network control policy
  B. host firmware policy

• Question 310:

  You have a Cisco UCS server connected to Cisco Fabric Interconnects. Which two options are characteristics of a virtual machine that is deployed by using VM-FEX in high-performance mode in this environment? (Choose two.)

  A. The virtual machine connects to a Cisco VIF on the external switch by using Cisco VN-Link in hardware, bypassing the hypervisor.
  B. The dynamic vNIC can connect redundantly by using hardware-based failover to the Cisco UCS Fabric interconnect cluster.
  C. Dynamic vNICs inherit parameters from static vNICs
  D. The virtual machine can share the same dynamic vNIC with another virtual machine in VM-FEX high- performance mode.
  E. The virtual machine deployed in VM-FEX high-performance mode runs on the host by using the default BIOS policy that is available in the Cisco UCS Manager.
  A. The virtual machine connects to a Cisco VIF on the external switch by using Cisco VN-Link in hardware, bypassing the hypervisor.
  B. The dynamic vNIC can connect redundantly by using hardware-based failover to the Cisco UCS Fabric interconnect cluster.

  ---

  In high-performance mode, traffic to and from a virtual machine (VM) bypasses the DVS and hypervisor.

  Traffic travels directly between VMs and the virtual interface card (VIC) adapter.

  The benefits of high-performance mode are as follows:

  -Increases I/O performance and throughput.

  -Decreases I/O latency.

  -Improves CPU utilization for virualized I/O-intensive applications.

  You must modify or create several policies in order for VM-FEX for VMware to function optimally:

  -VMwarePassThrough Ethernet Adapter Policy (high-performance mode only)

  -Dynamic vNIC Connection Policies

  -BIOS Policy (high-performance mode only)

  -VM Lifecycle Policy

  Dynamic vNICs are always protected in Cisco UCS, but this field allows you to select a preferred fabric, if any. You can choose one of the following:

  -Protected Pref A—Cisco UCS attempts to use fabric A but fails over to fabric B if necessary

  -Protected Pref B—Cisco UCS attempts to use fabric B but fails over to fabric A if necessary Protected—Cisco UCS uses whichever fabric is available

  Reference:

  https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/vm_fex/vmware/gui/config_guide/b_GUI_VMware_VM-FEX_UCSM_Configuration_Guide/b_GUI_VMware_VM-FEX_UCSM_Configuration_Guide_chapter_01.html
