Cisco 300-165 Online Practice Questions and Exam Preparation

Cisco 300-165 Online Questions & Answers

• Question 181:

  You plan to implement the OSPF protocol whithin the data center network. Which two statements accurately describe OSPF on the Cisco NX-OS platform? (Choose two.)

  A. The default reference bandwidth is 10 Gbps.
  B. OSPF does not require additional licenses.
  C. The OSPF area can be configured by using decimal notation only.
  D. Redistributing routes into OSPF requires a route map.
  E. The secondary IP address is advertised by default.
  D. Redistributing routes into OSPF requires a route map.
  E. The secondary IP address is advertised by default.

  ---

  Reference: http://www.cisco.com/c/en/us/td/docs/switches/datacenter/sw/4_2/nx-os/unicast/configuration/guide/l3_cli_nxos/l3_ospf.html#74830

• Question 182:

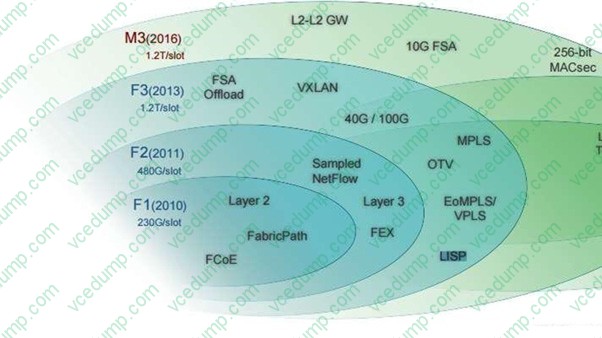

  Which two Nexus family linecards allow the configuration of features regarding LISP, OTV and MPLS? (Choose two.)

  A. B1
  B. F3
  C. F2
  D. F1
  E. M2
  B. F3
  C. F2

  ---



  https://www.cisco.com/c/dam/global/da_dk/assets/training/seminaria-materials/CiscoVirtualUpdate-Nexus7000and7700.pdf

• Question 183:

  If vPC peer keepalives are used between vPC peers, which VRF is used by default?

  A. management
  B. default
  C. The user must dedicate a VRF for keepalives.
  D. system
  A. management

• Question 184:

  Which GLBL load-balancing method ensures that a client is always mapped to the same virtual MAC address?

  A. host-dependent
  B. vmac-weighted
  C. dedicated-vmac-mode
  D. shortest-path and weighting
  A. host-dependent

  ---

  Reference: http://www.cisco.com/c/en/us/products/collateral/ios-nx-os-software/ip-services/product_data_sheet0900aecd803a546c.html

• Question 185:

  Which function does the graceful restart feature allow a Cisco Nexus 7000 Series router to perform?

  A. Perform a rapid route convergence.
  B. Initialize a standby supervisor transparently when one is present.
  C. Remain in the data forwarding path through a process restart.
  D. Maintain a management connection throughout a router restart.
  C. Remain in the data forwarding path through a process restart.

  ---

  Graceful Restart and Non Stop Routing both allow for the forwarding of data packets to continue along known routes while the routing protocol information is being restored (in the case of Graceful Restart) or refreshed (in the case of Non Stop Routing) following a processor switchover. When Graceful Restart is used, peer networking devices are informed, via protocol extensions prior to the event, of the SSO capable routers ability to perform graceful restart. The peer device must have the ability to understand this messaging. When a switchover occurs, the peer will continue to forward to the switching over router as instructed by the GR process for each particular protocol, even though in most cases the peering relationship needs to be rebuilt. Essentially, the peer router will give the switching over router a "grace" period to re-establish the neighbor relationship, whilecontinuing to forward to the routes from that peer. http://www.cisco.com/c/en/us/products/collateral/ios-nx-os-software/high-availability/solution_overview_c22-487228.html

• Question 186:

  When implementing Cisco Adapter FEX, which setting on the virtual interface card on the Cisco UCS C-Series Server must be configured?

  A. uplink failover
  B. PXE boot
  C. network interface virtualization
  D. VM-FEX
  C. network interface virtualization

• Question 187:

  On a Cisco Nexus 5500 Series switch, what is the result of running the (config-if)# switchport mode vntag command?

  A. allows the connected FEX to assign each VM a dedicated vEthernet interface on the host switch
  B. allows the connected server to assign each VM a dedicated vEthernet interface on the host switch
  C. allows the connected server to assign each VM a dedicated Ethernet interface on the host switch
  D. allows the connected FEX to assign each VM a dedicated Ethernet interface on the host switch
  A. allows the connected FEX to assign each VM a dedicated vEthernet interface on the host switch

• Question 188:

  Which command specifies a load-balancing method based on the MAC address of a host where the same forwarder is always used for a particular host while the number of GLBP group members remains unchanged?

  A. load-balancing host-dependent
  B. load-balancing mac-pinning
  C. load-balancing round-robin
  D. load-balancing weighted
  A. load-balancing host-dependent

• Question 189:

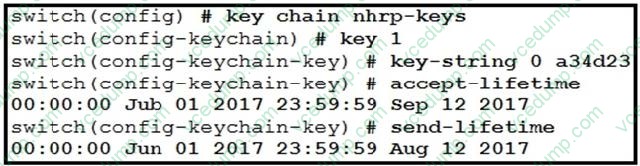

  Refer to the exhibit. What is the result of the configuration?

  A. The key chain will be accepted after September 12, 2017
  B. An unencrypted key chain is entered into the switch.
  C. The key chain is valid for 24 hours only.
  D. An encrypted key chain is entered into the switch.
  B. An unencrypted key chain is entered into the switch.

• Question 190:

  When implementing VLAN 10 on multiple Cisco Nexus 5600 Series, which configuration is required to ensure that the full zone set and the active zone set are the same across the fabric?

  A. switch(config)# zoneset activate name ZONE10 vsan 10
  B. switch(config)# zoneset distribute full vsan 10
  C. switch(config)# zoneset distribute vsan 33
  D. switch(config)# zone-attribute-group name ATTR1 vsan 10
  E. switch(config-attribute-group)# broadcast
  A. switch(config)# zoneset activate name ZONE10 vsan 10
