Cisco 300-165 Online Questions & Answers

• Question 1:

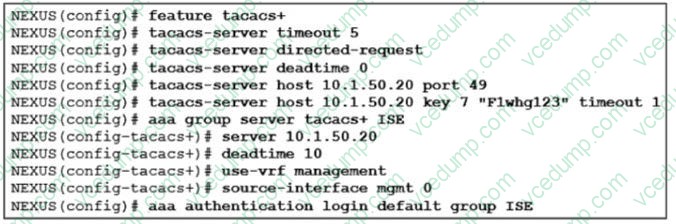

  Refer to the exhibit. Which result of implementing the configuration is true?



  A. The TACACS+ server uses the type-6 encrypted format
  B. The dead time on the TACACS+ server is 0 minutes
  C. Users can specify the TACACS+ server when they log in
  D. The timeout value on the TACACS+ server is 10 seconds
  D. The timeout value on the TACACS+ server is 10 seconds

  ---

  Reference: https://www.cisco.com/c/m/en_us/techdoc/dc/reference/cli/n5k/commands/tacacs-server-deadtime.html

• Question 2:

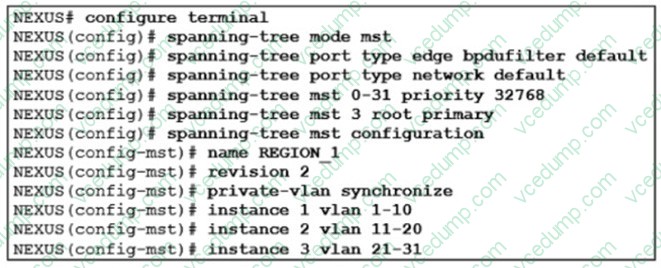

  Refer to the exhibit. Which result of implementing the configuration is true?



  A. All the secondary private VLANs are mapped to the same MST instance as the primary VLAN
  B. The switch is the spanning-tree root for VLAN 3
  C. A switch port bypasses the learning and blocking states by default when transitioning to the forwarding state
  D. A switch port shuts down if it receives a BPDU
  A. All the secondary private VLANs are mapped to the same MST instance as the primary VLAN

  ---

  Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus5000/sw/configuration/guide/cli/CLIConfigurationGuide/PrivateVLANs.pdf

• Question 3:

  Which statement about Cisco FabricPath is true?

  A. It is the best solution for interconnecting multiple data centers.
  B. It optimizes STP throughout the Layer 2 network.
  C. It is a simplified extension of Layer 3 networks across a single data center.
  D. The Cisco FabricPath domain appears as a single STP bridge, where each edge port uses the same MAC address.
  D. The Cisco FabricPath domain appears as a single STP bridge, where each edge port uses the same MAC address.

  ---

  To have a loop-free topology for the CE/FabricPath hybrid network, the FabricPath network automatically displays as a single bridge to all connected CE devices. The STP domains do not cross into the FabricPath network. If multiple STP domains are defined, BPDUs and topology change notifications (TCNs) are localized to the domain. If a connected STP domain is multihomed to the FabricPath domain, a TCN must be able to reach to all devices in the STP domain through the FabricPath domain. As a result, the TCN is sent to the FabricPath domain through the IS-IS protocol data unit (PDU) by default. http://www.cisco.com/en/US/docs/switches/datacenter/nexus5000/sw/mkt_ops_guides/513_n1_1/n5k_ops_fabricpath.html

• Question 4:

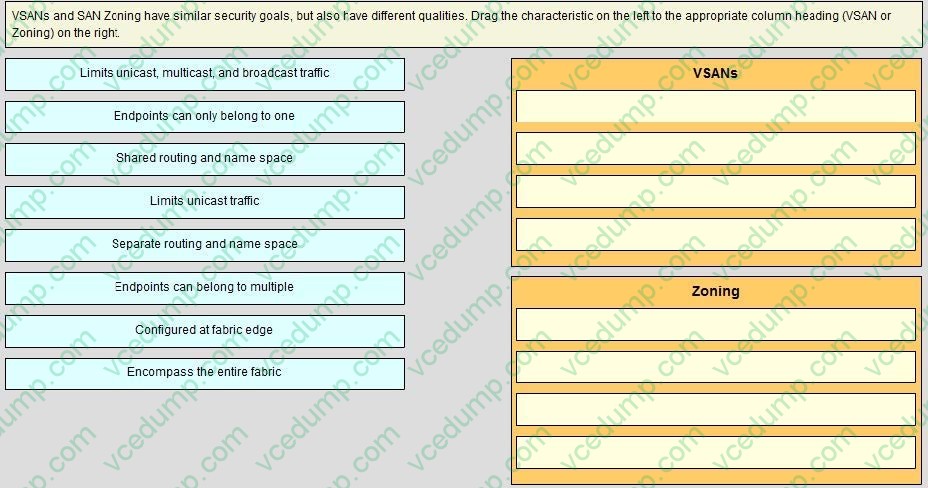

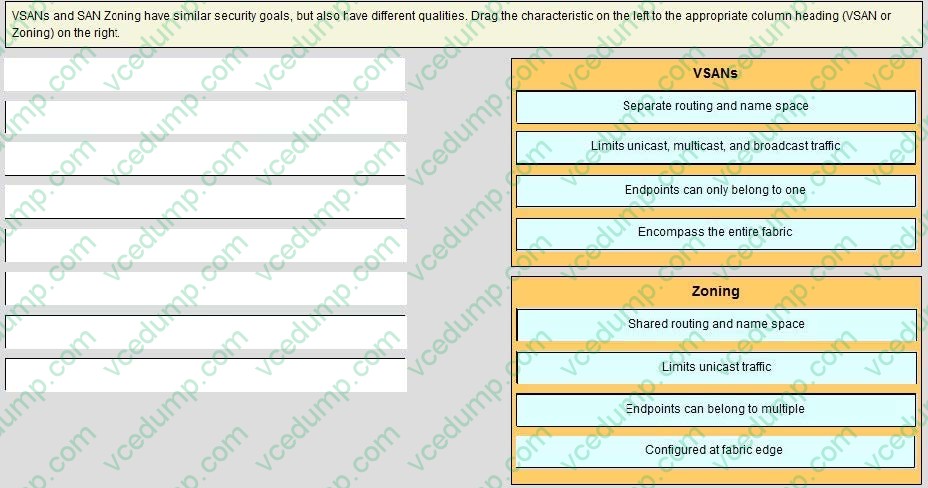

  VSANs and SAN Zoning have similar security goals, but also have different qualities. Drag the characteristic on the left to the appropriate column heading (VSAN or Zoning) on the right.

  Select and Place:





• Question 5:

  Which database contains information about all of the devices that are currently registered in the fabric?

  A. RSCN
  B. FLOGI
  C. FDMI
  D. FCNS
  B. FLOGI

• Question 6:

  Which four options are capabilities of the Cisco Nexus 5000 and 5500 Series Switch? (Choose four.)

  A. line rate
  B. managed by a parent switch
  C. lossless 10 Gigabit Ethernet
  D. lossless 100 Gigabit Ethernet
  E. low latency
  F. extremely low latency
  G. hosts a virtual supervisor module
  A. line rate
  C. lossless 10 Gigabit Ethernet
  E. low latency
  G. hosts a virtual supervisor module

• Question 7:

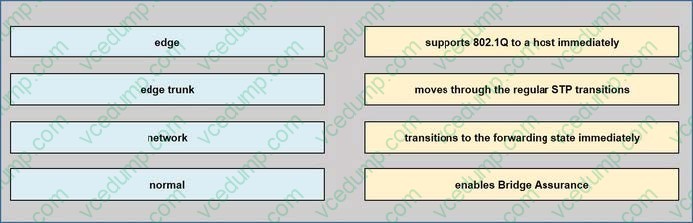

  Drag and drop the spanning tree types on the left to their correct descriptions on the right

  Select and Place:





  ---

  Edge = edge port interface immediately transitions to the forwarding state Edge trunk = supports 802.1Q to a host immediately Network = enables Bridge Assurance Normal = moves through the regular STP transactions

• Question 8:

  Which protocol is the foundation for unified fabric as implemented in Cisco NX-OS?

  A. Fibre Channel
  B. Data Center Bridging
  C. Fibre Channel over Ethernet
  D. N proxy virtualization
  E. N Port identifier virtualization
  C. Fibre Channel over Ethernet

  ---

  Fibre Channel over Ethernet (FCoE) is one of the major components of a Unified Fabric. FCoE is a new technology developed by Cisco that is standardized in the Fibre Channel Backbone 5 (FC-BB- 5) working group of Technical Committee T11 of the International Committee for Information Technology Standards (INCITS). Most large data centers have huge installed bases of Fibre Channel and want a technology that maintains the Fibre Channel model. FCoE assumes a lossless Ethernet, in which frames are never dropped (as in Fibre Channel) and that therefore does not use IP and TCP. http://www.cisco.com/c/en/us/products/collateral/switches/nexus-5000-series-switches/white_paper_c11-495142.html

• Question 9:

  Which task must be done before a zone set takes effect?

  A. Add a member to the zone.
  B. Enter the exit config t command.
  C. Enter the copy running-config startup-config command.
  D. Enter the zoneset activate name vsan command.
  D. Enter the zoneset activate name vsan command.

• Question 10:

  Which description of Cisco zoning is true?

  A. In soft zoning, individual frames are inspected on ingress
  B. With enhanced zoning a single configuration session locks the entire fabric to implement a change
  C. Hard zoning is the most efficient method because it is enforced through software
  D. Soft zoning is implemented by using TCAM
  B. With enhanced zoning a single configuration session locks the entire fabric to implement a change
