• Question 201:

  Which should you run to configure HSRP on a Cisco Nexus 7000 Series switch?

  A. feature-set hsrp interface vlan100 ip address 10.1.1.1 255.255.255.0 hsrp version 2 hsrp 100 ip 10.1.1.1
  B. interface vlan100 ip address 10.1.1.2 255.255.255.0 hsrp 100 ip 10.1.1.1
  C. feature hsrp interface vlan100 ip address 10.1.1.2 255.255.255.0 hsrp 1000 ip 10.1.1.1
  D. feature hsrp interface vlan100 ip address 10.1.1.2 255.255.255.0 hsrp version 2 hsrp 1000 ip 10.1.1.1
  C. feature hsrp interface vlan100 ip address 10.1.1.2 255.255.255.0 hsrp 1000 ip 10.1.1.1

• Question 202:

  Which feature must be configured before you can implement a dynamic ARP inspection to validate ARP packet?

  A. MACsec encryption
  B. unicast RPF
  C. DHCP snooping
  D. IP Source Guard
  C. DHCP snooping

  ---

  Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus5500/sw/security/602_N1_2/b_5500_Security_Config_602N12/b_5500_Security_Config_602N12_chapter_01100.pdf

• Question 203:

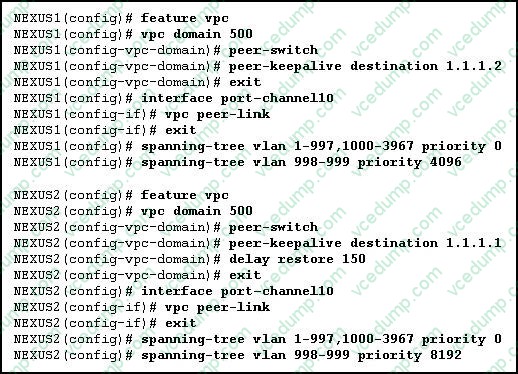

  Refer to the exhibit.



  You configure two switches named NEXUS1 and NEXUS2. Which two results of implementing the configuration are true? (Choose two.)

  A. NEXUS1 is the spanning-tree root for VLAN 100.
  B. NEXUS1 is the spanning-tree root for VLAN 998.
  C. NEXUS2 is the spanning-tree root for VLAN 100.
  D. Both switches are the spanning-tree root for VLAN 998.
  E. Both switches are the spanning-tree root for VLAN 100.
  B. NEXUS1 is the spanning-tree root for VLAN 998.
  E. Both switches are the spanning-tree root for VLAN 100.

• Question 204:

  Which option accurately describes the implementation of Fibre Channel domain IDs?

  A. Are assigned on a per-switch basis
  B. Are assigned on a per-line card basis
  C. Must be the same on all on the Fibre Channel switch in the fabric
  D. Must be unique on all the Fibre Channel switches in the fabric
  A. Are assigned on a per-switch basis

• Question 205:

  Which two items are required components of VN-Link in software? (Choose two.)

  A. VDC
  B. VEM
  C. vPC
  D. VSM
  E. VRRP
  B. VEM
  D. VSM

  ---

  The Cisco Nexus 1000V Series consists of two main types of components that can virtually emulate a 66-slot modular Ethernet switch with redundant supervisor functions:

  Virtual Ethernet module (VEM)-data plane: This lightweight software component runs inside the hypervisor. It enables advanced networking and security features, performs switching between directly attached virtual machines, provides uplink capabilities to the rest of the network, and effectively replaces the vSwitch. Each hypervisor is embedded with one VEM.

  Virtual supervisor module (VSM)-control plane: This standalone, external, physical or virtual appliance is responsible for the configuration, management, monitoring, and diagnostics of the overall Cisco Nexus 1000V Series system (that is, the combination of the VSM itself and all the VEMs it controls) as well as the integration with VMware vCenter. A single VSM can manage up to 64 VEMs. VSMs can be deployed in an active-standby model, helping ensure high availability.

  http://www.cisco.com/c/en/us/solutions/collateral/switches/nexus-1000v-switch-vmware-vsphere/white_paper_c11-525307.html

• Question 206:

  Between which two types of ports does FIP establish Fibre Channel virtual links? (Choose two.)

  A. VE Ports and VE Ports
  B. N Ports and F Ports
  C. VN Ports and VF Ports
  D. VP Ports and VE Ports
  E. VE Ports and VF Ports
  F. E Ports and E Ports
  A. VE Ports and VE Ports
  C. VN Ports and VF Ports

  ---

  FIP aims to establish virtual FC links between VN_Ports and VF_Ports (ENode to FCF), as well as between pairs of VE_Ports (FCF to FCF), since these are the only legal combinations supported by native Fibre Channel fabrics. Standards-compliant implementations are not required to support both forms of virtual FC links, and Cisco has decided to focus initially on implementing FIP only between ENodes and FCFs. FCF-to-FCF connectivity is considered a strategic direction for end-to-end FCoE deployments, but the short-term urgency is for FCoE adoption between CNAs and the Fibre Channel fabric perimeter, where unified fabric can offer the greatest capital expenditure (CapEx) savings today. http://www.cisco.com/c/en/us/products/collateral/switches/nexus-7000-series-switches/white_paper_c11-560403.html

• Question 207:

  Which feature enables NIV?

  A. EHV
  B. vPC
  C. Cisco FabricPath
  D. Cisco OTV
  E. VN-Tag
  A. EHV

  ---

  EHV is the feature that enables NIV.

• Question 208:

  Which features must be enabled to implement manual MACsec?

  A. MSDP and dot1x
  B. CTS and MSDP
  C. CTS and dot1x
  D. CTS and private VLAN
  C. CTS and dot1x

• Question 209:

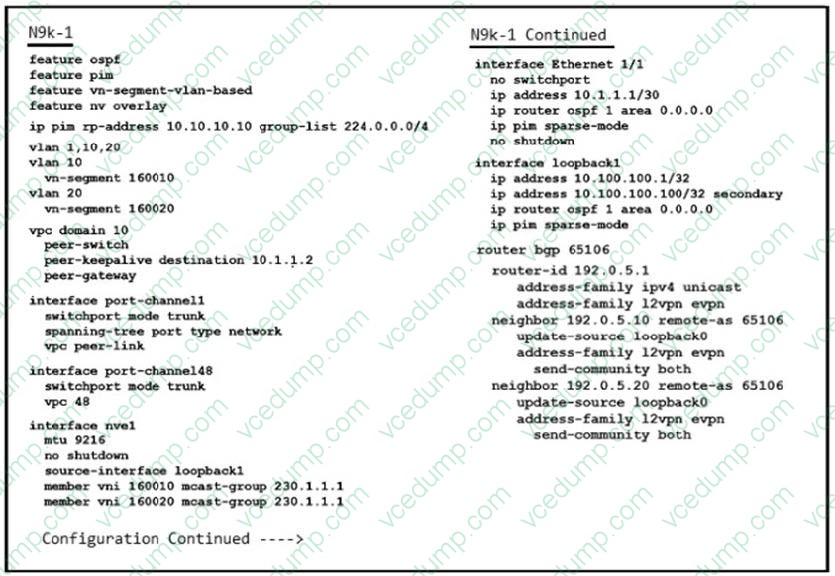

  Refer to the exhibit. Which IP address does N9K-1 use to represent itself when connecting to a remote NVE peer?



  A. 10.100.100.100
  B. 10.100.100.1
  C. 10.10.10.10
  D. 10.1.1.0
  A. 10.100.100.100

  ---

  Reference: https://www.cisco.com/c/en/us/support/docs/switches/nexus-9000-series-switches/118978-config-vxlan-00.html

• Question 210:

  You have two switches that have an ISL between them and use a SAN port channel. One of the switches is configured to use active mode. To which mode can you configure the peer switch to ensure that the SAN port channel is functional?

  A. active or passive
  B. active or on
  C. active or F
  D. passive or E
  A. active or passive
