Cisco 300-165 Online Practice Questions and Exam Preparation

Cisco 300-165 Online Questions & Answers

• Question 171:

  What mode is required on a Cisco Nexus 7000 32-port 10-GB module port group to allow equal access to the 10-GB port controller?

  A. dedicated
  B. assigned
  C. shared
  D. community
  C. shared

  ---

  You can share 10 Gb of bandwidth among a group of ports (four ports) on a 32-port 10-Gigabit Ethernet module. To share the bandwidth, you must bring the dedicated port administratively down, specify the ports that are to share the bandwidth, change the rate mode to shared, and then bring the ports administratively up. http://www.cisco.com/c/en/us/td/docs/switches/datacenter/sw/5_x/nx-os/interfaces/configuration/guide/if_cli/if_basic.html#70242

• Question 172:

  In a Cisco Catalyst 6500 VSS 1440 domain on a Catalyst 6509 Switch, which command lists the files present on the CompactFlash card in the first slot on the active switch?

  A. dir disk0:
  B. dir sw1-slot5-disk0:
  C. dir vss-active disk0:
  D. dir sw1-slot5-bootflash:
  E. dir vss-sw1-disk0:
  B. dir sw1-slot5-disk0:

• Question 173:

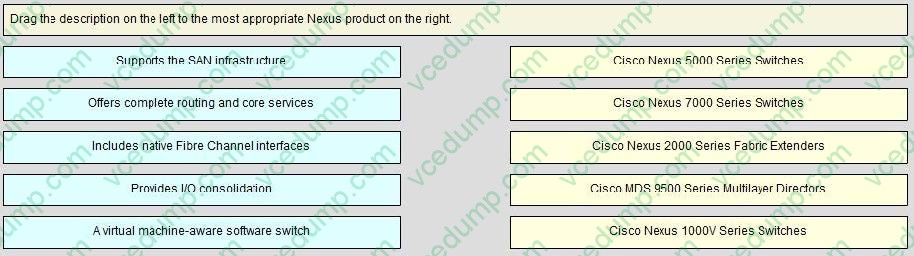

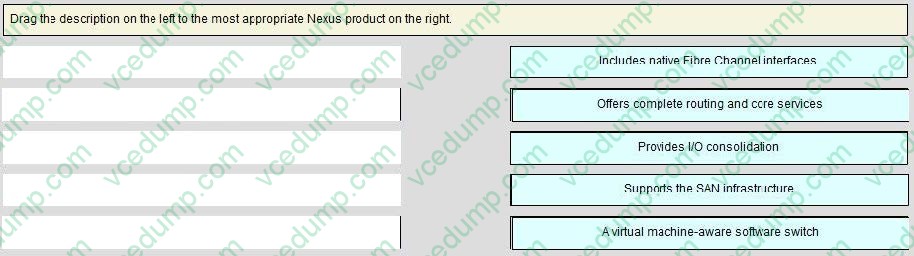

  Drag the description on the left to the most appropriate Nexus product on the right.

  Select and Place:





• Question 174:

  Which two functions are enabled when you set up vPC+ at the FabricPath edge? (Choose two.)

  A. the ability to attach Cisco Fabric Extenders in FEX active/active mode
  B. the ability to stop all Layer 3 egress traffic
  C. the ability to attach servers to edge switches with port-channel teaming
  D. the ability to attach additional Classic Ethernet switches in vPC+ mode
  A. the ability to attach Cisco Fabric Extenders in FEX active/active mode
  C. the ability to attach servers to edge switches with port-channel teaming

• Question 175:

  If you are using NAT in your data center, which load balancing would you be likely to use within your GLBP configuration?

  A. none
  B. round-robin
  C. host dependent
  D. weighted
  C. host dependent

• Question 176:

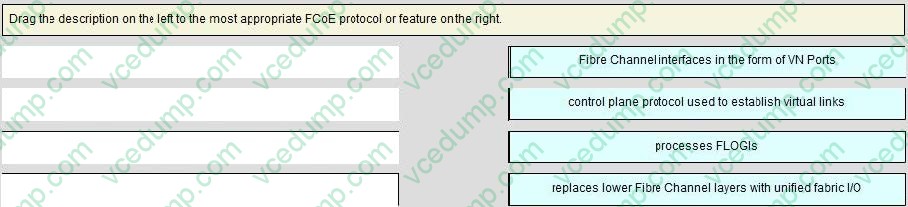

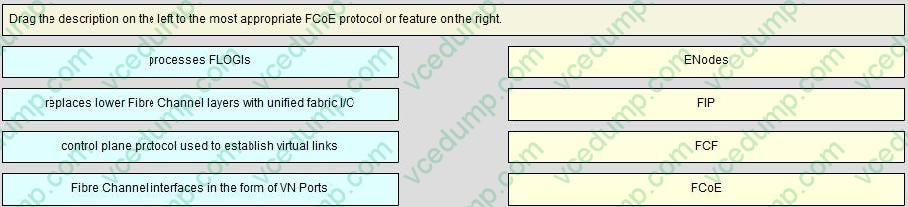

  Drag the description on the left to the most appropriate FCoE protocol or feature on the right.

  Select and Place:





  ---

  ENODES: During FLOGI or FDISC, the ENode advertises the addressing modes it supports. If the FC switch supports an addressing mode that the ENode uses, the virtual link can be established, and the devices can communicate.

  FIP: FIP is the set of control plane functions that enable discovery of FCoE-capable devices across FCoE passthrough switches and establishment of legal combinations of virtual links.

  FCF: FCoE Initialization Protocol (FIP) is the FCoE control protocol responsible for establishing and maintaining Fibre Channel virtual links between pairs of FCoE devices (ENodes or FCFs). During the virtual link establishment phase, FIP first discovers FCoE VLANs and remote virtual FC interfaces; then it performs virtual link initialization functions (fabric login [FLOGI] and fabric discovery [FDISC], or exchange link parameters [ELP]) similar to their native Fibre Channel equivalents. After the virtual link is established, Fibre Channel payloads can be exchanged on the virtual link, and FIP remains in the background to perform virtual link maintenance functions; it continuously verifies reachability between the two virtual FC interfaces on the Ethernet network, and it offers primitives to delete the virtual link in response to administrative actions to that effect. This document does not describe the virtual link maintenance functions of FIP.

• Question 177:

  Without having access to Fabric Path show commands, how can you confirm whether Fabric Path is configured on the two vPC peers 7K-3 and 7K-4?

  A. Show vpc would not indicate any downstream virtual port channel vPC parameter with active VLANs
  B. Show vpc role on both 7K-3 and 7K-4 would indicate their role as primary
  C. Show interface would indicate port-channels 1 and 2 would use a port mode of Fabric path 0.
  D. Show hsrp would be blank, since FHRP is not supported or required when using Fabric Path
  A. Show vpc would not indicate any downstream virtual port channel vPC parameter with active VLANs

• Question 178:

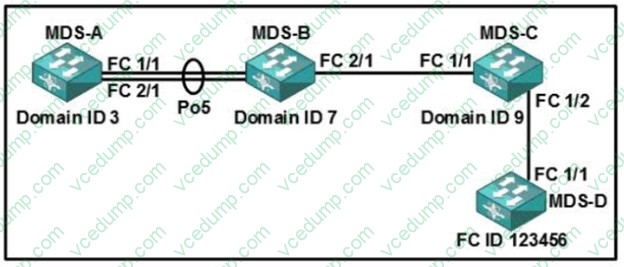

  Refer to the exhibit.



  Which command configures a static FSPF route from MDS-A to FC ID 123456?

  A. switch(config)#fcroute 0x123456 interface san-port-channel 5 domain 7 vsan 10
  B. switch(config)#fcroute 0x123456 interface san-port-channel 5 domain 3 vsan 10
  C. switch(config)#fcroute 123456 interface fc 1 2 domain 7
  D. switch(config)#fcroute 123456 interface fc 1 1 domain 9
  A. switch(config)#fcroute 0x123456 interface san-port-channel 5 domain 7 vsan 10

  ---

  Reference: https://www.cisco.com/c/m/en_us/techdoc/dc/reference/cli/n5k/commands/fcroute.html

• Question 179:

  Which statement about the MPLS feature set is true?

  A. It is not license dependent.
  B. It can be installed from any VDC.
  C. It can be enabled only in the default VDC.
  D. It must be installed from the default VDC.
  D. It must be installed from the default VDC.

• Question 180:

  Which command should you use to apply a custom CoPP policy?

  A. Nexus7000(config-cp)# service-policy input copp-policy-moderate-policy
  B. Nexus7000(config-cp)# class-map type control-plane match-any copp-system-p-ppolicy
  C. Nexus7000(config-cp)# policy-map type control-plane copp-system-p-policy
  D. Nexus7000(config-cp)# copp profile strict
  A. Nexus7000(config-cp)# service-policy input copp-policy-moderate-policy

  ---

  Reference: https://www.cisco.com/c/en/us/support/docs/switches/nexus-7000-series-switches/116043-copp-nexus7000-tshoot-00.html#anc8
