• Question 151:

  DRAG DROP

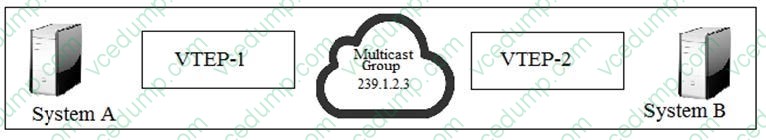

  Refer to the exhibit.

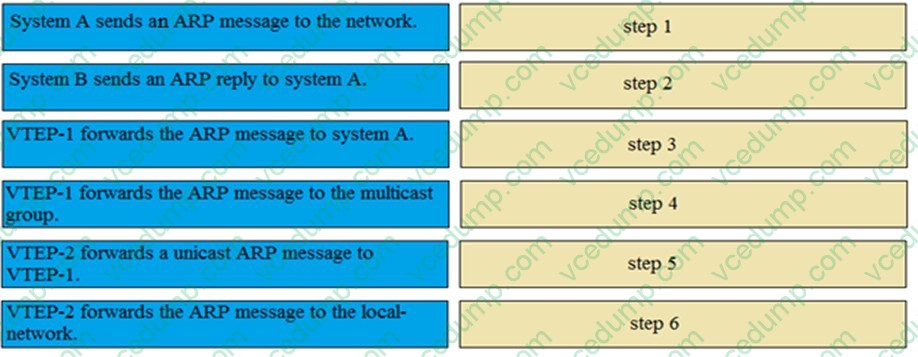

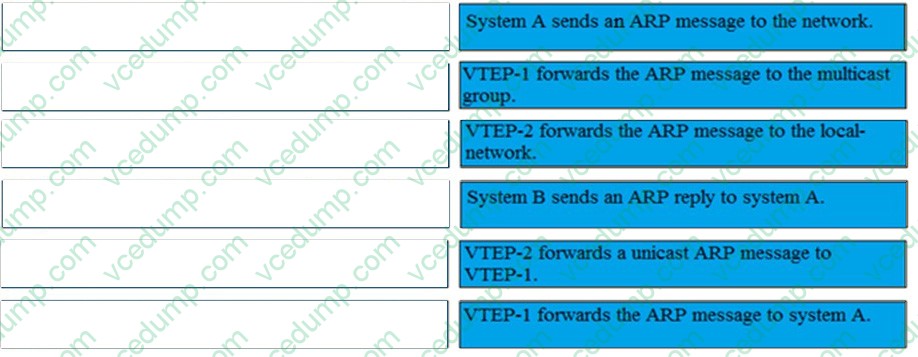

  System A must be able to use VXLAN peer discovery to send a message to System B to receive a response. Drag and drop the peer discovery steps from the left into the correct order on the right.

  Select and Place:





• Question 152:

  Which description of a MAC ACL is true?

  A. It is applied to egress traffic only.
  B. It filters based on the DSCP value.
  C. It is applied to ingress traffic only.
  D. It is applied when DHCP snooping is enabled.
  C. It is applied to ingress traffic only.

  ---

  Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/sw/4_1/nx-os/security/configuration/guide/sec_nx-os-cfg/sec_macacls.pdf

• Question 153:

  Which statement accurately describes an EPLD upgrade on supervisor modules?

  A. It is disruptive in single supervisor configurations
  B. It can be performed during an ISSU
  C. It requires an NX-OS image upgrade
  D. it is disruptive in dual supervisor configurations
  A. It is disruptive in single supervisor configurations

• Question 154:

  Which statement about implementing fabric binding is true?

  A. Activation must be performed globally on a switch.
  B. Cisco Fabric Services must be enabled on a switch to distribute configuration information.
  C. Activation must be performed on a per-VSAN basis.
  D. Activation must be performed globally.
  C. Activation must be performed on a per-VSAN basis.

• Question 155:

  Which two methods does CoPP use to protect the supervisor from being overwhelmed? (Choose two.)

  A. segregating packets destined for the supervisor into different classes
  B. delaying packets destined for the control plane to ensure the data plane is given ample bandwidth
  C. applying Modular Quality of Service CLI to all packets entering the switch
  D. limiting packets destined for the supervisor to a predefined rate
  E. segregating packets in the data, control, and management planes into different classes
  A. segregating packets destined for the supervisor into different classes
  D. limiting packets destined for the supervisor to a predefined rate

• Question 156:

  What is an Overlay Transport Virtualization extended VLAN?

  A. the user VLAN that exists in multiple sites
  B. the VLAN that must contain the overlay interface
  C. the VLAN used to locate other AEDs
  D. the VLAN used to access the overlay network by the join interface
  A. the user VLAN that exists in multiple sites

• Question 157:

  Which interface is used for vPC peer keepalives on both 7000's?

  A. Port-channel 1
  B. Port-channel 2
  C. Port-channel 100
  D. Mgmt.0
  E. Ethernet 2/1
  F. Ethernet 2/3
  D. Mgmt.0

  ---

  Reference: https://learningnetwork.cisco.com/thread/104813

• Question 158:

  Which two options should you consider when you configure a SAN zone set? (Choose two.)

  A. VSANs can be activated by using enhanced zoning.
  B. A SAN zone set consists of one or more SAN zones.
  C. A SAN zone set must be activated manually on all of the fabric nodes.
  D. Only the SAN zone set can be activated simultaneously.
  E. One SAN zone can be the member of only one zone set.
  B. A SAN zone set consists of one or more SAN zones.
  C. A SAN zone set must be activated manually on all of the fabric nodes.

  ---

  Reference: https://www.cisco.com/en/US/docs/storage/san_switches/mds9000/sw/san-os/quick/guide/qcg_zones.pdf

• Question 159:

  Instructions

  This task does not require device configuration.

  Click Cisco Nexus 5548 to gain console access. No console or enable passwords are required.

  To access the multiple-choice questions, click the numbered boxes on the left of the top panel.

  There are four multiple-choice questions with this task.

  Scenario

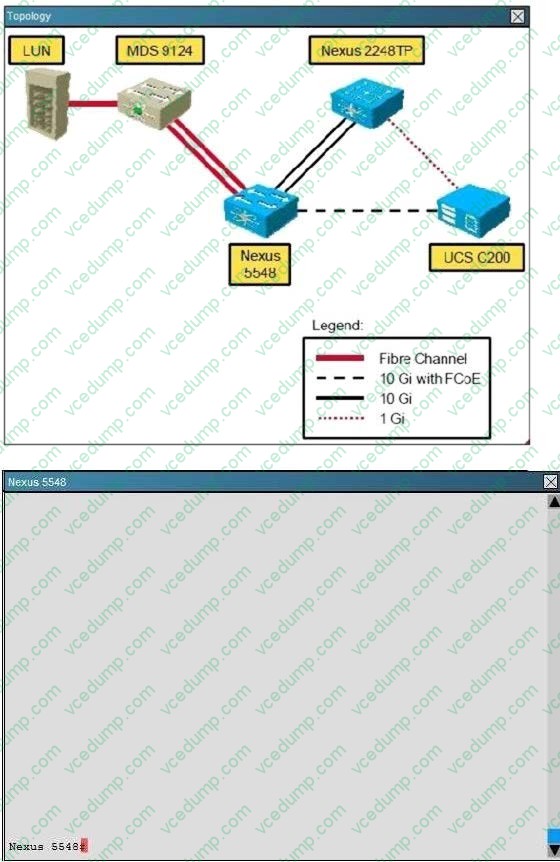

  Customer is deploying Cisco Nexus 5548 switch with FCoE in their new data center, as shown in the topology diagram. Click Nexus5548 icon to run show commands and answer the questions.



  When configuring FCoE VLANs and Virtual Fiber Channel (vFC) Interfaces, what guidelines must be followed?

  A. Each vFC interface must be bound to an FCoE-enabled Ethernet or EtherChannel interface or to the MAC address of a remotely connected adapter
  B. Each FC interface must be bound to an FCoE-enabled Ethernet or EtherChannel interface or to the MAC address of a remotely connected adapter
  C. Each vFC interface must be bound to an FC enabled Ethernet or EtherChannel interface or to the MAC address of a remotely connected adapter
  D. Each vFC interface must be bound to an FCoE-enabled vFC or EtherChannel interface or to the MAC address of a remotely connected adapter
  A. Each vFC interface must be bound to an FCoE-enabled Ethernet or EtherChannel interface or to the MAC address of a remotely connected adapter

• Question 160:

  Which two advantages does FabricPath have over Spanning Tree in implementing a loop-free network topology design? (Choose two.)

  A. Blocked links can be brought in to service if active links fail.
  B. Convergence times are faster.
  C. Multipath forwarding is supported for unicast and multicast Layer 2 and Layer 3 traffic.
  D. Unknown unicast addresses are flooded in through the originating port.
  B. Convergence times are faster.
  C. Multipath forwarding is supported for unicast and multicast Layer 2 and Layer 3 traffic.
