Cisco 300-165 Online Practice Questions and Exam Preparation

Cisco 300-165 Online Questions & Answers

• Question 141:

  You are implementing a Cisco FabricPath network. Which statement accurately describes the VN-Segment feature?

  A. The VN-Segment feature must be enabled on all switches.
  B. Up to 16,000 VN segments are supported on a leaf switch.
  C. The VN-Segment tag is added to VN segment edge ports.
  D. The VN-Segment feature must be enabled on all leaf switches.
  D. The VN-Segment feature must be enabled on all leaf switches.

  ---

  Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus5600/sw/layer2/7x/b_5600_Layer2_Config_7x/config_vn_segment.html

• Question 142:

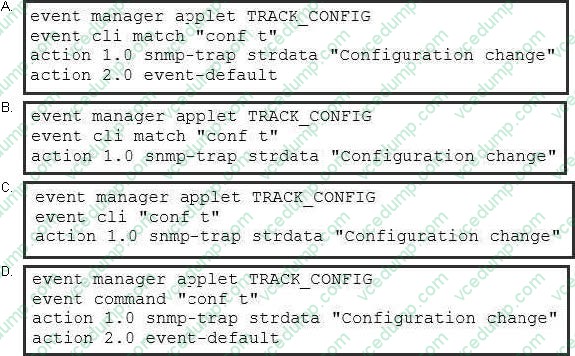

  Which example creates an Embedded Event Manager policy allowing the CLI command to execute, and triggers an SNMP notification when a user enters configuration mode?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  A. Option A

• Question 143:

  Which three parameters can be set when configuring a Cisco MDS 9000 Series Switch to use a TACACS+ server? (Choose three.)

  A. group-size
  B. deadtime
  C. timeout
  D. keep-alive
  E. retransmit
  B. deadtime
  C. timeout
  E. retransmit

• Question 144:

  You have a switch that is operating in NPV mode. The interfaces of the switch use which port type to connect to the core network?

  A. TE Port
  B. NP Port
  C. E Port
  D. F Port
  B. NP Port

• Question 145:

  Which Cisco NX-OS feature allows transparent Layer 2 extension between sites?

  A. FabricPath
  B. ETV
  C. OTV
  D. vPC
  E. LISP
  F. TrustSec
  C. OTV

• Question 146:

  In a Cisco Catalyst 6500 Series Switch with redundant supervisors, how is the Cisco IOS image upgraded?

  A. The active supervisor automatically synchronizes the image to the standby supervisor.
  B. The standby supervisor is removed and reinstalled in the chassis to synchronize images.
  C. The line cards in the chassis are reloaded upon supervisor switchover.
  D. SSO is used to automatically synchronize images between the active and standby supervisors.
  C. The line cards in the chassis are reloaded upon supervisor switchover.

• Question 147:

  Which two actions are required when configuring LISP virtual machine mobility across subnets? (Choose two.)

  A. Filter HSRP hello messages across data centers to create an active-active HSRP setup
  B. Enable proxy ARP on the interfaces that allow virtual machine mobility
  C. Configure different MAC addresses across all the HSRP groups
  D. Ensure that all the HSRP virtual IP addresses are different in the extended LANs
  E. Propagate ARP packets across all the broadcast domains of the data center.
  A. Filter HSRP hello messages across data centers to create an active-active HSRP setup
  B. Enable proxy ARP on the interfaces that allow virtual machine mobility

• Question 148:

  You configure STP on a switch that is attached to a Cisco FabricPath domain and that has the vPC feature deployed. How do you configure STP on the switch in the Cisco FabricPath domain on VLAN 10?

  A. switch(config)# spanning-tree vlan 10 priority 0 switch(config)# spanning-tree pseudo-information switch(config-pseudo)# vlan 10 root priority 0
  B. switch(config)# spanning-tree vlan 10 priority 8192 switch(config)# spanning-tree pseudo-information switch(config-pseudo)# vlan 10 root priority 4096
  C. switch(config)# spanning-tree vlan 10 priority 4096 switch(config)# spanning-tree pseudo-information switch(config-pseudo)# vlan 10 root priority 8192
  D. switch(config)# spanning-tree vlan 10 priority 0 switch(config)# spanning-tree pseudo-information switch(config-pseudo)# vlan 10 root priority 4096
  B. switch(config)# spanning-tree vlan 10 priority 8192 switch(config)# spanning-tree pseudo-information switch(config-pseudo)# vlan 10 root priority 4096

  ---

  Note that it is fine to use the spanning-tree priority command and the spanning-tree pseudo-information command together, but the root priority in the pseudo-information needs to be a lower value (higher priority) than the spanning-tree priority to make sure that the remaining working Cisco FabricPath switch is sending a superior BPDU with the common FabricPath bridge ID and the configured spanning-tree pseudo-information priority and remains at the spanning-tree root.

  Reference: https://www.cisco.com/c/dam/en/us/products/collateral/switches/nexus-7000-series-switches/white_paper_c07-728188.pdf page 44

• Question 149:

  Which option must be enabled to implement manual MACsec?

  A. CTS and dot1x
  B. MSDP and dot1x
  C. CTS and MSDP
  D. CTS and private VLAN
  A. CTS and dot1x

  ---

  Reference: http://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst4500/15-1/XE_330SG/configuration/guide/config/swmacsec.html

• Question 150:

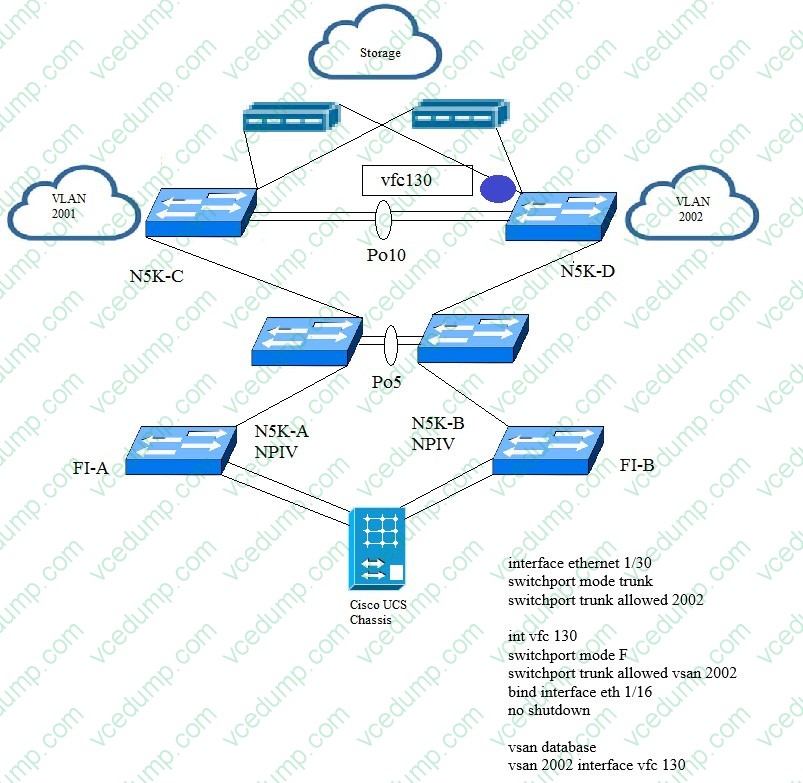

  Refer to the exhibit. What is the effect of the bind interface eth 1/16 command on the vfc130 interface?



  A. It attaches the physical Fibre Channel interface to the virtual Fibre Channel interface
  B. It attaches the FCoE interface to the VSAN interface
  C. It transitions the port to the forwarding state of the spanning tree automatically
  D. It attaches the virtual Fibre Channel interface to the physical interface
  A. It attaches the physical Fibre Channel interface to the virtual Fibre Channel interface
