• Question 931:

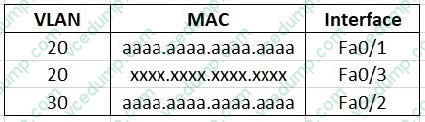

  A question with the MAC address aaaa.aaaa.aaaa with a show mac-address output based on Layer 3.

  (Choose two.)

  (New question with the MAC aaaa.aaaa.aaaa. It shows a show mac-address output. )



  A. Fa0/1 and Fa0/3 can communicate without a Layer 3 switch
  B. Fa0/1 and Fa0/3 cannot communicate without a Layer 3 switch.
  C. Device with MAC address of aaaa.aaaa.aaaa is connected to the same VLAN.
  D. Device with MAC address of aaaa.aaaa.aaaa is connected to different VLAN.
  E. Fa0/1 and Fa0/2 cannot communicate via Layer 3 switch.
  A. Fa0/1 and Fa0/3 can communicate without a Layer 3 switch
  D. Device with MAC address of aaaa.aaaa.aaaa is connected to different VLAN.

• Question 932:

  Which three design types of capable Ethernet LANs does HSRP support? (Choose three.)

  A. Multicaccess
  B. Multicast
  C. Broadcast
  D. Unicast
  E. Token Ring
  F. FDDI
  A. Multicaccess
  B. Multicast
  C. Broadcast

• Question 933:

  While doing network discovery using Cisco Discovery Protocol, it is found that rapid error tracking is not currently enabled. Which option must be enabled to allow for enhanced reporting mechanisms using Cisco Discovery Protocol?

  A. Cisco Discovery Protocol version 2
  B. Cisco IOS Embedded Event Manager
  C. logging buffered
  D. Cisco Discovery Protocol source interface
  E. Cisco Discovery Protocol logging options
  A. Cisco Discovery Protocol version 2

  ---

  CDP Version 1 -- This is the first version of CDP which was used for the discovery of Cisco devices in the network. This version is mainly used for backward compatibility.

  CDP Version 2 -- This is the most recent version of CDP which has enhanced features such as rapid reporting mechanism, which is used to track down errors and minimize costly downtime. It allows you to track instances even if the native

  VLAN ID or port duplex states do not match between connecting devices.

  This is the default version on all switches.

  Reference: http://sbkb.cisco.com/CiscoSB/GetArticle.aspx? docid=0ed03cbac49b446ab390a657917d817c_Cisco_Discovery_Protocol_CDP__Properties_Set tings_on_Sx500_S.xmlandpid=2andconverted=0

• Question 934:

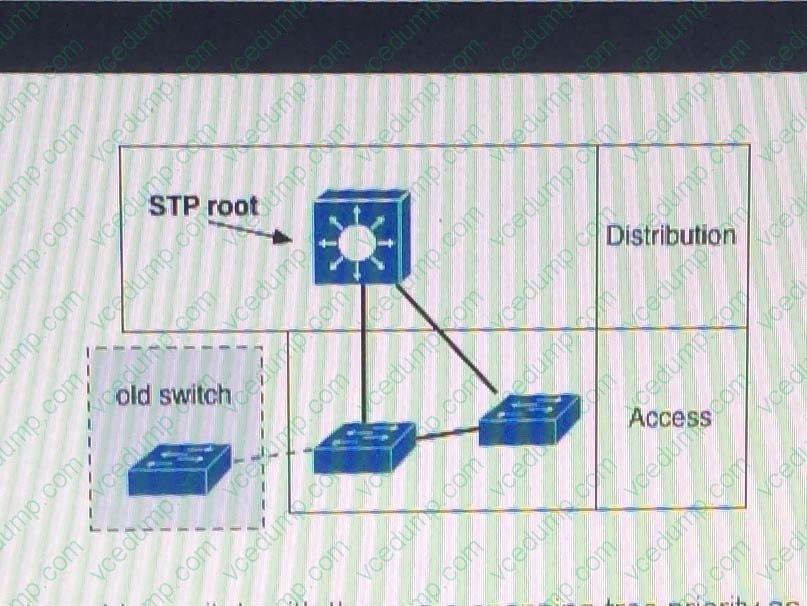

  Refer to the exhibit



  A network engineer deployed an older switch with the same spanning-tree priority as the existing root, which caused a network outage. In which two locations should the Spanning Tree protocol root guard feature be implemented? (Choose two.)

  A. On the designated root switch downlinks to the access layer.
  B. On all of non-root switch facing ports of the access layer
  C. On the access layers root facing ports
  D. On Layer 3 boundaries in the distribution layer
  E. Globally on all network switches.
  A. On the designated root switch downlinks to the access layer.
  B. On all of non-root switch facing ports of the access layer

• Question 935:

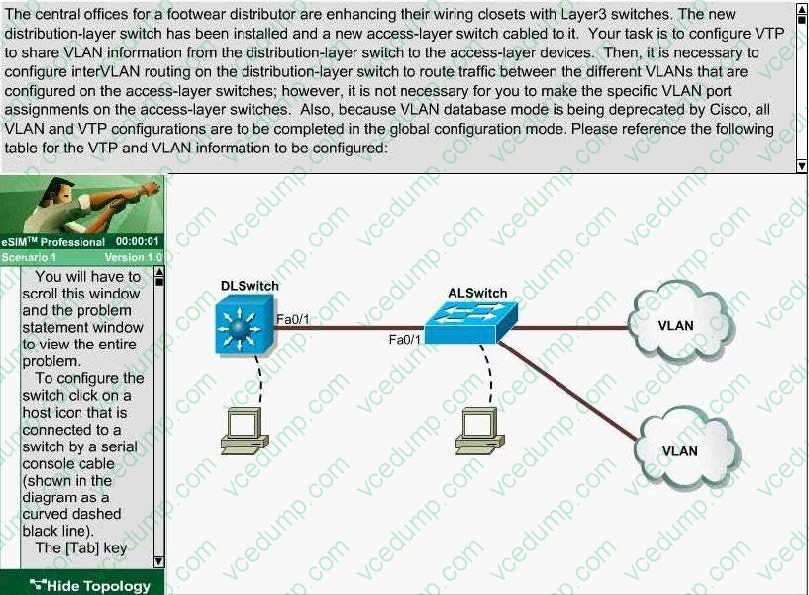

  VTP Domain name : cisco VLAN Ids 20 31 IP Addresses 172.16.71.1/24 172.16.132.1/24 These are your specific tasks:

  1.

  Configure the VTP information with the distribution layer switch as the VTP server

  2.

  Configure the VTP information with the access layer switch as a VTP client

  3.

  Configure VLANs on the distribution layer switch

  4.

  Configure inter-VLAN routing on the distribution layer switch

  5.

  Specific VLAN port assignments will be made as users are added to the access layer switches in the future.

  6.

  All VLANs and VTP configurations are to completed in the global configuration To configure the switch click on the host icon that is connected to the switch be way of a serial console cable.

  Correct Answer. Check the answer below
  Check the answer below

  ---

  vtp server configuration:

  switch#conf t switch(config)#vtp mode server switch(config)#vtp domain CISCO switch(config)#vlan 20 switch(config)#vlan 31 switch(config)#int vlan 20 switch(if-config)#ip add 172.64.20.1 255.255.255.0 switch(if-config)#no shut switch(if-config)#int vlan 31 switch(if-config)#ip add 192.162.31.1 255.255.255.0 switch(if-config)#no shut switch(if-config)#exit switch#ip routing switch#copy run start

  vtp client configuration:

  switch#conf t switch(config)#vtp mode client switch(config)#vtp domain CISCO switch#copy run start

  Alternative #1

  VTP DomainDistribution VLAN Ids2031 IP Addresses172.16.16.1/24172.16.193.1/24

  Alternative #12

  VTP DomainDistribution VLAN Ids3021 IP Addresses172.16.203.1/24172.16.93.1/24

• Question 936:

  You are configuring an interface, and you want to enable Layer 3 mode on an Etherchannel, which task must you perform?

  A. issue the no switchport command
  B. issue the ip address command
  C. set the channel group to active
  D. set the channel group to desirable
  A. issue the no switchport command

• Question 937:

  Which method is used to prevent from ARP poisoning?

  A. Dynamic ARP Inspection
  B. DHCP Snooping
  C. MAC snooping
  D. CGMP snooping
  E. Dynamic MAC Inspection
  F. Static ARP Inspection
  A. Dynamic ARP Inspection

• Question 938:

  You are configuring dynamic ARP inspection. Which command must you configure on the devices to detect unexpected IP addresses in the ......

  A. ip Verify source
  B. ip arp inspection trust
  C. ip arp inspection vlan
  D. ip arp inspection validate ip
  D. ip arp inspection validate ip

• Question 939:

  Which two statements about recovering error-disabled interface are true? (Choose two.)

  A. Reloading the switch recovers it from the error-disabled state.
  B. If errdisable recovery is configured, the interface is recovered automatically when the root problem is corrected.
  C. Removing and reinserting network media recovers an interface from the error-disabled state.
  D. Errdisable recovery is enabled by default and operates normally without additional configuration.
  E. The show errdisable recovery command displays the conditions for which autorecovery is enabled.
  B. If errdisable recovery is configured, the interface is recovered automatically when the root problem is corrected.
  E. The show errdisable recovery command displays the conditions for which autorecovery is enabled.

• Question 940:

  What is the maximum number of switches that can be stacked using Cisco StackWise?

  A. 4
  B. 5
  C. 8
  D. 9
  E. 10
  F. 13
  D. 9

  ---

  Up to 9 Cisco Catalyst switches can be stacked together to build single logical StackWise switch since Cisco IOS XE Release 3.3.0SE. Prior to Cisco IOS XE Release3.3.0SE, up to 4 Cisco Catalyst switches could be stacked together. Reference: http://www.cisco.com/c/en/us/products/collateral/switches/catalyst-3850-series- switches/ qa_c67-722110.html
