Cisco 300-115 Online Practice Questions and Exam Preparation

Cisco 300-115 Online Questions & Answers

• Question 1:

  Which feature is enabled automatically when you configure HSRP on an interface?

  A. ICMP redirect messages
  B. HSRP tracking
  C. IGMP snooping
  D. HSRP preemption
  A. ICMP redirect messages

• Question 2:

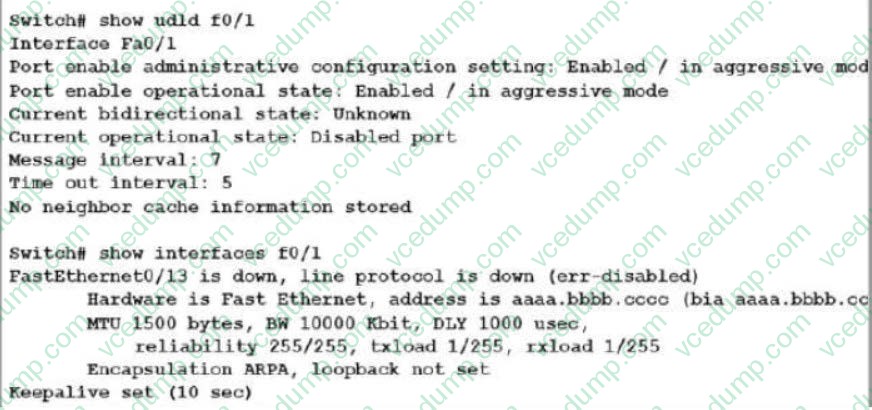

  Network engineer want to use UDLD, what he need to consider?

  A. udld is a non-propriety
  B. udld is working with non cisco devices
  C. udld is layer 1
  D. udld can aggressively disabled the port after eight failed retries
  D. udld can aggressively disabled the port after eight failed retries

• Question 3:

  Refer to the exhibit.

  Switch# configure terminalSwitch(config)# vlan 3Switch(config-vlan)# end

  You have applied this configuration to Switches A, B, C, and D, and the switches are connected to one another on access ports. Which two additional actions must you take to enable the hosts on VLAN 3 to communicate with one another considering future growth with hosts on additional VLANs? (Choose two.)

  A. Assign VLAN 3 to the ports connecting to the hosts.
  B. Configure VLAN 3 as an SVI with a working IP address.
  C. Configure VLAN 3 in VLAN database mode.
  D. Configure VTP transparent mode to allow hosts with additional VLANs.
  E. Reconfigure the access ports connecting the switches as trunk ports.
  A. Assign VLAN 3 to the ports connecting to the hosts.
  E. Reconfigure the access ports connecting the switches as trunk ports.

• Question 4:

  When you enable MST on the switch, what happens?

  A. Enables RSTP and use BPDU type 2, maximum 16 instances to be used.
  B. Enables RSTP and use BPDU type 4, maximum 16 instances to be used.
  C. Disables RSTP and use BPDU type 2, maximum 16 instances to be used.
  D. Disables RSTP and use BPDU type 4, maximum 16 instances to be used.
  A. Enables RSTP and use BPDU type 2, maximum 16 instances to be used.

• Question 5:

  Which two statements about source port monitoring in SPAN are true? (Choose two)

  A. Traffic through a destination port can be copied and included in the SPAN session.
  B. It can monitor individual interfaces within a port channel
  C. The entire EtherChannel must be monitored.
  D. It can monitor only FaStEthernet and GigabitEthernet port types.
  E. It can monitor ingress and egress traffic
  A. Traffic through a destination port can be copied and included in the SPAN session.
  E. It can monitor ingress and egress traffic

• Question 6:

  What is the maximum number of 10 Gigabit Ethernet connections that can be utilized in an EtherChannel for the virtual switch link?

  A. 4
  B. 6
  C. 8
  D. 12
  C. 8

  ---

  The VSS is made up of the following:

  Virtual switch members: Cisco Catalyst 6500 Series Switches (up to two switches with initial release) deployed with the Virtual Switching Supervisor 720 10GE

  Virtual switch link (VSL): 10 Gigabit Ethernet connections (up to eight using EtherChannel) between the virtual switch members.

  Reference:

  http://www.cisco.com/en/US/prod/collateral/switches/ps5718/ps9336/prod_qas0900aecd806ed74 b.html

• Question 7:

  Which vtp2 mode does the switch operate without participating in vtp?

  A. Client
  B. Server
  C. Transparent
  D. Off
  C. Transparent

• Question 8:

  A question on EtherChannel misconfiguration.......

  A. Enable this feature by using the spanning-tree etherchannel guard misconfig global configuration command.
  A. Enable this feature by using the spanning-tree etherchannel guard misconfig global configuration command.

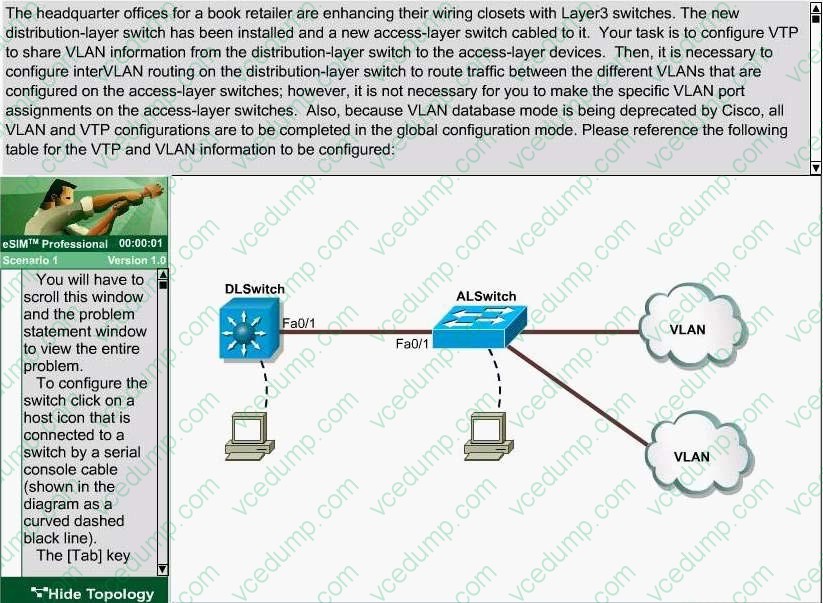

• Question 9:



  VTP Domain name : cisco VLAN Ids 20 31 IP Addresses 172.16.71.1/24 172.16.132.1/24 These are your specific tasks:

  1.

  Configure the VTP information with the distribution layer switch as the VTP server

  2.

  Configure the VTP information with the access layer switch as a VTP client

  3.

  Configure VLANs on the distribution layer switch

  4.

  Configure inter-VLAN routing on the distribution layer switch

  5.

  Specific VLAN port assignments will be made as users are added to the access layer switches in the future.

  6.

  All VLANs and VTP configurations are to completed in the global configuration To configure the switch click on the host icon that is connected to the switch be way of a serial console cable.

  Correct Answer. Check the answer below
  Check the answer below

  ---

  The information of the question These are your specific tasks:

  1.

  Configure the VTP information with the distribution layer switch CertBus1 as the VTP server

  2.

  Configure the VTP information with the access layer switch CertBus2 as a VTP client

  3.

  Configure VLANs on the distribution layer switch CertBus1

  4.

  Configure inter-VLAN routing on the distribution layer switch CertBus1

  5.

  Specific VLAN port assignments will be made as users are added to the access layer switches in the future.

  6.

  All VLANs and VTP configurations are to completed in the global configuration To configure the switch click on the host icon that is connected to the switch be way of a serial console cable.

  vtp server configuration:

  switch#conf t switch(config)#vtp mode server switch(config)#vtp domain CISCO switch(config)#vlan 20 switch(config)#vlan 31 switch(config)#int vlan 20 switch(if-config)#ip add 172.64.20.1 255.255.255.0 switch(if-config)#no shut switch(if-config)#int vlan 31 switch(if-config)#ip add 192.162.31.1 255.255.255.0 switch(if-config)#no shut switch(if-config)#exit switch#ip routing switch#copy run start

  vtp client configuration:

  switch#conf t switch(config)#vtp mode client switch(config)#vtp domain CISCO switch#copy run start

• Question 10:

  Which two advantages of LLDP are used over CDP? (Choose two.)

  A. It supports topology change notification.
  B. It supports ATM.
  C. It supports checksum.
  D. It supports vendor-agnostic.
  E. It supports FrameRelay
  A. It supports topology change notification.
  D. It supports vendor-agnostic.
