Cisco 300-115 Online Practice Questions and Exam Preparation

Cisco 300-115 Online Questions & Answers

• Question 921:

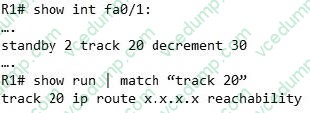

  A question about HSRP that have these options.



  A. R1 have x.x.x.x in routing table.
  B. https://www.CertBus.com/300-115.html
  A. R1 have x.x.x.x in routing table.

• Question 922:

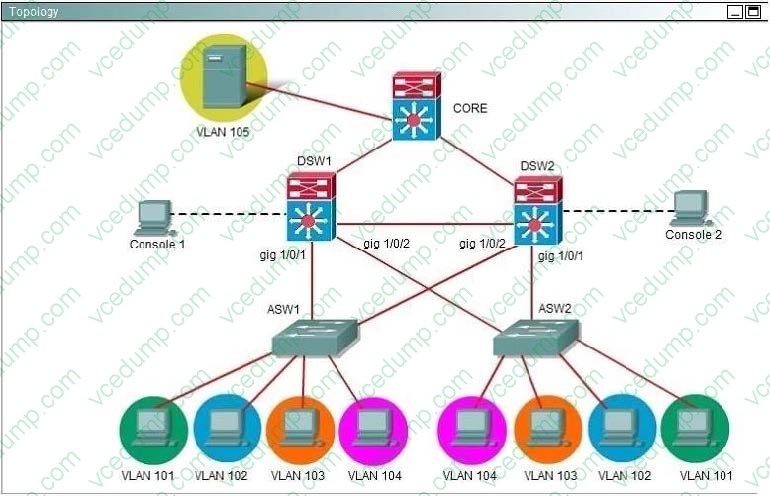

  HSRP Ferris Plastics, Inc. is a medium sized company, with an enterprise network (access, distribution and core switches) that provides LAN connectivity from user PCs to corporate servers. The distribution switches are configured to use HSRPto provide a high availability solution.

  -DSW1 -primary device for VLAN 101 VLAN 102 andVLAN 105

  -DSW2 - primary device for VLAN 103 and VLAN 104

  - A failure of GigabitEthemet1/0/1 on primary device should cause the primary device to release its status as the primary device, unless GigabitEthernet1/0/1 on backup device has also failed. Troubleshooting has identified several issues. Currently all interfaces are up. Using the running configurations and show commands, you have been asked to investigate and respond to the following question.



  If GigabitEthemet1/0/1 on DSW2 is shutdown, what will be the resulting priority value of the VLAN 105 HSRP group on router DSW2?

  A. 90
  B. 100
  C. 150
  D. 200
  A. 90

  ---

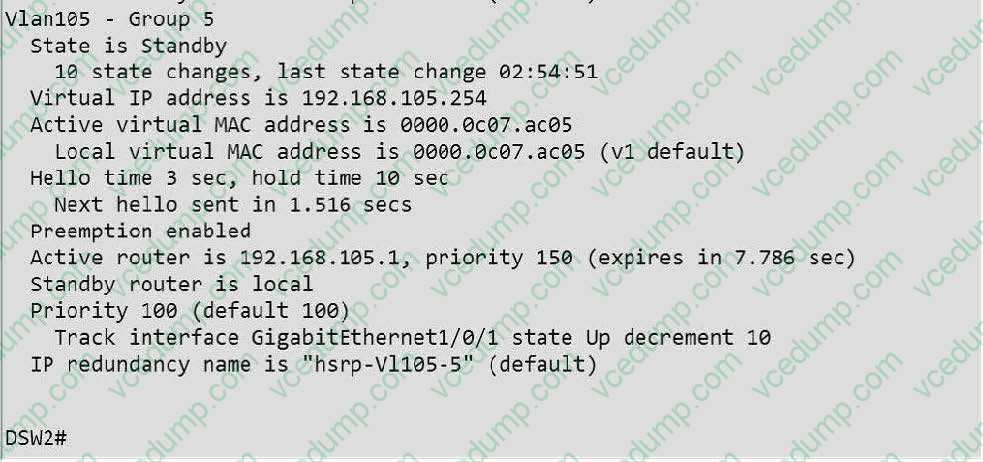

  As seen below, the current priority for VLAN 105 is 100, and the tracking feature for Gig 1/0/0 is enabled which will decrement the priority by 10 if this interface goes down for a priority value of 90.



• Question 923:

  Which command must be configured on the physical ports of a Layer 3 EtherChannel?

  A. ip address
  B. switchport trunk encapsulation dot1q
  C. no switchport
  D. switchport mode access
  C. no switchport

• Question 924:

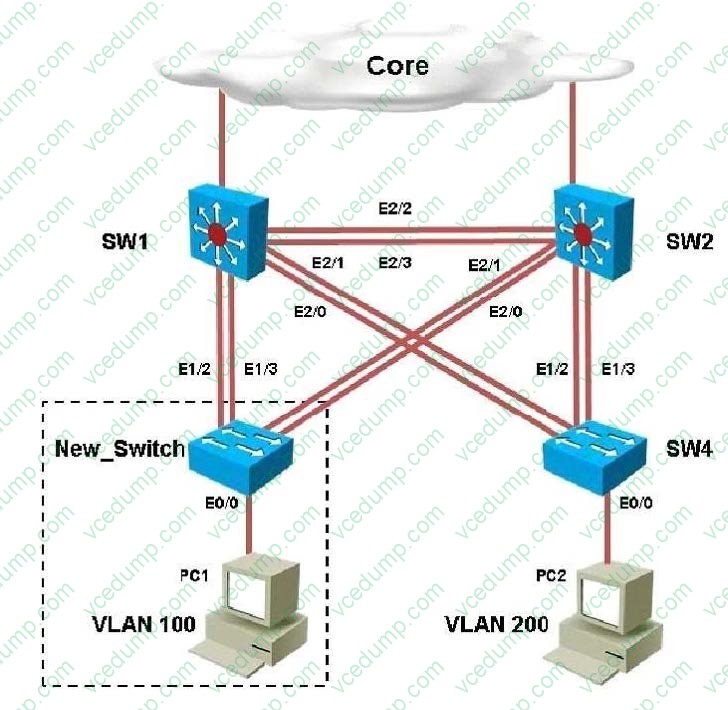

  You are connecting the New_Switch to the LAN topology; the switch has been partially configured and you need to complete the rest of configuration to enable PC1 communication with PC2. Which of the configuration is correct?



  You have been asked to install and configure a new switch in a customer network. Use the console access to the existing and new switches to configure and verify correct device configuration.



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  E. Option E
  D. Option D

  ---

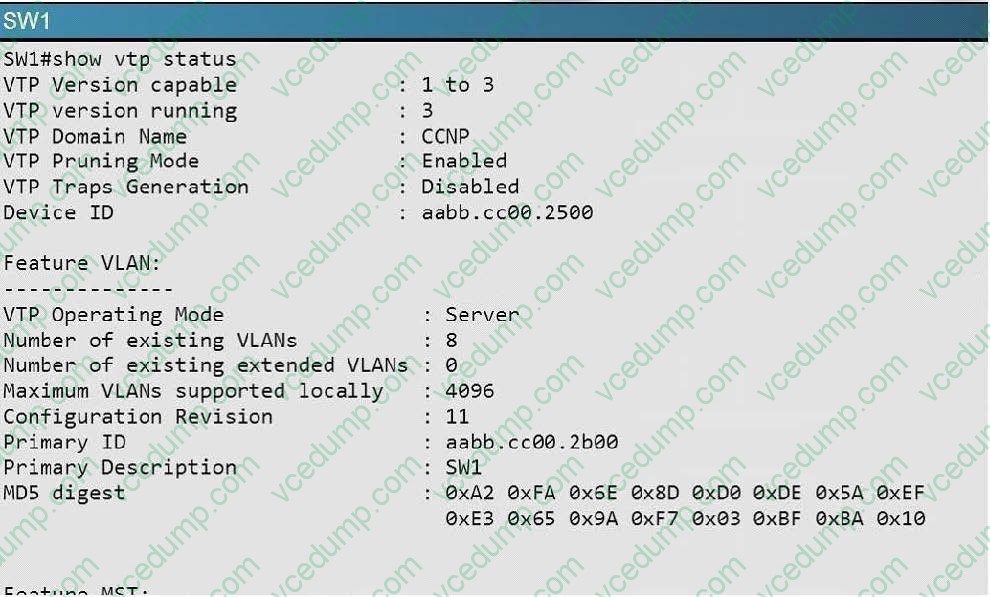

  Within any VTP, the VTP domain name must match. So, step one is to find the correct VTP name on the other switches. Logging in to SW1 and using the "show vtp status" command we see this:

  So we know that the VTP domain must be CCNP. This leaves only choice D and E. We also see from the topology diagram that eth 0/0 of the new switch connects to a PC in VLNA 100, so we know that this port must be an access port in VLAN 100, leaving only choice D as correct. Note that the VTP versions supported in this network are 1, 2, 3 so either VTP version 2 or 3 can be configured on the new switch.



• Question 925:

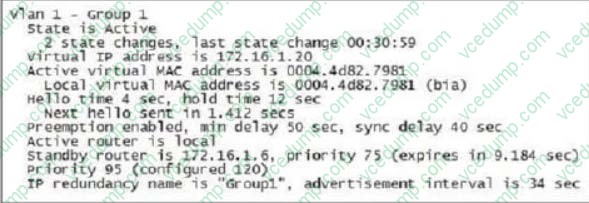

  The partial output displayed in the exhibit is a result of what IOS command?



  A. switch# show running-config
  B. switch# show standby vlan1 active brief
  C. switch# show hsrp 1
  D. switch# show standby
  D. switch# show standby

• Question 926:

  Which two statements about STP path cost are true? (Choose two.)

  A. The default path cost method is short.
  B. MST supports the short and long path cost methods.
  C. The default path cost method is long.
  D. MST supports only the long path cost method.
  E. The long method uses a 64-bit value for path costs
  F. The short method uses a 32-bit value for path costs.
  A. The default path cost method is short.
  D. MST supports only the long path cost method.

• Question 927:

  Which two commands are used to configure a trusted DHCP Option 82 for untrusted-host? (Choose two.)

  A. Use the ip dhcp snooping information command to enable data...
  B. Use the ip dhcp snooping information option allow-untrusted command to enable DHCP Option 82.
  C. Use the ip dhcp snooping information command to enable DHCP Option 82.
  D. https://www.certbus.com/300-115.html
  B. Use the ip dhcp snooping information option allow-untrusted command to enable DHCP Option 82.
  C. Use the ip dhcp snooping information command to enable DHCP Option 82.

• Question 928:

  Which centralized database separates between AAA attributes?

  A. TACACS+
  B. RADIUS
  C. Local Database
  D. http://certbus.com
  A. TACACS+

• Question 929:

  A question about overriding the priority of IP phone.

  A. auto qos voip cisco-phone
  B. www.certbus.com
  C. www.certbus.com
  D. www.certbus.com
  A. auto qos voip cisco-phone

• Question 930:

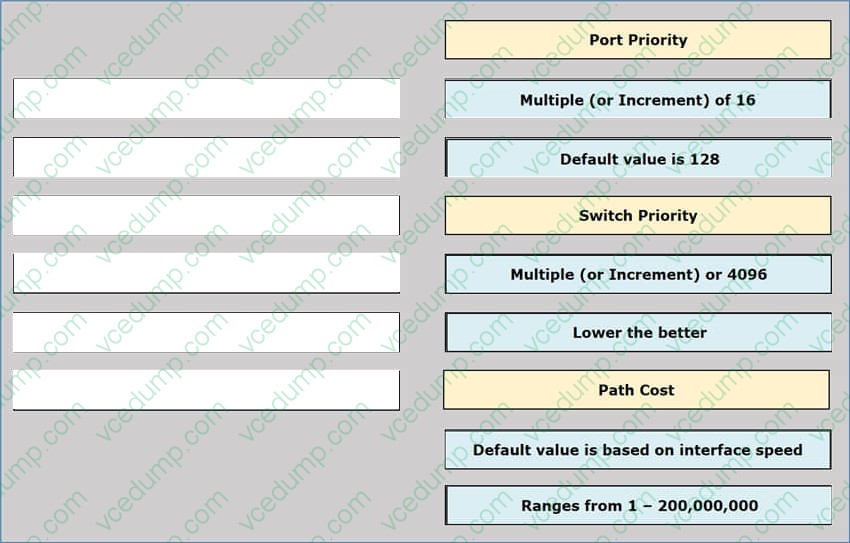

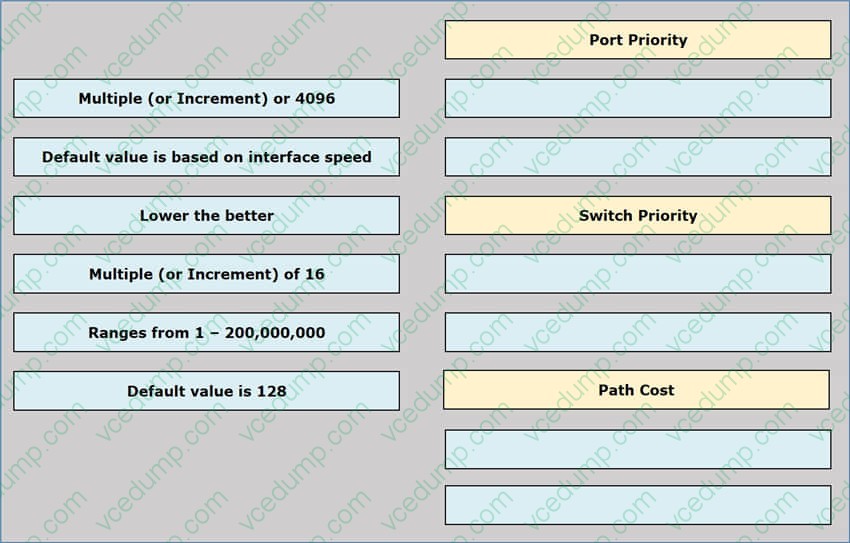

  Drag and Drop

  Select and Place:
