Cisco 300-115 Online Practice Questions and Exam Preparation

Cisco 300-115 Online Questions & Answers

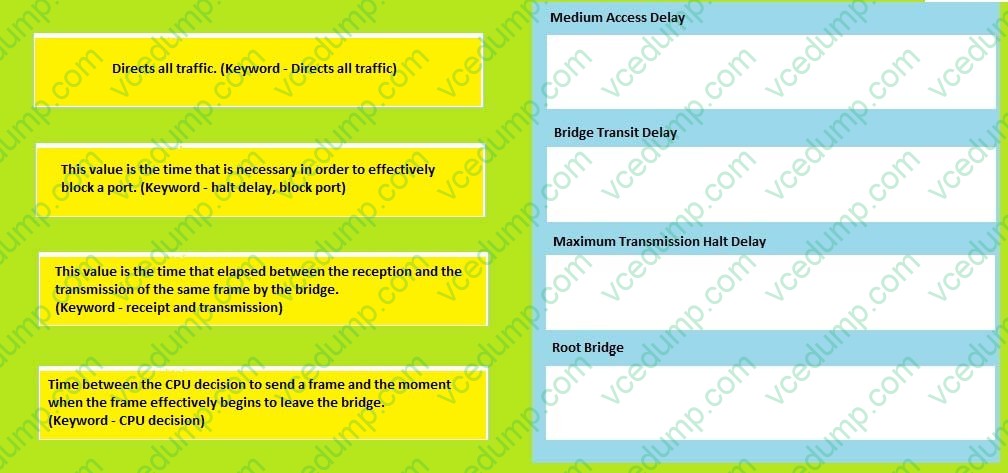

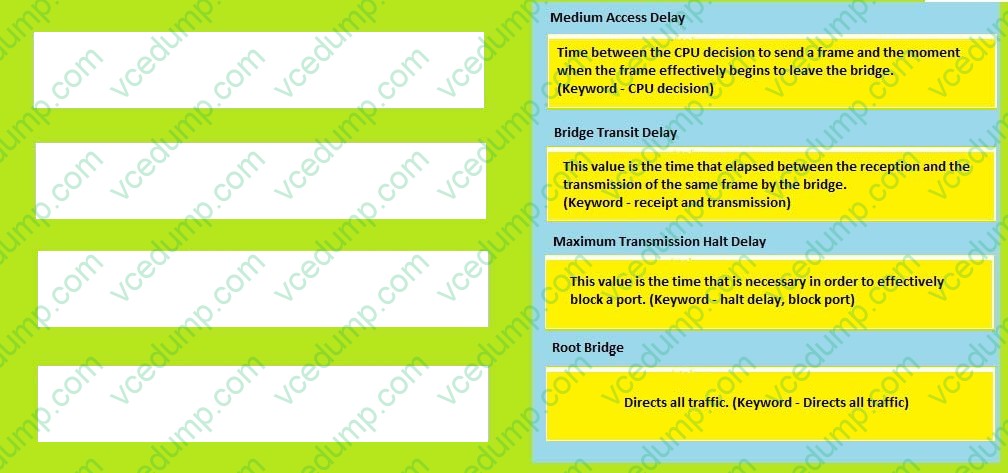

• Question 951:

  Drag and Drop

  Select and Place:





• Question 952:

  Which two types of firewalls work at Layer 4 and above? (Choose two.)

  A. application-level firewall
  B. static packet filter
  C. stateful inspection
  D. Network Address Translation
  E. circuit-level gateway
  A. application-level firewall
  C. stateful inspection

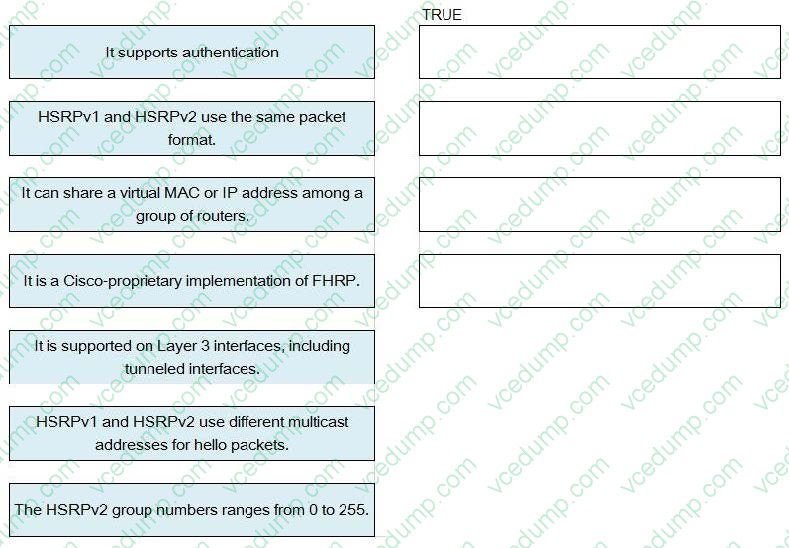

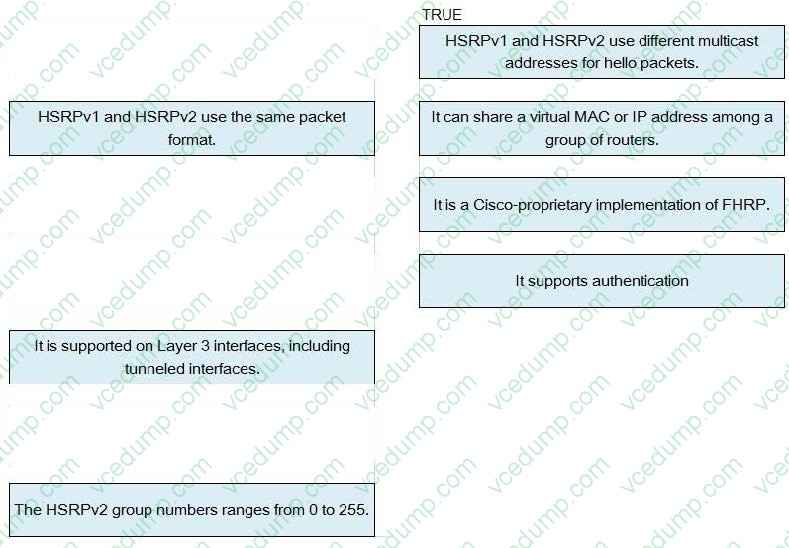

• Question 953:

  Drag and Drop.

  Select and Place:





• Question 954:

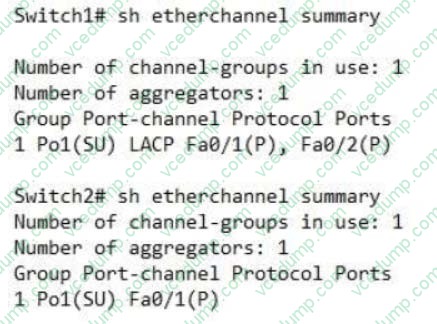

  Refer to the exhibit. Why is there a mismatch?



  A. Port channel has not been configured properly
  B. Too few ports in Switch2.
  C. Too many ports in Switch1.
  D. Protocol mismatch
  A. Port channel has not been configured properly

• Question 955:

  Which two VLAN ranges can you add. modify or delete on a switch'? (Choose two)

  A. 1 through 1001
  B. 1006 through 4094
  C. 1005 through 4094
  D. 2 through 1001
  E. 2 through 4094
  B. 1006 through 4094
  D. 2 through 1001

• Question 956:

  Interfaces are assigned to a VLAN, and then the VLAN is deleted. Which state are these interfaces in after the VLAN is deleted?

  A. They remain up, but they are reassigned to the default VLAN.
  B. They go down until they are reassigned to a VLAN
  C. They go down, but they are reassigned to the default VLAN
  D. They remain up, but they are reassigned to the native VLAN
  B. They go down until they are reassigned to a VLAN

• Question 957:

  Which option lists the information that is contained in a Cisco Discovery Protocol advertisement?

  A. native VLAN IDs, port-duplex, hardware platform
  B. native VLAN IDs, port-duplex, memory errors
  C. native VLAN IDs, memory errors, hardware platform
  D. port-duplex, hardware platform, memory errors
  A. native VLAN IDs, port-duplex, hardware platform

  ---

  Type-Length-Value fields (TLVs) are blocks of information embedded in CDP advertisements. Table 21 summarizes the TLV definitions for CDP advertisements. Table 21 Type-Length-Value Definitions for CDPv2

  TLV Definition Device-ID TLV Identifies the device name in the form of a character string. Address TLV Contains a list of network addresses of both receiving and sending devices. Port-ID TLV Identifies the port on which the CDP packet is sent. Capabilities TLV Describes the functional capability for the device in the form of a de- vice type, for example, a switch. Version TLV Contains information about the software release version on which the device is running. Platform TLV Describes the hardware platform name of the device, for example, Cisco 4500. IP Network Prefix Contains a list of network prefixes to which the sending device can TLV forward IP packets. This information is in the form of the interface

  protocol and port number, for example, Eth 1/0.

  VTP Management Advertises the system's configured VTP management domain name- Domain TLV string. Used by network operators to verify VTP domain configuration in adjacent network nodes. Native VLAN TLV Indicates, per interface, the assumed VLAN for untagged packets on the interface. CDP learns the native VLAN for an interface. This fea- ture is

  implemented only for interfaces that support the IEEE 802.1Q protocol.

  Full/Half Duplex Indicates status (duplex configuration) of CDP broadcast interface. TLV Used by network operators to diagnose connectivity problems be- tween adjacent network elements. Reference:

  http://www.cisco.com/en/US/docs/ios/12_2/configfun/configuration/guide/fcf015.html

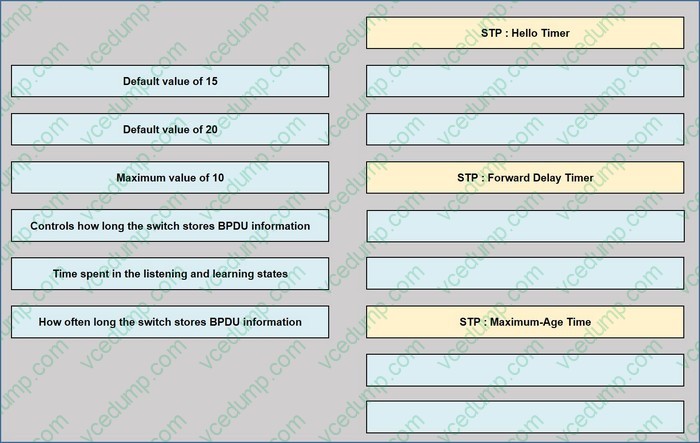

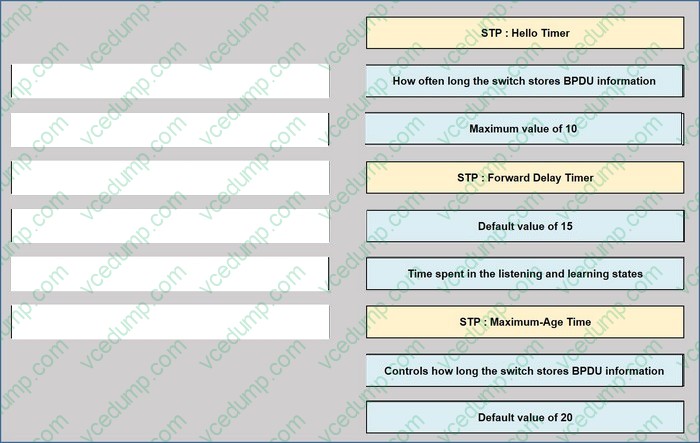

• Question 958:

  Drag and Drop

  STP Timer Delay

  Select and Place:





• Question 959:

  Which two packet types for authentication and authorization are used in TACACS+? (Choose two.)

  A. request
  B. continue
  C. response
  D. start
  E. stop
  A. request
  C. response

• Question 960:

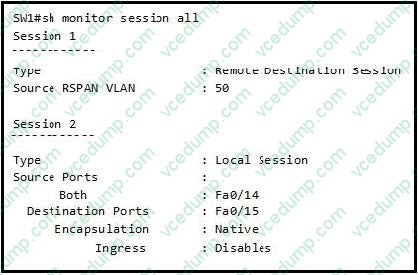

  Refer to the exhibit.



  Which statement about the SPAN and RSPAN configuration on SW1 is true?

  A. SPAN session 2 only monitors egress traffic exiting port FastEthernet 0/14.
  B. RSPAN session 1 monitors activity on VLAN 50 of a remote switch.
  C. RSPAN session 1 is incompletely configured for monitoring.
  D. SPAN session 2 monitors all traffic entering and exiting port FastEthernet 0/15.
  C. RSPAN session 1 is incompletely configured for monitoring.
