Cisco 300-101 Online Practice Questions and Exam Preparation

Cisco 300-101 Online Questions & Answers

• Question 441:

  Which BGP option is required when load sharing over multiple equal-bandwidth parallel links from a single CE router to a single ISP router over eBGP?

  A. eBGP Multipath
  B. eBGP Multihop
  C. BGP Synchronization
  D. Public AS numbers
  B. eBGP Multihop

• Question 442:

  FILL BLANK

  How to minimize Unicast flooding?

  Correct Answer. By decreasing the ARP time compared to CAM table time
  By decreasing the ARP time compared to CAM table time

• Question 443:

  A diagram with 3 routers: HQ2 ?HQ1 ?BR1.



  When you are running with EIGRP 100 on both routers, what command will you implement so that you will see the loopback IP of BR1 to be advertised at HQ2A diagram with 3 routers: HQ2 ?HQ1 ?BR1.

  A. HQ2(config)# ipv6 router eigrp 100 HQ2(config-rtr)# no eigrp stub
  B. BR1(config)#ipv6 router eigrp 100 BR1(config-rtr)# no eigrp stub receive-only
  C. HQ2(config)# ipv6 router eigrp 100 HQ2(config-rtr)# no eigrp stub only
  D. BR1(config)# ipv6 router eigrp 100 BR1(config-rtr)# no eigrp stub only
  B. BR1(config)#ipv6 router eigrp 100 BR1(config-rtr)# no eigrp stub receive-only

• Question 444:

  A topology with eigrp, a hub and two spokes, where the loopback of the spokes are not seeing each others.

  A. Disable split horizon on the hub
  B. PlaceHolder
  C. PlaceHolder
  D. PlaceHolder
  A. Disable split horizon on the hub

• Question 445:

  Which three statements are true when configuring redistribution for OSPF? (Choose three)

  A. The default metric is 10.
  B. The default metric is 20.
  C. The default metric type is 2.
  D. The default metric type is 1.
  E. Subnets do not redistribute by default.
  F. Subnets redistribute by default.
  B. The default metric is 20.
  C. The default metric type is 2.
  E. Subnets do not redistribute by default.

• Question 446:

  In which network environment is AAA with RADIUS most appropriate?

  A. when Apple Talk Remote Access is in user
  B. when NetBIOS Frame Control Protocol is in use
  C. when users require access to only one device at a time
  D. when you need to separate all AAA services
  C. when users require access to only one device at a time

• Question 447:

  How big is the smallest packet than will always be fragmented on a standart Ethernet network with default configuration?

  A. 1500 bytes
  B. 1800 bytes
  C. 2048 bytes
  D. 2100 bytes
  B. 1800 bytes

• Question 448:

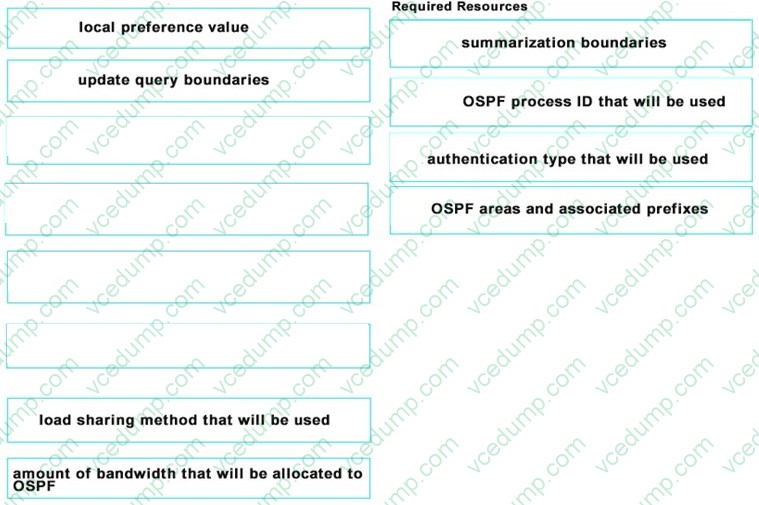

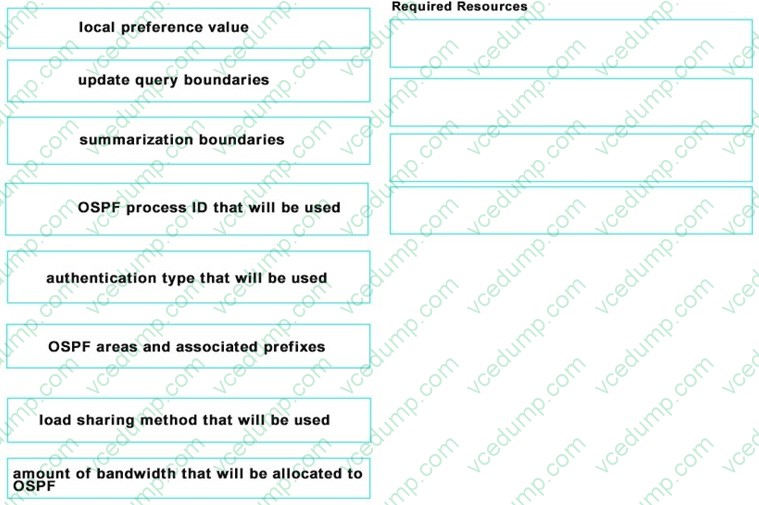

  DRAG DROP

  Click the resources on the left that you need to create an implementation plan for an OSPF project and drag them to the target zone on the right.

  Select and Place:





• Question 449:

  Which command sequence is implemented on a router to configure unicast reverse path forwarding in loose mode?

  A. interface GigabitEthernet0/0 ip verify unicast source reachable-via rx
  B. interface GigabitEthernet0/0 ip unicast source reachable-via loose
  C. interface GigabitEthernet0/0 ip verify unicast source reachable-via any
  D. interface GigabteEthernet0/0 Ip verify uncast source reachable-via all
  C. interface GigabitEthernet0/0 ip verify unicast source reachable-via any

• Question 450:

  Router# show ntp associations Address ref clock st when poll reach delay offset disp ~172.31.32.2 172.31.32.1 5 29 1024 377 4.2 -8.59 1.6 +~192.168.13.33 192.168.1.111 4 69 128 377 4.1 3.48 2.3 #~192.168.13.57 192.168.1.111 3 32 128 376 7.9 11.18 3.6

  *

  Master (synced), # master (unsynced), + selected, ?candidate, ~ configured Which of the following is true?

  A. Master is syncing and exchanging NTP packets successfully
  B. Master is not syncing but exchanging NTP packets successfully
  C. Master is not syncing and not exchanging NTP packets
  D. All NTP packets are droped
  C. Master is not syncing and not exchanging NTP packets
