Cisco 300-080 Online Practice Questions and Exam Preparation

Cisco 300-080 Online Questions & Answers

• Question 321:

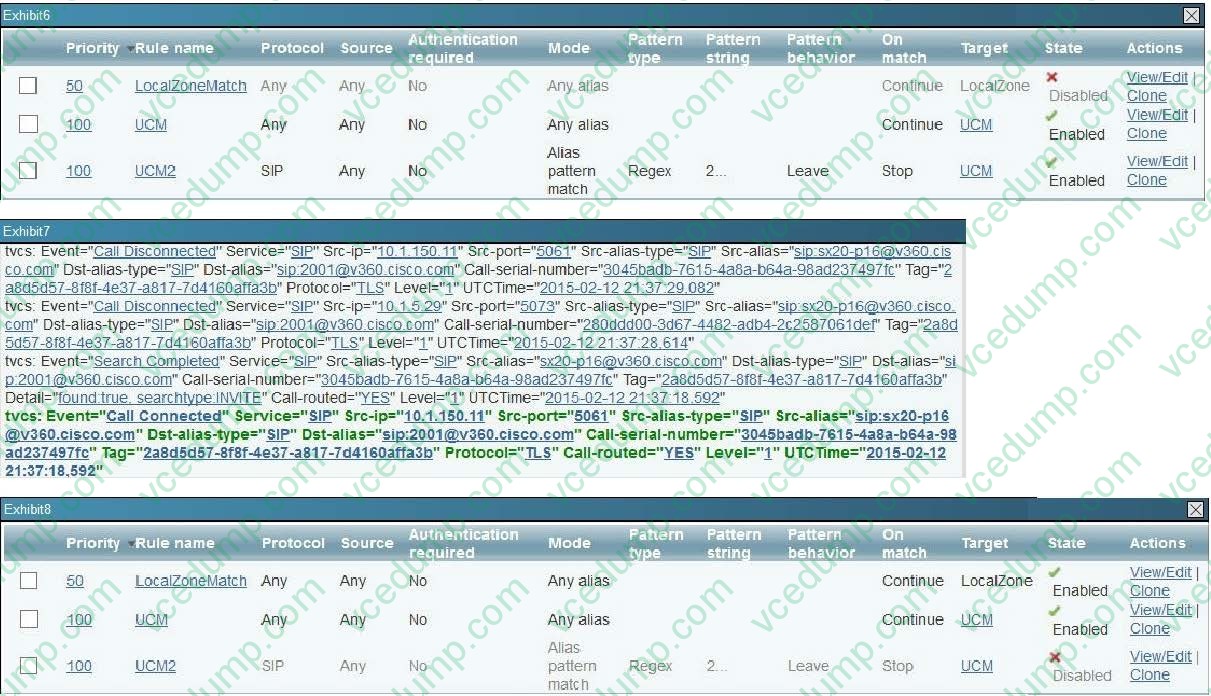

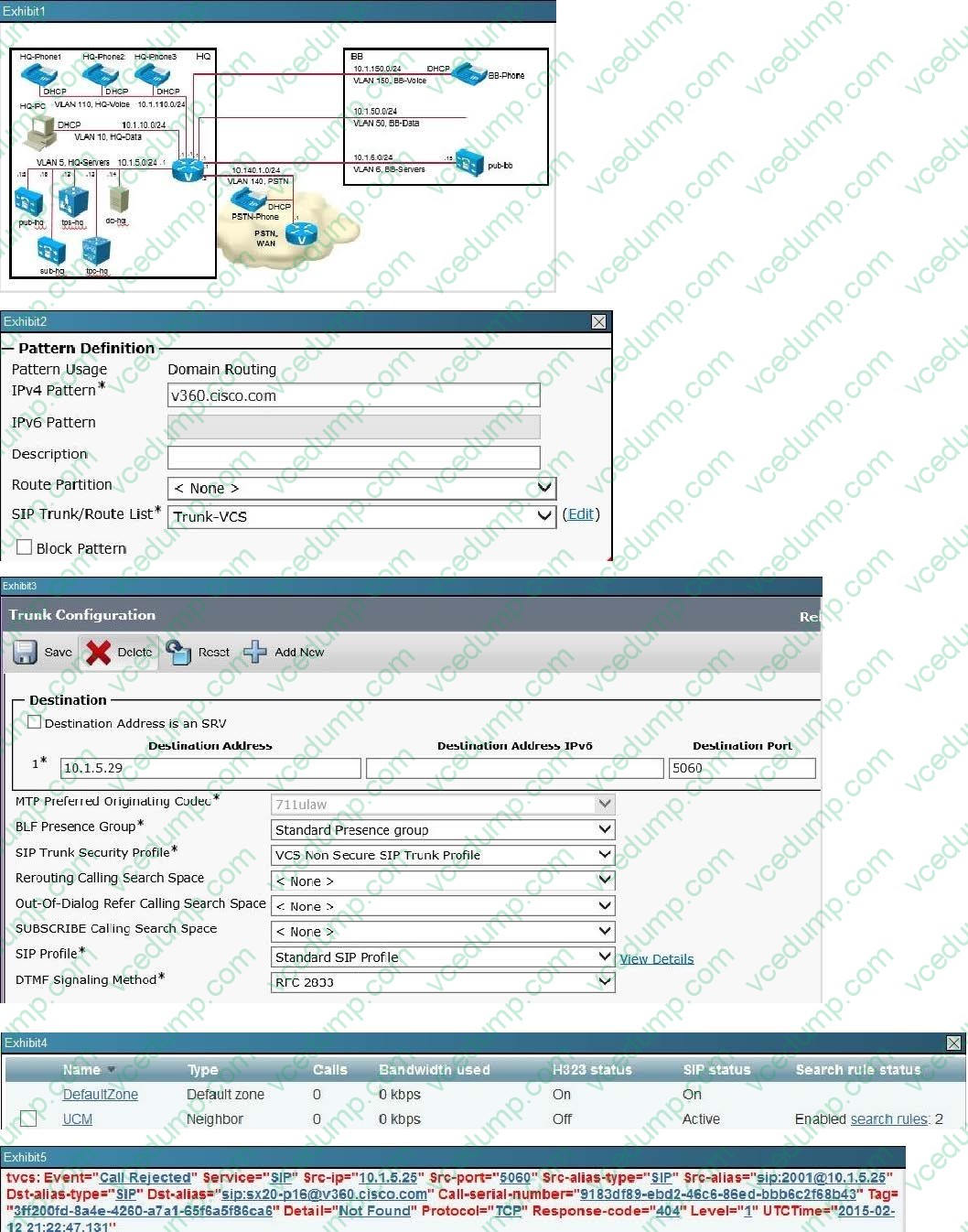

  Refer to topology and Exhibits below:





  A call from HQ Phone 1 with the extension of 2001 is dialing a SX20 that is registered to the VCS in BackBone (not shown). Determine if the call fails and if so, what are the two causes? (Choose two.)

  A. The call succeeds
  B. The call fails
  C. There are no issues, so the call succeeds.
  D. The SIP port is incorrect on the Cisco Unified Communications Manager SIP trunk.
  E. The Local Zone Match Rule state is disabled.
  F. Rule name UCM2 is set to stop on Match
  B. The call fails
  F. Rule name UCM2 is set to stop on Match

• Question 322:

  In an MCU call with three Cisco TelePresence MX800 systems and a mobile phone calling in, the three TelePresence MX800 systems suddenly experience low audio levels, but the mobile phone audio levels are correct. What can you do to correct this issue?

  A. Turn off the audio processors on the TelePresence MX800.
  B. Use the mobile phone audio option on the TelePresence MX800 to adjust the mobile phone levels.
  C. Mobile phone audio levels can vary, so you cannot correct the issue.
  D. Turn on AGC on the MCU to adjust the audio levels.
  E. Turn on ALG on the MCU to adjust the audio levels.
  F. Turn on the Auto Adjust levels under "Settings > Audio" on the MCU.
  D. Turn on AGC on the MCU to adjust the audio levels.

• Question 323:

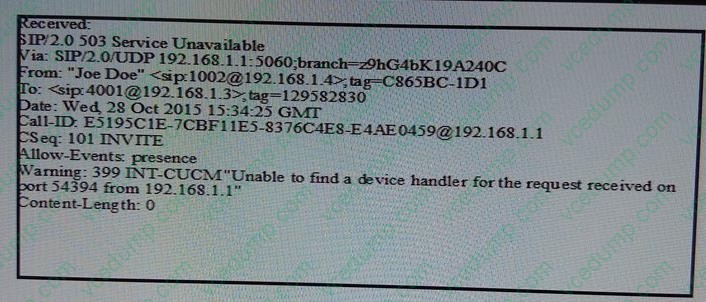

  Refer to the Exhibit. A customer has two CUCM clusters (NY and CAL). The customer recently tried to enable inter cluster communication between these clusters. When NY calls CAL, they get a fast busy tone. A network Administrator collects Cisco Call manager traces and sees the displayed SIP messages coming from the remote CUCM (CAL Cluster). What is a likely reason for this?

  A. Cisco CTI Manager service is shut down on the CAL cluster
  B. The SIP trunk on the CAL cluster is configured incorrectly
  C. Cisco Call Manager service is shut down on the CAL cluster
  D. The remote cisco IP phone does not support the SIP protocol
  E. The SIP service is shut down on the CAL cluster
  F. The remote Cisco IP phone is not registered
  F. The remote Cisco IP phone is not registered

• Question 324:

  Cisco Unified Communications Manager is configured to collect H.245 and H 225 traces through the Cisco Serviceability web interface. What do you use to download and view the trace files?

  A. Cisco Unified OS Administration
  B. Cisco Unified Serviceability
  C. Bulk Administration > upload/Download Files
  D. Cisco Unified Real-Time monitoring Tool
  D. Cisco Unified Real-Time monitoring Tool

• Question 325:

  An inbound call from the PSTN is not reaching the directory number that it is calling. When the PSTN phone calls the correct DID, only a dial tone is heard. Which command resolves this issue?

  A. (config-dial-peer)#direct-inward-dial
  B. (config-controller)# no provide-outside-dialtone
  C. (config-if)#no dial-tone
  D. (config-dial-peer)# no dial-tone
  E. (config-if)#direct-inward-dial
  F. (config) allow inbound dial-peer 1
  A. (config-dial-peer)#direct-inward-dial

• Question 326:

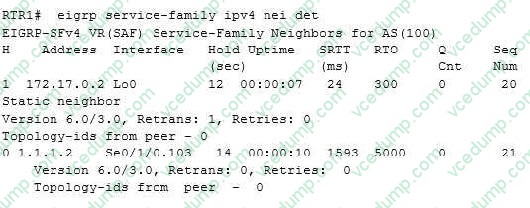

  Refer to the exhibit. An engineer is troubleshooting a SAF forwarder adjacency in which two interfaces from the same router are being advertised to all other neighbours. Which set of IOS commands successfully stops the router from advertising the LOOPBACK0 interface?



  A. router eigrp SAF service-family ipv4 autonomous-system 100 sf-interface LOOPBACK0 shutdown
  B. router egrp SAF service-family ipv4 autonomous-system 100 sf-interface LOOPBACK0 exit-sf-interface
  C. router egrp SAF service-family ipv4 autonomous-system 100 sf-interface LOOPBACK0 no dampening-change
  D. router egrp SAF service-family ipv4 autonomous-system 100 sf-interface LOOPBACK0 no split-horizon
  A. router eigrp SAF service-family ipv4 autonomous-system 100 sf-interface LOOPBACK0 shutdown

• Question 327:

  You are a network technician working in the Network Company. Recently, users complain that they cannot call the PSTN. With the help of testing, you find that the gateway is not switching to the secondary call agent when the primary call agent is unreachable. In order to permit the MGCP gateway to take use of a different call agent once the primary fails, which configuration should you make?

  A. Add ccm-manager fallback-mgcp command to the gateway.
  B. Add ccm-manager redundant-host command to the gateway
  C. Assign a Cisco Unified CallManager group including the secondary call agent to the gateway
  D. Define gateway as a non-gatekeeper-controlled intercluster trunk with the secondary Cisco Unified CallManager defined.
  B. Add ccm-manager redundant-host command to the gateway

• Question 328:

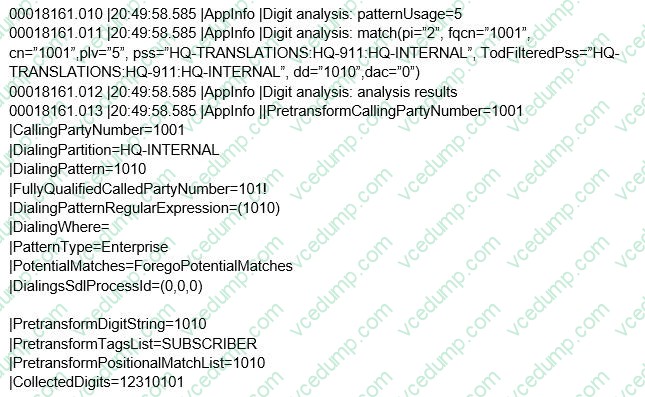

  Refer to the exhibit. An engineer recently configured a Cisco Unified Communications Manager cluster. The users are reporting that extensions starting with 10 are routing to a different office. Based on the output, what is the root cause of the issue?

  A. The destination partition is missing from the assigned calling search space
  B. Urgent priority is chosen on a translation or route pattern
  C. The incorrect calling search space was assigned to the phones
  D. The extension is a shared line, and one of the phones is unregistered
  A. The destination partition is missing from the assigned calling search space

• Question 329:

  An engineer notices that some SCCP phones are not displaying the correct time, but the phones are registered and working property. Which three options should be performed in Cisco Unified Communications Manager to fix the phone time issue' (Choose three.)

  A. Verify that the device pool has the coned Date/Time Group configured.
  B. Ensure that the phone on time field on the phone configuration page is chosen.
  C. Check the CUCM OS Admin page to ensure that NTP servers are accessible.
  D. Verify that the Date/Time Group has the correct phone NTP reference configured.
  E. Check the phone NTP Reference configuration for configured server.
  F. Verify that the Date/Time group has the correct time zone configured.
  A. Verify that the device pool has the coned Date/Time Group configured.
  D. Verify that the Date/Time Group has the correct phone NTP reference configured.
  F. Verify that the Date/Time group has the correct time zone configured.

• Question 330:

  You are configuring the Call Control Discovery feature. You need to configure Hosted DN Group Configuration settings. What is the range of values that you can define in the PSTN Failover Strip Digits field?

  A. 0-10
  B. 0-12
  C. 0-14
  D. 0-16
  E. 0-18
  F. 0-20
  D. 0-16
