CompTIA 220-1201 Online Practice Questions and Exam Preparation

CompTIA 220-1201 Online Questions & Answers

• Question 291:

  A VM was set up to deny access to the host computer and any network resources.

  Which of the following describes this scenario?

  A. Sandbox
  B. Cross-platform virtualization
  C. Legacy application
  D. Hypervisor
  A. Sandbox

  ---

  Explanation

  A sandbox is an isolated environment created for testing or running code without affecting the host system or other network resources. In this scenario, the virtual machine (VM) is set up to deny access to the host computer and any network resources, effectively creating a contained and secure space where actions within the VM do not impact the rest of the system or network. This is a key feature of sandbox environments used for testing and security purposes.

• Question 292:

  Which of the following should a technician use to terminate a Cat 6 cable to a patch panel?

  A. Punchdown tool
  B. Crimper
  C. Toner probe
  D. Network tap
  A. Punchdown tool

  ---

  Explanation

  A punchdown tool is specifically used to insert wires into a punchdown block in patch panels, which is typical for Cat 6 and similar cabling. It ensures a secure and correct connection by pushing the wire into a metal groove that slices the insulation.

  References:

  CompTIA A+ Certification All-in-One Exam Guide" by Mike Meyers - Chapter 18, page 758.

• Question 293:

  A company is testing the latest model of a laptop. After turning on the laptop, there is a noticeable burning smell.

  Which of the following steps should a technician take to troubleshoot the laptop issue?

  (Select two).

  A. Turn it off and disconnect all power sources.
  B. Submit an emergency request to the local facilities manager.
  C. Check for foreign objects, liquid spills, and internal damage.
  D. Contact the vendor and submit a return request.
  E. Remove the device from the MDM.
  F. Try an alternate AC adapter.
  A. Turn it off and disconnect all power sources.
  C. Check for foreign objects, liquid spills, and internal damage.

  ---

  Explanation

  When a technician encounters a burning smell, it is a critical safety issue. The first response must be to immediately power down and disconnect the device from all power sources to prevent electric shock, fire, or further hardware damage.

  From the CompTIA A+ 220-1101 Official Study Guide, Objective 4.1 -Troubleshoot common hardware problems:

  "Signs of electrical issues such as burning smells, smoke, or sparks require an immediate shutdown of the system and disconnection from any power source."

  After ensuring safety, the technician should inspect the hardware for visible signs of damage:

  From the same Objective (4.1):

  "Inspect for foreign objects, liquid damage, or burnt components. These can cause short circuits or thermal events that may damage the motherboard or other internal components."

  These steps are standard practice in the industry to ensure safe and accurate diagnosis of faulty devices. Trying a different adapter (Option F) may make the problem worse, and contacting vendors (Option D) comes after initial safety and inspection.

  Verified Source:

  CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 4: Troubleshooting Hardware Problems CompTIA Exam Objectives 220-1101, Domain 4.0 -Hardware and Network Troubleshooting

• Question 294:

  Which of the following display technologies typically provides the highest contrast?

  A. IPS
  B. OLED
  C. TN
  D. VA
  B. OLED

  ---

  Explanation

  OLED (Organic Light-Emitting Diode) technology can turn off individual pixels completely, producing "true black" and resulting in the highest contrast ratios compared to other display types.

  From CompTIA A+ 220-1101 Official Study Guide, Objective 3.1 -Display types and features:

  "OLED displays provide superior contrast by emitting light per pixel, allowing perfect black and extremely high contrast ratios."

  Verified Source:

  CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Display Technologies CompTIA Exam Objectives 220-1101, Domain 3.1

• Question 295:

  A user joins a conference call with a Bluetooth headset.

  Which of the following has the user created?

  A. MAN
  B. PAN
  C. SAN
  D. WAN
  B. PAN

  ---

  Explanation

  A PAN is a network established between devices in close proximity, such as between a smartphone and a Bluetooth headset.

  Bluetooth technology is specifically designed for short-range communication, making it a type of PAN.

  Incorrect Options:

  Option A:

  MAN (Metropolitan Area Network): A MAN covers a city or metropolitan area and is not relevant to Bluetooth connections.

  Option C:

  SAN (Storage Area Network): A SAN is used for large-scale data storage, unrelated to Bluetooth connections.

  Option D:

  WAN (Wide Area Network): A WAN spans large geographical areas (e.g., the internet) and is not relevant to this scenario.

  Key Takeaway: Bluetooth connections, such as those between a headset and a device, create a Personal Area Network (PAN).

  References:

  CompTIA A+ Core 1 Exam Objectives (220-1201), Domain 2.1 - Network types and their features.

• Question 296:

  Which of the following storage options would a technician most likely recommend to have large amounts of affordable capacity without concern for read times on a desktop computer?

  A. 750GB NVMe M.2 SSD
  B. 2x 1TB PCIe SSD in RAID 1
  C. 2TB SATA 3.5" 5,400rpm HDD
  D. 4TB SAS 2.5" 15,000rpm HDD
  C. 2TB SATA 3.5" 5,400rpm HDD

  ---

  Explanation

  If performance is not a primary concern and the user requires large, cost-effective storage, a 2TB 5400rpm SATA HDD is ideal. It offers high capacity at a lower price point than SSDs and faster HDDs.

  Option A:NVMe drives offer exceptional speed but are significantly more expensive per GB and not necessary when read/write speed is not a concern.

  Option B:RAID 1 improves redundancy but cuts usable capacity in half and uses expensive SSDs.

  Option D:SAS drives are fast and reliable but are enterprise-grade and expensive -- overkill for desktop use.

  References:

  Objective 1.3: Given a scenario, install and configure storage devices.

• Question 297:

  Which of the following supports the most devices due to its status as a legacy technology?

  A. 2.4GHz
  B. 5GHz
  C. 6GHz
  D. NFC
  A. 2.4GHz

  ---

  Explanation

  The correct answer is A. 2.4GHz.

  In the CompTIA A+ Core 1 220-1201 networking objectives, wireless networking technologies include frequency bands such as 2.4GHz, 5GHz, and 6GHz, along with related concepts like channels, regulations, channel selection, Bluetooth, 802.11 standards, NFC, and RFID.

  The 2.4GHz band supports the most devices because it is the oldest and most widely adopted Wi-Fi frequency listed. Many legacy devices, including older laptops, printers, IoT devices, smart home devices, and wireless peripherals, still rely on 2.4GHz. It also has better range and wall penetration than higher-frequency bands, although it is usually more crowded and slower.

  Why the other options are incorrect:

  B. 5GHz 5GHz is newer than 2.4GHz and generally provides faster speeds with less interference, but it does not support as many older legacy devices.

  C. 6GHz 6GHz is the newest Wi-Fi frequency option used with newer Wi-Fi standards, so it has the least legacy device support among the Wi-Fi frequency choices.

  D. NFC NFC is a short-range communication technology, not a Wi-Fi frequency band. It is used for close-proximity functions such as tap-to-pay, pairing, and access cards, so it is not the best answer. Final Answer:

  A. 2.4GHz

• Question 298:

  Which of the following can carry data and electricity to network devices? (Select two).

  A. Router
  B. Injector
  C. Cable modem
  D. Access point
  E. PoE
  F. Unmanaged switch
  B. Injector
  E. PoE

  ---

  Explanation

  PoE (Power over Ethernet) allows both data and electrical power to be delivered over the same Ethernet cable. A PoE injector adds power to Ethernet cables for devices that need it.

  From CompTIA A+ 220-1101 Official Study Guide, Objective 2.2 -Networking hardware:

  "Power over Ethernet (PoE) technology and PoE injectors enable both power and data transmission to compatible network devices like access points and IP cameras."

  Verified Source:

  CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 2: Network Hardware CompTIA Exam Objectives 220-1101, Domain 2.2

• Question 299:

  A user is having an issue with the touch screen on a mobile device. When the user touches the screen, the intended target is not selected.

  Which of the following would be the BEST action for a technician to take to resolve the issue?

  A. Calibrate the touch screen.
  B. Reset the mobile device.
  C. Replace the LED screen.
  D. Update the mobile device.
  A. Calibrate the touch screen.

  ---

  Explanation

  Calibrating the touch screen is the best action to resolve the issue of inaccurate touch input. Calibration adjusts the touch screen's sensitivity and alignment to match the user's touch. Resetting the mobile device could erase user data and settings and may not fix the touch screen issue. Replacing the LED screen or updating the mobile device are unnecessary and costly actions that may not solve the problem.

• Question 300:

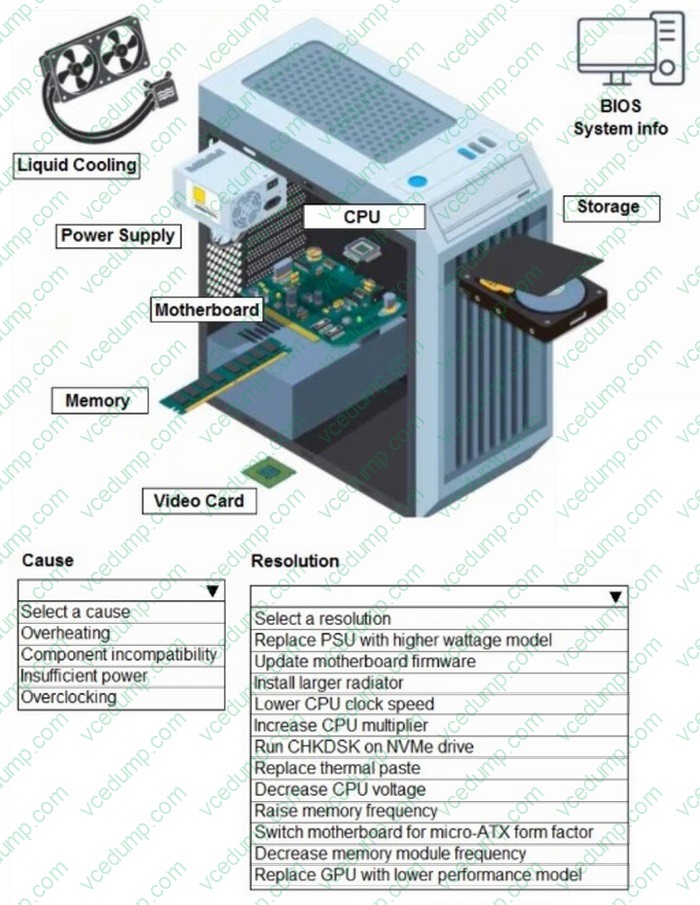

  A customer built a computer for gaming, sourcing individual components and then assembling the system. The OS starts up, but within a few minutes the machine locks up. The customer brought the computer to a technician to diagnose the issue.

  INSTRUCTIONS

  Click on each component to view the specification.

  Select the appropriate cause and resolution for the issue.

  If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.

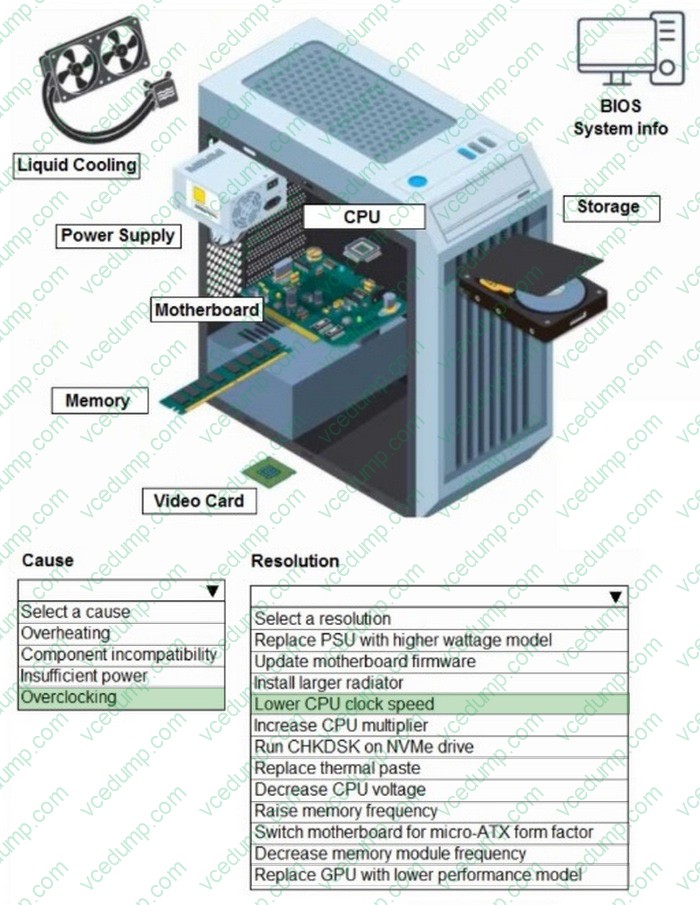

  Explanation:

  "Overclocking" and "Reduce CPU Clock speed"

  CPU is at 4.5 Ghz when normal is 3.2 Ghz. Overclocking too much can cause freezes, and this is a gaming computer sothe user probably took it too far.
