F5 201 Online Practice Questions and Exam Preparation

F5 201 Online Questions & Answers

• Question 111:

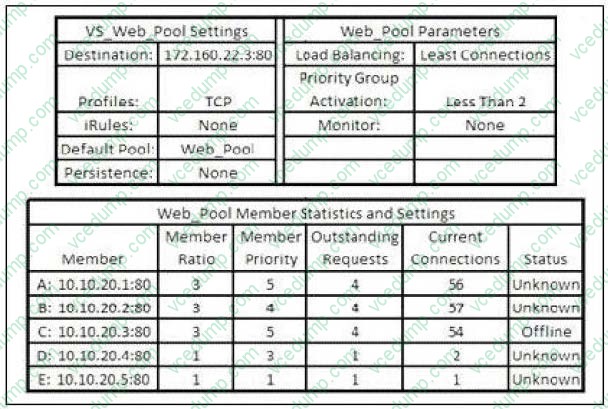

  The incoming client IP address is 205.12.45.52. The last five connections have been sent to members C, D, A, B, B. Given the virtual server and pool definitions and the statistics shown in the graphic, which member will be used for the next connection?



  A. 10.10.20.1:80
  B. 10.10.20.2:80
  C. 10.10.20.3:80
  D. 10.10.20.4:80
  E. 10.10.20.5:80
  A. 10.10.20.1:80

• Question 112:

  To increase available bandwidth of an existing Trunk, the BIG-IP Administrator is adding additional interfaces. Which command should the BIG-IP Administrator run from within bosh shell?

  A. tmsh create /net trunk trunk_A interfaces add {1.3.1.4}
  B. tmsh create/sys trunk trunk_A interfaces add {1.3.1.4}
  C. tmsh modify/sys trunk trunk^A interfaces add {1.3.1.4}
  D. tmsh modify /net trunk trunk_A interfaces add {1.3.1.4}
  D. tmsh modify /net trunk trunk_A interfaces add {1.3.1.4}

• Question 113:

  A VLAN has the following objects configured: Self-IP 10.10.10.100 with port lockdown set to Allow default Virtual server 10.10.10.100:443 with UDP profile enabled Virtual server 10.10.10.0/24 port forwarding virtual server Global destination NAT forwarding 10.10.10.100 to internal server 172.168.10.100 Which object will process this request when https://10.10.10.100 is entered into a browser?

  A. self-IP 10.10.10.100 with port lockdown set to Allow default
  B. virtual server 10.10.100/24 port o forwarding virtual server
  C. global destination NAT forwarding 10.10.10.100 to internal server 172.168.10.100
  D. virtual server 10.10.10.100.443 with UDP profile enabled
  A. self-IP 10.10.10.100 with port lockdown set to Allow default

• Question 114:

  If a client's browser does not accept cookies, what occurs when the client connects to a virtual server using cookie persistence?

  A. The connection request is not processed.
  B. The connection request is sent to a pology server.
  C. The connection request is loadbalanced to an available pool member.
  D. The connection request is refused and the client is sent a "server not available" message.
  C. The connection request is loadbalanced to an available pool member.

• Question 115:

  Which two methods can be used to determine which BIG-IP is currently active? (Choose two.)

  A. The bigtop command displays the status.
  B. Only the active system's configuration screens are active.
  C. The status (Active/Standby) is embedded in the command prompt.
  D. The ifconfig a command displays the floating addresses on the active system.
  A. The bigtop command displays the status.
  C. The status (Active/Standby) is embedded in the command prompt.

• Question 116:

  A BIG-IP Administrator must configure the BIG-IP device to send system log messages to a remote syslog server In addition, the log messages need to be sent over TCP for guaranteed delivery. What should the BIG-IP Administrator configure?

  A. syslog-ng
  B. Request Logging Profile
  C. HSL Logging
  D. Remote Logging
  D. Remote Logging

• Question 117:

  A BIG-IP Administrator needs to find which modules have been licensed for use on the BIG-IP system. In which section of the Configuration Utility can the BIG-IP Administrator find this information?

  A. System > Services
  B. System > Resource Provisioning
  C. System > Platform
  D. System > Support
  B. System > Resource Provisioning

• Question 118:

  A BIG-IP Administrator discovers malicious brute-force attempts to access the BIG-IP device on the management interface via SSH. The BIG-IP Administrator needs to restrict SSH access to the management interface. Where should this be accomplished?

  A. System > Configuration
  B. Network > Interfaces
  C. Network > Self IPs
  D. System > Platform
  D. System > Platform

• Question 119:

  A BIG-IP Administrator needs to apply a health monitor for a pool of database servers named DB_Pool that uses TCP port 1521. Where should the BIG-IP Administrator apply this monitor?

  A. Local Traffic > Profiles ?Protocol>; TCP
  B. Local Traffic > Nodes > Default Monitor
  C. Local Traffic > Pools > De Pool > Members
  D. Local Traffic > Pools > DB Pool > Properties
  D. Local Traffic > Pools > DB Pool > Properties

• Question 120:

  A BIG-IP Administrator must determine if a Virtual Address is configured to fail over to the standby member of a device group in which area of the Configuration Utility can this be confirmed?

  A. Device Management > Traffic Groups
  B. Device Management > Devices
  C. Local Traffic > Virtual Servers
  D. Device Management > Overview
  C. Local Traffic > Virtual Servers
