Cisco 200-355 Online Practice Questions and Exam Preparation

Cisco 200-355 Online Questions & Answers

• Question 81:

  Periodically, Radio Resource Management can reconfigure the wireless network for best efficiency. Which two functions can be changed to meet network demands? (Choose two.)

  A. Remove clients that use too much bandwidth.
  B. Transmit Power Control
  C. Disable AP radios that do not provide adequate coverage.
  D. Change channels to non-country channels if needed
  E. Radio Monitoring for noise and interference.
  B. Transmit Power Control
  E. Radio Monitoring for noise and interference.

• Question 82:

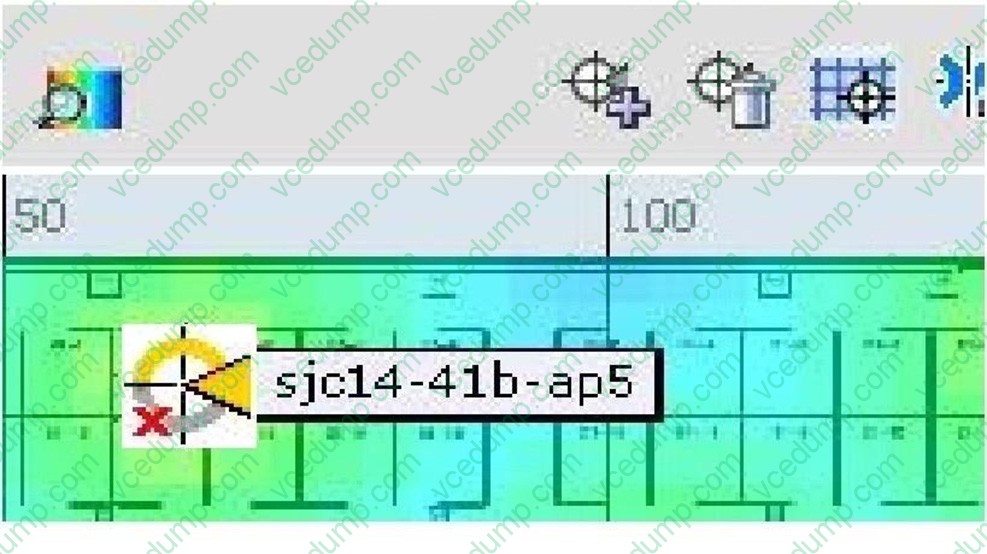

  Refer to the exhibit.



  Which two options does this icon represent about the status of the respective AP on a Cisco WCS version 7.0 map? (Choose two.)

  A. The 802.11a/n radio is administratively disabled.
  B. The 802.11a/n radio has a minor fault.
  C. The 802.11a/n radio has a major fault.
  D. The 802.11b/g/n radio is administratively disabled.
  E. The 802.11b/g/n radio has a minor fault.
  F. The 802.11b/g/n radio has a major fault.
  B. The 802.11a/n radio has a minor fault.
  D. The 802.11b/g/n radio is administratively disabled.

  ---

  The icon with the top half yellow indicates that the optional 802.11a Cisco Radio (top) has a minor fault.

  The bottom half of the circle represents the state of the 802.11b/g Cisco Radio.

  The icon with a red "x" on the half shows that the indicated Cisco Radio has been administratively disabled.

  The rest of the color coding is as described above.

  Reference: http://www.cisco.com/en/US/docs/wireless/wcs/7.0MR1/configuration/guide/maps.html

• Question 83:

  You are configuring authentication on a wireless network and wireless controller. In which menu do you configure authentication?

  A. General
  B. Security
  C. WLAN
  D. Advanced
  B. Security

• Question 84:

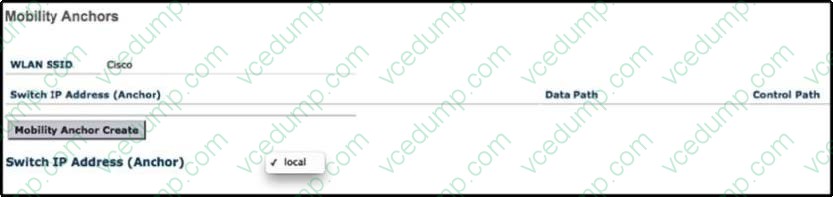

  Refer to the exhibit.



  An engineer wants to setup a mobility anchor for the Guest WLAN, but does not see the Anchor IP address listed in the drop-down. What is the most likely cause of this problem?

  A. The mobility anchor is currently unreachable.
  B. The mobility anchor must also be included in the mobility group of the WLC.
  C. Layer 3 Security must be configured for Web Policy Authentication.
  D. The mobility anchor is attached to another WLAN.
  E. Layer 3 Security must be configured for Web Policy Passthrough.
  B. The mobility anchor must also be included in the mobility group of the WLC.

• Question 85:

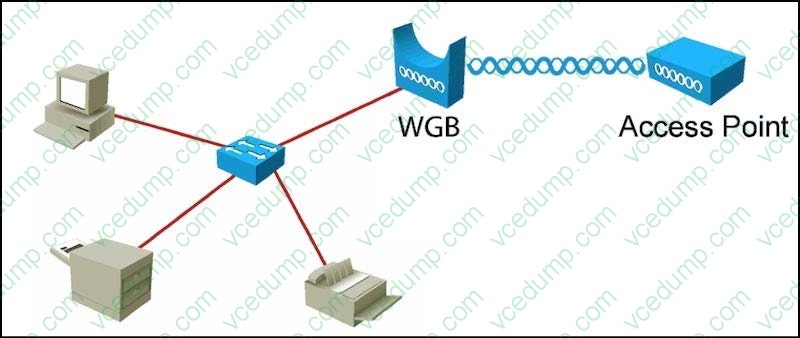

  Refer to the exhibit.



  Based on the diagram, what two design requirements must be met? (Choose two.)

  A. WGB is Autonomous
  B. WGB is Universal
  C. WGB can be Autonomous or Universal
  D. Upstream AP is Aironet
  E. Upstream AP is not Aironet
  F. Upstream AP can be any make/model
  A. WGB is Autonomous
  D. Upstream AP is Aironet

• Question 86:

  Which three configuration elements must match for a client to successfully associate to a standalone AP? (Choose three.)

  A. BVI subnet
  B. PSK
  C. AP name
  D. SSID
  E. encryption method
  F. gateway IP
  B. PSK
  D. SSID
  E. encryption method

• Question 87:

  In a network with a deployed Cisco WLC, which two entities must be configured with the shared secret key for 802.1X authentication? (Choose two.)

  A. RADIUS server
  B. wireless client
  C. AP
  D. WLC
  E. supplicant
  A. RADIUS server
  D. WLC

  ---

  The WLC needs to be configured in order to forward the user credentials to an external RADIUS server. The external RADIUS server then validates the user credentials and provides access to the wireless clients. http://www.cisco.com/c/en/us/support/docs/wireless-mobility/wlan-security/69730-eap-auth-wlc.html

• Question 88:

  How much SNR needed to reach 54Mbps in 802.11g network?

  A. 25
  B. 10
  C. 5
  D. 1
  A. 25

• Question 89:

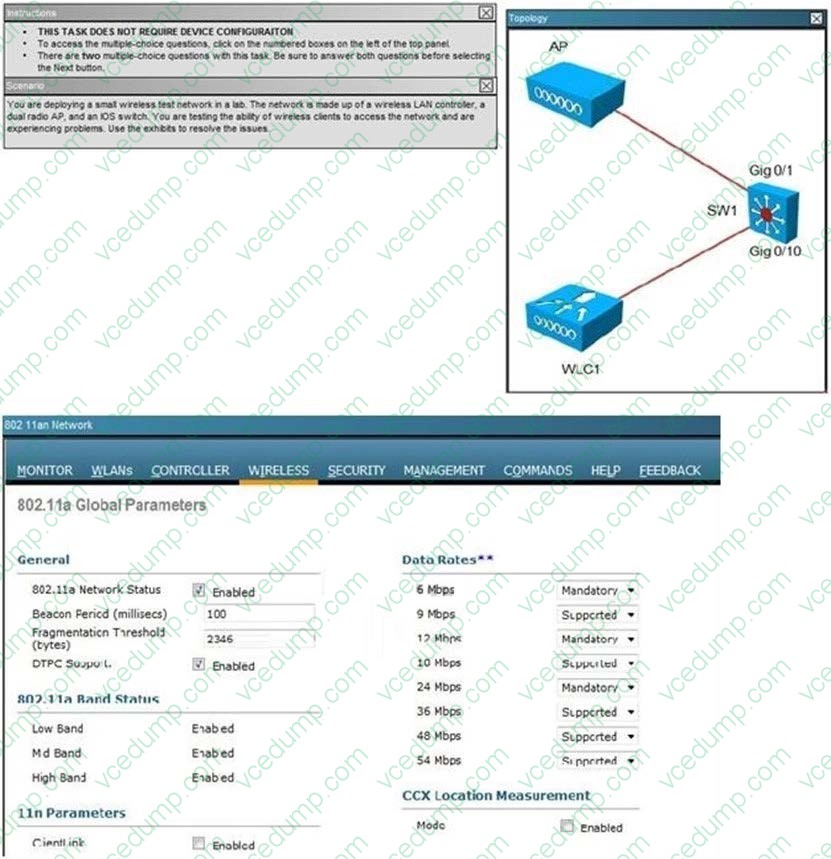

  Instructions:

  1.

  THIS TASK DOES NOT REQUIRE DEVICE CONFIGURATION

  2.

  To access the multiple-choice questions, click on the numbered boxes on the left of the top panel.

  3.

  There is two multiple-choice question with this task. Be sure to answer the question before selecting the Next button

  Scenario:

  You are deploying a small wireless test-network in a lab. The network is made up of a wireless LAN controller, a dual radio AP, and an iOS switch. You are testing the ability of wireless to access the network and are experiencing problems.

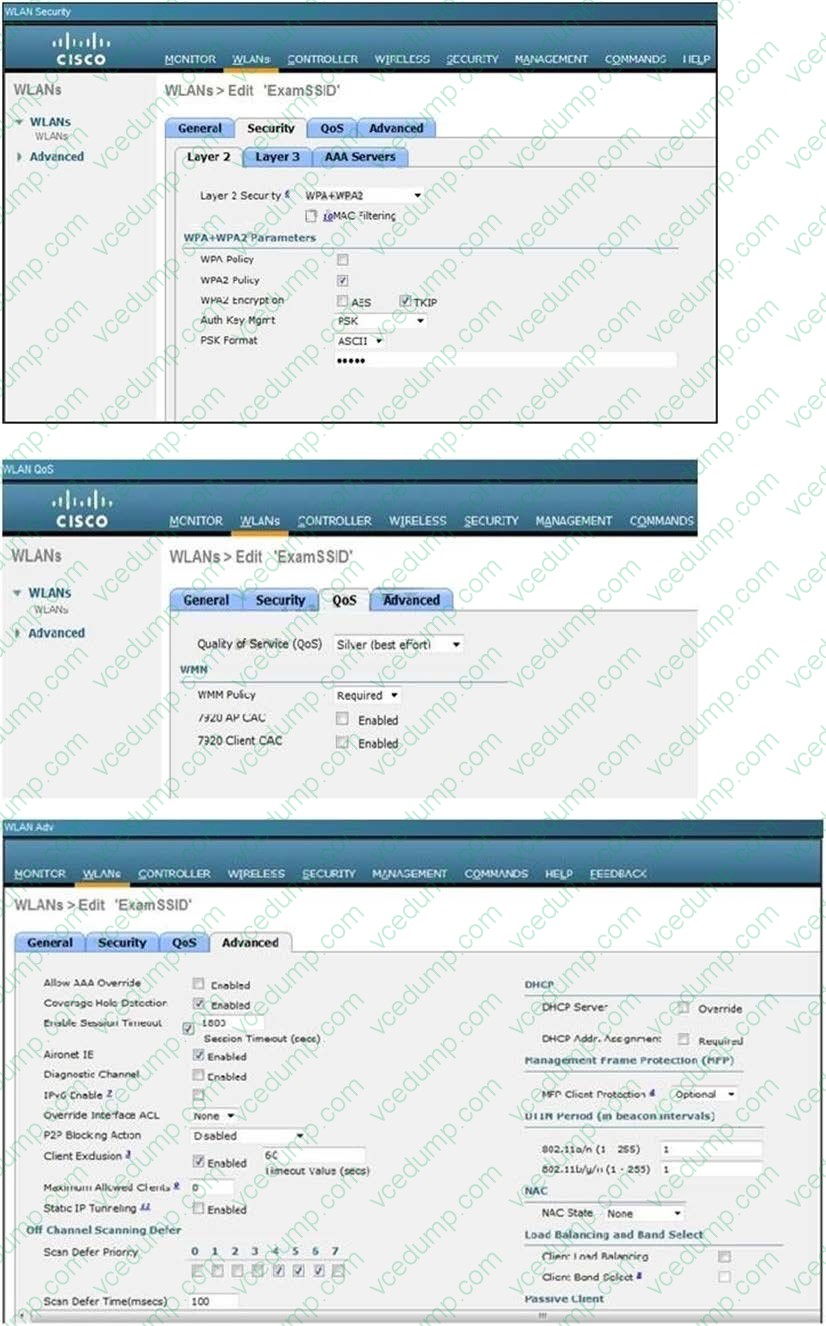

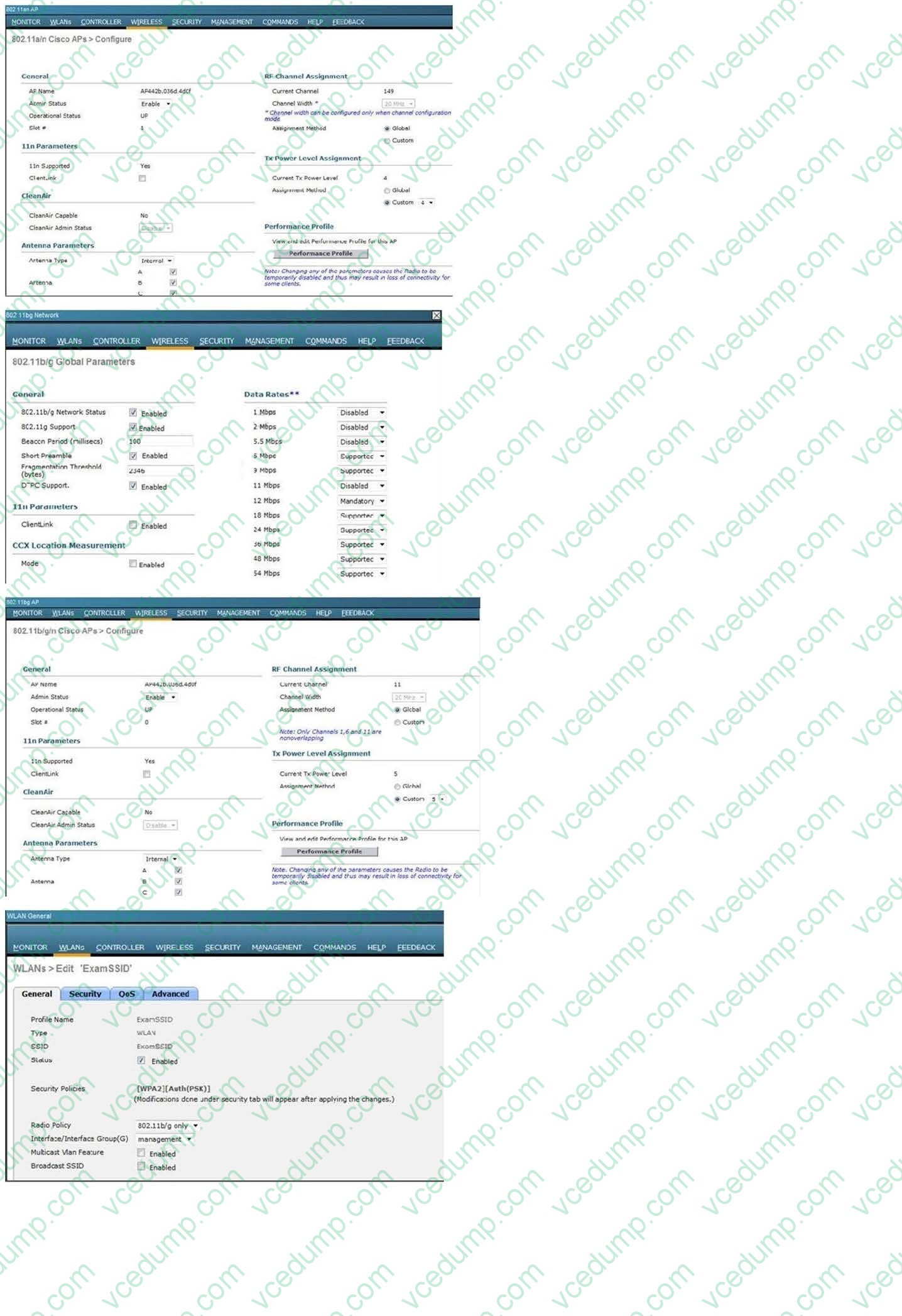

  Use the exhibits to resolve the issues.







  Tablets and other wireless clients are unable to connect at any 802.11 n data rates. What is the most likely cause of this problem?

  A. WLAN > General properties are incorrectly configured.
  B. WLAN > QoS properties are incorrectly configured.
  C. WLAN > Security properties are incorrectly configured.
  D. WLAN > Advanced properties are incorrectly configured.
  E. Wireless > AP > 802.11 a/n is incorrectly configured.
  F. Wireless > 802.11a/n > Network is incorrectly configured.
  C. WLAN > Security properties are incorrectly configured.

  ---

  802.11n only supports open authentication or the use of WPAv2 with AES. From the output shown in this question, we can see that WPA/WPA2 using TKIP has been configured, not AES.

• Question 90:

  What three components must be the same on a controller and the RADIUS server when adding a RADIUS server to a WLC? (Choose three.)

  A. Username
  B. Shared Secret
  C. Index Priority
  D. Port Number
  E. IP Address
  F. Network Mask
  B. Shared Secret
  D. Port Number
  E. IP Address
