• Question 621:

  Which WLC interface provides out-of-band management in the Cisco Unified Wireless Network Architecture?

  A. AP-Manager
  B. service port
  C. dynamic
  D. virtual
  B. service port

  ---

  The service port is used for out-of-band management of the controller and system recovery and maintenance in the event of a network failure. It is important to note that the service port does not support VLAN trunking or VLAN tagging and is therefore required to connect to an access port on the switch.

  It is also recommended not to connect the service port to the same VLAN as the wired clients network because by doing so, administrators will not be able to access the management interface (analysed later) of the controller.

• Question 622:

  What describes multifactor authentication in security password policies?

  A. It enables a cryptographic link between a public key and the owning entity.
  B. It applies biological characteristics to authenticate and access the system.
  C. It uses factors from at least two different categories to identify all users.
  D. It uses an application programming interface to access the data of the operating system.
  C. It uses factors from at least two different categories to identify all users.

• Question 623:

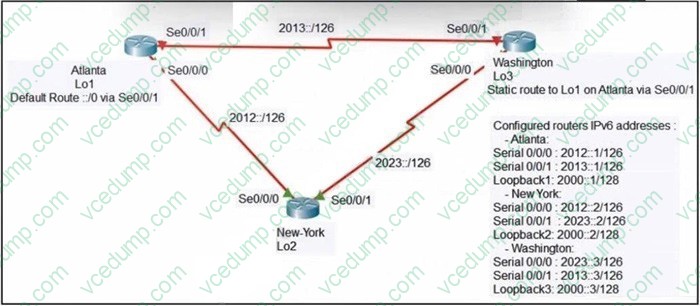

  Refer to the exhibit.



  The New York router must be configured so that traffic to 2000::1 is sent primarily via the Atlanta site, with a secondary path via Washington that has an administrative distance of 2. Which two commands must be configured on the New York router? (Choose two.)

  A. ipv6 route 2000::1/128 2012::1
  B. ipv6 route 2000::1/128 2012::1 5
  C. ipv6 route 2000::1/128 2012::2
  D. ipv6 route 2000::1/128 2023::2 5
  E. ipv6 route 2000::1/128 2023::3 2
  A. ipv6 route 2000::1/128 2012::1
  E. ipv6 route 2000::1/128 2023::3 2

• Question 624:

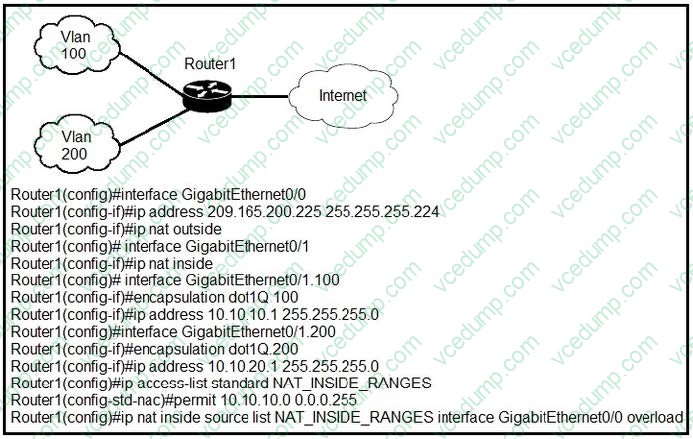

  Refer to the exhibit. Users on existing VLAN 100 can reach sites on the Internet. Which action must the administrator take to establish connectivity to the Internet for users in VLAN 200?



  A. Define a NAT pool on the router.
  B. Configure static NAT translations for VLAN 200.
  C. Configure the ip nat outside command on another interface for VLAN 200.
  D. Update the NAT_INSIDE_RANGES ACL
  D. Update the NAT_INSIDE_RANGES ACL

  ---

  "ip nat inside source list NAT_INSIDE_RANGES interfaces G0/0 Overload".

  This command essentially tells the router all ip addresses specified from the access list "NAT_INSIDE_RANGES" will be translated via port address translation (PAT) using the ip address of G0/0.

  By reconfiguring the ACL to include the 200 vlan it will provide the easiest way to get VLAN 200 access to the internet.

• Question 625:

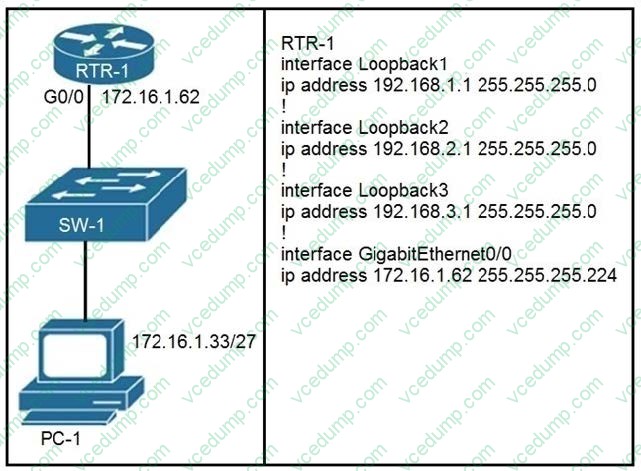

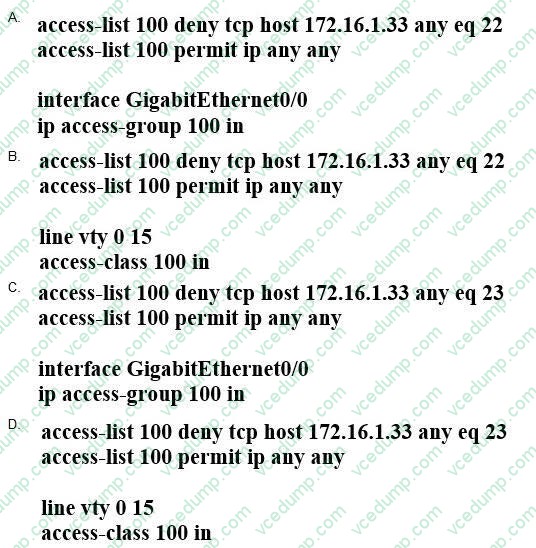

  Refer to the exhibit. What configuration on RTR-1 denies SSH access from PC-1 to any RTR-1 interface and allows all other traffic?





  A. Option A
  B. Option B
  C. Option C
  D. Option D
  A. Option A

• Question 626:

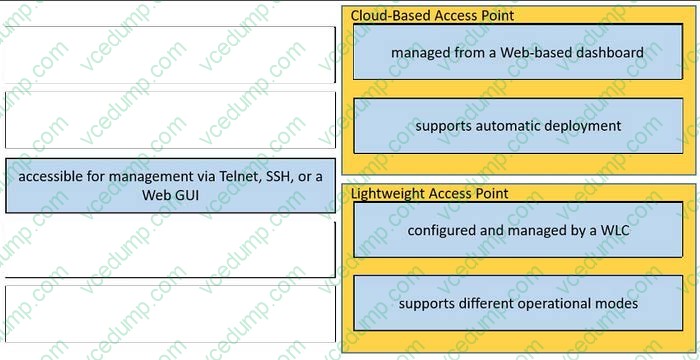

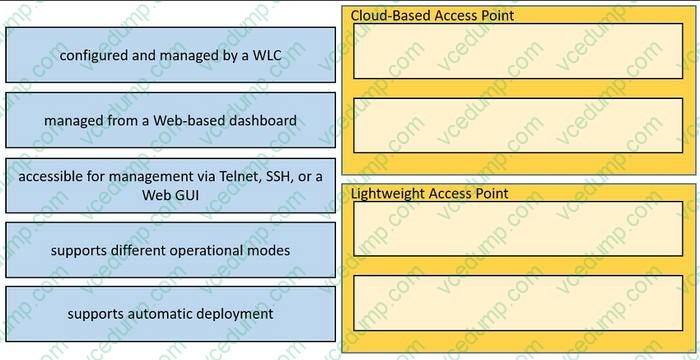

  DRAG DROP

  Drag and drop the facts about wireless architectures from the left onto the types of access point on the right. Not all options are used.

  Select and Place:





• Question 627:

  Which value is the unique identifier that an access point uses to establish and maintain wireless connectivity to wireless network devices?

  A. VLANID
  B. SSID
  C. RFID
  D. WLANID
  B. SSID

  ---

  The SSID is a unique identifier that wireless networking devices use to establish and maintain wireless connectivity. Multiple access points on a network or subnetwork may use the same SSIDs.

• Question 628:

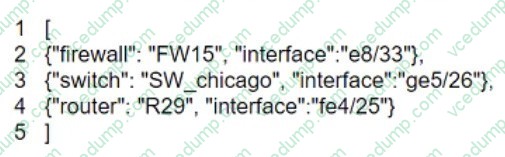

  What is represented by the word "R29" within this JSON schema?



  A. array
  B. key
  C. object
  D. value
  D. value

• Question 629:

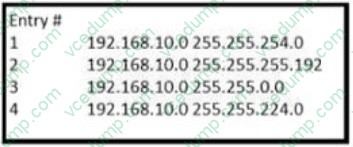

  Refer to the exhibit.



  Which entry is the longest prefix match for host IP address 192.168.10.5?

  A. 1
  B. 2
  C. 3
  D. 4
  B. 2

• Question 630:

  A corporate office uses four floors in a building.

  1.

  Floor 1 has 24 users.

  2.

  Floor 2 has 29 users.

  3.

  Floor 3 has 28 users.

  4.

  Floor 4 has 22 users.

  Which subnet summarizes and gives the most efficient distribution of IP addresses for the router configuration?

  A. 192.168.0.0/24 as summary and 192.168.0.0/28 for each floor
  B. 192.168.0.0/23 as summary and 192.168.0.0/25 for each floor
  C. 192.168.0.0/25 as summary and 192.168.0.0/27 for each floor
  D. 192.168.0.0/26 as summary and 192.168.0.0/29 for each floor
  C. 192.168.0.0/25 as summary and 192.168.0.0/27 for each floor
