Cisco 200-301 Online Questions & Answers

• Question 601:

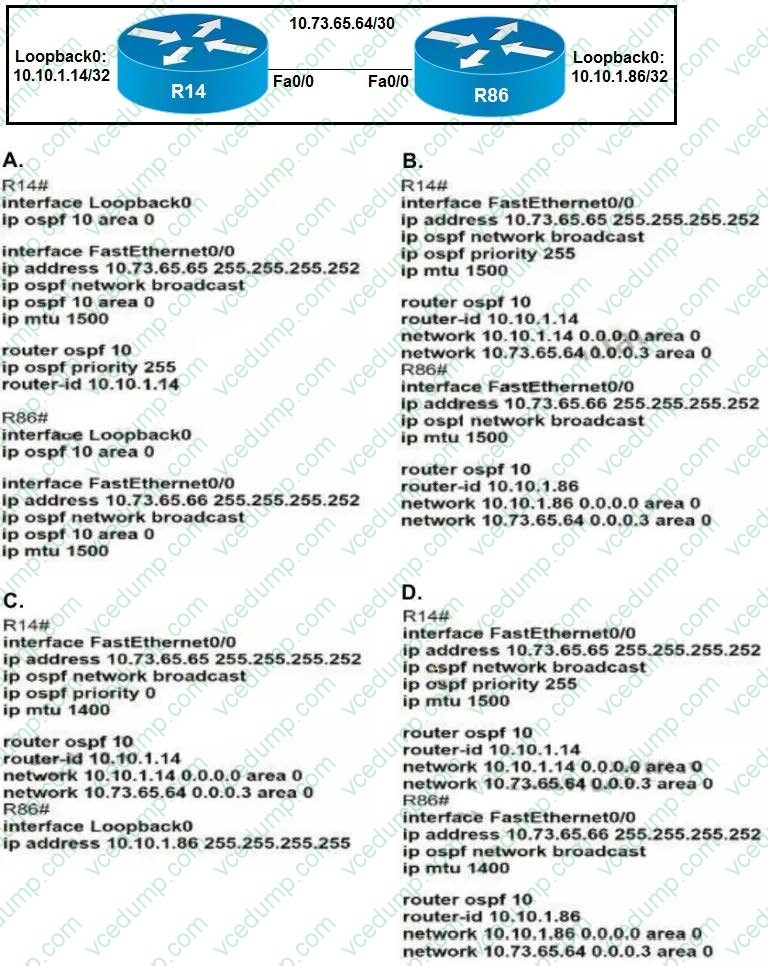

  Refer to the exhibit. Which configuration allows routers R14 and R86 to form an OSPFv2 adjacency while acting as a central point for exchanging OSPF information between routers?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  B. Option B

• Question 602:

  Which port type does a lightweight AP use to connect to the wired network when configured in FlexConnect mode with local switching and VLAN tagging?

  A. trunk
  B. LAG
  C. EtherChannel
  D. access
  A. trunk

  ---

  When a lightweight access point (AP) is configured in FlexConnect mode with local switching and VLAN tagging, it typically uses a **trunk** port to connect to the wired network. This allows the AP to carry traffic for multiple VLANs, each identified by its VLAN tag.

• Question 603:

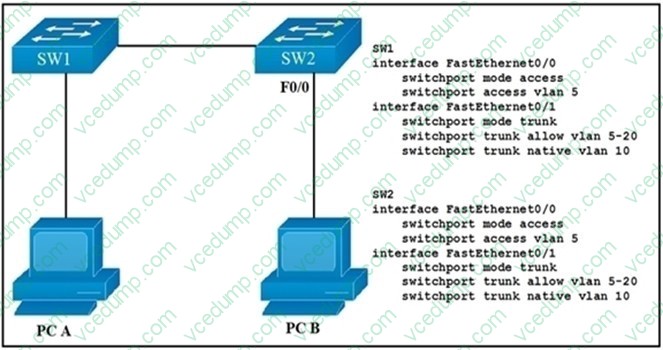

  Refer to the exhibit.



  Which VLAN ID is associated with the default VLAN in the given environment?

  A. VLAN 1
  B. VLAN 5
  C. VLAN 10
  D. VLAN 20
  A. VLAN 1

  ---

  As soon as the switches are powered on, the default VLAN is VLAN 1. Then, you execute the commands on SW1:

  interface ...

  switchport mode ...

  switchport access ...

  interface ...

  switchport mode ...

  switchport trunk ...

  switchport trunk native vlan 10

  Same happens on SW2:

  interface ...

  switchport mode ...

  switchport access ...

  interface ...

  switchport mode ...

  switchport trunk ...

  switchport trunk native vlan 10

  Now, the NATIVE VLAN on both sides of the trunk is VLAN 10. But the DEFAULT VLAN on both switches in still VLAN 1.

• Question 604:

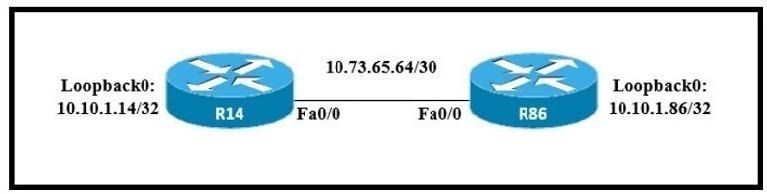

  Refer to the exhibit.



  All interfaces are configured with duplex auto and ip ospf network broadcast. Which configuration allows routers R14 and R86 to form an OSPFv2 adjacency and act as a central point for exchanging OSPF information between routers?

  A. R14# interface FastEthernet0/0 ip address 10.73.65.65 255.255.255.252 ip ospf priority 255 ip mtu 1500 router ospf 10 router-id 10.10.1.14 network 10.10.1.14 0.0.0.0 area 0 network 10.73.65.64 0.0.0.3 area 0 R86# interface FastEthernet0/0 ip address 10.73.65.66 255.255.255.252 ip mtu 1400 router ospf 10 router-id 10.10.1.86 network 10.10.1.86 0.0.0.0 area 0 network 10.73.65.64 0.0.0.3 area 0
  B. R14# interface Loopback0 ip ospf 10 area 0 interface FastEthernet0/0 ip address 10.73.65.65 255.255.255.252 ip ospf 10 area 0 ip mtu 1500 router ospf 10 ip ospf priority 255 router-id 10.10.1.14 R86# interface Loopback0 ip ospf 10 area 0 interface FastEthernet0/0 ip address 10.73.65.66 255.255.255.252 ip ospf 10 area 0 ip mtu 1500 router ospf 10 router-id 10.10.1.86
  C. R14# interface FastEthernet0/0 ip address 10.73.65.65 255.255.255.252 ip ospf priority 0 ip mtu 1500 router ospf 10 router-id 10.10.1.14 network 10.10.1.14 0.0.0.0 area 0 network 10.73.65.64 0.0.0.3 area 0 R86# interface FastEthernet0/0 ip address 10.73.65.66 255.255.255.252 ip mtu 1500 router ospf 10 router-id 10.10.1.86 network 10.10.1.86 0.0.0.0 area 0 network 10.73.65.64 0.0.0.3 area 0
  D. R14# interface Loopback0 ip ospf 10 area 0 interface FastEthernet0/0 ip address 10.73.65.65 255.255.255.252 ip ospf priority 255 ip ospf 10 area 0 ip mtu 1500 router ospf 10 router-id 10.10.1.14 R86# interface Loopback0 ip ospf 10 area 0 interface FastEthernet0/0 ip address 10.73.65.66 255.255.255.252 ip ospf 10 area 0 ip mtu 1500 router ospf 10 router-id 10.10.1.86
  D. R14# interface Loopback0 ip ospf 10 area 0 interface FastEthernet0/0 ip address 10.73.65.65 255.255.255.252 ip ospf priority 255 ip ospf 10 area 0 ip mtu 1500 router ospf 10 router-id 10.10.1.14 R86# interface Loopback0 ip ospf 10 area 0 interface FastEthernet0/0 ip address 10.73.65.66 255.255.255.252 ip ospf 10 area 0 ip mtu 1500 router ospf 10 router-id 10.10.1.86

  ---

  A router with priority 0 and another with the default priority (1) form adjacency and exchange LSAs and LSDBs normally (tested in Packet Tracer; OSPF dynamic routing works normally). The difference is that there will not be a backup DR in case of failure. One will be DR Other (neighbor Full/DR) and one DR (neighbor Full/DROther), and no BDR exists because priority 0 cannot become either DR or BDR.

  Observation: A point-to-point network type is recommended for this type of connection.

  However, the exercise asks them to act as a central point for exchanging information. In this case, it implies selecting a DR. Option D is the most correct because using ip ospf priority 255 on the interface defines R14 as the DR.

• Question 605:

  What is the benefit of using FHRP (First Hop Redundancy Protocol)?

  A. reduced management overhead on network routers
  B. balancing traffic across multiple gateways in proportion to their loads
  C. higher degree of availability
  D. reduced ARP traffic on the network
  C. higher degree of availability

  ---

  FHRP, or First Hop Redundancy Protocol, refers to a set of protocols used in computer networks to provide redundancy and high availability for the default gateway or first hop of the network. The primary benefit of using FHRP is to ensure continuous network connectivity and minimize network downtime in the event of a failure.

• Question 606:

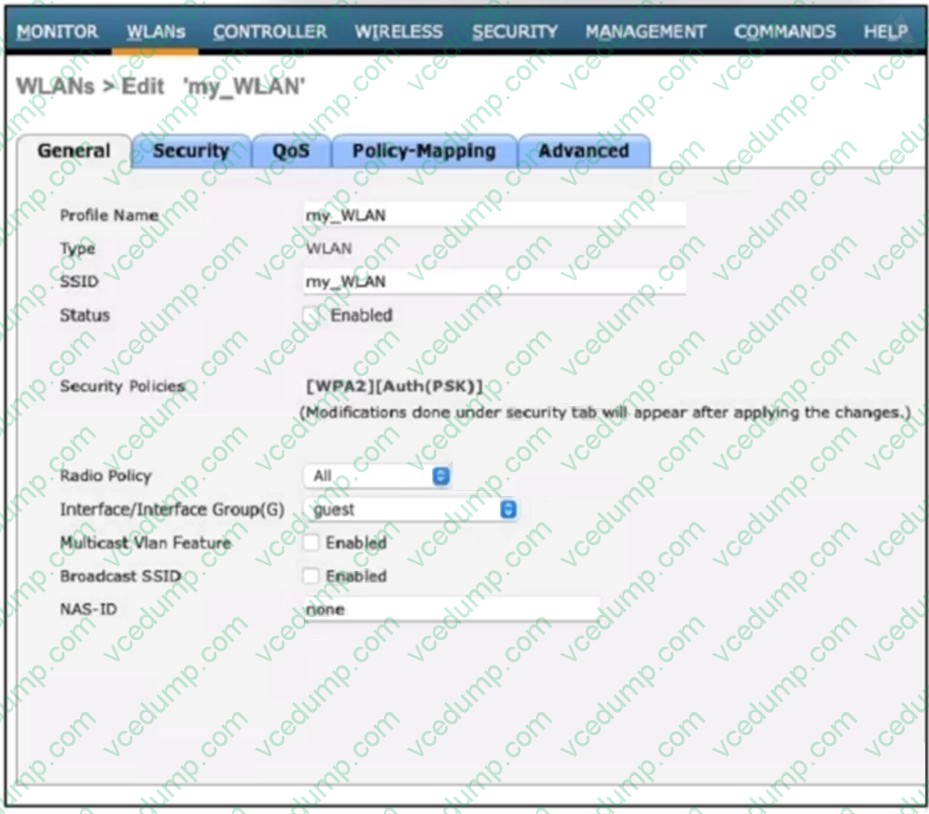

  Refer to the exhibit.



  The My_WLAN wireless LAN was configured with WPA2 Layer 2 PSK security.

  Which additional configuration must the administrator perform to allow users to connect to this WLAN on a different subnet called Data?

  A. Enable Status and set the NAS-ID to data
  B. Enable Status and enable Broadcast SSID
  C. Enable Status and select data from the Interface/Interface Group drop-down list
  D. Enable Broadcast SSID and select data from the Interface/Interface Group drop-down list
  C. Enable Status and select data from the Interface/Interface Group drop-down list

  ---

  Enable Status: This option must be checked to activate the WLAN.

  Interface/Interface Group drop-down list: The drop-down currently shows the "guest" interface. To connect users to the "Data" subnet, you need to change this to "data" from the drop-down menu, ensuring that the traffic is routed through the correct interface/subnet.

  Broadcast SSID: This setting controls whether the SSID is advertised or hidden. While this is useful for users to see the network, it is not related to subnet routing.

• Question 607:

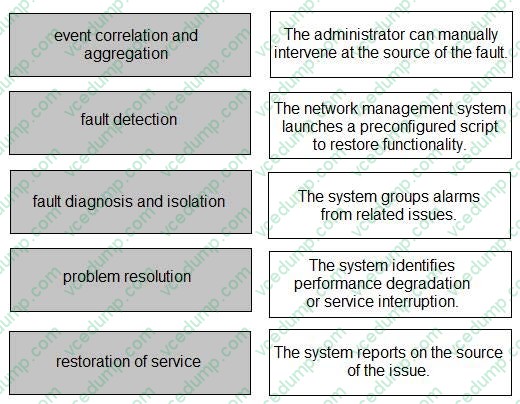

  DRAG DROP

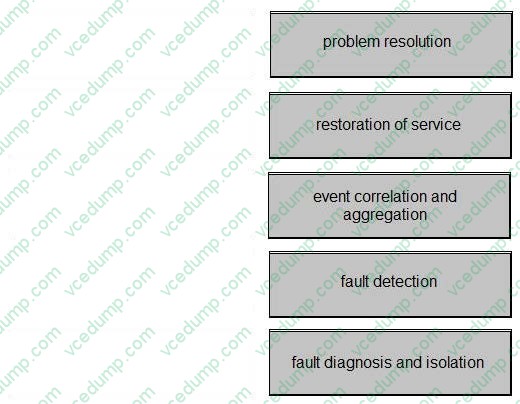

  Drag and drop the functions of SNMP fault-management from the left onto the definitions on the right.

  Select and Place:





• Question 608:

  Which feature, when used on a WLC, allows it to bundle its distribution system ports into one 802.3ad group?

  A. QinQ
  B. ISL
  C. PAgP
  D. LAG
  D. LAG

• Question 609:

  Which WAN topology provides a combination of simplicity quality, and availability?

  A. partial mesh
  B. full mesh
  C. point-to-point
  D. hub-and-spoke
  C. point-to-point

  ---

  Simplicity : Point-to-point communication links require minimal expertise to install and maintain.

  Quality : Point-to-point communication links usually offer high quality service, if they have adequate bandwidth. The dedicated capacity removes latency or jitter between the endpoints.

  Availability : Constant availability is essential for some applications, such as e-commerce. Point-to-point communication links provide permanent, dedicated capacity which is required for VoIP or Video over IP.

• Question 610:

  Which cable type must be used when connecting a router and switch together using these criteria?

  1. Pins 1 and 2 are receivers and pins 3 and 6 are transmitters.

  2. Auto detection MDI-X is unavailable.

  A. crossover
  B. rollover
  C. console
  D. straight-through
  D. straight-through

  ---

  You are describing a scenario where a straight-through Ethernet cable (also known as a "patch cable") should be used. In a straight-through cable, each wire on one end of the cable is connected to the same pin on the other end. This type of cable is commonly used to connect different types of devices, such as a router to a switch, where the transmit pins on one end are connected to the receive pins on the other end. Ensure that both the router and the switch are configured for the same Ethernet standard (e.g., both support Gigabit Ethernet) and use a straight-through cable to connect them. If auto MDI-X is unavailable, it means you should not use a crossover cable, as a straight-through cable is required for proper communication between the router and switch in this case.
