Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 571:

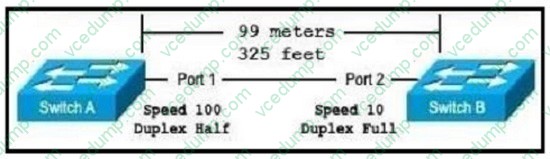

  Refer to the exhibit.



  The switches are connected via a Cat5 Ethernet cable that is tested successfully. The interfaces are configured as access ports and are both in a down status. What is the cause of the issue?

  A. The speed settings on the switches are mismatched
  B. The distance between the two switches is not supported by Cat5
  C. The switches are configured with incompatible duplex settings
  D. The portfast command is missing from the configuration
  A. The speed settings on the switches are mismatched

• Question 572:

  What event has occurred if a router sends a notice level message to a syslog server?

  A. A certificate has expired
  B. An interface line has changed status
  C. A TCP connection has been torn down
  D. An ICMP connection has been built
  B. An interface line has changed status

  ---

  0 Emergencies - System shutting down due to missing fan tray

  1 Alerts - Temperature limit exceeded

  2 Critical - Memory allocation failures

  3 Errors - Interface Up/Down messages

  4 Warnings - Configuration file written to server via SNMP request

  5 Notifications - Line protocol Up/Down

  6 Informational - Access-list violation logging

  7 Debugging- Debug messages

• Question 573:

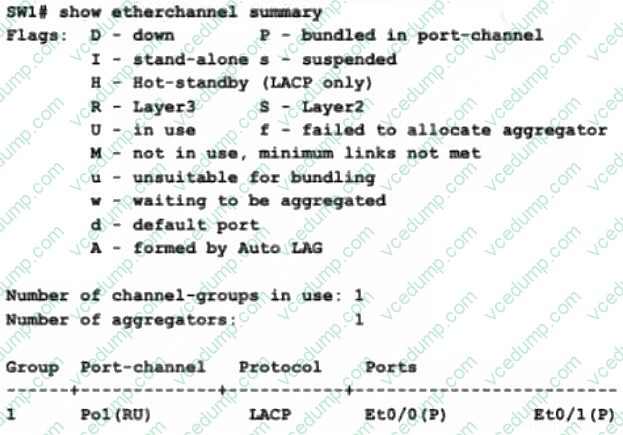

  Refer to the exhibit.



  A network engineer is adding another physical interface as a new member to the existing Port-Channel1 bundle. Which command set must be configured on the new interface to complete the process?

  A. no switchport channel group 1 mode active
  B. no switchport channel-group 1 mode on
  C. switchport mode trunk channel-group 1 mode active
  D. switchport switchport mode trunk
  A. no switchport channel group 1 mode active

  ---

  because it says"R" we know its a layer three port channel meaning we need the no swtchport command and this is a Lacp so it would us active / passive

• Question 574:

  Which feature on the Cisco Wireless LAN Controller when enabled restricts management access from specific networks?

  A. TACACS
  B. CPU ACL
  C. Flex ACL
  D. RADIUS
  B. CPU ACL

  ---

  Whenever you want to control which devices can talk to the main CPU, a CPU ACL is used.

  Note: CPU ACLs only filter traffic towards the CPU, and not any traffic exiting or generated by the CPU.

  https://www.cisco.com/c/en/us/support/docs/wireless-mobility/wlan-security/71978-acl-wlc.html

• Question 575:

  Which configuration is needed to generate an RSA key for SSH on a router?

  A. Configure VTY access.
  B. Configure the version of SSH.
  C. Assign a DNS domain name.
  D. Create a user with a password.
  C. Assign a DNS domain name.

• Question 576:

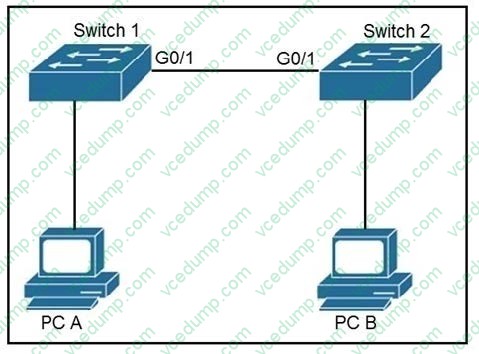

  Refer to the exhibit. The network administrator wants VLAN 67 traffic to be untagged between Switch 1 and Switch 2, while all other VLANs are to remain tagged. Which command accomplishes this task?



  A. switchport access vlan 67
  B. switchport trunk allowed vlan 67
  C. switchport private-vlan association host 67
  D. switchport trunk native vlan 67
  D. switchport trunk native vlan 67

  ---

  Native VLAN: The native VLAN is the one into which untagged traffic will be put when it's received on a trunk port. This makes it possible for your VLAN to support legacy devices or devices that don't tag their traffic like some wireless access points and simply network attached devices.

• Question 577:

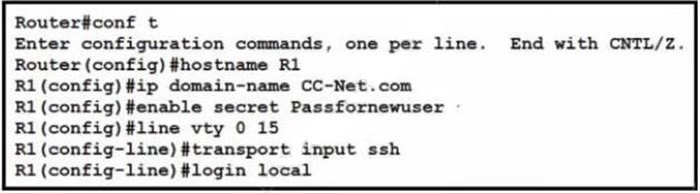

  Refer to the exhibit.



  A network administrator is configuring a router for user access via SSH. The service-password encryption command has been issued. The configuration must meet these requirements:

  1. Create the username as CCUser.

  2. Create the password as NA!2$cc.

  3. Encrypt the user password.

  What must be configured to meet the requirements?

  A. username CCUser privilege 10 password NA!2$cc
  B. username CCUser privilege 15 password NA!2$cc enable secret 0 NA!2$cc
  C. username CCUser secret NA!2$cc
  D. username CCUser password NA!2$cc enable password level 5 NA!2$cc
  C. username CCUser secret NA!2$cc

  ---

  To create the username as CCUser, create the password as NA!2$cc, and encrypt the user password, option C is the correct configuration.

  Option A only creates the user and sets a plain-text password.

  Option B sets a privileged level password for enable mode, but it does not create the user or encrypt the password.

  Option D creates the user and sets a plain-text password but does not encrypt the password.

  Option C creates the user, sets an encrypted password, and meets all the specified requirements.

• Question 578:

  An engineer observes high usage on the 2.4GHz channels and lower usage on the 5GHz channels. What must be configured to allow clients to preferentially use 5GH2 access points?

  A. Re- Anchor Roamed Clients
  B. 11ac MU-MIMO
  C. OEAP Split Tunnel
  D. Client Band Select
  D. Client Band Select

  ---

  Ref: Cisco Catalyst 9800 Series Wireless Controller Software Configuration Guide, Cisco IOS XE Gibraltar 16.12.x Information About Configuring Band Selection, 802.11 Bands, and Parameters Band Select Band select enables client radios that are capable of dual-band (2.4 and 5-GHz) operations to move to a less congested 5-GHz access point. The 2.4-GHz band is often congested. Clients on this band typically experience interference from Bluetooth devices, microwave ovens, and cordless phones as well as co-channel interference from other access points because of the 802.11b/g limit of 3 nonoverlapping channels. To prevent these sources of interference and improve overall network performance,

  configure band selection on the device.

• Question 579:

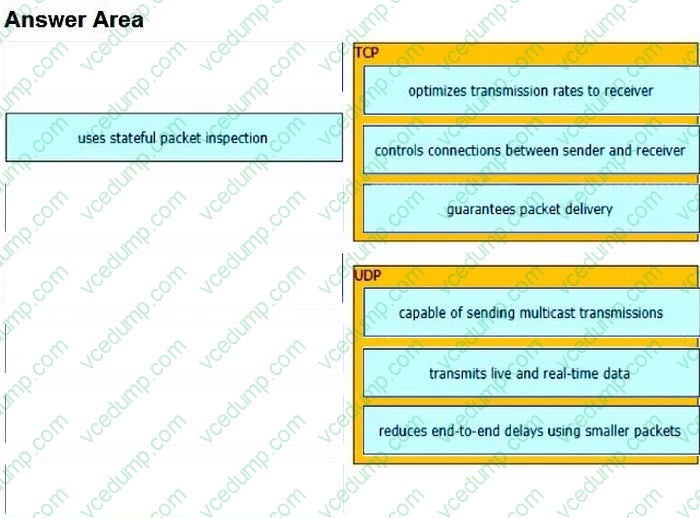

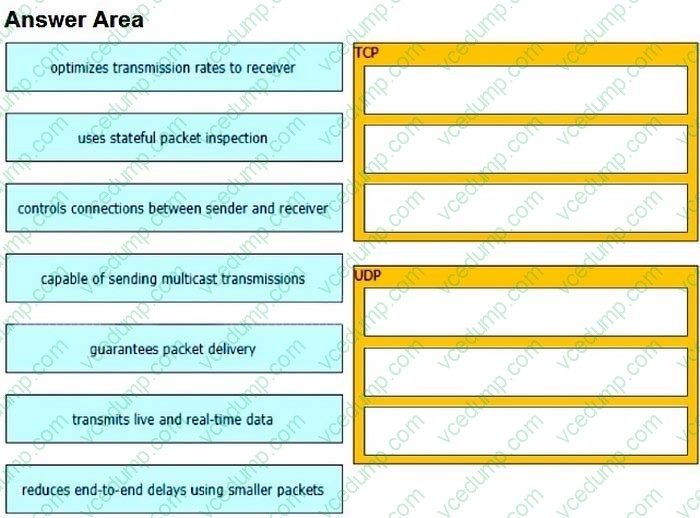

  DRAG DROP

  Drag and drop the protocol advantages from the left onto the corresponding types on the right. Not all options are used.

  Select and Place:





• Question 580:

  Which command should you enter to verify the priority of a router in an HSRP group?

  A. show hsrp
  B. show sessions
  C. show interfaces
  D. show standby
  D. show standby

  ---

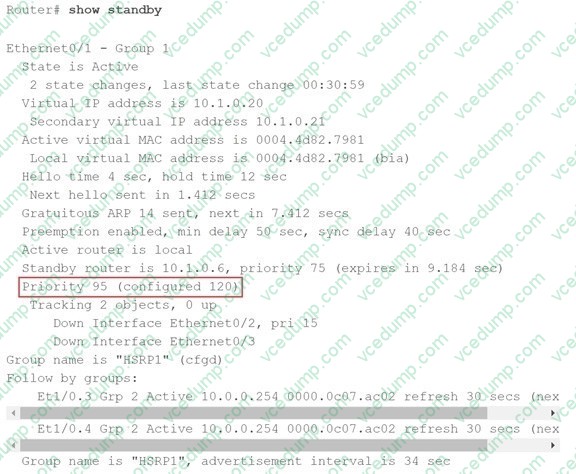

  The following is sample output from the show standby command:
