• Question 561:

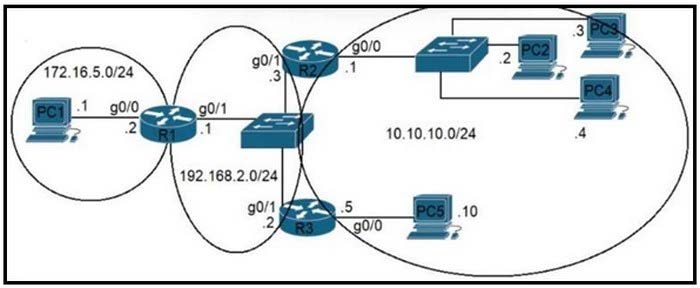

  Refer to the exhibit.



  Router R1 is in the process of being configured. Routers R2 and R3 are configured correctly for the new environment.

  Which two commands must be configured on R1 for PC1 to communicate with all PCs on the 10.10.10.0/24 network? (Choose two.)

  A. ip route 10.10.10.0 255.255.255.0 192.168.2.3 ip route 10.10.10.10 255.255.255.255 192.168.2.2
  B. ip route 10.10.10.0 255.255.255.0 192.168.2.2 ip route 10.10.2.2 255.255.255.255 10.10.10.10
  C. ip route 10.10.10.0 255.255.255.0 192.168.2.3 ip route 10.10.10.8 255.255.255.252 g0/0
  D. ip route 10.10.10.0 255.255.255.248 192.168.2.2 ip route 10.10.2.8 255.255.255.252 g0/1
  A. ip route 10.10.10.0 255.255.255.0 192.168.2.3 ip route 10.10.10.10 255.255.255.255 192.168.2.2

  ---




• Question 562:

  A Cisco IP phone receives untagged data traffic from an attached PC. Which action is taken by the phone?

  A. It drops the traffic.
  B. It allows the traffic to pass through unchanged.
  C. It tags the traffic with the native VLAN.
  D. It tags the traffic with the default VLAN.
  B. It allows the traffic to pass through unchanged.

  ---

  Untagged traffic from the device attached to the Cisco IP Phone passes through the phone unchanged, regardless of the trust state of the access port on the phone.

  https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst2960x/software/15-0_2_EX/vlan/configuration_guide/b_vlan_152ex_2960-x_cg/b_vlan_152ex_2960-x_cg_chapter_0110.pdf

• Question 563:

  Which syslog message logging level displays interface line protocol up/down events?

  A. informational
  B. alerts
  C. debugging
  D. notifications
  D. notifications

  ---

  "Interface up or down transitions and system restart messages, displayed at the notifications level: this message is only for information; access point functionality is not affected. " https://www.cisco.com/c/en/us/td/docs/routers/access/wireless/software/guide/SysMsgLogging.html

• Question 564:

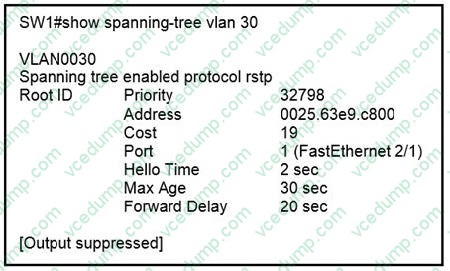

  Refer to the exhibit.



  What two conclusions should be made about this configuration? (Choose two.)

  A. The root port is FastEthernet 2/1
  B. The designated port is FastEthernet 2/1
  C. The spanning-tree mode is PVST+
  D. This is a root bridge
  E. The spanning-tree mode is Rapid PVST+
  A. The root port is FastEthernet 2/1
  E. The spanning-tree mode is Rapid PVST+

• Question 565:

  What is a characteristic of RSA?

  A. It uses preshared keys for encryption.
  B. It is a public-key cryptosystem.
  C. It is a private-key encryption algorithm.
  D. It requires both sides to have identical keys.
  B. It is a public-key cryptosystem.

  ---

  RSA is a public-key cryptosystem. This means that it uses a pair of keys, one of which is kept private and the other of which is made public. The public key can be distributed to anyone who wants to send encrypted messages to the owner of the private key, while the private key is kept secret and is used by the owner to decrypt messages.

• Question 566:

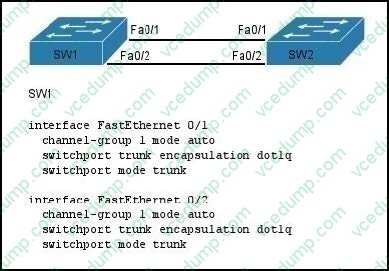

  Refer to the exhibit.



  A network administrator is configuring an EtherChannel between SW1 and SW2. The SW1 configuration is shown.

  What is the correct configuration for SW2?

  A. interface FastEthernet 0/1 channel-group 1 mode active switchport trunk encapsulation dot1q switchport mode trunk interface FastEthernet 0/2 channel-group 1 mode active switchport trunk encapsulation dot1q switchport mode trunk
  B. interface FastEthernet 0/1 channel-group 2 mode auto switchport trunk encapsulation dot1q switchport mode trunk interface FastEthernet 0/2 channel-group 2 mode auto switchport trunk encapsulation dot1q switchport mode trunk
  C. interface FastEthernet 0/1 channel-group 1 mode desirable switchport trunk encapsulation dot1q switchport mode trunk interface FastEthernet 0/2 channel-group 1 mode desirable switchport trunk encapsulation dot1q switchport mode trunk
  D. interface FastEthernet 0/1 channel-group 1 mode passive switchport trunk encapsulation dot1q switchport mode trunk interface FastEthernet 0/2 channel-group 1 mode passive switchport trunk encapsulation dot1q switchport mode trunk
  C. interface FastEthernet 0/1 channel-group 1 mode desirable switchport trunk encapsulation dot1q switchport mode trunk interface FastEthernet 0/2 channel-group 1 mode desirable switchport trunk encapsulation dot1q switchport mode trunk

  ---

  If the etherchannel was configured with mode "auto", it was using PagP, so, we need to configure the other switch with "desirable" mode.

  PagP modes: auto | Desirable LACP modes: active | pasive

• Question 567:

  Which Cisco IOS command will indicate that interface GigabitEthernet 0/0 is configured via DHCP?

  A. show ip interface GigabitEthernet 0/0 dhcp
  B. show interface GigabitEthernet 0/0
  C. show ip interface dhcp
  D. show ip interface GigabitEthernet 0/0
  E. show ip interface GigabitEthernet 0/0 brief
  D. show ip interface GigabitEthernet 0/0

  ---

  Router#sh ip int g0/0 GigabitEthernet0/0 is up, line protocol is up (connected) Internet address is 10.0.0.11/24 Broadcast address is 255.255.255.255 Address determined by DHCP MTU is 1500 bytes

• Question 568:

  Which virtual MAC address is used by VRRP group 1?

  A. 0050.0c05.ad81
  B. 0007.c061.bc01
  C. 0000.5E00.0101
  D. 0500.3976.6401
  C. 0000.5E00.0101

  ---

  VRRP = 0000.5E00.01XX (XX = GROUP ID)

  HSRP V1 = 0000.0C07.ACXX (XX = GROUP ID)

  HSRP V2 = 0000.0C9F.FXXX (XXX = GROUP ID)

  GLBP = 0007.B400.XXYY (XX = GROUP ID) (YY = AVF ID)

• Question 569:

  DRAG DROP

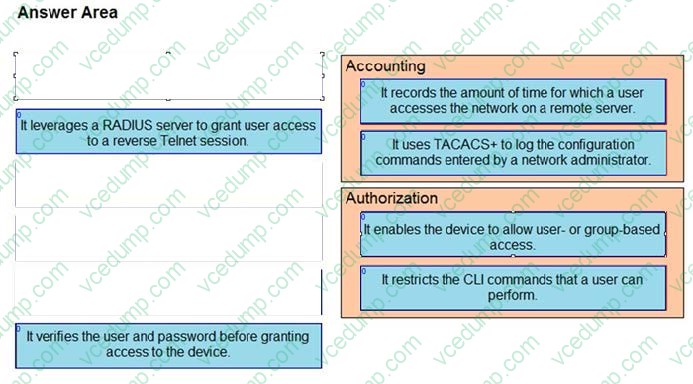

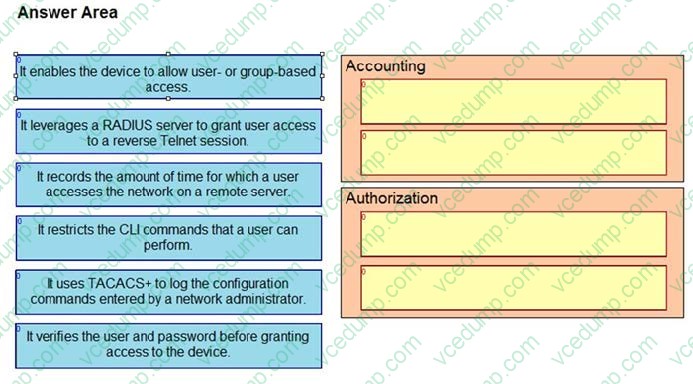

  Drag and drop the AAA features from the left onto the corresponding AAA security services on the right. Not all options are used.

  Select and Place:





• Question 570:

  CCNA Lab simulation

  Guidelines

  This is a lab item in which tasks will be performed on virtual devices.

  1. Refer to the Tasks tab to view the tasks for this lab item.

  2. Refer to the Topology tab to access the device console(s) and perform the tasks.

  3. Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.

  4. All necessary pre-configurations have been applied.

  5. Do not remove any existing configurations from the devices, only those necessary to make the appropriate changes required to fulfill the listed tasks.

  6. Do not change the enable password or hostname for any device.

  7. Save your configurations to NVRAM before moving to the next item.

  8. Click Next at the bottom of the screen to submit this lab and move to the next question.

  9. When Next is clicked, the lab closes and cannot be reopened.

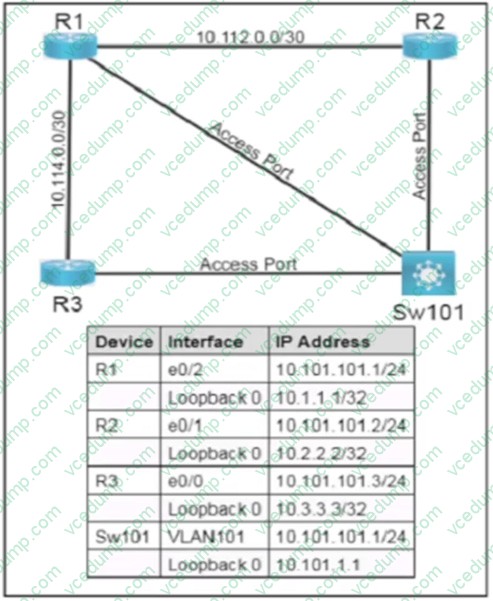

  Topology



  Tasks

  Task 1

  Configure OSPF Area 0 with Process ID 110 on all devices under their respective interfaces connected to VLAN101. To accomplish this, do not use the network command under the OSPF process.

  Task 2

  Configure R1 to always be the DR and Sw101 always to be the BDR.

  R2 and R3 should be configured not to participate in the DR/BDR election.

  A. Check the Explanation below
  B. Place Holder
  C. Place Holder
  D. Place Holder
  A. Check the Explanation below

  ---

  Explanation

  Task 1: Configure OSPF Area 0 on all devices under their respective interfaces connected to VLAN101 without using the network command.

  Configuration on R1:

  R1(config)# router ospf 110

  R1(config-router)# interface Ethernet0/2

  R1(config-if)# ip ospf 110 area 0

  Configuration on R2:

  R2(config)# router ospf 110

  R2(config-router)# interface Ethernet0/1

  R2(config-if)# ip ospf 110 area 0

  Configuration on R3:

  R3(config)# router ospf 110

  R3(config-router)# interface Ethernet0/0

  R3(config-if)# ip ospf 110 area 0

  Configuration on Sw101:

  Sw101(config)# router ospf 110

  Sw101(config-router)# interface Vlan101

  Sw101(config-if)# ip ospf 110 area 0

  Task 2: Configure DR/BDR Election Preferences

  R1 should always be the DR.

  Sw101 should always be the BDR.

  R2 and R3 should be configured not to participate in the election.

  Configuration for R1 (to be the DR):

  R1(config)# interface Ethernet0/2

  R1(config-if)# ip ospf priority 255

  Configuration for Sw101 (to be the BDR):

  Sw101(config)# interface Vlan101

  Sw101(config-if)# ip ospf priority 200

  Configuration for R2 and R3 (to not participate in the DR/BDR election):

  R2:

  R2(config)# interface Ethernet0/1

  R2(config-if)# ip ospf priority 0

  R3:

  R3(config)# interface Ethernet0/0

  R3(config-if)# ip ospf priority 0

  ip ospf 110 area 0: This command assigns OSPF area 0 to the specific interface, eliminating the need for the network command.

  ip ospf priority: Controls the election of the DR and BDR. A priority of 255 ensures the router will be elected as the DR, while a priority of 200 ensures that the switch will be the BDR. Setting the priority to 0 prevents the router from participating in the DR/BDR election.
