Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 481:

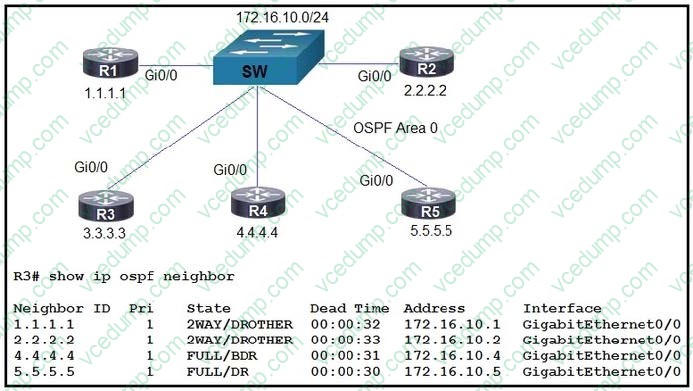

  Refer to the exhibit. R5 is the current DR on the network, and R4 is the BDR. Their interfaces are flapping, so a network engineer wants the OSPF network to elect a different DR and BDR. Which set of configurations must the engineer implement?



  A. R4(config)#interface gi0/0 R4(config-if)#ip ospf priority 20 R5(config)#interface gi0/0 R5(config-if)#ip ospf priority 10
  B. R5(config)#interface gi0/0 R5(config-if)#ip ospf priority 120 R4(config)#interface gi0/0 R4(config-if)#ip ospf priority 110
  C. R3(config)#interface gi0/0 R3(config-if)#ip ospf priority 255 R2(config)#interface gi0/0 R2(config-if)#ip ospf priority 240
  D. R2(config)#interface gi0/0 R2(config-if)#ip ospf priority 259 R3(config)#interface gi0/0 R3(config-if)#ip ospf priority 256
  C. R3(config)#interface gi0/0 R3(config-if)#ip ospf priority 255 R2(config)#interface gi0/0 R2(config-if)#ip ospf priority 240

  ---

  highest metrik is DR. max 255

  In multi-access networks the router with the highest priority value is chosen as the DR which acts as the central point of LSAs exchange. The priority command is assigned on an interface. Default priority for an OSPF interface is 1. The range is from 0 to 255. 0 means that the interface does not involve in the DR election.

• Question 482:

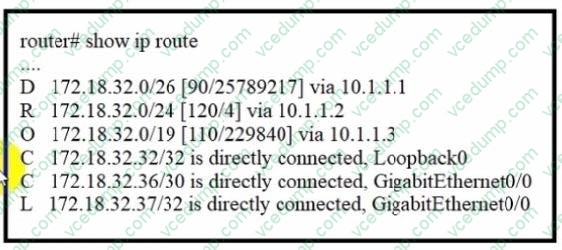

  Refer to the exhibit.



  A packet sourced from 172.18.33.2 is destined for 172.18.32.38. Where does the router forward the packet?

  A. GigabitEthernet0/0
  B. Loopback0
  C. 10.1.1.1
  D. 10.1.1.3
  A. GigabitEthernet0/0

  ---

• Question 483:

  Which command can you enter to allow Telnet to be supported in addition to SSH?

  A. transport input telnet ssh
  B. transport input telnet
  C. no transport input telnet
  D. privilege level 15
  A. transport input telnet ssh

• Question 484:

  CCNA Lab simulation

  Guidelines

  This is a lab item in which tasks will be performed on virtual devices

  1. Refer to the Tasks tab to view the tasks for this lab item.

  2. Refer to the Topology tab to access the device console(s) and perform the tasks

  3. Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window

  4. All necessary preconfigurations have been applied

  5. Do not change the enable password or hostname for any device

  6. Save your configurations to NVRAM before moving to the next item

  7. Click Next at the bottom of the screen to submit this lab and move to the next question

  8. When Next is clicked the lab closes and cannot be reopened

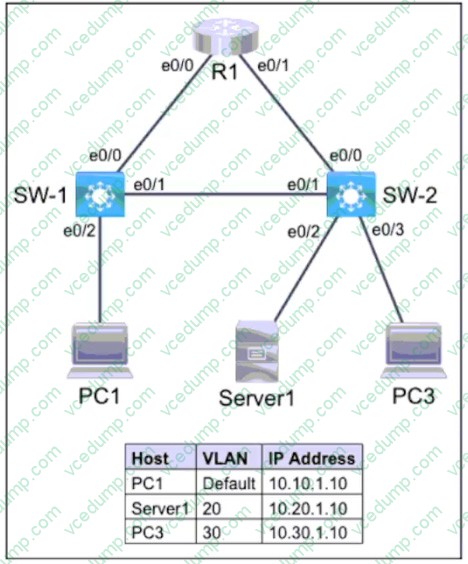

  Topology Tasks



  R1 has been pre-configured with all the necessary commands. All physical cabling is in place and verified. Connectivity from PC1, PC3, and the Server must be established to the switches, and each port must only allow one VLAN.

  1.Configure the VLAN connecting to the switch port for PC3 with the name "SALES"

  2.Configure the switch port connecting to Server1

  3.Configure the switch port connecting to PC3

  4.Ensure R1 discovers SW-1 via the Cisco proprietary neighbor discovery protocol and all other devices on the network are unable to discover SW-1

  A. Check the Explanation below
  B. Place Holder
  C. Place Holder
  D. Place Holder
  A. Check the Explanation below

  ---

  Explanation

  1.

  sw-2#conf t

  sw-2(config)#vlan 20

  sw-2(config-vlan)#aname SERVER1

  sw-2(config-vlan)#exit

  sw-2(config)#vlan 30

  sw-2(config-vlan)#name SALES

  sw-2(config-vlan)#exit

  2.

  sw-2(config)#interface ETH0/2

  sw-2(config-if)#sw-1port mode access

  sw-2(config-if)#sw-1port access vlan 20

  sw-2(config-if)#no sh

  sw-2(config-if)#exit

  3

  sw-2(config)#interface ETH0/3

  sw-2(config-if)#sw-1port mode access

  sw-2(config-if)#sw-1port access vlan 30

  sw-2(config-if)#no sh

  sw-2(config-if)#end

  sw-2#wr

  4.

  sw-1#configure t

  sw-1(config)#cdp run

  sw-1(config)#interface fastEthernet 0/1

  sw-1(config-if)#cdp enable

  sw-1(config-if)#no sh

  sw-1(config)#interface fastEthernet 0/2

  sw-1(config-if)#no cdp enable

  sw-1(config-if)#no sh

  sw-1(config-if)#end

  sw-1#wr

• Question 485:

  DRAG DROP

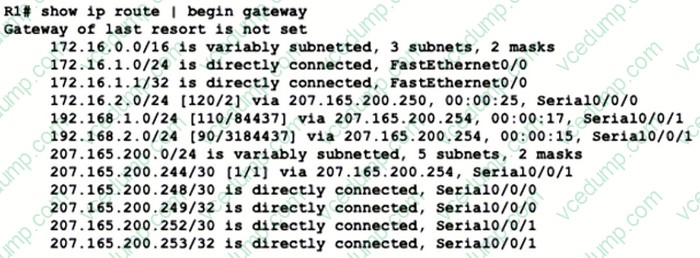

  Refer to the exhibit.

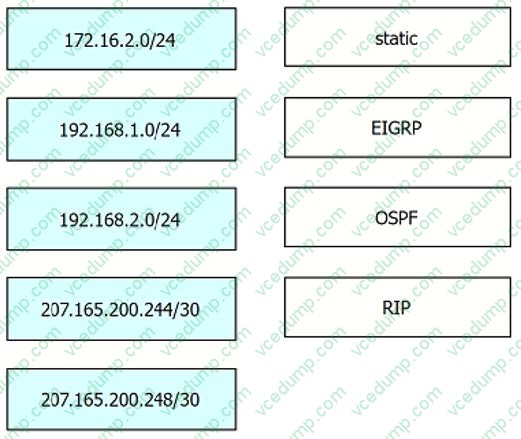

  Drag and drop the learned prefixes from the left onto the preferred route methods from which they were learned on the right. Not all prefixes are used.

  Select and Place:





• Question 486:

  The OSPF Hello protocol performs which of the following tasks? (Choose two.)

  A. It provides dynamic neighbor discovery.
  B. It detects unreachable neighbors in 90 second intervals.
  C. It maintains neighbor relationships.
  D. It negotiates correctness parameters between neighboring interfaces.
  E. It uses timers to elect the router with the fastest links as the designated router.
  F. It broadcasts hello packets throughout the internetwork to discover all routers that are running OSPF.
  A. It provides dynamic neighbor discovery.
  C. It maintains neighbor relationships.

• Question 487:

  An engineer must configure the IPv6 address 2001:0db8:0000:0000:0700:0003:400F:572B on the serial0/0 interface of the HQ router and wants to compress it for easier configuration. Which command must be issued on the router interface?

  A. ipv6 address 2001:db8::700:3:400F:572B
  B. ipv6 address 2001:db8:0::700:3:4F:572B
  C. ipv6 address 2001:Odb8::7:3:4F:572B
  D. ipv6 address 2001::db8:0000::700:3:400F:572B
  A. ipv6 address 2001:db8::700:3:400F:572B

• Question 488:

  Which statement about the nature of NAT overload is true?

  A. applies a one-to-many relationship to internal IP addresses
  B. applies a one-to-one relationship to internal IP addresses
  C. applies a many-to-many relationship to internal IP addresses
  D. can be configured only on Gigabit interface
  A. applies a one-to-many relationship to internal IP addresses

• Question 489:

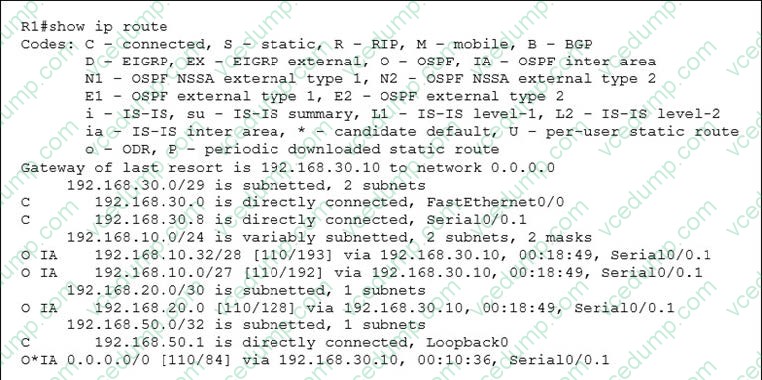

  Refer to the exhibit.



  What is the metric of the route to the 192.168.10.33/28 subnet?

  A. 84
  B. 110
  C. 128
  D. 192
  E. 193
  E. 193

• Question 490:

  An engineer is installing a new wireless printer with a static IP address on the Wi-Fi network. Which feature must be enabled and configured to prevent connection issues with the printer?

  A. passive client
  B. client exclusion
  C. DHCP address assignment
  D. static IP tunneling
  A. passive client

  ---
