Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 471:

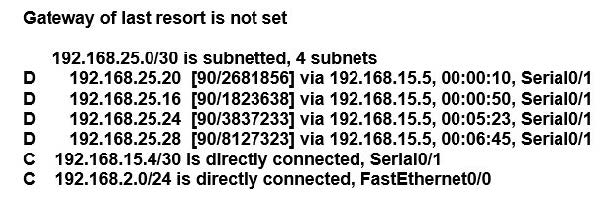

  Refer to the exhibit. Which address and mask combination represents a summary of the routes learned by EIGRP?



  A. 192.168.25.0 255.255.255.240
  B. 192.168.25.0 255.255.255.252
  C. 192.168.25.16 255.255.255.240
  D. 192.168.25.16 255.255.255.252
  E. 192.168.25.28 255.255.255.240
  F. 192.168.25.28 255.255.255.252
  C. 192.168.25.16 255.255.255.240

  ---

  The binary version of 20 is 10100.

  The binary version of 16 is 10000.

  The binary version of 24 is 11000.

  The binary version of 28 is 11100.

  The subnet mask is /28. The mask is 255.255.255.240.

  Note:

  From the output above, EIGRP learned 4 routes and we need to find out the summary of them:

  1. 192.168.25.16

  2. 192.168.25.20

  3. 192.168.25.24

  4. 192.168.25.28

  -> The increment should be 28 ?16 = 12 but 12 is not an exponentiation of 2; so we must choose 16 (24). Therefore the subnet mask is /28 (=1111 1111.1111 1111.1111 1111.11110000) = 255.255.255.240.

  So the best answer should be 192.168.25.16 255.255.255.240.

• Question 472:

  With REST API, which standard HTTP header tells a server which media type is expected by the client?

  A. Accept-Encoding: gzip. deflate
  B. Accept-Patch: text/example; charset=utf-8
  C. Content-Type: application/json; charset=utf-8
  D. Accept: application/json
  D. Accept: application/json

  ---

  Accept header is a way for a client to specify the media type of the response content it is expecting and Content-type is a way to specify the media type of request being sent from the client to the server.

• Question 473:

  A network analyst is tasked with configuring the date and time on a router using EXEC mode.The date must be set to January 1,2020 and the time must be set to 12:00 am.what command should be used?

  A. clock timezone
  B. clock summer-time date
  C. clock set
  D. clock summer-time recurring
  C. clock set

  ---

  clock set hh:mm:ss day month year

• Question 474:

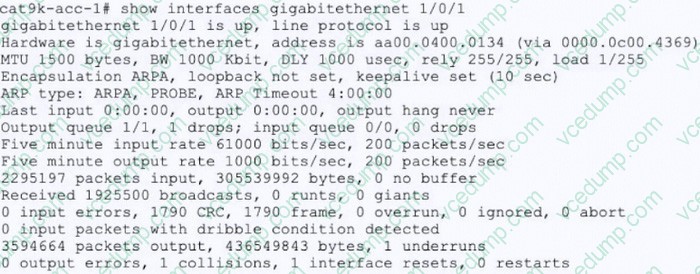

  Refer to the exhibit.



  The switch cat9k-acc-1 connects users to the campus LAN. Printing services are inaccessible through the network. Which interface issue is causing the connectivity problems?

  A. A bad checksum is causing Ethernet frames to drop.
  B. Excessive collisions are causing dropped frames.
  C. A large number of broadcast packets are resulting in a port reset.
  D. The interface output queue cannot process the Ethernet frames.
  C. A large number of broadcast packets are resulting in a port reset.

• Question 475:

  Refer to the exhibit.



  Which type of JSON data is shown?

  A. boolean
  B. array
  C. key
  D. object
  D. object

  ---

  JSON object literals are surrounded by curly braces {}.

  JSON object literals contains key/value pairs.

  Keys and values are separated by a colon.

  Keys must be strings, and values must be a valid JSON data type:

  string number object array boolean null Each key/value pair is separated by a comma.

• Question 476:

  DRAG DROP Drag and drop the lightweight access point operation modes from the left onto the descriptions on the right

  Select and Place:





• Question 477:

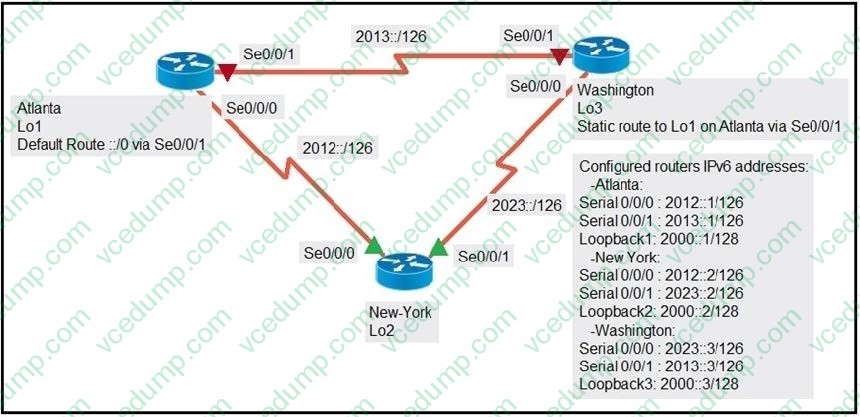

  Refer to the exhibit.



  An engineer is configuring the New Your router to reach the Lo1 interface of the Atlanta router using interface Se0/0/0 as the primary path. Which two commands must be configured on the New York router so that it can reach the Lo1 interface of the Atlanta router via Washington when the link between New York and Atlanta goes down? (Choose two.)

  A. Ipv6 route 2000::1/128 2012::1
  B. Ipv6 route 2000::1/128 2012::1 5
  C. Ipv6 route 2000::1/128 2012::2
  D. Ipv6 route 2000::1/128 2023::2 5
  E. Ipv6 route 2000::1/128 2023::3 5
  A. Ipv6 route 2000::1/128 2012::1
  E. Ipv6 route 2000::1/128 2023::3 5

  ---

  Floating static routes are static routes that have an administrative distance greater than the administrative distance (AD) of another static route or dynamic routes. By default a static route has an AD of 1 then floating static route must have the AD greater than 1. Floating static route has a manually configured administrative distance greater than that of the primary route and therefore would not be in the routing table until the primary route fails.

• Question 478:

  What are two benefits of private IPv4 addressing? (Choose two.)

  A. propagates routing information to WAN links
  B. provides unlimited address ranges
  C. reuses addresses at multiple sites
  D. conserves globally unique address space
  E. provides external internet network connectivity
  C. reuses addresses at multiple sites
  D. conserves globally unique address space

• Question 479:

  Which protocol requires authentication to transfer a backup configuration file from a router to a remote server?

  A. DTP
  B. FTP
  C. SMTP
  D. TFTP
  B. FTP

  ---

  Both FTP and TFTP are protocols used by Cisco routers to transfer files, but only FTP requires authentication, TFTP does not.

• Question 480:

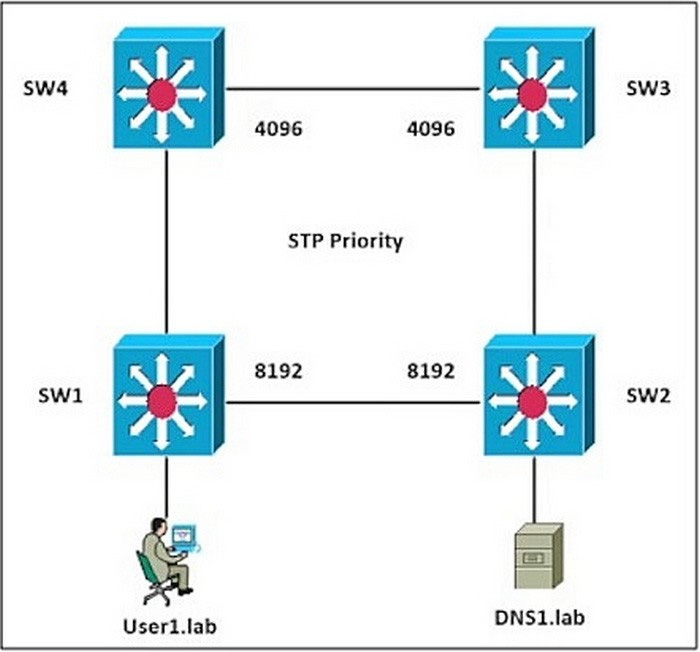

  Refer to the exhibit.



  Which switch in this configuration will be elected as the root bridge?

  SW1: 0C:E4:82:33:62:23

  SW2: 0C:0E:16:11:05:97

  SW3: 0C:E0:16:1A:3C:9D

  SW4: 0C:00:18:A1:B3:19

  A. SW1
  B. SW2
  C. SW3
  D. SW4
  B. SW2

  ---
