Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 1501:

  Which interface on the WLC is used exclusively as a DHCP relay?

  A. distribution
  B. service
  C. AP-manager
  D. virtual
  B. service

• Question 1502:

  Which network service translates domain names into IP addresses?

  A. DHCP
  B. SNMP
  C. DNS
  D. FTP
  C. DNS

  ---

  The Domain Name System (DNS) translates human-readable domain names into IP addresses, enabling users and applications to locate network resources efficiently.

• Question 1503:

  An organization has a Cisco FTD that uses bridge groups to pass traffic from the inside interfaces to the outside interfaces. They are unable to gather information about neighboring Cisco devices or use multicast in their environment. What must be done to resolve this issue?

  A. Create a firewall rule to allow CDP traffic
  B. Create a bridge group with the firewall interfaces
  C. Change the firewall mode to transparent
  D. Change the firewall mode to routed
  D. Change the firewall mode to routed

  ---

  https://www.cisco.com/c/en/us/td/docs/security/firepower/623/configuration/guide/fpmc-config-guide-v623/transparent_or_routed_firewall_mode_for_firepower_threat_defense.html

• Question 1504:

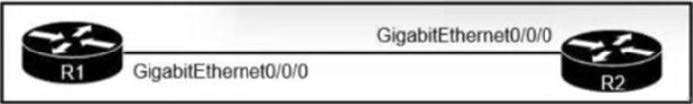

  Refer to the exhibit.



  A network engineer must configure the link with these requirements:

  1. Consume as few IP addresses as possible.

  2. Leave at least two additional useable IP addresses for future growth.

  Which set of configurations must be applied?

  A. R1(config-if)#ip address 10.10.10.1 255.255.255.252 R2(config-if)#ip address 10.10.10.2 255.255.255.252
  B. R1(config-if)#ip address 10.10.10.1 255.255.255.240 R2(config-if)#ip address 10.10.10.12 255.255.255.240
  C. R1(config-if)#ip address 10.10.10.1 255.255.255.248 R2(config-if)#ip address 10.10.10.4 255.255.255.248
  D. R1(config-if)#ip address 10.10.10.1 255.255.255.0 R2(config-if)#ip address 10.10.10.5 255.255.255.0
  C. R1(config-if)#ip address 10.10.10.1 255.255.255.248 R2(config-if)#ip address 10.10.10.4 255.255.255.248

  ---

  As per the exhibit, there's a requirement to configure the link and also keep 2 spare IP addresses for future use. So, calculate like this:

  2 IPs for Network ID and broadcast IP for whatever subnet we use.

  2 IPs for connected interfaces on each router i.e. 1 for R1 gi0/0/0 and 1 for R2 gi0/0/0.

  2 IPs reserved for future use.

  In this way, we need atleast 6 IPs here and the subnet that can provide a closest value in terms of total required IPs is /29 (255.255.255.248). The /29 subnet provides a total of 8 IPs addresses per subnet and out of that 6 are host usable IPs. So, for given subnet 10.10.10.X/29 we can have IP range from 10.10.10.0 - 10.10.10.7. Where 10.10.10.0 will be network ID and 10.10.10.7 will be broadcast IP. Rest 10.10.10.1 - 10.10.10.6 can be used to assign to any hosts of links.

• Question 1505:

  For what two purposes does the Ethernet protocol use physical addresses?

  A. to uniquely identify devices at Layer 2
  B. to allow communication with devices on a different network
  C. to differentiate a Layer 2 frame from a Layer 3 packet
  D. to establish a priority system to determine which device gets to transmit first
  E. to allow communication between different devices on the same network
  F. to allow detection of a remote device when its physical address is unknown
  A. to uniquely identify devices at Layer 2
  E. to allow communication between different devices on the same network

  ---

  Transmission Control Protocol/Internet Protocol Packet Analysis

  In a LAN, each node is assigned a physical address, also known as a MAC/Ethernet address. This address is unique to each of the nodes on the LAN and is 6 bytes (48 bits) long, which is burned on the Ethernet card (also known as the network interface card). Ethernet is a byte-count protocol. A node on a LAN broadcasts a frame that is heard by all other nodes; only the node whose Ethernet address matches with the DA in the Ethernet frame copies the frame into its buffer.

• Question 1506:

  What must be considered for a locally switched FlexConnect AP if the VLANs that are used by the AP and client access are different?

  A. The APs must be connected to the switch with multiple links in LAG mode
  B. The switch port mode must be set to trunk
  C. The native VLAN must match the management VLAN of the AP
  D. IEEE 802.10 trunking must be disabled on the switch port.
  B. The switch port mode must be set to trunk

• Question 1507:

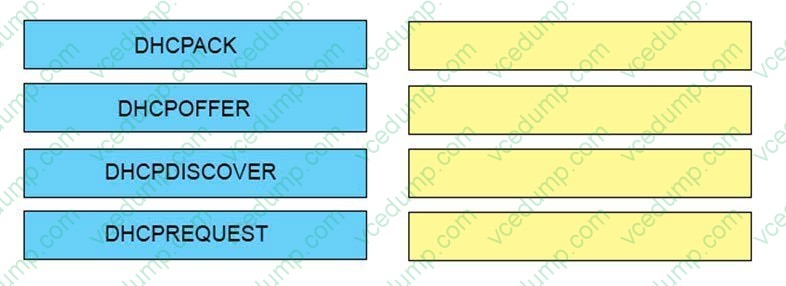

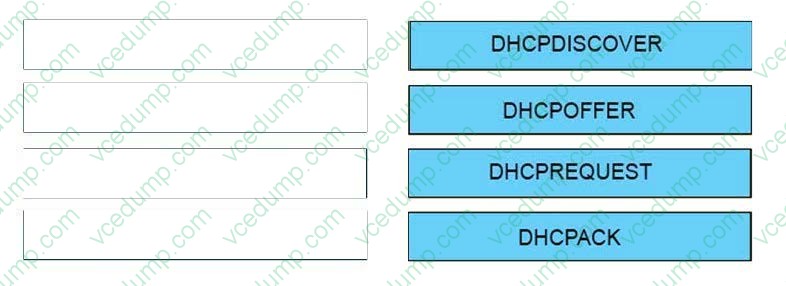

  DRAG DROP

  Order the DHCP message types as they would occur between a DHCP client and a DHCP server.

  Select and Place:





• Question 1508:

  Which technology is used to improve web traffic performance by proxy caching?

  A. WSA
  B. Firepower
  C. ASA
  D. FireSIGHT
  A. WSA

  ---

  https://www.cisco.com/c/en/us/products/collateral/security/web-security-appliance/guide-c07-742373.html

  4.1 Web proxy Caching should be enabled in the web proxy configuration in order to save bandwidth and boost performance. This is becoming less important as the percentage of HTTPS traffic increases because the WSA does not by default cache HTTPS transactions. If the proxy is deployed to serve only explicit clients, forward mode should be specified in order to reject any traffic that isn't specifically destined for the proxy service. This reduces attack surface in the appliance and follows a good security principle: If you don't need it, turn it off.

• Question 1509:

  What are two roles of Domain Name Services (DNS)? (Choose Two)

  A. builds a flat structure of DNS names for more efficient IP operations
  B. encrypts network Traffic as it travels across a WAN by default
  C. improves security by protecting IP addresses under Fully Qualified Domain Names (FQDNs)
  D. enables applications to identify resources by name instead of IP address
  E. allows a single host name to be shared across more than one IP address
  D. enables applications to identify resources by name instead of IP address
  E. allows a single host name to be shared across more than one IP address

• Question 1510:

  Which two primary drivers support the need for network automation? (Choose two.)

  A. Eliminating training needs
  B. Increasing reliance on self-diagnostic and self-healing
  C. Policy-derived provisioning of resources
  D. Providing a ship entry point for resource provisioning
  E. Reducing hardware footprint
  C. Policy-derived provisioning of resources
  D. Providing a ship entry point for resource provisioning
