Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 1451:

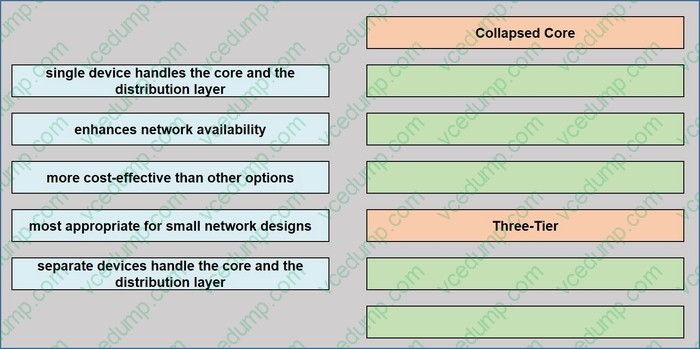

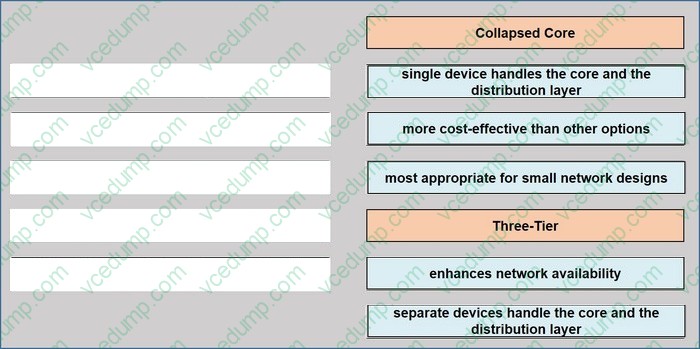

  DRAG DROP Drag the characteristics of network architectures from the left onto the type of architecture on the right

  Select and Place:





• Question 1452:

  Which two VPN technologies are recommended by Cisco for multiple branch offices and large-scale deployments? (Choose two.)

  A. GETVPN
  B. DMVPN
  C. site-to-site VPN
  D. clientless VPN
  E. IPsec remote access
  A. GETVPN
  B. DMVPN

  ---

  Option A. GETVPN (Group Encrypted Transport VPN): GETVPN is a Cisco VPN technology that provides secure and scalable VPN connectivity for multiple branch offices and large-scale deployments. It uses a group-based encryption mechanism to encrypt traffic between sites, allowing for efficient and scalable encryption across the network. GETVPN is particularly suitable for deployments with high bandwidth requirements and complex routing environments.

  Option B. DMVPN (Dynamic Multipoint VPN): DMVPN is another Cisco VPN technology designed for scalable and dynamic VPN deployments. It allows for the creation of secure overlay networks over public or private WAN connections. DMVPN provides efficient and scalable connectivity between multiple branch offices by using a combination of IPsec, GRE (Generic Routing Encapsulation), and NHRP (Next Hop Resolution Protocol). It simplifies the configuration and management of VPN connections, making it well-suited for large-scale deployments.

• Question 1453:

  Which command implies the use of SNMPv3?

  A. snmp-server user
  B. snmp-server host
  C. snmp-server enable traps
  D. snmp-server community
  A. snmp-server user

  ---

  "Device(config)# snmp-server user user1 group1 v3 auth md5 password123 priv des passwd123654"

  (Added a new user named "user1" to the SNMPv3 group "group1". User is configured for authentication (auth) using MD5 hashing algorithm with password "password123". In addition, user also has privacy (priv) enabled using the DES encryption algorithm with the privacy password "passwd123654".)

  There are several authentication and privacy algorithms available for SNMPv3, such as MD5, SHA, DES, AES, and others.

• Question 1454:

  Which two QoS tools are used to guarantee minimum bandwidth to certain traffic ?(choose two)

  A. FIFO
  B. LLC
  C. CBWFQ
  D. RSVP
  E. WFQ
  C. CBWFQ
  E. WFQ

• Question 1455:

  Which CRUD operation corresponds to the HTTP GET method?

  A. read
  B. update
  C. create
  D. delete
  A. read

  ---

  GET: This method retrieves the information identified by the request URI. In the context of the RESTful web services, this method is used to retrieve resources. This is the method used for read operations (the R in CRUD).

  https://hub.packtpub.com/crud-operations-rest/

• Question 1456:

  In a cloud-computing environment what is rapid elasticity?

  A. control and monitoring of resource consumption by the tenant
  B. automatic adjustment of capacity based on need
  C. pooling resources in a multitenant model based on need
  D. self-service of computing resources by the tenant
  B. automatic adjustment of capacity based on need

  ---

  Rapid elasticity in cloud computing refers to the cloud's capability to scale quickly to meet demand. Consumers benefit from rapid elasticity because they can expand or reduce their resources how and when they would like.

• Question 1457:

  Which action protects a network from VLAN hopping attacks?

  A. Implement port security on internet-facing VLANs.
  B. Change the native VLAN to an unused VLAN ID.
  C. Enable dynamic ARP inspection.
  D. Configure an ACL to prevent traffic from changing VLANs.
  B. Change the native VLAN to an unused VLAN ID.

• Question 1458:

  Router R1 must send all traffic without a matching routing-table entry to 192.168.1.1. Which configuration accomplishes this task?

  A. R1#Config t R1(config)#ip routing R1(config)#ip route default-route 192.168.1.1
  B. R1#Config t R1(config)#ip routing R1(config)#ip route 192.168.1.1 0.0.0.0 0.0.0.0
  C. R1#Config t R1(config)#ip routing R1(config)#ip route 0.0.0.0 0.0.0.0 192.168.1.1
  D. R1#Config t R1(config)#ip routing R1(config)#ip default-gateway 192.168.1.1
  C. R1#Config t R1(config)#ip routing R1(config)#ip route 0.0.0.0 0.0.0.0 192.168.1.1

  ---

  In order to send all traffic without a matching routing-table entry to 192.168.1.1, we need to configure a default route on R1 that forwards all packets with no matching destination to 192.168.1.1.

  Option A is incorrect because it uses the command "default-route" which is not a valid command in IOS.

  Option B is incorrect because it specifies the destination as 192.168.1.1, which means that only packets with a destination of 192.168.1.1 will be forwarded to that address.

  Option D is incorrect because the "ip default-gateway" command is used to set the default gateway for a device that is not performing routing, such as a host or switch. It is not used on a router that is performing routing.

  Therefore, the correct answer is Option C, which uses the correct syntax for configuring a default route on a router. The command "ip route 0.0.0.0 0.0.0.0 192.168.1.1" specifies that all packets with no matching destination should be forwarded to the next-hop address of 192.168.1.1.

• Question 1459:

  Which IPv6 address type communication between subnets and cannot route on the Internet?

  A. link-local
  B. unique local
  C. multicast
  D. global unicast
  B. unique local

  ---

  A IPv6 Unique Local Address is an IPv6 address in the block FC00::/7. It is the approximate IPv6 counterpart of the IPv4 private address. It is not routable on the global Internet.

  Note: In the past, Site-local addresses (FEC0::/10) are equivalent to private IP addresses in IPv4 but now they are deprecated.

  Link-local addresses only used for communications within the local subnet. It is usually created dynamically using a link-local prefix of FE80::/10 and a 64-bit interface identifier (based on 48-bit MAC address).

• Question 1460:

  DRAG DROP

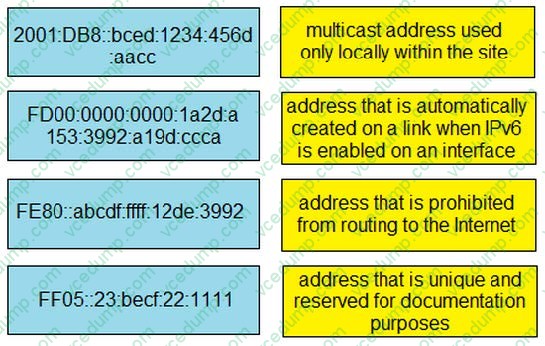

  Drag and drop the IPv6 address types from the left onto their description on the right.

  Select and Place:
