• Question 251:

  Which two descriptions of a FabricPath network are true? (Choose two.)

  A. A leaf node connections to servers.
  B. Leaf nodes can be only Layer 3 devices.
  C. A spine node connects to servers.
  D. There is a spanning-tree protocol running between leaf and spine switches.
  E. A spine node connects to other switches in the fabric.
  A. A leaf node connections to servers.
  E. A spine node connects to other switches in the fabric.

• Question 252:

  Which command set will create an access control list on a Cisco Nexus switch to permit only unencrypted Web traffic from any source to destination host 10.10.1.110?

  A. N5K-A(config)#access-list 101 permit tcp any host 10.10.1.110 eq 80
  B. N5K-A(config)# Ip access-list 101 N5K-A(config-acl)# permit tcp any host 10.10.1.110 eq 80 N5K-A(config-acl)# permit Ip any any
  C. N5K-A(config)#Ip access-list 101 N5K-A(config-acl)# permit tcp any host 10.10.110 eq 80
  D. N5K-A(config)#Ip access-list 101 permit tcp any host 10.10.1.100 eq 80 N5K-A(config)#Ip access-list 101 deny ip any any
  C. N5K-A(config)#Ip access-list 101 N5K-A(config-acl)# permit tcp any host 10.10.110 eq 80

• Question 253:

  What is the maximum working distance of a 1000BASE-ZE SFP transceiver when ordinary single mode fiber?

  A. up to 70 kilometers
  B. up to 40 kilometers
  C. up to 550 meters D. up to 10 kilometers
  A. up to 70 kilometers

  ---

  The Cisco GLC-ZX-SM operates on ordinary single mode fiber optic link spans of up to 70 km in length. (http://www.cisco.com/c/en/us/products/interfaces- modules/1000base-zx-sfp/index.html)

• Question 254:

  Which two VTP modes allow the creation of local VLANs? (Choose two.)

  A. transparent
  B. native
  C. server
  D. client
  E. on
  A. transparent
  C. server

• Question 255:

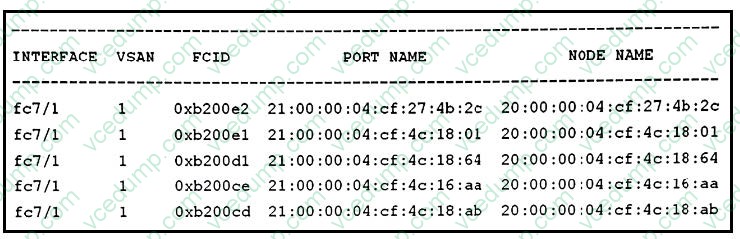

  View the Exhibit.



  Refer to the exhibit. What two conclusions can be made based upon the output? (Choose two.)

  A. regular format WWNs are being used
  B. the command show flogi database was run
  C. the command show fcns database vsan 1 was run
  D. registered name format WWNs are being used
  E. extended format WWNs are being used
  B. the command show flogi database was run
  E. extended format WWNs are being used

• Question 256:

  When the auto-MDIX is disabled, which two network configuration require a crossover cable?

  A. hub-to-switch
  B. switch-to-workstation
  C. router-to-workstation
  D. hub-to-router
  E. Switch-to-router
  E. Switch-to-router

• Question 257:

  Which statement is true regarding Subzones?

  A. Endpoints are assigned to a particular Subzone by their alias or IP subnet
  B. Subzones require the use of endpoint authentication.
  C. Endpoints require the use of other endpoints tor authentication
  D. Subzones are used for routing calls to peers in other parts of the network
  A. Endpoints are assigned to a particular Subzone by their alias or IP subnet

• Question 258:

  What is the minimum number of fabric modules that should be installed in the Cisco Ne*js 7000 chassis for N 1 redundancy using Ml-Series line card?

  A. 3
  B. 4
  C. 5
  D. 6
  A. 3

• Question 259:

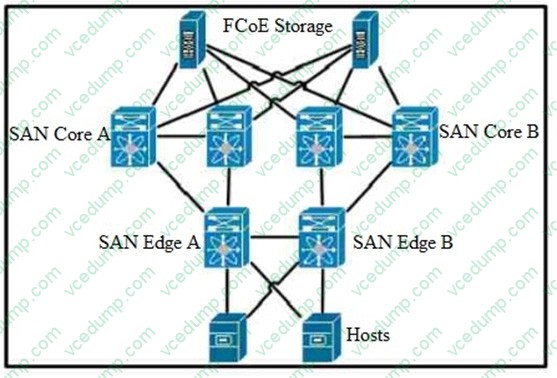

  Refer to the exhibit.



  Which description of this core-edge topology is true?

  A. The single-hop design provides minimal latency because the storage devices and the hosts connect to the same switch.
  B. The single-hop design from the host to the target provides a highly scalable solution.
  C. A single core switch connects the storage devices and the hosts.
  D. The hosts connect to an edge device, which is connect to the core.
  D. The hosts connect to an edge device, which is connect to the core.

  ---

  https://www.cisco.com/c/en/us/products/collateral/storage-networking/mds-9700-series-multilayer-directors/guide-c07-732733.html (Section 5.1)

• Question 260:

  Which is a protocol used in the H.323 standard?

  A. SDP
  B. SIP
  C. Q.931
  D. 802.1
  C. Q.931
