Cisco 200-125 Online Practice Questions and Exam Preparation

Cisco 200-125 Online Questions & Answers

• Question 671:

  which command can you enter to troubleshoot the failure of address assignment ?

  A. sh ip dhcp database
  B. sh ip dhcp pool
  C. sh ip dhcp import
  D. sh ip dhcp server statistics
  B. sh ip dhcp pool

• Question 672:

  Which statement about VLAN operation on Cisco Catalyst switches is true?

  A. When a packet is received from an 802.1Q trunk, the VLAN ID can be determined from the source MAC address and the MAC address table.
  B. Unknown unicast frames are retransmitted only to the ports that belong to the same VLAN.
  C. Broadcast and multicast frames are retransmitted to ports that are configured on different VLAN.
  D. Ports between switches should be configured in access mode so that VLANs can span across the ports.
  B. Unknown unicast frames are retransmitted only to the ports that belong to the same VLAN.

  ---

  Each VLAN resides in its own broadcast domain, so incoming frames with unknown destinations are only transmitted to ports that reside in the same VLAN as the incoming frame.

• Question 673:

  Which feature is configured by setting a variance that is at least two times the metric?

  A. equal cost load balancing
  B. unequal cost load balancing
  C. Path selection
  D. path count
  B. unequal cost load balancing

• Question 674:

  which two options are requirements for configuring ripv2 for ipv4 ?(choose two)

  A. connecting RIP to a WAN Interface
  B. enabling auto route summarization
  C. allowing unicast updates for RIP
  D. enabling RIP on the router
  E. enabling RIP authentication
  C. allowing unicast updates for RIP
  D. enabling RIP on the router

• Question 675:

  What is the subnet address of 192.168.1.42 255.255.255.248?

  A. 192.168.1.16/28
  B. 192.168.1.32/27
  C. 192.168.1.40/29
  D. 192.168.1.8/29
  E. 192.168.1.48/29
  C. 192.168.1.40/29

• Question 676:

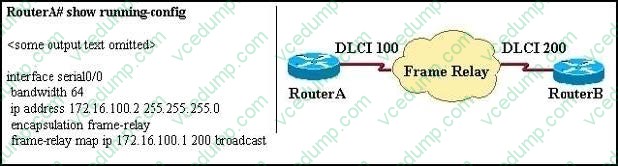

  RouterA is unable to reach RouterB. Both routers are running IOS version 12.0.



  After reviewing the command output and graphic, what is the most likely cause of the problem?

  A. incorrect bandwidth configuration
  B. incorrect LMI configuration
  C. incorrect map statement
  D. incorrect IP address
  C. incorrect map statement

  ---

  First we have to say this is an unclear question and it is wrong. The "frame-relay map ip" statement is correct thus none of the four answers above is correct. But we guess there is a typo in the output. Maybe the "ip address 172.16.100.2

  255.255.0.0 command should be "ip address 172.16.100.1 255.255.0.0. That makes answer C correct.

• Question 677:

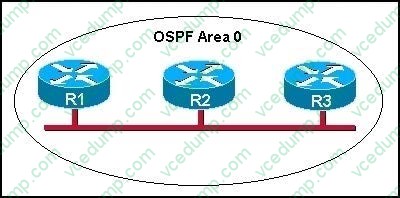

  Refer to the graphic.



  R1 is unable to establish an OSPF neighbor relationship with R3. What are possible reasons for this problem? (Choose two.)

  A. All of the routers need to be configured for backbone Area 1.
  B. R1 and R2 are the DR and BDR, so OSPF will not establish neighbor adjacency with R3.
  C. A static route has been configured from R1 to R3 and prevents the neighbor adjacency from being established.
  D. The hello and dead interval timers are not set to the same values on R1 and R3.
  E. EIGRP is also configured on these routers with a lower administrative distance.
  F. R1 and R3 are configured in different areas.
  D. The hello and dead interval timers are not set to the same values on R1 and R3.
  F. R1 and R3 are configured in different areas.

  ---

  This question is to examine the conditions for OSPF to create neighborhood. So as to make the two routers become neighbors, each router must be matched with the following items:

  1.

  The area ID and its types;

  2.

  Hello and failure time interval timer;

  3.

  OSPF Password (Optional).

• Question 678:

  What is the maximum number of switches that StackWise can support in one stack?

  A. 6
  B. 8
  C. 9
  D. 10
  C. 9

• Question 679:

  Which statement about unicast frame forwarding on a switch is true?

  A. The TCAM table stores destination MAC addresses
  B. If the destination MAC address is unknown, the frame is flooded to every port that is configured in the same VLAN except on the port that it was received on.
  C. The CAM table is used to determine whether traffic is permitted or denied on a switch
  D. The source address is used to determine the switch port to which a frame is forwarded
  B. If the destination MAC address is unknown, the frame is flooded to every port that is configured in the same VLAN except on the port that it was received on.

• Question 680:

  Which statement about LLDP is true?

  A. It is a Cisco proprietary protocol.
  B. It is configured in global configuration mode.
  C. The LLDP update frequency is a fixed value.
  D. It runs over the transport layer.
  B. It is configured in global configuration mode.
