Cisco 200-125 Online Practice Questions and Exam Preparation

Cisco 200-125 Online Questions & Answers

• Question 661:

  Which command sequence can you enter to create VLAN 20 and assign it to an interface on a switch?

  A. Switch(config)#vlan 20 Switch(config)#Interface gig x/y Switch(config-if)#switchport access vlan 20
  B. Switch(config)#Interface gig x/y Switch(config-if)#vlan 20 Switch(config-vlan)#switchport access vlan 20
  C. Switch(config)#vlan 20 Switch(config)#Interface vlan 20 Switch(config-if)#switchport trunk native vlan 20
  D. Switch(config)#vlan 20 Switch(config)#Interface vlan 20 Switch(config-if)#switchport access vlan 20
  E. Switch(config)#vlan 20 Switch(config)#Interface vlan 20 Switch(config-if)#switchport trunk allowed vlan 20
  A. Switch(config)#vlan 20 Switch(config)#Interface gig x/y Switch(config-if)#switchport access vlan 20

• Question 662:

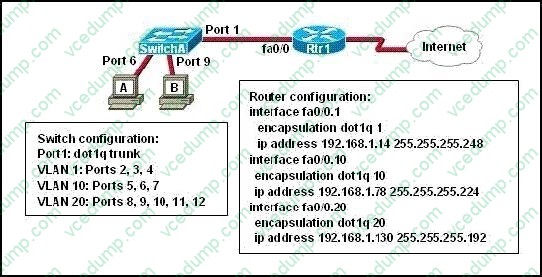

  Refer to the exhibit.



  A network administrator is adding two new hosts to SwitchA. Which three values could be used for the configuration of these hosts? (Choose three.)

  A. host A IP address: 192.168.1.79
  B. host A IP address: 192.168.1.64
  C. host A default gateway: 192.168.1.78
  D. host B IP address: 192.168.1.128
  E. host B default gateway: 192.168.1.129
  F. host B IP address: 192.168.1.190
  A. host A IP address: 192.168.1.79
  C. host A default gateway: 192.168.1.78
  F. host B IP address: 192.168.1.190

  ---

  It's a "router-on-a-stick" configuration. Which means each host in the VLAN must corresponds with the VLAN configured on the sub-interfaces. VLAN 10 is configured on fa0/0.10 and VLAN 20 on fa0/0.20. So each hosts in VLAN 10 must use fa0/0.10 IP address as their default gateway, each hosts must also be in the same subnet as fa0/0.10 IP ?same with hosts in VLAN 20. So find out the usable IP addresses on each sub-interfaces ?for 192.168.1.78 /27:

  192.168.1.65 ?.94 and for 192.168.1.130 /26: 192.168.1.128 ?.190. Host A (using port 6 ?VLAN 10) must use IP 192.168.1.79, default gateway 192.168.1.78. Host B (using port 9 ?VLAN 20) must use IP 192.168.1.190, default gateway

  192.168.1.130.

• Question 663:

  Which type of topology is required by DMVPN?

  A. ring
  B. full mesh
  C. hub-and-spoke
  D. partial mesh
  C. hub-and-spoke

• Question 664:

  Which API uses HTTP messages to transfer data to applications residing on different hosts?

  A. OpFlex
  B. OpenStack
  C. REST
  D. OpenFlow
  C. REST

• Question 665:

  Which two statements are true regarding ICMP packets? (Choose two.)

  A. They are encapsulated within IP datagrams.
  B. They guarantee datagram delivery.
  C. TRACERT uses ICMP packets.
  D. They acknowledge receipt of TCP segments.
  E. They are encapsulated within UDP datagrams.
  A. They are encapsulated within IP datagrams.
  C. TRACERT uses ICMP packets.

• Question 666:

  Router R1 has a static route that is configured to destination network.A directly connected interface is configured with an IP address in the same destination network.Which statement about R1 is true?

  A. R1 refuses to advertise the dynamic route to other neighbors
  B. R1 prefers the static route
  C. R1 prefers the directly connected interface
  D. R1 sends a withdrawal notification to the neighboring router
  C. R1 prefers the directly connected interface

• Question 667:

  While troubleshooting a GRE tunnel interface issue, show interface command output displays tunnel status up, but line protocol is down. Which reason for this problem is most likely?

  A. The route to the tunnel destination address is through the tunnel itself
  B. The next hop server is misconfigured
  C. The interface has been administratively shut down
  D. The tunnel was just reset
  A. The route to the tunnel destination address is through the tunnel itself

• Question 668:

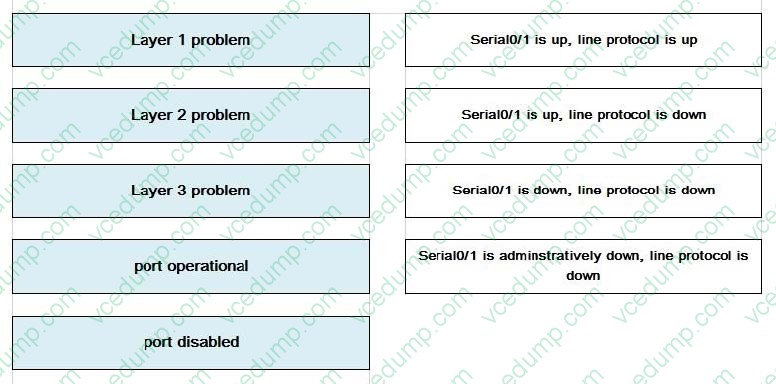

  Drag and Drop.

  Drag each category on the left to its corresponding router output line on the right.

  Each router output line is in the result of a show ip interface command.

  Not all categories are used.

  Select and Place:





• Question 669:

  Which two values must you specify to define a static route? (Choose two)

  A. next-hop address or exit interface
  B. incoming interface
  C. source network and mask
  D. administrative distance of the route
  E. destination network and mask
  A. next-hop address or exit interface
  D. administrative distance of the route

• Question 670:

  Which three values can be included in the routing table of a router? (Choose three)

  A. classful and classless destination addresses
  B. source interfaces
  C. Routgoing interfaces
  D. source IP addresses
  E. next hop IP address
  F. destination IP addresses
  C. Routgoing interfaces
  D. source IP addresses
  F. destination IP addresses
