Cisco 200-125 Online Practice Questions and Exam Preparation

Cisco 200-125 Online Questions & Answers

• Question 651:

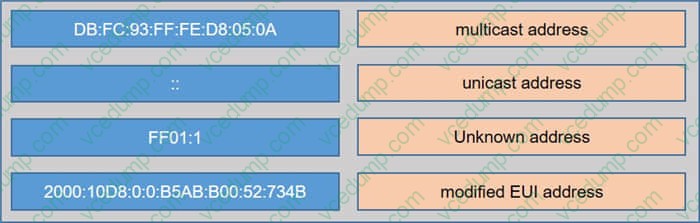

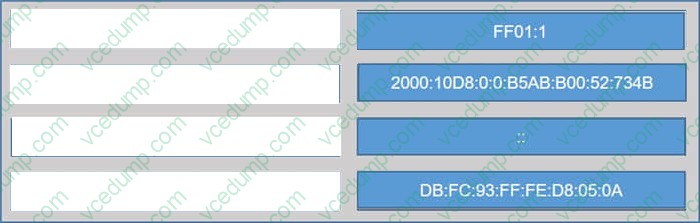

  Drag and Drop

  Select and Place:





• Question 652:

  Which two statements about switch stacking are true? (Choose two)

  A. The stack is powered by a single power cable
  B. The switches are connected in a daisy-chain fashion
  C. The first and last switch in the stack must be connected to one another
  D. The switches are connected by crossover cables
  E. The switches must be fully meshed
  A. The stack is powered by a single power cable
  B. The switches are connected in a daisy-chain fashion

• Question 653:

  Users have been complaining that their Frame Relay connection to the corporate site is very slow. The network administrator suspects that the link is overloaded.

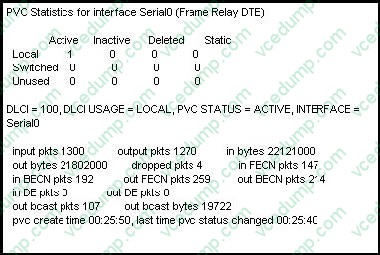

  Based on the partial output of the Router# show frame relay pvc command shown in the graphic, which output value indicates to the local router that traffic sent to the corporate site is experiencing congestion?

  A. DLCI = 100
  B. last time PVC status changed 00:25:40
  C. in BECN packets 192
  D. in FECN packets 147
  E. in DE packets 0
  C. in BECN packets 192

  ---

  If device A is sending data to device B across a Frame Relay infrastructure and one of the intermediate Frame Relay switches encounters congestion, congestion being full buffers, over-subscribed port, overloaded resources, etc, it will set the BECN bit on packets being returned to the sending device and the FECN bit on the packets being sent to the receiving device.

• Question 654:

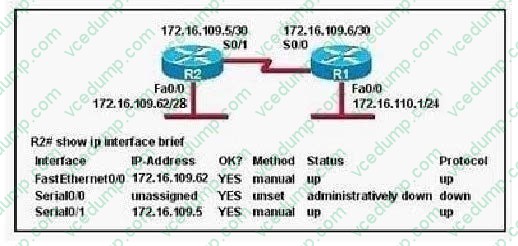

  Refer to the exhibit.



  Assuming that the entire network topology is shown, what is the operational status of the interfaces of R2 as indicated by the command output shown?

  A. One interface has a problem.
  B. Two interfaces have problems.
  C. The interfaces are functioning correctly.
  D. The operational status of the interfaces cannot be determined from the output shown.
  C. The interfaces are functioning correctly.

  ---

  The output shown shows normal operational status of the router's interfaces. Serial0/0 is down because it has been disabled using the "shutdown" command.

• Question 655:

  Which statements is true about Router on Stick?

  A. When a router have multiple subnets on a single physical link.
  B. When a router have single subnet on multiple physical links.
  C. When a router have multiple interface on single physical links.
  D. When a router have single interface on multiple physical links.
  A. When a router have multiple subnets on a single physical link.

• Question 656:

  If you are configuring syslog messages specifying `logging trap warning', which log messages will the router send?

  A. 0-4
  B. 0-5
  C. 0-6
  D. 0-2
  E. 0-1
  A. 0-4

• Question 657:

  Which two statements about TACACS+ are true? (Choose two)

  A. It combines authentication and authorization to simplify configuration
  B. it uses UDP port 49
  C. It supports full command logging
  D. It uses TCP port 49.
  E. It encrypts the password only
  C. It supports full command logging
  D. It uses TCP port 49.

• Question 658:

  Refer to the exhibit.



  If all routers on this network run RIPV2, which configuration should you apply router R3 to produce this routing table

  A. router rip network 192.168.3.0 network 192.168.4.0 network 192.168.23.0 Passive-interface default.
  B. router rip Version 2 network 192.168.3.0 network 192.168.4.0 network 192.168.23.0 Distance 70 Passive-interface default
  C. router network 192.168.3.0 network 192. 168.4.0 network 192.168.23.0 passive-interface default
  D. router rip Version 2 network 192.168.3.0 network 192.168.4.0 network 192.168.23.0 distance 70 passive-interface default
  E. router rip . version2 network 192.168.3.0 network 192.168.4.0 network 192. 168.23.0 Distance 50
  D. router rip Version 2 network 192.168.3.0 network 192.168.4.0 network 192.168.23.0 distance 70 passive-interface default

• Question 659:

  How to trouble DNS issue ( choose two) ?

  A. Ping a public website IP address.
  B. Ping the DNS Server.
  C. Determine whether a DHCP address has been assigned.
  D. Determine whether the hardware address is correct.
  E. Determine whether the name servers have been configured.
  B. Ping the DNS Server.
  E. Determine whether the name servers have been configured.

  ---

  Reference: https://l.facebook.com/l.php?u=http%3A%2F%2Fwww.cisco.com%2Fen%2FUS%2Fdocs% 2Finternetworking%2Ftroubleshooting%2Fguide%2Ftr1907.html%

  23wp1021264andh=ATMT6hWMWKar6G3cbMd8vYoG64obKG4CIuxXlmCWtCLencP9vUG0 hrC3C0azv18a RsmIsdrKko8ew_O6UkUwYCVqgYvxTz3TFquXNKyrnrAa1arE1V4HBFjg4_E2gJSawoz2_g Ping the destination by name perform a DNS lookup on the destination

• Question 660:

  Under which two circumstances is network traffic most likely to use an Exterior Gateway Routing Protocol? (Choose two)

  A. When an employee connects to an employer branch office in a different city.
  B. When network traffic is routing to a different building on a corporate campus.
  C. When an employee is browsing the public internet.
  D. When an employee checks email while working onsite at the data center.
  E. When a user browsing the web site of a business partner.
  A. When an employee connects to an employer branch office in a different city.
  D. When an employee checks email while working onsite at the data center.
