Cisco 200-125 Online Practice Questions and Exam Preparation

Cisco 200-125 Online Questions & Answers

• Question 591:

  When a router is unable to find a known route in the routing table, how does it handle the packet?

  A. It discards the packet
  B. It sends the packet over the route with the best metric
  C. It sends the packet to the next hop address
  D. It sends the packet to the gateway of last resort
  A. It discards the packet

• Question 592:

  Which type of cable must you use to connect two device with mdi interfaces ?

  A. rolled
  B. crosseover
  C. crossed
  D. straight through
  B. crosseover

• Question 593:

  What are two benefits that the UDP protocol provide for application traffic?(Choose two)

  A. UDP traffic has lower overhead than TCP traffic
  B. UDP provides a built-in recovery mechanism to retransmit lost packets.
  C. The CTL field in the UDP packet header enables a three-way handshake to establish the connection
  D. UDP maintains the connection state to provide more stable connections than TCP.
  E. The application can use checksums to verify the integrity of application data
  A. UDP traffic has lower overhead than TCP traffic
  E. The application can use checksums to verify the integrity of application data

• Question 594:

  Which tunneling mechanism embeds an IPv4 address within an IPv6 address?

  A. Teredo
  B. 6to4
  C. 4to6
  D. GRE
  E. ISATAP
  B. 6to4

  ---

  Explanation: ref :https://tools.ietf.org/html/rfc6052#section-2

• Question 595:

  After you configure a GRE tunnel between two networks, the tunnel comes up normally, but workstations on each side of the tunnel cannot communicate. Which reason for the problem is most likely true?

  A. The tunnel source address is incorrect.
  B. The tunnel destination address is incorrect.
  C. The routebetween the networks is undefined.
  D. The IP MTU is incorrect.
  E. The distance configuration is missing.
  D. The IP MTU is incorrect.

• Question 596:

  Which three statements about Syslog utilization are true? (Choose three.)

  A. Utilizing Syslog improves network performance.
  B. The Syslog server automatically notifies the network administrator of network problems.
  C. A Syslog server provides the storage space necessary to store log files without using router disk space.
  D. There are more Syslog messages available within Cisco IOS than there are comparable SNMP trap messages.
  E. Enabling Syslog on a router automatically enables NTP for accurate time stamping.
  F. A Syslog server helps in aggregation of logs and alerts.
  C. A Syslog server provides the storage space necessary to store log files without using router disk space.
  D. There are more Syslog messages available within Cisco IOS than there are comparable SNMP trap messages.
  F. A Syslog server helps in aggregation of logs and alerts.

  ---

  The Syslog sender sends a small (less than 1KB) text message to the Syslog receiver. The Syslog receiver is commonly called "syslogd," "Syslog daemon," or "Syslog server." Syslog messages can be sent via UDP (port 514) and/or TCP (typically, port 5000). While there are some exceptions, such as SSL wrappers, this data is typically sent in clear text over the network. A Syslog server provides the storage space necessary to store log files without using router disk space. In general, there are significantly more Syslog messages available within IOS as compared to SNMP Trap messages. For example, a Cisco Catalyst 6500 switch running Cisco IOS Software Release 12.2(18)SXF contains about 90 SNMP trap notification messages, but has more than 6000 Syslog event messages. System logging is a method of collecting messages from devices to a server running a syslog daemon. Logging to a central syslog server helps in aggregation of logs and alerts. Cisco devices can send their log messages to a UNIX-style syslog service. A syslog service accepts messages and stores them in files, or prints them according to a simple configuration file.

  Reference: http://www.cisco.com/c/en/us/products/collateral/services/high- availability/white_paper_c11-557812.html

• Question 597:

  Which definition of a host route is true?

  A. a route to the exact /32 destination address
  B. a route used when a route to the destination network is missing
  C. a dynamic route learned from a server
  D. a route that is manually configured
  A. a route to the exact /32 destination address

• Question 598:

  Which configuration gracefully brings down the line protocol status of a GRE tunnel interface if the tunnel destination becomes unreachable?

  A. Configure tunnel interface keepalives.
  B. Configure a static route for the tunnel
  C. Replace the tunnel with a loopback interface
  D. Configure an IGP such as OSPF on the tunnel
  C. Replace the tunnel with a loopback interface

• Question 599:

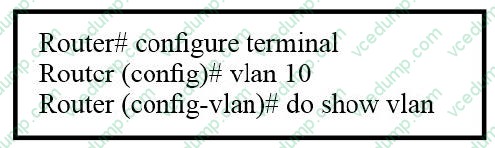

  Refer to the exhibit.



  Which statement describes the effect of this configuration?

  A. The VLAN 10 VTP configuration is displayed.
  B. VLAN 10 spanning-tree output is displayed.
  C. The VLAN 10 configuration is saved when the router exits VLAN configuration mode.
  D. VLAN 10 is added to the VLAN database.
  C. The VLAN 10 configuration is saved when the router exits VLAN configuration mode.

• Question 600:

  Which port security violation mode allows traffic from valid mac address to pass but block traffic from invalid mac address?

  A. protect
  B. shutdown
  C. shutdown vlan
  D. restrict
  A. protect
