• Question 601:

  Which command displays CPU utilization?

  A. show protocols
  B. show process
  C. show system
  D. show version
  B. show process

  ---

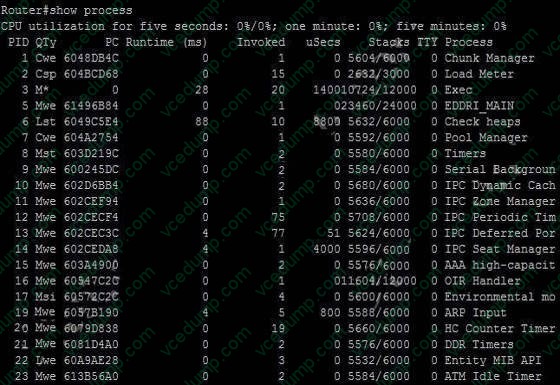

  The "show process" (in fact, the full command is "show processes") command gives us lots of information about each process but in fact it is not easy to read. Below shows the output of this command (some next pages are omitted).

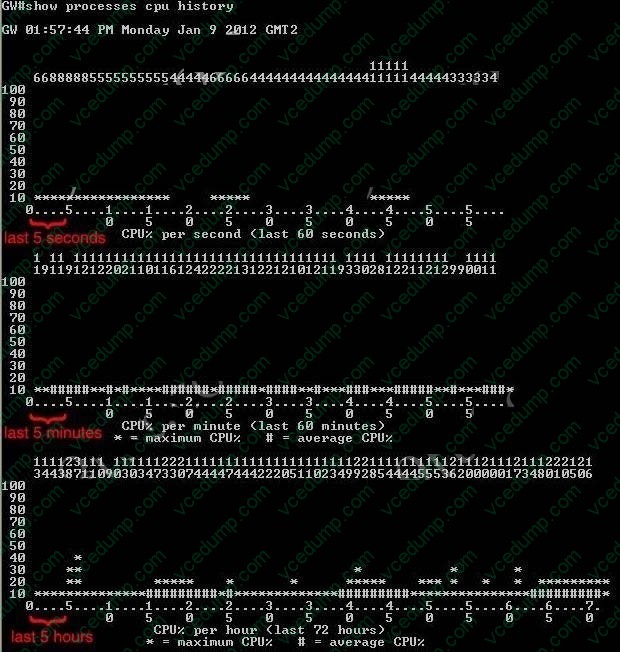

  A more friendly way to check the CPU utilization is the command "show processes cpu history", in which the total CPU usage on the router over a period of time: one minute, one hour, and 72 hours are clearly shown:



  +

  The Y-axis of the graph is the CPU utilization.

  +

  The X-axis of the graph is the increment within the period displayed in the graph. For example, from the last graph (last 72 hours) we learn that the highest CPU utilization within 72 hours is 37% about six hours ago.

• Question 602:

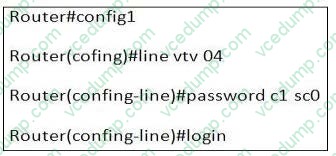

  Refer to the exhibit.



  Which user-mode password has just been set?

  A. Telnet
  B. Auxiliary
  C. SSH
  D. Console
  A. Telnet

• Question 603:

  From which PPPoE server configuration does a PPPoE client get an IP address?

  A. AAA authentication
  B. DHCP
  C. dialer interface
  D. virtual-template interface
  D. virtual-template interface

• Question 604:

  While you were troubleshooting a connection issue, a ping from one VLAN to another VLAN on the same switch failed. Which command verifies that IP routing is enabled on interfaces and the local VLANs are up?

  A. show ip interface brief
  B. show ip nat statistics
  C. show ip statistics
  D. show ip route
  A. show ip interface brief

  ---

  Initiate a ping from an end device in one VLAN to the interface VLAN on another VLAN in order to verify that the switch routes between VLANs. In this example, ping from VLAN 2 (10.1.2.1) to Interface VLAN 3 (10.1.3.1) or Interface VLAN 10 (10.1.10.1). If the ping fails, verify that IP routing is enabled and that the VLAN interfaces status is up with the show ip interface brief command.

• Question 605:

  Which two of these statements regarding mode allows traffic? (Choose two)

  A. 802.1Q trunks require full-duplex, point-to-point connectivity.
  B. 802.1Q trunking ports can also be secure ports.
  C. 802.1Q native VLAN frames are always untagged and cannot be tagged.
  D. 802.1Q trunks should have native VLANs that are the same at both ends.
  E. 802.1Q native VLAN frames are untagged by default.
  D. 802.1Q trunks should have native VLANs that are the same at both ends.
  E. 802.1Q native VLAN frames are untagged by default.

• Question 606:

  On a Cisco switch, which protocol determines if an attached VoIP phone is from Cisco or from another vendor?

  A. CDP
  B. RTP
  C. UDP
  D. TCP
  A. CDP

• Question 607:

  Which two pieces of information about a Cisco device can Cisco Discovery Protocol communicate?(choose two)

  A. the spanning tree protocol
  B. the spanning-tree priority
  C. the native VLAN
  D. the VTP domain
  E. the trunking protocol
  C. the native VLAN
  D. the VTP domain

• Question 608:

  For which two reasons might you choose chassis aggregation instead of stacking switches?(Choose two)

  A. to allow hot-swapping modules
  B. to increase the number of devices in use
  C. to avoid the use of a centralized configuration manager
  D. to avoid relying solely on Ethemet interfaces
  E. to increase the maximum port count
  A. to allow hot-swapping modules
  B. to increase the number of devices in use

• Question 609:

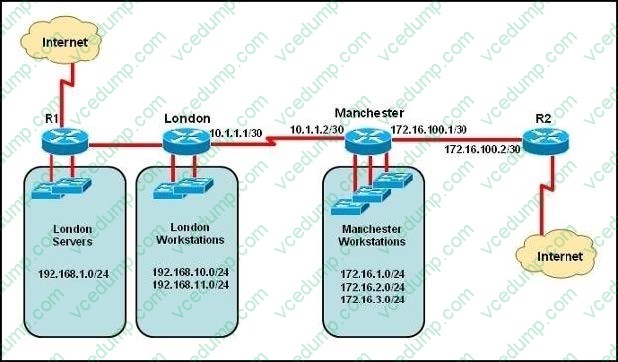

  Refer to the exhibit.



  The network administrator must establish a route by which London workstations can forward traffic to the Manchester workstations. What is the simplest way to accomplish this?

  A. Configure a dynamic routing protocol on London to advertise all routes to Manchester.
  B. Configure a dynamic routing protocol on London to advertise summarized routes to Manchester.
  C. Configure a dynamic routing protocol on Manchester to advertise a default route to the London router.
  D. Configure a static default route on London with a next hop of 10.1.1.1.
  E. Configure a static route on London to direct all traffic destined for 172.16.0.0/22 to 10.1.1.2.
  F. Configure Manchester to advertise a static default route to London.
  E. Configure a static route on London to direct all traffic destined for 172.16.0.0/22 to 10.1.1.2.

  ---

  This static route will allow for communication to the Manchester workstations and it is better to use this more specific route than a default route as traffic destined to the Internet will then not go out the London Internet connection.

• Question 610:

  Drag and Drop

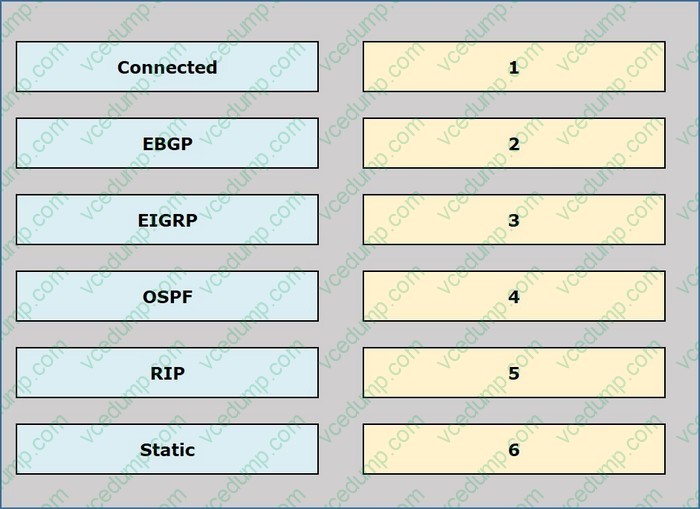

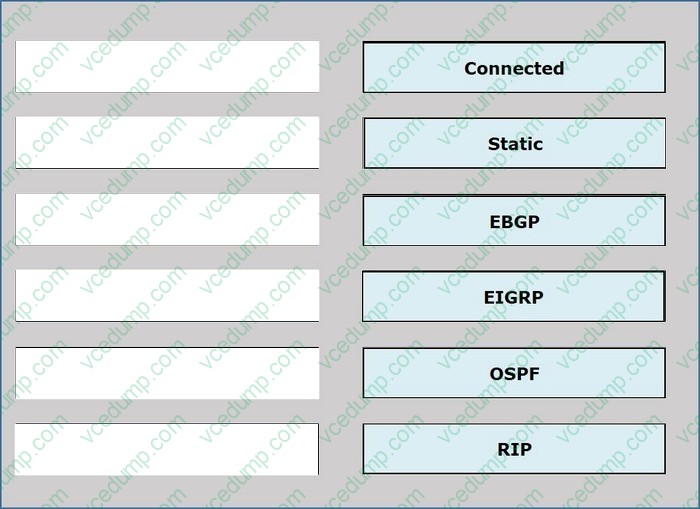

  Drag each route source from the left to the numbners on the right Beginning with the lowest and ending with the highest administrative distance.

  Select and Place:
