Cisco 200-105 Online Practice Questions and Exam Preparation

Cisco 200-105 Online Questions & Answers

• Question 681:

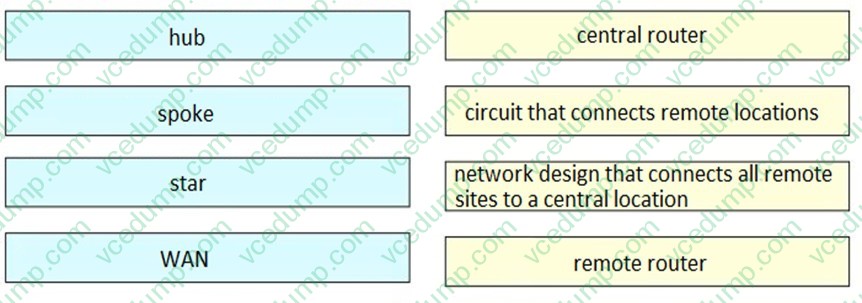

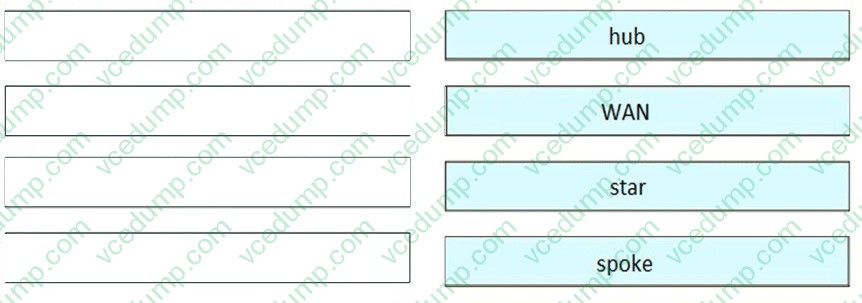

  DRAG DROP

  Drag and drop the terms associated with a hub-and-spoke topology from the left onto the correct descriptions on the right.

  Select and Place:





• Question 682:

  Which feature can validate address requests and filter out invalid messages?

  A. IP Source Guard
  B. port security
  C. DHCP snooping
  D. dynamic ARP inspection
  C. DHCP snooping

• Question 683:

  Which type of routing protocol relies on the shortest path tree?

  A. path-vector
  B. hybrid routing
  C. link-state
  D. distance-vector
  C. link-state

• Question 684:

  Which address is the IPv6 all-RIP-routers multicast group address that is used by RIPng as the destination address for RIP updates?

  A. FF02::6
  B. FF02::9
  C. FF05::101
  D. FF02::A
  B. FF02::9

• Question 685:

  Which two of these statements are true of IPv6 address representation? (Choose two.)

  A. There are four types of IPv6 addresses: unicast, multicast, anycast, and broadcast.
  B. A single interface may be assigned multiple IPv6 addresses of any type.
  C. Every IPv6 interface contains at least one loopback address.
  D. The first 64 bits represent the dynamically created interface ID.
  E. Leading zeros in an IPv6 16 bit hexadecimal field are mandatory.
  B. A single interface may be assigned multiple IPv6 addresses of any type.
  C. Every IPv6 interface contains at least one loopback address.

• Question 686:

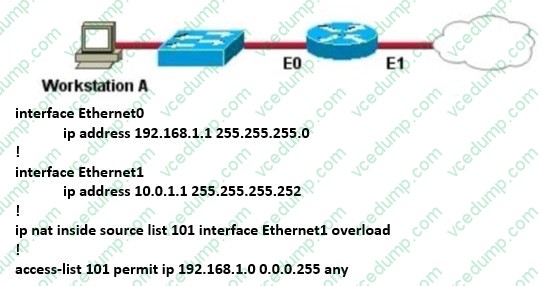

  Refer to the exhibit. Given the partial configuration shown in the exhibit, why do internal workstations on the 192.168.1.0 network fail to access the Internet?



  A. A NAT pool has not been defined.
  B. The wrong interface is overloaded.
  C. NAT has not been applied to the inside and outside interfaces.
  D. The access list has not been applied to the proper interface to allow traffic out of the internal network.
  C. NAT has not been applied to the inside and outside interfaces.

• Question 687:

  Which two statements about data vlans on access ports are true? (Choose two.)

  A. they can be configured as trunk ports
  B. 802.1Q encapsulation must be configured on the interface
  C. Exactly one vlan can be configured on the interface
  D. Two or more vlans can be configured on the interface
  E. They can be configured as host ports
  C. Exactly one vlan can be configured on the interface
  E. They can be configured as host ports

• Question 688:

  Which type of traffic does an 802.1x port pass before authentication?

  A. DHCP traffic
  B. all normal traffic
  C. control-plane traffic
  D. EAPOL traffic
  D. EAPOL traffic

• Question 689:

  Which WAN technology uses labels to make decisions about data forwarding?

  A. Metro Ethernet
  B. Frame Relay
  C. MPLS
  D. ISDN
  E. VSAT
  C. MPLS

• Question 690:

  What are two benefits of using a single OSPF area network design? (Choose two.)

  A. It is less CPU intensive for routers in the single area.
  B. It reduces the types of LSAs that are generated.
  C. It removes the need for virtual links.
  D. It increases LSA response times.
  E. It reduces the number of required OSPF neighbor adjacencies.
  B. It reduces the types of LSAs that are generated.
  C. It removes the need for virtual links.

  ---

  OSPF uses a LSDB (link state database) and fills this with LSAs (link state advertisement).

  The link types are as follows: LSA Type 1: Router LSA LSA Type 2: Network LSA LSA Type 3: Summary LSA LSA Type 4: Summary ASBR LSA LSA Type 5: Autonomous system external LSA LSA Type 6: Multicast OSPF LSA LSA Type 7: Not-so-stubby area LSA LSA Type 8: External attribute LSA for BGP

  If all routers are in the same area, then many of these LSA types (Summary ASBR LSA, external LSA, etc) will not be used and will not be generated by any router. All areas in an Open Shortest Path First (OSPF) autonomous system must be physically connected to the backbone area (Area 0). In some cases, where this is not possible, you can use a virtual link to connect to the backbone through a non- backbone area. You can also use virtual links to connect two parts of a partitioned backbone through a non-backbone area. The area through which you configure the virtual link, known as a transit area, must have full routing information. The transit area cannot be a stub area. Virtual links are not ideal and should really only be used for temporary network solutions or migrations. However, if all locations are in a single OSPF area this is not needed.
