Cisco 200-105 Online Practice Questions and Exam Preparation

Cisco 200-105 Online Questions & Answers

• Question 641:

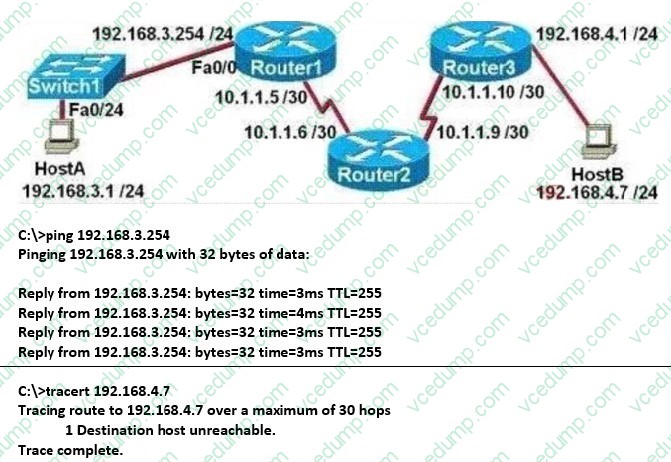

  Refer to the exhibit. A technician is testing connection problems in the internetwork. What is the problem indicated by the output from HostA?



  A. The routing on Router2 is not functioning properly.
  B. An access list is applied to an interface of Router3.
  C. The Fa0/24 interface of Switch1 is down.
  D. The gateway address of HostA is incorrect or not configured.
  D. The gateway address of HostA is incorrect or not configured.

• Question 642:

  Which two characteristics of standard access lists are true? (Choose two.)

  A. They can compare source traffic only against a permit or deny statement.
  B. They must be identified with a number between 1 and 99 or 1300 and 1999.
  C. They can be identified only with a number between 1 and 99.
  D. They cannot be used to identify traffic path.
  E. They can compare source and destination traffic against a permit or deny statement.
  A. They can compare source traffic only against a permit or deny statement.
  B. They must be identified with a number between 1 and 99 or 1300 and 1999.

• Question 643:

  Which BGP command do you enter to allow a device to exchange IPv6 prefixes with its neighbor?

  A. neighbor ip-address activate
  B. neighbor ip-address remote-as ASN
  C. router bgp ASN
  D. show ip bgp neighbors
  A. neighbor ip-address activate

  ---

  Reference: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/iproute_bgp/configuration/xe-16/irg-xe-16-book/ipv-routing-multiprotocol-bgp-link-local-address-peering.html

• Question 644:

  Which two statement about proxy ARP are true? (Choose two)

  A. It is supported on networks without ARP.
  B. It allows machines to spoof packets.
  C. It requires larger ARP tables.
  D. It reduces the amount of ARP traffic.
  B. It allows machines to spoof packets.
  C. It requires larger ARP tables.

• Question 645:



  Refer to the exhibit. If all four routers come up at the same time, which router becomes the HSRP active router for the 192.168.10.0/24 subnet?

  A. R1
  B. R2
  C. R3
  D. R4
  C. R3

• Question 646:

  Which command do you enter to configure client authentication for PPPoE?

  A. Dev1(config-if)#ppp pap sent-username cisco password password1
  B. Dev1(config)#aaa authentication ppp default local
  C. Dev1(config-if)#ppp chap password password1
  D. Dev1(config)#username cisco password password1
  D. Dev1(config)#username cisco password password1

• Question 647:

  Under normal operations, Cisco recommends that you configure switchports on which VLAN?

  A. on any VLAN except the default VLAN
  B. on the management VLAN
  C. on the native VLAN
  D. on the default VLAN
  D. on the default VLAN

• Question 648:

  Which command do use we to see SNMP version?

  A. show snmp pending
  B. show snmp engineID C. snmp-server something
  A. show snmp pending

• Question 649:

  Which statement about slow inter-VLAN forwarding is true?

  A. The VLAN is experiencing slowness in the point-to-point collisionless connection.
  B. The VLANs are experiencing slowness because multiple devices are connected to the same hub.
  C. The local VLAN is working normally, but traffic to the alternate VLAN is forwarded slower than expected.
  D. The entire VLAN is experiencing slowness.
  E. The VLANs are experiencing slowness due to a duplex mismatch.
  E. The VLANs are experiencing slowness due to a duplex mismatch.

  ---

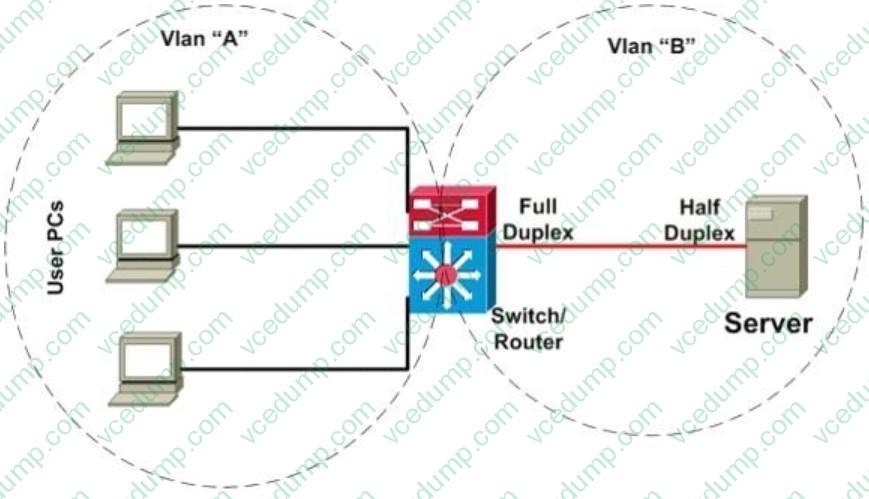

  Common Causes of Slow IntraVLAN and InterVLAN Connectivity The symptoms of slow connectivity on a VLAN can be caused by multiple factors on different network layers. Commonly the network speed issue may be occurring on a lower level, but symptoms can be observed on a higher level as the problem masks itself under the term "slow VLAN". To clarify, this document defines the following new terms: "slow collision domain", "slow broadcast domain" (in other words, slow VLAN), and "slow interVLAN forwarding". These are defined in the section Three Categories of Causes, below. In the following scenario (illustrated in the network diagram below), there is a Layer 3 (L3) switch performing interVLAN routing between the server and client VLANs. In this failure scenario, one server is connected to a switch, and the port duplex mode is configured half-duplex on the server side and full-duplex on the switch side. This misconfiguration results in a packet loss and slowness, with increased packet loss when higher traffic rates occur on the link where the server is connected. For the clients who communicate with this server, the problem looks like slow interVLAN forwarding because they do not have a problem communicating to other devices or clients on the same VLAN. The problem occurs only when communicating to the server on a different VLAN.Thus, the problem occurred on a single collision domain, but is seen as slow interVLAN forwarding.



  Three Categories of Causes The causes of slowness can be divided into three categories, as follows: Slow Collision Domain Connectivity Collision domain is defined as connected devices configured in a half-duplex port configuration, connected to each other or a hub. If a device is connected to a switch port and full-duplex mode is configured, such a point-to-point connection is collisionless. Slowness on such a segment still can occur for different reasons. Slow Broadcast Domain Connectivity (Slow VLAN) Slow broadcast domain connectivity occurs when the whole VLAN (that is, all devices on the same VLAN) experiences slowness. Slow InterVLAN Connectivity (Slow Forwarding Between VLANs) Slow interVLAN connectivity (slow forwarding between VLANs) occurs when there is no slowness on the local VLAN, but traffic needs to be forwarded to an alternate VLAN, and it is not forwarded at the expected rate. Causes for Network Slowness Packet Loss In most cases, a network is considered slow when higher-layer protocols (applications) require extended time to complete an operation that typically runs faster. That slowness is caused by the loss of some packets on the network, which causes higher-level protocols like TCP or applications to time out and initiate retransmission. Hardware Forwarding Issues With another type of slowness, caused by network equipment, forwarding (whether Layer 2 [L2] or L3) is performed slowly. This is due to a deviation from normal (designed) operation and switching to slow path forwarding. An example of this is when Multilayer Switching (MLS) on the switch forwards L3 packets between VLANs in the hardware, but due to misconfiguration, MLS is not functioning properly and forwarding is done by the router in the software (which drops the interVLAN forwarding rate significantly).

• Question 650:

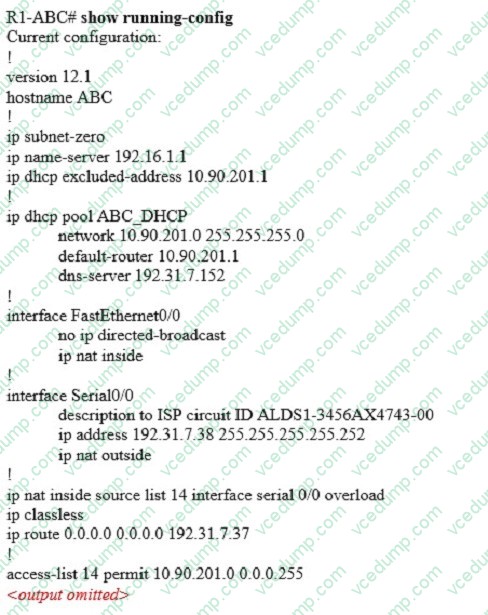

  Refer to the output from the show running-config command in the exhibit. What should the administrator do to allow the workstations connected to the FastEthernet 0/0 interface to obtain an IP address?



  A. Apply access-group 14 to interface FastEthernet 0/0.
  B. Add access-list 14 permit any any to the access list configuration.
  C. Configure the IP address of the FastEtherent 0/0 interface to 10.90.201.1.
  D. Add an interface description to the FastEthernet 0/0 interface configuration.
  C. Configure the IP address of the FastEtherent 0/0 interface to 10.90.201.1.
