Cisco 200-105 Online Practice Questions and Exam Preparation

Cisco 200-105 Online Questions & Answers

• Question 621:

  Which two statements about MPLS are true? (Choose two.)

  A. it encapsulates all traffic in an ipv4 header
  B. it provides automatic authentication
  C. it uses labels to separate and forward customer traffic
  D. it can carry multiple protocols, including ipv4 and ipv6
  E. it tags customer traffic using 802.1q
  C. it uses labels to separate and forward customer traffic
  D. it can carry multiple protocols, including ipv4 and ipv6

• Question 622:

  What command is used to verify the DLCI destination address in a Frame Relay static configuration?

  A. show frame-relay pvc
  B. show frame-relay lmi
  C. show frame-relay map
  D. show frame relay end-to-end
  C. show frame-relay map

  ---

  This command is used to verify whether the frame-relay inverse-arp command resolved a remote IP address to a local DLCI. Use the show frame-relay map command to display the current map entries and information about the connections.

• Question 623:

  Which protocol can be used between administrative domains?

  A. IS-IS
  B. EIGRP
  C. BGP
  D. OSPF
  C. BGP

• Question 624:

  What are three reasons to collect Netflow data on a company network? (Choose three.)

  A. To identify applications causing congestion.
  B. To authorize user network access.
  C. To report and alert link up / down instances.
  D. To diagnose slow network performance, bandwidth hogs, and bandwidth utilization.
  E. To detect suboptimal routing in the network.
  F. To confirm the appropriate amount of bandwidth that has been allocated to each Class of Service.
  A. To identify applications causing congestion.
  D. To diagnose slow network performance, bandwidth hogs, and bandwidth utilization.
  F. To confirm the appropriate amount of bandwidth that has been allocated to each Class of Service.

  ---

  NetFlow facilitates solutions to many common problems encountered by IT professionals.

  +

  Analyze new applications and their network impact

  Identify new application network loads such as VoIP or remote site additions.

  +

  Reduction in peak WAN traffic

  Use NetFlow statistics to measure WAN traffic improvement from application-policy changes;

  understand who is utilizing the network and the network top talkers.

  +

  Troubleshooting and understanding network pain points

  Diagnose slow network performance, bandwidth hogs and bandwidth utilization quickly with command line interface or reporting tools.

  +

  Detection of unauthorized WAN traffic

  Avoid costly upgrades by identifying the applications causing congestion.

  +

  Security and anomaly detection

  NetFlow can be used for anomaly detection and worm diagnosis along with applications such as Cisco CS-Mars.

  +

  Validation of QoS parameters

  Confirm that appropriate bandwidth has been allocated to each Class of Service (CoS) and that no CoS is over-or under-subscribed.

  Reference: http://www.cisco.com/c/en/us/products/collateral/ios-nx-os-software/ios-netflow/prod_white_paper0900aecd80406232.html

• Question 625:

  Which effect of the monitor session 16 source interface gigabitethernet 3/1 command is true?

  A. It configures the device to monitor uni-directional source traffic for session 16.
  B. It configures the device to monitor uni-directional destination traffic for session 16.
  C. It configures the device interface as a source to monitor bi-directional traffic for session 16.
  D. It configures the device interface as destination to monitor bi-directional traffic for session 16.
  C. It configures the device interface as a source to monitor bi-directional traffic for session 16.

• Question 626:

  Which name describes an IPv6 host-enabled tunneling technique that uses IPv4 UDP, does not require dedicated gateway tunnels, and can pass through existing IPv4 NAT gateways?

  A. manual 6to4
  B. dual stack
  C. dynamic
  D. Teredo
  D. Teredo

• Question 627:

  What is the maximum cost for hello and dead packets in OSPF? (Choose two)

  A. hello 10
  B. hello 60
  C. dead 40
  D. dead 120
  A. hello 10
  C. dead 40

• Question 628:

  Which result occurs when you configure the standby preempt command on an HSRP router that has the same priority as the active router and a higher IP address?

  A. The router becomes the active router only when the current active router fails
  B. The router fails to become the active router under any circumstances
  C. The router immediately becomes the active router because it has the highest configured IP address
  D. The router becomes the active router only when another router triggers renegotiation of the active router
  A. The router becomes the active router only when the current active router fails

  ---

  A standby router with equal priority but a higher IP address will not preempt the active router Reference: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/ipapp_fhrp/configuration/15-sy/fhp-15-sy-book/fhp-hsrp.pdf

• Question 629:

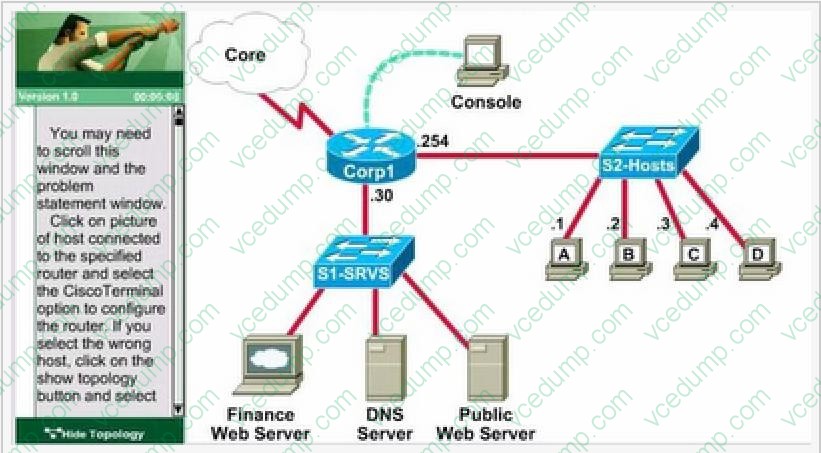

  CORRECT TEXT Lab - Access List Simulation A network associate is adding security to the configuration of the Corp1 router. The user on host C should be able to use a web browser to access financial information from the Finance Web Server. No other hosts from the LAN nor the Core

  should be able to use a web browser to access this server. Since there are multiple resources for the corporation at this location including other resources on the Finance Web Server, all other traffic should be allowed.

  The task is to create and apply a numbered access-list with no more than three statements that will allow ONLY host C web access to the Finance Web Server. No other hosts will have web access to the Finance Web Server. All other traffic

  is permitted. Access to the router CLI can be gained by clicking on the appropriate host.

  All passwords have been temporarily set to "cisco".

  The Core connection uses an IP address of 198.18.196.65

  The computers in the Hosts LAN have been assigned addresses of 192.168.33.1 ?92.168.33.254

  Host A 192.168.33.1

  Host B 192.168.33.2

  Host C 192.168.33.3

  Host D 192.168.33.4

  The servers in the Server LAN have been assigned addresses of 172.22.242.17 ?172.22.242.30

  The Finance Web Server is assigned an IP address of 172.22.242.23.

  The Public Web Server is assigned an IP address of 172.22.242.17



  Correct Answer. Check the answer below
  Check the answer below

  ---

  Corp1#configure terminal

  Our access-list needs to allow host C ?192.168.33.3 to the Finance Web Server 172.22.242.23 via web (port 80) Corp1(config)#access-list 100 permit tcp host 192.168.33.3 host 172.22.242.23 eq 80 Deny other hosts access to the Finance Web Server via web Corp1(config)#access-list 100 deny tcp any host 172.22.242.23 eq 80 All other traffic is permitted

  Corp1(config)#access-list 100 permit ip any any

  Apply this access-list to Fa0/1 interface (outbound direction)

  Corp1(config)#interface fa0/1Corp1(config-if)#ip access-group 100 out

  Select the console on Corp1 router

  Configuring ACLCorp1>enableCorp1#configure terminal

  Comment: To permit only Host C (192. 168. 33. 3){source addr} to access finance server address (172.22.242. 23){destination addr} on port number 80 (web) Corp1(config)# access-list 100 permit tcp host 192.168.33.3 host 172.22.242.23 eq 80 Comment: To deny any source to access finance server address (172. 22. 242. 23) {destination addr} on port number 80 (web)

  Corp1(config)# access-list 100 deny tcp any host 172.22.242.23 eq 80

  Comment: To permit ip protocol from any source to access any destination because of the implicit deny any any statement at the end of ACL. Corp1(config)# access-list 100 permit ip any any Applying the ACL on the Interface Comment: Check show ip interface brief command to identify the interface type and number by checking the IP address configured.

  Corp1(config)#interface fa 0/1

  If the ip address configured already is incorrect as well as the subnet mask. this should be corrected in order ACL to work type this commands at interface mode :

  no ip address 192. x. x. x 255. x. x. x (removes incorrect configured ip address and subnet mask) Configure Correct IP Address and subnet mask :

  ip address 172. 22. 242. 30 255. 255. 255. 240 ( range of address specified going to server is given as 172.22. 242. 17 172. 22. 242. 30 )

  Comment: Place the ACL to check for packets going outside the interface towards the finance web server.

  Corp1(config-if)#ip access-group 100 outCorp1(config-if)#end

  Important: To save your running config to startup before exit.

  Corp1#copy running-config startup-config

  Verifying the Configuration :

  Step1: Show ip interface brief command identifies the interface on which to apply access list . Step2: Click on each host A, B, C and D . Host opens a web browser page , Select address box of the web browser and type the ip address of finance

  web server(172. 22. 242. 23) to test whether it permits /deny access to the finance web Server.

• Question 630:

  Which two characteristics of stacked switches are true? (Choose two.)

  A. They reduce management complexity.
  B. They are less scalable than modular switches.
  C. They can manage multiple IP addresses across multiple switches.
  D. They have a single management interface.
  E. Each unit in the stack can be assigned its own IP address for administration.
  A. They reduce management complexity.
  D. They have a single management interface.
