Cisco 200-105 Online Practice Questions and Exam Preparation

Cisco 200-105 Online Questions & Answers

• Question 541:

  Which two commands debug a PPPoE connection that has failed to establish? (Choose two.)

  A. Debug ppp compression
  B. Debug ppp negotiation
  C. Debug dialer events
  D. Debug ppp cbcp
  E. Debug dialer packet
  B. Debug ppp negotiation
  E. Debug dialer packet

• Question 542:

  CORRECT TEXT

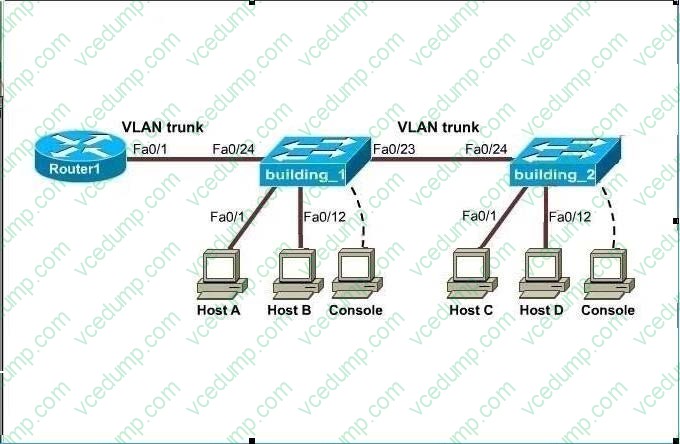

  A new switch is being added to the River Campus LAN. You will work to complete this process by first configuring the building_2 switch with an IP address and default gateway. For the switch host address, you should use the last available IP address on the management subnet. In addition, the switch needs to be configured to be in the same VTP domain as the building_1 switch and also needs to be configured as a VTP client. Assume that the IP configuration and VTP configuration on building_1 are complete and correct. The configuration of the router is not accessible for this exercise. You must accomplish the following tasks:

  Determine and configure the IP host address of the new switch. Determine and configure the default gateway of the new switch. Determine and configure the correct VTP domain name for the new switch.

  Configure the new switch as a VTP client.



  Correct Answer. Check the answer in explanation.
  Check the answer in explanation.

  ---

  Here are the Steps for this Lab Solution:

  The question states we can't access the router so we can only get required information from switch building_1. Click on the PC connected with switch building_1 (through a console line) to access switch building_1s CLI. On this switch use the

  show running-config command:

  building_1#show running-config

  Next use the show vtp status command to learn about the vtp domain on this switch

  building_1#show vtp status

  (Notice: the IP address, IP default-gateway and VTP domain name might be different!!!) You should write down these 3 parameters carefully.

  Configuring the new switch

  + Determine and configure the IP host address of the new switch The question requires "for the switch host address, you should use the last available IP address on the management subnet". The building_1 switch's IP address, which is

  192.168.22.50 255.255.255.224, belongs to the management subnet.

  Increment: 32 (because 224 = 1110 0000)Network address: 192.168.22.32 Broadcast address: 192.168.22.63

  ->The last available IP address on the management subnet is 192.168.22.62 and it hasn't been used (notice that the IP address of Fa0/1 interface of the router is also the default gateway address 192.168.22.35). Also notice that the management IP address of a switch should be configured in Vlan1 interface. After it is configured, we can connect to it via telnet or SSH to manage it.

  Switch2#configure terminalSwitch2(config)#interface Vlan1Switch2(config-if)#ip address 192.168.22.62 255.255.255.224Switch2(config-if)#no shutdown

  + Determine and configure the default gateway of the new switch The default gateway of this new switch is same as that of building_1 switch, which is 192.168.22.35

  Switch2(config-if)#exitSwitch2(config)#ip default-gateway 192.168.22.35

  + Determine and configure the correct VTP domain name for the new switch The VTP domain name shown on building_1 switch is Cisco so we have to use it in the new switch (notice: the VTP domain name will be different in the exam and it is case sensitive so be careful)

  Switch2(config)# vtp domain Cisco

  + Configure the new switch as a VTP client

  Switch2(config)#vtp mode client

  We should check the new configuration with the "show running-config" and "show vtp status"; also try pinging from the new switch to the the default gateway to make sure it works well. Finally save the configuration

  Switch2(config)#exitSwitch2#copy running-config startup-config

• Question 543:

  Which technology supports fast provisioning for cloud resources?

  A. static routing
  B. IPS
  C. DHCP
  D. HSRP
  C. DHCP

• Question 544:

  What is the advantage of using a multipoint interface instead of point-to-point subinterfaces when configuring a Frame Relay hub in a hub-and-spoke topology?

  A. It avoids split-horizon issues with distance vector routing protocols.
  B. IP addresses can be conserved if VLSM is not being used for subnetting.
  C. A multipoint interface offers greater security compared to point-to-point subinterface configurations.
  D. The multiple IP network addresses required for a multipoint interface provide greater addressing flexibility over point-to-point configurations.
  B. IP addresses can be conserved if VLSM is not being used for subnetting.

  ---

  You do not have to assign a separate subnet per sub-interface. If you're using a Class A network (10.x.x.x/8), you blow the whole network on a few connections (if you used VLSM, you could use a better mask, limit the addresses used). if you used 10.0.0.0/8, you would not be assigning the entire /8 to a single network. You would select a subnet mask for the network and then, you would have to use that mask with all subnets of the network. So if you chose a /24 mask, that would mean that you would have to use a /24 mask for even point-to-point links.

• Question 545:

  Which statement about the default VLAN is true?

  A. It is always the same as the native VLAN.
  B. Its name is Default by default.
  C. It can be removed without additional configuration.
  D. It is always VLAN 1.
  D. It is always VLAN 1.

• Question 546:

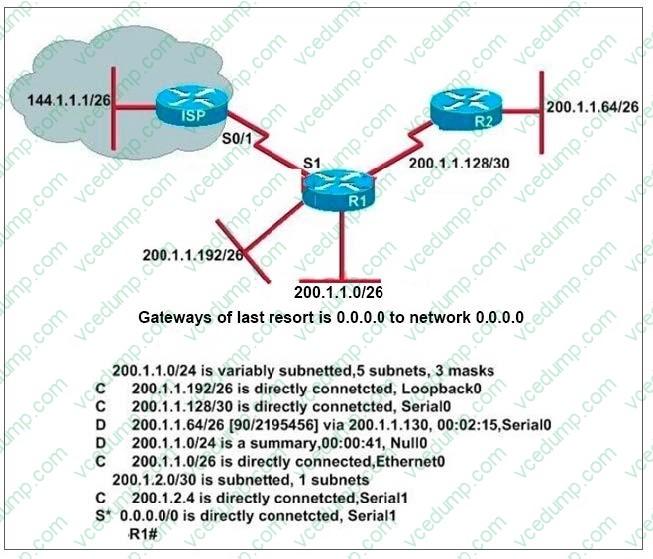

  Refer to the graphic and routing table for router R1. Based on the output of the R1# show ip route command and the information presented in the graphic, which of the following is a potential routing problem?



  A. the use of summarization for discontiguous networks
  B. the use of CIDR with a routing protocol that does not support it
  C. the use of VLSM with a routing protocol that does not support it
  D. the use of the no auto-summary command with a protocol that does not support summarization
  E. the use of the ip route 0.0.0.0 0.0.0.0 command with a routing protocol that does not support it
  A. the use of summarization for discontiguous networks

• Question 547:

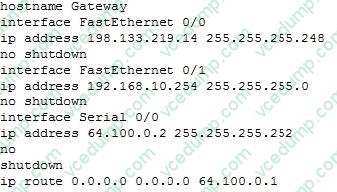

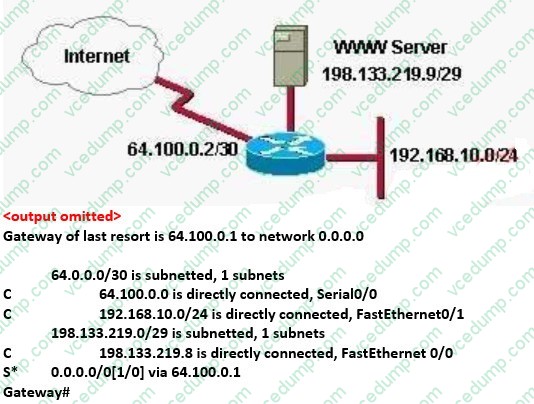

  Refer to the exhibit. The router has been configured with these commands:



  What are the two results of this configuration? (Choose two.)



  A. The default route should have a next hop address of 64.100.0.3.
  B. Hosts on the LAN that is connected to FastEthernet 0/1 are using public IP addressing.
  C. The address of the subnet segment with the WWW server will support seven more servers.
  D. The addressing scheme allows users on the Internet to access the WWW server.
  E. Hosts on the LAN that is connected to FastEthernet 0/1 will not be able to access the Internet without address translation.
  D. The addressing scheme allows users on the Internet to access the WWW server.
  E. Hosts on the LAN that is connected to FastEthernet 0/1 will not be able to access the Internet without address translation.

• Question 548:

  Which configuration item is the default username for PPP local authentication?

  A. the router MAC address
  B. the router hostname
  C. cisco
  D. The router serial number
  B. the router hostname

• Question 549:

  Which two are advantages of static routing when compared to dynamic routing? (Choose two.)

  A. Configuration complexity decreases as network size increases.
  B. Security increases because only the network administrator may change the routing table.
  C. Route summarization is computed automatically by the router.
  D. Routing tables adapt automatically to topology changes.
  E. An efficient algorithm is used to build routing tables, using automatic updates.
  F. Routing updates are automatically sent to neighbors.
  G. Routing traffic load is reduced when used in stub network links.
  B. Security increases because only the network administrator may change the routing table.
  G. Routing traffic load is reduced when used in stub network links.

  ---

  Reference: http://www.ciscopress.com/articles/article.asp?p=24090andseqNum=6 http://www.ciscopress.com/articles/article.asp?p=24090

• Question 550:

  Which six-byte field in a basic Ethernet frame must be an individual address?

  A. FCS
  B. SOF
  C. SA
  D. DA
  C. SA
